ZStar

ZStar is an automated toolkit for polarization, Born effective charges, dielectric response, and infrared and Raman spectra calculations. Its principal workflow uses ABACUS, PYATB, and Phonopy.

Quick Start

Install ZStar and download the public examples:

pip install -U zstar
git clone https://github.com/xdzhu/ZStar.git

The pip install command alone is sufficient when the reproducible examples are not needed; examples are distributed through GitHub rather than the wheel.

Follow the calculator configuration guide to set ABACUS, PYATB, and MPI/OMP, then confirm the two executables with zstar config check.

The supplied two-atom 3C-SiC case is the shortest complete route to BEC, Gamma-point phonons, IR, and Raman results:

cd zstar/examples/3D_Bulk/SiC
cp -r run work
cd work

zstar bec pre --stru STRU
zstar bec run --dry-run
zstar bec run
zstar bec stat
zstar bec post

zstar spectra pre --root spectra --response .
zstar spectra run --root spectra
zstar spectra stat --root spectra
zstar spectra post --root spectra

The BEC stages construct BEC and Gamma force constants from the common displacements. The spectroscopy stages obtain IR from the BEC and modes and run the additional PYATB responses required for Raman. Repeated runs resume completed stages. Expect opposite Si/C BEC values near 2.70 e and a triply degenerate optical mode near 773 cm^-1; matching spectra are archived in the GitHub case.

For agent-assisted use, run zstar skill install, open a new agent session, and use:

Use $run-zstar-workflows to reproduce the 3C-SiC Quick Start in
examples/3D_Bulk/SiC. Run the preflight first, then execute the zstar bec and
zstar spectra stages individually if ABACUS and PYATB are available. Explain
each stage and report the BEC table, optical-mode frequencies, and spectrum paths.

Highlights

• Unified symmetry-adapted BEC/APT, Gamma force constants and static nonresonant Raman derivatives from the same calculations. Retained electronic matrices supply additional PYATB responses without additional SCFs.
• Molecular atomic polar tensors (APT) from ABACUS + PYATB or CP2K dipoles.
• Symmetry reduction, full-cell reconstruction, and acoustic-sum-rule correction.
• Serial and resumable 0.no-move -> displacements execution.
• Reuse of the converged reference charge density.
• A one-time insulating-state gate using a normal band path by default.
• Shell, Slurm, and Torque/PBS drivers with Specified, Current, or Global headers.
• Legacy and direct-static-response PYATB compatibility.
• Hybrid 1D BECs: transverse charge-density dipoles plus longitudinal Berry polarization.
• Hybrid 2D BECs: Berry-phase in-plane response plus cube-integrated out-of-plane dipole.
• IR, Raman, and static/frequency-dependent dielectric response.
• A packaged run-zstar-workflows agent skill with JSON preflight.
• Slab electrostatic-potential maps, directional profiles, and local two-sided vacuum diagnostics.

Examples

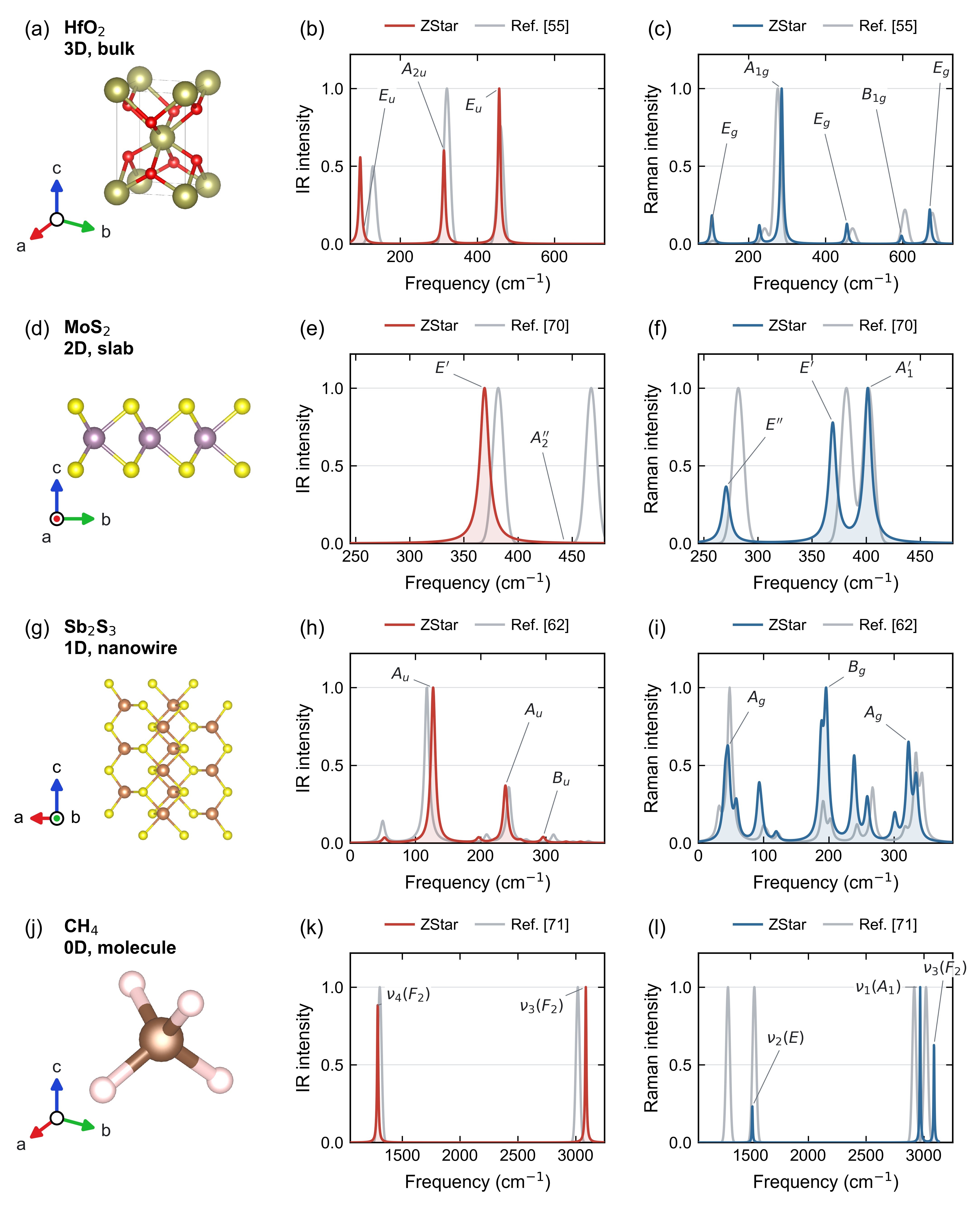

The four-dimensional examples compare calculated spectra with literature frequencies or published curves. Relative Raman intensities for Sb2S3 remain different from the reference; the examples document this limitation explicitly. Full inputs, results, and bilingual tutorials are in the GitHub example library.

Representative archived results include Z*(Ti) = 7.440 e for cubic BaTiO3, Z*(B,parallel) = 2.702 e for monolayer hBN, (Zrr,Ztt,Zzz)_B = (0.397,1.256,2.745) e for BN(9,0), and q_GAPT(O) = -0.481 e for H2O. Periodic values are BEC components; the molecular value is the APT invariant Tr(A)/3.

Installation

Install or upgrade the latest stable release:

pip install -U zstar
zstar --version

Python 3.9 or newer is required. Phonopy is installed as a Python dependency; ABACUS and PYATB must be available for workflows that use them. The core installation uses spglib for symmetry and does not require pymatgen.

For VASP vasprun.xml, CHGCAR/POTCAR, or legacy smodes/Wyckoff adapters, install the optional extra:

pip install -U "zstar[vasp]"

Configure external executables in .zstar/config.toml and verify them:

zstar config init
zstar config set executables.abacus /opt/abacus/bin/abacus
zstar config set execution.mpi 1
zstar config set execution.omp 20
zstar config check
zstar backend list --check

For ABACUS cases whose pseudopotentials and numerical orbitals are stored in shared libraries, provide their directories during preparation:

zstar bec pre --stru STRU \
  --pp /path/to/PSEUDO \
  --orb /path/to/ORBITAL

Frequently used directories can be configured globally with abacus.pseudo_dir and abacus.orbital_dir. ZStar preserves the source STRU, writes a resolved copy to .zstar/STRU.resolved, records selected files and checksums in .zstar/assets.json, and stops with an actionable error when matching files are missing or ambiguous.

agent skill

Install the bundled agent skill and open a new agent session:

zstar skill install
zstar skill preflight --root . --lane bec --dim bulk

Invoke it explicitly as $run-zstar-workflows. The skill preserves ZStar's dimensional conventions, resumable state, permission boundaries, and artifact-based completion checks. Use zstar skill install --force after upgrading the package.

Serial BEC Workflow

# Generate 0.no-move and displacement folders
zstar bec pre --stru STRU

# Run one resumable serial chain
zstar bec run

# Inspect progress
zstar bec stat --root .

# Construct symmetry-consistent BEC tensors
zstar bec post --root .

For a z-periodic 1D wire, use --dim 1 throughout. ZStar obtains the two transverse polarization columns from high-precision charge-density cubes and the longitudinal column from PYATB Berry polarization:

zstar bec pre --stru STRU --dim 1
zstar bec run --root .
zstar bec post --root .

The source snapshot includes complete BN(9,0) nanotube and Sb2S3-chain examples with clean run/ inputs, results/ archives and resumable run.sh scripts. Their BECs and Gamma force constants come from the same symmetry-adapted SCFs. Additional normal-mode polarizability derivatives provide Raman spectra. The Sb2S3 comparison retains original public reference curves and the observed Raman-intensity differences; its reference is a computational dataset, not a verified associated journal article. See the one-dimensional guide.

For an isolated molecule, --dim 0 generates and collects atomic polar tensors in units of e. The name is deliberate: an APT is the molecular analogue of a periodic-crystal BEC.

zstar bec pre --stru STRU --dim 0
zstar bec run --root .
zstar bec post --root .

For a 2D slab, use --dim 2 in generation, execution, and post-processing. Full x/y/z displacements are required because the out-of-plane polarization column is obtained from the real-space slab dipole. The slab normal must currently align with Cartesian z.

Run a complete two-dimensional response calculation through the canonical BEC lifecycle:

zstar bec pre --stru STRU --dim 2
zstar bec run
zstar bec post

The low-level zstar polar2d command is retained only for auditing an existing reference/displaced cube pair.

The default insulating gate runs only for 0.no-move and uses:

pyatb_input --band

The path gate is a lightweight fail-fast check and cannot exclude an off-path metallic pocket. Use --gap-mode mp when a stricter MP-grid check is desired.

Generate one environment-specific driver:

zstar bec job --system shell
zstar bec job --system slurm --queue compute --tasks 28
zstar bec job --system torque --queue batch --tasks 28

Shell/Torque default to mpirun -np N; Slurm defaults to srun --ntasks=N. Use --dry-run for an environment and state-output smoke test without launching an electronic-structure calculation.

Phonon, IR, and Dielectric Response

# INPUT must contain: cal_force 1
zstar phonon pre --stru STRU --dim "2 2 2"
zstar phonon run --root .
zstar phonon stat --root .
zstar phonon post --root .
zstar phonon irrep --root . --file irreps.yaml --mode db

# Copy BORN and Z-BORN-symm.out from the BEC workflow.
zstar dielectric static --qpoints qpoints.yaml --born Z-BORN-symm.out --dielectric BORN
zstar dielectric freq --qpoints qpoints.yaml --born Z-BORN-symm.out --dielectric BORN
zstar spectra pre --calculator abacus --kind ir --root ir_spectrum \
  --qpoints qpoints.yaml --born Z-BORN-symm.out --dielectric BORN
zstar spectra post --root ir_spectrum

zstar dielectric freq writes the zero-frequency tensor, real and imaginary response tables, and PNG/PDF/SVG plots by default. Use --no-plot for data-only post-processing.

For --dim 1, dielectric/IR response is reported as an Angstrom^2 line polarizability; for --dim 2, it is a sheet polarizability unless an effective --thickness is supplied. Gamma-point 1D IR/Raman is supported, while finite-q polar phonons still require a genuine 1D Coulomb cutoff and must not use bulk NAC.

Raman Workflow

The ABACUS + PYATB Unified route now uses the same displacement SCFs for BEC/APT, Gamma phonons, IR and static nonresonant Raman. In a prepared BEC directory, use zstar spectra pre, zstar spectra run, and zstar spectra post. Raman adds dielectric postprocessing of retained matrices, not additional SCFs. --response PATH selects another completed ensemble; --method mode keeps explicit normal-mode finite differences for comparison. Other calculators retain their documented native response workflows.

zstar spectra pre --calculator abacus --kind raman --root raman \
  --stru STRU --qpoints qpoints.yaml \
  --modes "4-12" --copy INPUT-scf --copy KPT

zstar spectra run --root raman --reference 0.no-move
zstar spectra post --root raman

The Raman runner reuses the reference insulating gate and charge density, records every plus/minus stage, collects central-difference dielectric derivatives, and writes a Placzek spectrum.

Isolated molecules (--dim 0)

The same mode-pair workflow can calculate normalized molecular IR and Raman spectra in one resumable run:

zstar spectra pre --calculator abacus --kind all --root raman --dim 0 \
  --stru STRU --qpoints qpoints.yaml --modes "4-12" \
  --copy INPUT-scf --copy KPT
zstar spectra run --root raman --reference 0.no-move \
  --spectrum-outdir raman_spectrum --ir-outdir ir_spectrum
zstar spectra post --root raman

ZStar converts Berry polarization through dmu/dQ = V*dP/dQ and the dilute-supercell dielectric response through dalpha/dQ = V/(4*pi)*d(epsilon_r)/dQ. Existing prepared mode-pair results can be checked with zstar spectra stat and reprocessed with zstar spectra post.

Electrostatic Potential Diagnostics

zstar pot --cube OUT.ABACUS/ElecStaticPot.cube \
  --axes z --plane xy --plane-average \
  --direction a+b --mirror-test \
  --vacuum-sides --vacuum-exclude 6.0 --vacuum-window 0.75 \
  --polar-arrow auto --outdir potential

For a dipole-corrected polar slab, the two vacuum levels are averaged in local windows next to the surface exclusion boundaries. This avoids contaminating a surface plateau with the potential-reset segment. Directional profiles such as --direction a+b and --direction a-b are inspection diagnostics rather than polarization magnitudes.

Main Outputs
