Blur Generator

Blur Generator adds motion, lens (bokeh) or Gaussian blur to images, from Python or from the command line. Give it a depth map and it blurs every part of a photo by how far away it is, including a camera-like depth of field that keeps one distance sharp and blurs what lies in front of and behind it. Use it to make training data for blur detection or deblurring models (see simply-blur-detector), or just to fake a portrait mode.

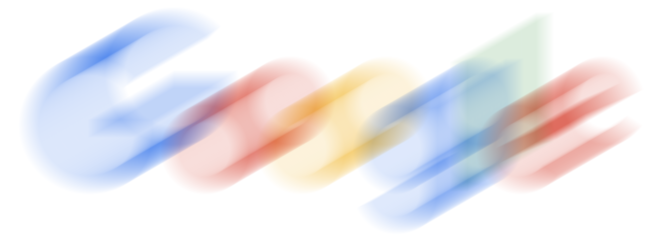

Original	Motion

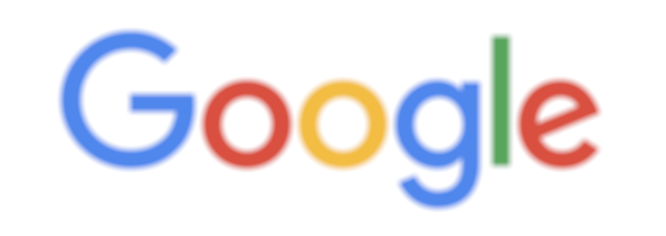

Lens	Gaussian

Installation

pip install BlurGenerator

It needs Python 3.7 or newer and installs NumPy and the headless build of OpenCV (opencv-python-headless). That is the same cv2 without the windows of cv2.imshow, so it also works on servers and in slim Docker images (for example python:3.12-slim) without extra system libraries.

Already have opencv-python? Versions up to 1.2.0 installed it, and other packages may too. It and opencv-python-headless install the same cv2 folder, so they get in each other's way: the one installed last wins, and uninstalling either one removes cv2 for both. Keep only one of them:

# You don't need cv2.imshow: keep the headless build.
pip uninstall -y opencv-python opencv-python-headless
pip install --force-reinstall BlurGenerator

# You do need cv2.imshow: keep the full build, and install BlurGenerator without its OpenCV.
pip uninstall -y opencv-python opencv-python-headless
pip install opencv-python
pip install --no-deps BlurGenerator

BlurGenerator works with either build. With the second way, pip check reports that opencv-python-headless is missing; that is expected. The full build needs a few system libraries on a server or in a slim image (libxcb.so.1 or libGL.so.1 missing); on Debian or Ubuntu: apt-get install -y libgl1 libglib2.0-0.

Quick start

The examples use the sample images in doc/. Run them from the root of a clone of this repository, or point them at your own images.

From the command line:

blurgenerator --type lens --input ./doc/readme/sample.jpg --output lens.jpg

From Python:

import cv2
from blurgenerator import lens_blur

img = cv2.imread('./doc/readme/sample.jpg')
result = lens_blur(img, radius=5, components=4, exposure_gamma=2)
cv2.imwrite('./lens.jpg', result)

Both write the same picture: the Python call spells out the defaults the command uses.

The three blur types

The pictures at the top were made with these commands:

blurgenerator --type motion --motion_blur_size 25 --input ./doc/readme/sample.jpg --output motion.jpg
blurgenerator --type lens --lens_radius 8 --lens_exposure_gamma 5 --input ./doc/readme/sample.jpg --output lens.jpg
blurgenerator --type gaussian --gaussian_kernel 31 --input ./doc/readme/sample.jpg --output gaussian.jpg

The same in Python:

import cv2
from blurgenerator import motion_blur, lens_blur, gaussian_blur

img = cv2.imread('./doc/readme/sample.jpg')
cv2.imwrite('./motion.jpg', motion_blur(img, size=25, angle=30))
cv2.imwrite('./lens.jpg', lens_blur(img, radius=8, components=4, exposure_gamma=5))
cv2.imwrite('./gaussian.jpg', gaussian_blur(img, 31))

• Motion blur smears the image along a straight line, as if the camera moved: size is the length in pixels and angle the direction in degrees.
• Lens blur imitates an out-of-focus lens: bright spots turn into round discs. radius is the size of the disc and exposure_gamma how much highlights bloom. It follows Circularly symmetric convolution and lens blur.
• Gaussian blur is a plain soft blur. With the default sigma=5, kernels wider than about 31 pixels look the same; pass sigma=0 to let the kernel size set the strength.

Decimal lens radii

A decimal radius gives a disc between the two whole sizes around it. Here one bright pixel goes through lens_blur() with its other settings left at the defaults, enlarged 10 times so that every pixel shows:

radius=2	radius=2.5	radius=3

Up to 1.2.0 a decimal radius blurred exactly like the next whole number: 2.5 gave the picture of 3. Whole radii give exactly the same result as before.

Blur by depth

A depth map is a grayscale image, the same size as the photo, whose values (0-255) say how far away each pixel is. The depth map tells Blur Generator how much to blur each part of the image: it splits the depth values into layers (num_layers) and blurs each layer by its own amount, from min_blur at depth 0 to max_blur at depth 255. This feature started with issue #1.

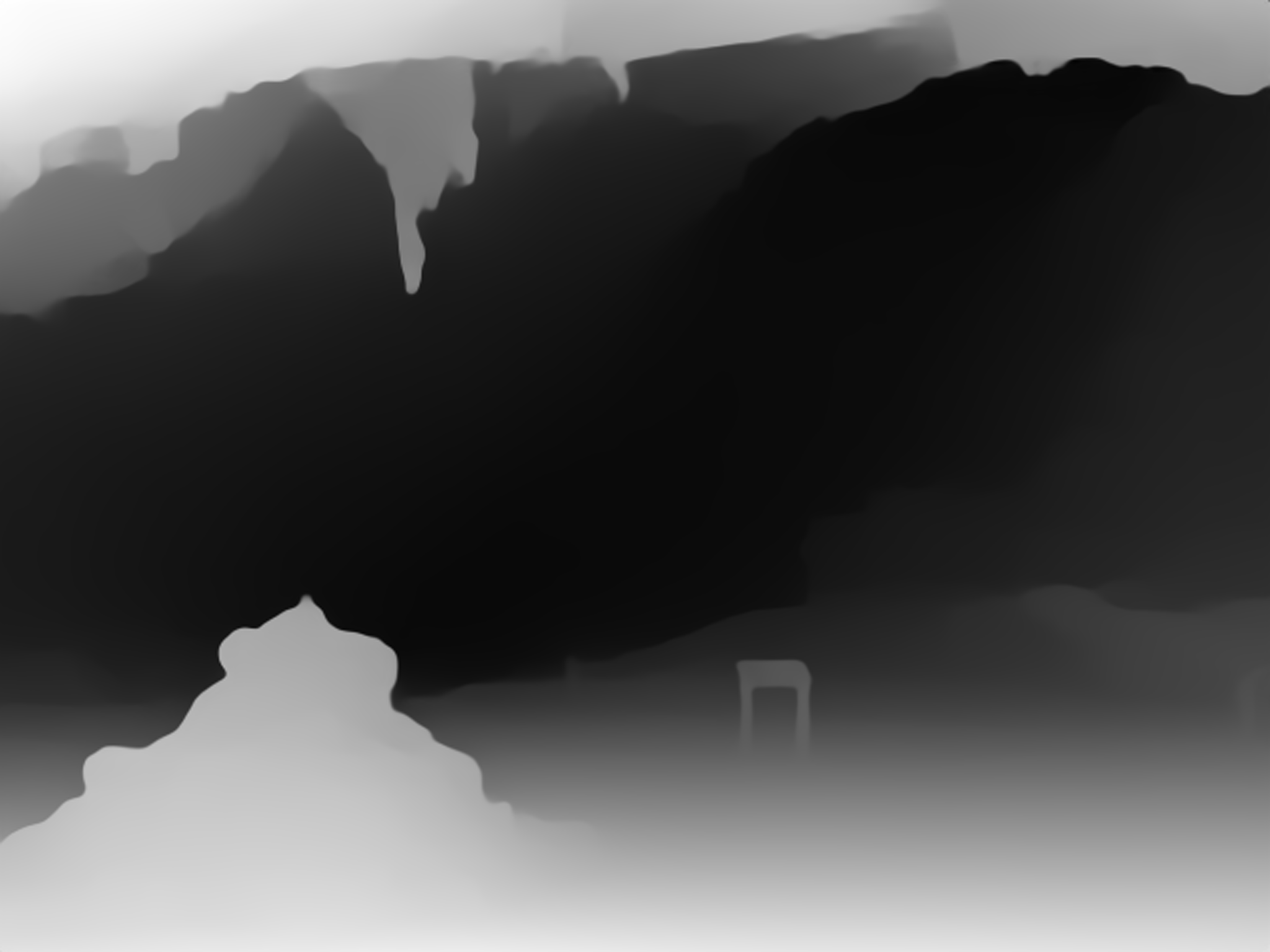

Photo	Depth map (brighter is nearer)

In this depth map nearer things are brighter, so the blur grows towards the camera: the rocks in front get blurry and the far end of the cave stays sharp.

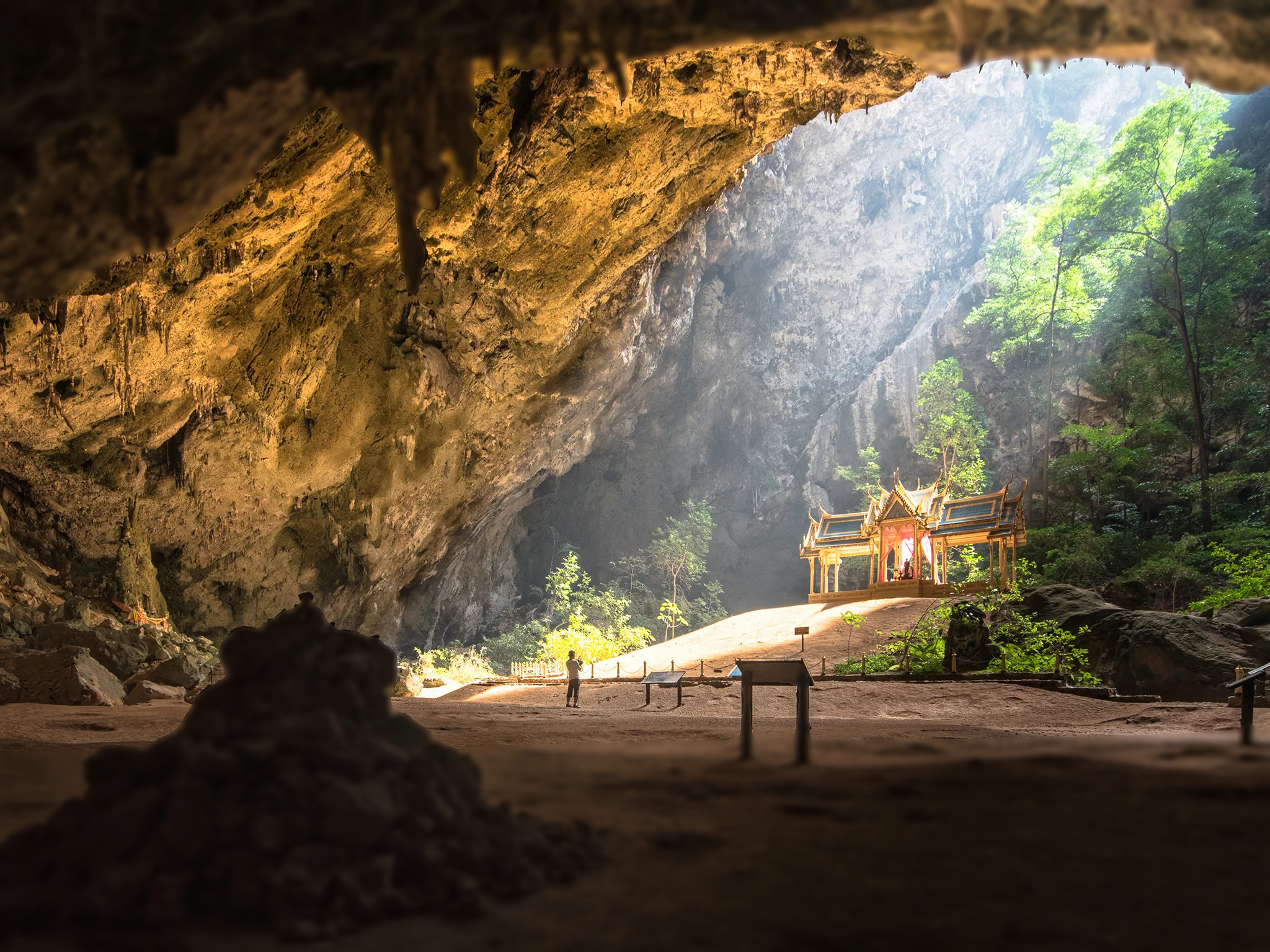

Motion	Lens	Gaussian

blurgenerator --type motion --input ./doc/depth-test.jpg --input_depth_map ./doc/depth-map-test.png --depth_max_blur 50 --output depth-motion.png
blurgenerator --type lens --input ./doc/depth-test.jpg --input_depth_map ./doc/depth-map-test.png --depth_max_blur 40 --output depth-lens.png
blurgenerator --type gaussian --input ./doc/depth-test.jpg --input_depth_map ./doc/depth-map-test.png --depth_max_blur 50 --output depth-gaussian.png

import cv2
from blurgenerator import lens_blur_with_depth_map

img = cv2.imread('./doc/depth-test.jpg')
depth_map = cv2.imread('./doc/depth-map-test.png')
result = lens_blur_with_depth_map(img, depth_map, components=4, exposure_gamma=2, max_blur=40)
cv2.imwrite('./depth-lens.png', result)

motion_blur_with_depth_map and gaussian_blur_with_depth_map work the same way. Want it the other way round, sharp in front and blurry behind? Swap the two values (min_blur=40, max_blur=1) or invert the depth map (255 - depth_map).

Focus on a depth (depth of field)

A real camera keeps one distance sharp and blurs both what is closer and what is farther away. Pick that distance with focus (a depth value from 0 to 255) or with focus_point (a pixel of the depth map whose depth you want sharp), and optionally keep a whole band of depths sharp with focus_range. This answers issue #5.

Default: blur grows with depth	focus_point=(480, 1150), focus_range=20

On the right the pile of rocks (depth 179 at pixel 480, 1150) is sharp. The cave behind it and the floor and ceiling in front of it are blurred, more the further their depth is from 179.

blurgenerator --type lens --input ./doc/depth-test.jpg --input_depth_map ./doc/depth-map-test.png --depth_max_blur 40 --depth_focus_point 480 1150 --depth_focus_range 20 --output focus.png

import cv2
from blurgenerator import lens_blur_with_depth_map

img = cv2.imread('./doc/depth-test.jpg')
depth_map = cv2.imread('./doc/depth-map-test.png')
result = lens_blur_with_depth_map(img, depth_map, components=4, exposure_gamma=2, max_blur=40,
                                  focus_point=(480, 1150), focus_range=20)
# Same as focus=179, the depth of that pixel.
cv2.imwrite('./focus.png', result)

How much each depth is blurred, on a checkerboard with a depth map that goes from 0 on the left to 255 on the right:

	Depth 0 on the left, 255 on the right
Depth map
Default
focus=128, focus_range=40

The rules with a focus:

• Depths within focus_range / 2 of focus are not blurred at all (focus_range=10 around 50 keeps 45-55 sharp).
• Just outside that band the blur is about min_blur. It grows with the distance from the band and reaches max_blur at whichever end of the 0-255 scale is farther away.
• A depth in front of the band and one behind it at the same distance get the same blur.
• Without focus, focus_point and focus_range the result is exactly what it was before these options existed.

The maths

This is exactly what the code computes, written as formulas. I is the input image and O the output, both 8-bit (0 to 255), and every colour channel goes through the same steps. Pixel (x, y) is column x and row y.

Filtering. All three blurs slide a kernel K over the image (OpenCV's filter2D and GaussianBlur). For a kernel of n × n values, anchored at a = ⌊n/2⌋:

(I \star K)(x, y) = \sum_{j=0}^{n-1} \sum_{i=0}^{n-1} K(i, j)\, I(x + i - a,\ y + j - a)

Pixels outside the image are mirrored (…, 2, 1, 0, 1, 2, …) for motion and Gaussian blur, and copied from the nearest edge for lens blur. Results are rounded to whole numbers from 0 to 255.

Motion blur (size n, angle θ). Start with L, an n × n kernel that is 1 on row ⌊(n − 1)/2⌋ and 0 elsewhere. Turn it by θ counter-clockwise around its centre c = (n − 1)/2, reading L between pixels by bilinear interpolation (0 outside the kernel), and scale it to sum to 1:

(R_\theta L)(x, y) = L\big(c + (x - c)\cos\theta - (y - c)\sin\theta,\ \ c + (x - c)\sin\theta + (y - c)\cos\theta\big),
\qquad M = \frac{R_\theta L}{\sum R_\theta L}, \qquad O = I \star M

Gaussian blur (kernel k, sigma σ). OpenCV needs an odd size, so k′ = k + 1 when k is even and k′ = k otherwise, and h = (k′ − 1)/2:

g(t) = \frac{e^{-t^2 / 2\sigma^2}}{\sum_{s=-h}^{h} e^{-s^2 / 2\sigma^2}}, \qquad
G(i, j) = g(i - h)\, g(j - h), \qquad O = I \star G

With sigma=0 OpenCV picks σ = 0.3 ((k′ − 1)/2 − 1) + 0.8 itself, and for k′ up to 7 it uses a fixed binomial kernel instead.

Lens blur (radius r, components m, exposure_gamma γ). The kernel is a sum of m complex Gaussians that together approximate a flat disc (see the Reference below). For m = 1 to 6 there is a preset of numbers a_c, b_c, A_c, B_c per component and a scale s (kernel_params and kernel_scales in lens_blur.py); larger m use the preset for 6, smaller ones the preset for 1. The kernel is sampled at whole pixels x = −⌈r⌉ … ⌈r⌉, each measured in units of the radius:

u_x = \frac{s\,x}{r}, \qquad k_c(x) = e^{-a_c u_x^2} \big(\cos(b_c u_x^2) + i \sin(b_c u_x^2)\big)

K(x, y) = \frac{1}{Z} \sum_{c=1}^{m} \Big( A_c\, \mathrm{Re}\big[k_c(x)\, k_c(y)\big] + B_c\, \mathrm{Im}\big[k_c(x)\, k_c(y)\big] \Big),
\qquad Z \text{ such that } \sum_{x, y} K(x, y) = 1

Bright spots are lifted to the power γ before filtering and brought back afterwards, which is what makes them bloom into discs:

O = \Big\lfloor 255 \cdot \min\Big(1,\ \max\big(0,\ (I/255)^{\gamma} \star K\big)^{1/\gamma}\Big) \Big\rfloor

The code filters with each component separately, first along the rows and then along the columns, and adds the results up; that is the same as filtering with K.

Blur by depth (num_layers n, min_blur b₀, max_blur b₁). D is the depth map in grayscale (a BGR depth map is converted with OpenCV's COLOR_BGR2GRAY), and d_lo, d_hi are the smallest and largest values in the depth map. The depths are cut into layers of height Δ, starting at ℓ_i:

\Delta = \max\Big(\Big\lfloor \frac{d_{hi} - d_{lo}}{n} \Big\rfloor,\ 1\Big), \qquad
\ell_i = d_{lo} + i\,\Delta \quad \text{for every } \ell_i < \max(d_{hi},\ d_{lo} + 1)

Layer i holds the pixels with ℓ_i < D ≤ ℓ_i + Δ (the first layer also D = ℓ₀), so every pixel is in exactly one layer. Its blur amount is the motion size, the lens radius or the Gaussian kernel used for that layer, and 0 means no blur:

\beta_i = \Big\lfloor b_0 + \frac{\ell_i}{255}\,(b_1 - b_0) \Big\rfloor, \qquad
O(x, y) = \mathrm{blur}_{\beta_i}(I)(x, y) \quad \text{for the layer } i \text{ that holds } (x, y)

Focus (focus f, focus_range w). With focus_point=(x, y) the focus is the depth of that pixel, f = D(x, y). The layers then follow each pixel's distance δ from the sharp band instead of its depth, and the blur reaches b₁ at the largest distance any depth can have, δ_max:

\delta = \Big\lceil \max\big(|D - f| - \tfrac{w}{2},\ 0\big) \Big\rceil, \qquad
\delta_{max} = \Big\lceil \max\big(f - \tfrac{w}{2},\ 255 - f - \tfrac{w}{2},\ 0\big) \Big\rceil

Pixels with δ = 0 keep their value. The others are cut into layers exactly as above, with δ in place of D (so d_lo and d_hi are the smallest and largest δ among them), and

\beta_i = \Big\lfloor b_0 + \frac{\ell_i}{\delta_{max}}\,(b_1 - b_0) \Big\rfloor

A test writes these formulas out again with NumPy and compares them with the package: the motion and Gaussian kernels match to float rounding, lens blur to within 1 of 255 for a few pixels, and blur by depth pixel for pixel.

Command line

usage: blurgenerator [-h] [--input INPUT] [--input_depth_map INPUT_DEPTH_MAP]
                     [--output OUTPUT] [--type TYPE]
                     [--motion_blur_size MOTION_BLUR_SIZE]
                     [--motion_blur_angle MOTION_BLUR_ANGLE]
                     [--lens_radius LENS_RADIUS]
                     [--lens_components LENS_COMPONENTS]
                     [--lens_exposure_gamma LENS_EXPOSURE_GAMMA]
                     [--gaussian_kernel GAUSSIAN_KERNEL]
                     [--depth_num_layers DEPTH_NUM_LAYERS]
                     [--depth_min_blur DEPTH_MIN_BLUR]
                     [--depth_max_blur DEPTH_MAX_BLUR]
                     [--depth_focus DEPTH_FOCUS]
                     [--depth_focus_range DEPTH_FOCUS_RANGE]
                     [--depth_focus_point X Y]

Add motion, lens or gaussian blur to an image, optionally guided by a depth
map.

options:
  -h, --help            show this help message and exit
  --input INPUT         Image to blur (.jpg, .jpeg or .png). Required.
  --input_depth_map INPUT_DEPTH_MAP
                        Depth map (.jpg, .jpeg or .png, same size as the
                        input) that decides how much each part of the image is
                        blurred. Optional.
  --output OUTPUT       Where to save the result. Default is `./result.png`.
  --type TYPE           Blur type: `motion`, `lens` or `gaussian`. Default is
                        `motion`.
  --motion_blur_size MOTION_BLUR_SIZE
                        Length of the motion blur in pixels. Default is 100.
  --motion_blur_angle MOTION_BLUR_ANGLE
                        Direction of the motion blur in degrees. Default is
                        30.
  --lens_radius LENS_RADIUS
                        Radius of the lens blur in pixels. Default is 5.0.
  --lens_components LENS_COMPONENTS
                        Kernel components of the lens blur, 1 to 6; more is
                        rounder and slower. Default is 4.
  --lens_exposure_gamma LENS_EXPOSURE_GAMMA
                        How much bright spots bloom in the lens blur; 1 turns
                        it off. Default is 2.
  --gaussian_kernel GAUSSIAN_KERNEL
                        Kernel size of the gaussian blur in pixels (sigma is
                        5). Default is 100.
  --depth_num_layers DEPTH_NUM_LAYERS
                        Number of depth layers; more layers give smoother
                        transitions but take longer. Default is 10.
  --depth_min_blur DEPTH_MIN_BLUR
                        Blur at depth 0, or right next to the focus. Default
                        is 1.
  --depth_max_blur DEPTH_MAX_BLUR
                        Blur at depth 255, or farthest from the focus. Default
                        is 100.
  --depth_focus DEPTH_FOCUS
                        Depth (0-255) to keep sharp; the blur then grows with
                        the distance from it, towards both 0 and 255. Default
                        is off: the blur grows with the depth.
  --depth_focus_range DEPTH_FOCUS_RANGE
                        Width of the depth band around the focus that stays
                        sharp: 10 keeps focus-5 to focus+5 sharp. Default is
                        0.
  --depth_focus_point X Y
                        Focus on the depth of this pixel of the depth map (X =
                        column, Y = row), instead of --depth_focus.

• Without --input_depth_map, the --depth_* options are ignored. With it, --motion_blur_size, --lens_radius and --gaussian_kernel are ignored, because the depth map decides the strength.
• --gaussian_kernel always uses sigma 5, so values above about 31 look the same. The Python function takes a sigma argument.
• The exit code tells a script what happened: 0 when the result was written, 1 when it could not be made (a missing or unreadable file, an unsupported file type, a setting such as --depth_focus 300, an output folder that does not exist), 2 when the command line itself is wrong (no --input, an unknown --type). Errors are printed on stderr, on a line starting with -----.

Python API

All functions take an image as a NumPy array (for example from cv2.imread) and return a new image; the input is not modified. Invalid arguments raise ValueError with a message that says what to fix. The depth functions also raise TypeError when an image is None, which is what cv2.imread returns for a wrong path.

motion_blur(img, size=None, angle=None)

Argument	Default	Meaning
size	random 20-80	Length of the motion in pixels, at least 1.
angle	random 15-30	Direction in degrees, counter-clockwise; 0 is horizontal.

lens_blur(img, radius=3.0, components=5, exposure_gamma=5.0)

Argument	Default	Meaning
radius	3.0	Radius of the blur disc in pixels, above 0; decimals work.
components	5	Kernel components, 1 to 6 (higher values use 6). More is rounder and slower.
exposure_gamma	5.0	How much highlights bloom into discs; 1 turns it off.

gaussian_blur(img, kernel, sigma=5)

Argument	Default	Meaning
kernel	required	Size of the filter window in pixels; even values are rounded up to odd.
sigma	5	Strength of the blur in pixels; 0 derives it from kernel.

Blur by depth

motion_blur_with_depth_map(img, depth_map, angle=30, num_layers=10, min_blur=1, max_blur=100,
                           *, focus=None, focus_range=0, focus_point=None)
lens_blur_with_depth_map(img, depth_map, components=5, exposure_gamma=5.0, num_layers=10, min_blur=1,
                         max_blur=100, *, focus=None, focus_range=0, focus_point=None)
gaussian_blur_with_depth_map(img, depth_map, sigma=5, num_layers=10, min_blur=1, max_blur=100,
                             *, focus=None, focus_range=0, focus_point=None)

angle, components, exposure_gamma and sigma work as in the functions above. The blur amount (the motion size, the lens radius or the Gaussian kernel) comes from the depth map:

Argument	Default	Meaning
depth_map	required	8-bit depth map, grayscale or BGR, the same size as img.
num_layers	10	Number of depth layers; more layers give smoother transitions but take longer.
min_blur	1	Blur at depth 0, or right next to the focus. 0 means sharp.
max_blur	100	Blur at depth 255, or farthest from the focus.
focus	off	Depth (0-255) to keep sharp; the blur grows with the distance from it in both directions.
focus_range	0	Width of the band around the focus that stays sharp.
focus_point	off	(x, y) pixel of the depth map whose depth becomes the focus; instead of focus.

The focus options are keyword-only. The command line has its own defaults, listed in --help.

Development

git clone https://github.com/NatLee/blur-generator.git
cd blur-generator
pip install -e . pytest
pytest tests

tox -e py runs the same tests and also checks that the source package contains every file. GitHub Actions runs them on Python 3.7 to 3.14 on Linux, and on Python 3.14 on Windows and macOS.

The pictures in this README are real output of the tool. To make them again after a change, run python scripts/make_readme_images.py from the root of the repository.

Contributor

Nat Lee

Reference

• Circularly symmetric convolution and lens blur

License
