adiftools 0.1.10

ADIF file utilities

---

adiftools: adif file utility tools for all amateur radio stations

Item	Status
Testing
Package
Meta
Stats

|

What is it?

adiftools is a Python package that provides utilities for ADIF data which is used for the QSO logging file format.

This tool allows you to easily load all QSO data from an ADIF file into a pandas DataFrame. Additionally, it provides functions for graphing the loaded data, as well as utility functions for Grid Locator-related latitude and longitude conversion and distance measurement.

Main Features

• ADIF file parser: Read ADIF file and convert to pandas DataFrame

  • Call signature:

    ADIFParser.read_adi(file_path, enable_timestamp=False)


  • Parameters:
    • file_path: str or path-like or binary file-like
      • A path or a Python file-like object representing the ADIF file to read.
  • Returns:
    • pd.DataFrame
      • The created pandas DataFrame instance includes QSO data from the ADIF file.
  • Other Parameters:
    • enable_timestamp: bool, default: False
      • If True, adds a row named ['timestamp'] to the DataFrame, generated from the ADIF file. The ['timestamp'] row is of type datetime64[ns] and is based on the 'QSO_DATE' and 'TIME_ON' fields.

• Save ADIF data as adi file

  • Saves the loaded ADIF data as an adi file conforming to the ADIF standard. adiftools adds a new header to the beginning of the adi file.
  • Fields with no data are filled with nan.
  • The header will contain information on the following two fields, CREATED_TIMESTAMP, and PROGRAMID.
  • Call signature:

    ADIFParser.to_adi(file_path)


  • Parameter:
    • file_path: str or path-like or binary file-like
      • A path, or a Python file-like object of adi file to save
    • Returns:
      • None

• Save ADIF data as pickle file: Save the DataFrame with the ADIF loaded to a pickle file.

  • Loading an ADIF file into a DataFrame can be quite time consuming.
  • It is especially long if there are many QSOsin the ADIF file, and it is very cumbersome to read the data every time.
  • It is recommended to serialize the ADIF data once loaded and save it in a pickle format, which is expected to be 50 times faster than loading a raw ADIF file.
  • Call signature:

    ADIFParser.to_pickle(file_path)


  • Parameter:
    • file_path: str or path-like or binary file-like
      • A path, or a Python file-like object of pickle file to save
    • Returns:
      • None

• Load Pickle data

  • Provides a way to read ADIF data once it has been loaded by ADIFParser and saved in a pickle file.
  • The read_pickle method does not check whether the QSO data is saved in the read pickle file.
  • Call signature:

    ADIFParser.read_pickle(file_path)


  • Parameter:
    • file_path: str or path-like or binary file-like
      • A path, or a Python file-like object of pickle file to read
    • Returns:
      • pd.DataFrame
        • The created pandas.DataFrame instance includes QSO data from ADIF file

• Save ADIF data as excel file: Save the DataFrame with the ADIF loaded to an excel file.

  • Call signature:

    ADIFParser.to_excel(file_path)


  • Parameter:
    • file_path: str or path-like or binary file-like
      • A path, or a Python file-like object of excel file to save
    • Returns:
      • None

• Generate Callsign file

  • Outputs call sign data without duplicates from data read from an ADIF file as a text file. The text file will contain one callsign per line.
  • If the ADIF file has not been read, i.e., read_adi() has not been performed, it returns the error AdifParserError.
  • Call signature:

    ADIFParser.call_to_txt(file_path)


  • Parameter:
    • file_path: str or path-like or binary file-like
      • A path of output txt file
  • Returns:
    • None

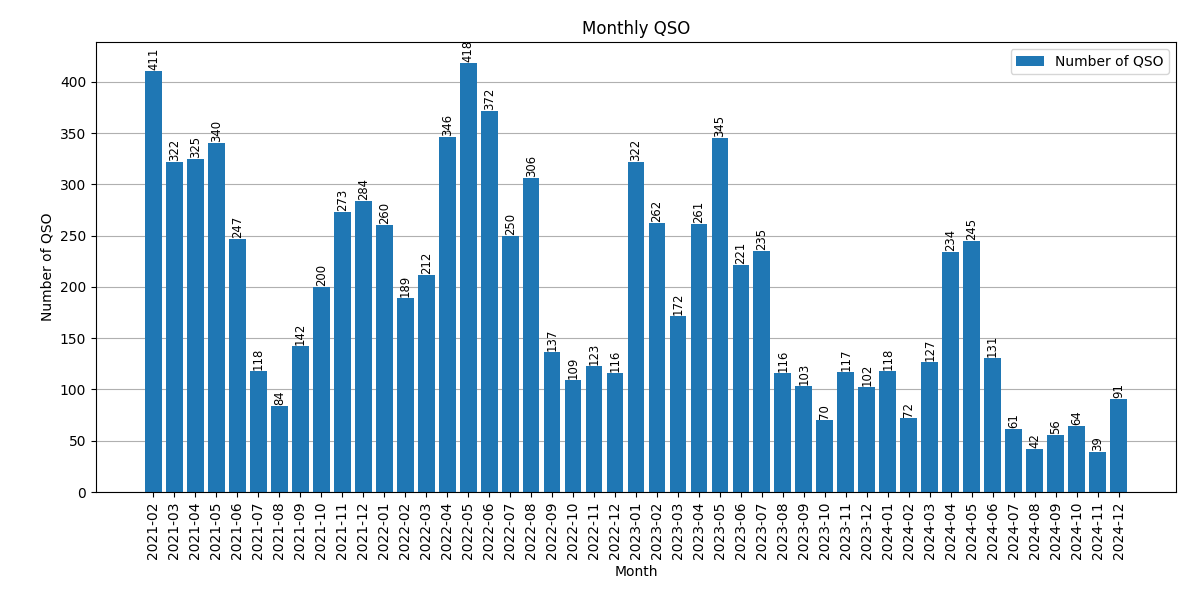

• ADIF data monthly plot: Generate monthly QSO plot

  • Call signature:

    ADIFParser.plot_monthly(file_path)


    Generates a bar plot of monthly QSOs and saves a PNG or JPG file.

  • Parameters:

    • file_path: str or path-like or binary file-like
      • A path or a Python file-like object of the plot's PNG or JPG file.

  • Returns:

    • None


• Monthly Band QSO Stacked Bar Plot: Generate stacked bar plot of monthly QSO counts by band

  • Call signature:

    ADIFParser.plot_monthly_band(file_path)


    Generates a stacked bar plot of monthly QSO counts by band and saves a PNG or JPG file. Each band is assigned a unique color for clarity. The color table for each BAND is defined inside the function, and if a BAND is not listed, a unique color is automatically assigned from a colormap to avoid duplication.

  The color codes are inspired by the color scheme used on the website PSKReporter. We would like to acknowledge and thank PSKReporter for their excellent and informative color palette.

  If you wish to customize the color assignment, please edit the color table in the source code of the function monthly_band_qso in adifgraph.py.

  • Parameters:
    • file_path: str or path-like or binary file-like
      • A path or a Python file-like object of the plot's PNG or JPG file.
  • Returns:
    • None


  BAND	Color Code
  2M	#FF1493
  4M	#CC0044
  5M	#E0E0E0
  6M	#FF0000
  8M	#7F00F1
  10M	#FF69B4
  11M	#00FF00
  12M	#B22222
  15M	#CCA166
  17M	#F2F261
  20M	#F2C40C
  30M	#62D962
  40M	#5959FF
  80M	#E550E5
  160M	#7CFC00

  Any BAND not listed above will be assigned a unique color from the colormap automatically.

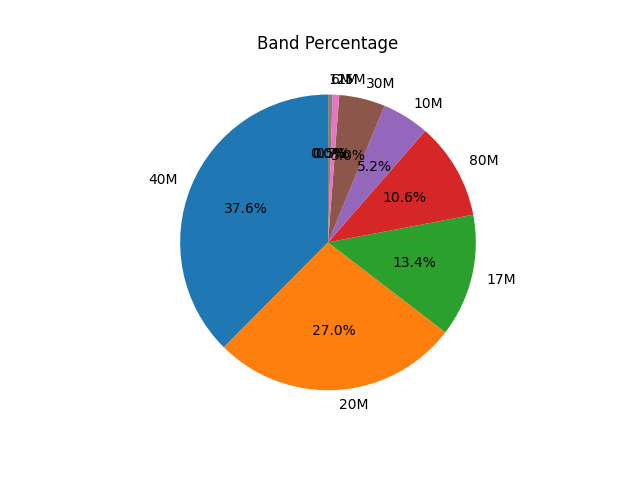

• Band percentage plot: Generate pie plot to show QSO-Band percentage

  • Call signature:

    ADIFParser.plot_band_percentage(file_path)


    Generates a pie plot of QSO-band counts and saves a PNG or JPG file.

  • Parameters:

    • file_path: str or path-like or binary file-like
      • A path or a Python file-like object of the plot's PNG or JPG file.

  • Returns:

    • None


• Grid Locator utilities

  • Calculate geographic coordination from GL

    • Call signature:

      adiftools.gl2latlon(gridlocator)


    • Parameter:
      • gridlocator: str of grid locator. 4 or 6 digits, regardless of upper or lower case.
    • Returns:
      • (latitude, longitude): tuple of latitude and longitude in decimal degree unit (DD/DEG format).

  • Calculate grid locators from latitude and longitude

    • Call signature

      adiftools.latlon2gl(latitude, longitude, fourdigit=False)


    • Parameters:
      • latitude in decimal degree unit
      • longitude in decimal degree unit
      • fourdigit if True, returns 4-digit grid square

  • Reference

    • Edmund T. Tyson, N5JTY, Conversion Between Geodetic and Grid Locator Systems, QST January 1989, pp. 29-30, 43

  • Calculate distance from two places' latitude and longitude

    • Call signature

      adiftools.get_dist(lat1, lon1, lat2, lon2)


    • Parameters:
      • lat1 – latitude of the first point in degrees
      • lon1 – longitude of the first point in degrees
      • lat2 – latitude of the second point in degrees
      • lon2 – longitude of the second point in degrees
    • Returns:
      • the distance from the first point to the second in meters
    • Reference
      • GeographicLib API — geographiclib 2.0 documentation

• Call Sign Utility

  • Check JA call sign
    • Call signature

      adiftools.is_ja(call_sign)


    • Parameter:
      • call_sign call sign in string
    • Returns:
      • True: JA call, False: other
  • Check Area
    • Call signature

      adiftools.get_area(call_sign)


    • Parameter:
      • call_sign call sign in string
    • Returns:
      • number: area number, None: n/a

Note: adiftools is not support ADX file format at this moment.

Install

adiftools has been tested against Python 3.11, 3.12, and 3.13. It may work with Python 3 prior to 3.10, but we recommend using 3.11 or higher versions.

It is recommended to create a virtual environment and install adiftools inside the virtual environment.

Binary installers for the latest released version is available via PyPI: adiftools · PyPI.

pip install adiftools

If you are using an older version of adiftools, please use the following command to update it to the latest version.

pip install -U adiftools

Unfortunately, if you no longer need adiftools, you can uninstall it with the following command.

pip uninstall adiftools

Testing version

We have decided not to update adiftools on the TestPyPI site anymore.

For detail, please see TestPyPI website: adiftools · TestPyPI

pip install -i https://test.pypi.org/simple/ adiftools==0.0.5

Getting Started

The first step in utilizing adiftools is to load an ADIF file; files that follow the ADIF standard can be loaded. After loading an adif file, you can perform graphing and other operations. Please refer to this page for ADIF standard. The Independent ADIF Site

Example:

import adiftools.adiftools as adiftools

adi = adiftools.ADIFParser()

df_adi = adi.read_adi('sample.adi') # Use your own adi file
print(df)

Dependencies

adiftools requires the following Python packages (recommended versions):

• pandas (>=1.5)
• numpy
• matplotlib (>=3.5)
• GeographicLib API

You can install all dependencies with:

pip install adiftools

FAQ / Troubleshooting

• If you encounter an error related to subprocess or wheel, please try installing wheel with pip install wheel.
• For other common issues, please refer to the adiftools issue tracker or open a new issue for support.

Licence

MIT

日本語での情報提供

Information in Japanese is available on the following blogs. Information updates are prioritised on Github, and information updates on the following blogs are slightly delayed.

• adiftools | アマチュア無線局JS2IIU

TU de JS2IIU 73
