Alter

Comprehension first, design second.

Visual schema design for SQLModel and SQLAlchemy. Edit your database as a diagram, write it back as code.

What is Alter?

Alter is a local-first schema tool that keeps your ORM models and a visual ERD canvas in sync — in both directions:

  ┌─────────────┐                       ┌───────────────┐
  │  Your Code  │  ── alter sync ─────► │    Canvas     │
  │ (models.py) │                       │ (visual ERD)  │
  │             │  ◄── alter apply ──── │               │
  └─────────────┘                       └───────────────┘
                    schema.alter
                  (keeps both in sync)

You design tables on the canvas, and Alter writes clean Python classes back to your files. You edit your models by hand, and Alter updates the canvas to match.

Everything runs locally. No cloud, no account, no data leaves your machine.

Installation

pip install alterdb

Or with uv:

uv add alterdb

Requirements: Python 3.11+

Dependency conflicts? If alterdb clashes with packages already in your project, install it as an isolated CLI tool instead:

uv tool install alterdb

This keeps Alter's dependencies completely separate from your project's virtual environment while making the alter command available on your PATH.

Live database features (MCP introspect_db, query_db, describe_table_data, explain_query tools): requires psycopg2-binary, install with pip install alterdb[db].

Quick Start

From existing models

alter init      # scan your ORM models → create schema.alter
alter canvas    # open the visual ERD in your browser

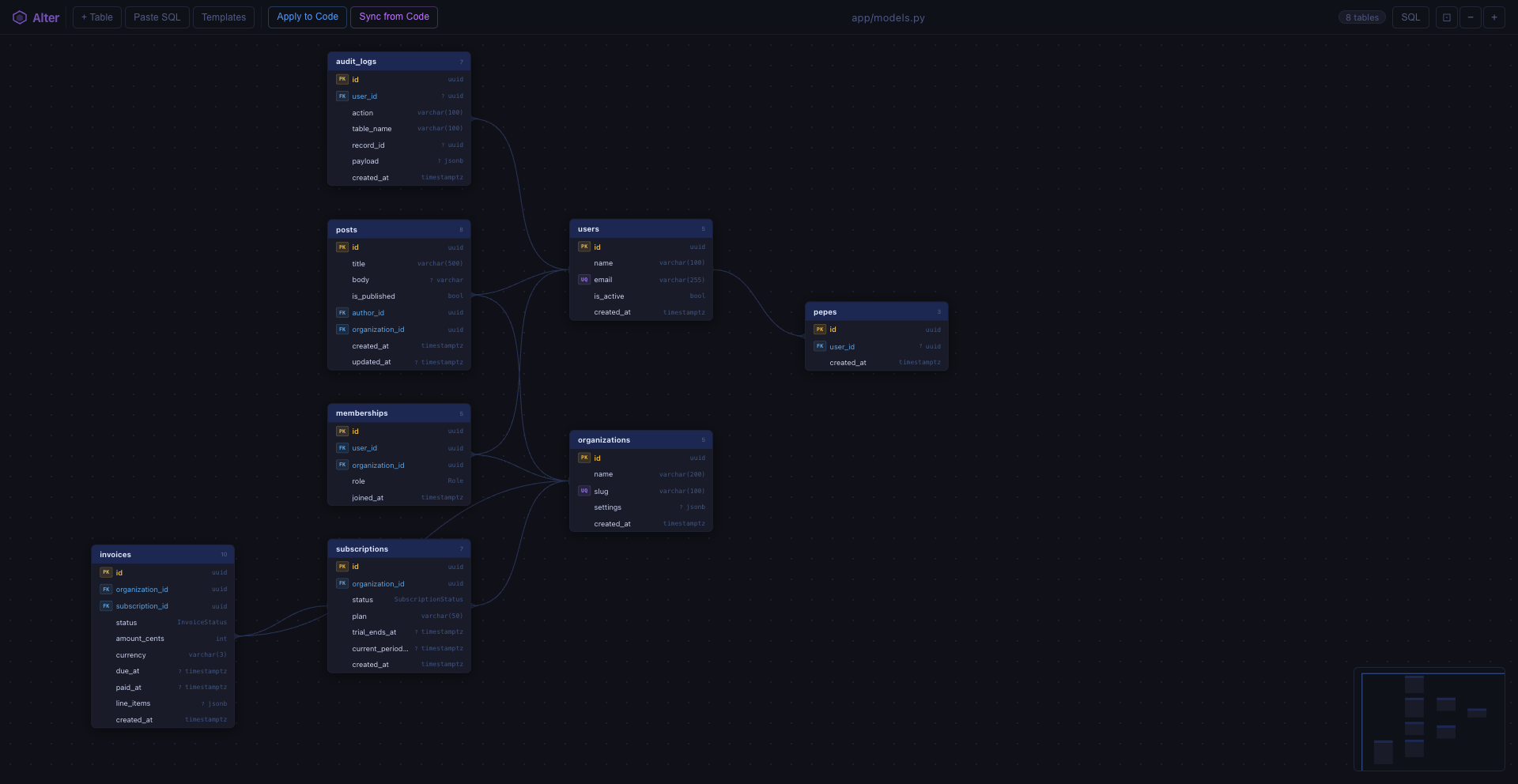

Your browser opens with an interactive diagram of every table, column, and relation in your project.

From an existing database

Export your database schema as SQL, then import it:

pg_dump --schema-only --no-owner mydb > schema.sql
alter import schema.sql     # parse DDL and merge tables into schema.alter
alter canvas                # open the visual editor

Or start the canvas first and use Paste SQL in the toolbar to paste your DDL directly.

Starting from scratch

No models yet? Start with a blank canvas or one of the built-in templates:

alter init      # creates an empty schema.alter
alter canvas    # open the canvas, click "Templates" to pick a starter

Choose from saas-base, auth, cms, or ecommerce — tables are proposed on the canvas so you can review and customize before committing anything.

What is schema.alter?

schema.alter is a JSON file that captures your table definitions, column types, relations, and canvas layout positions. It sits between your Python code and the visual editor — a single source of truth that's human-readable, git-diffable, and lives in your repo.

Think of it as a .lock file for your database schema, except you can open it in a browser and edit it visually.

A minimal example:

{
  "version": 1,
  "orm": "sqlmodel",
  "tables": [
    {
      "name": "users",
      "file_path": "app/models.py",
      "position": { "x": 0, "y": 0 },
      "columns": [
        { "name": "id",    "type": "uuid",   "primary_key": true,  "default": "uuid4" },
        { "name": "email", "type": "string", "nullable": false,    "unique": true     },
        { "name": "name",  "type": "string", "nullable": false                        }
      ]
    }
  ]
}

The Two-Way Workflow

Two commands keep schema.alter synchronized with your code:

Canvas → Code

You add a table or modify a column on the canvas, then click Commit (or use the in-canvas Apply to Code button), or run from the terminal:

alter apply --preview   # see exactly what will change (unified diff)
alter apply             # write the changes to your model files

Apply to Code auto-commits: clicking Apply to Code in the canvas automatically commits any pending staged changes to schema.alter before writing to your model files — so you never accidentally apply a stale snapshot.

alter apply is surgical — it only touches what the schema says has changed:

• Additions — new tables are appended as new classes; new columns are inserted after the last existing field.
• Modifications — changed Field() kwargs are rebuilt in-place, preserving your original kwarg order, multi-line formatting, and inline comments.
• Deletions — tables removed from the canvas have their class deleted from the model file; columns removed from a table have their Field() line removed. If a file's last table is deleted, the file is still visited and the class is removed.

Your docstrings, Relationship() definitions, trailing inline comments, hand-written Field() kwarg order, and mutable defaults written as default={} or default=[] are all preserved verbatim.

For example, drawing a Payment table on the canvas and clicking Commit writes this to app/models.py:

import uuid
from sqlmodel import Field, SQLModel


class Payment(SQLModel, table=True):
    __tablename__ = "payments"

    id: uuid.UUID = Field(default_factory=uuid.uuid4, primary_key=True)
    amount: int
    currency: str = Field(max_length=3)
    user_id: uuid.UUID = Field(foreign_key="users.id")

Enum changes are written to the correct file: if Role is defined in app/enums.py, edits on the canvas update app/enums.py — not your model file.

Code → Canvas

You edit models.py by hand, then click the in-canvas Sync from Code button, or run:

alter sync    # re-parse your models, update schema.alter

The canvas picks up the change automatically via live reload — no restart needed.

Preview changes before committing

alter diff                    # see what changed (text)
alter diff --format markdown  # PR-ready changelog

Complete Workflow Example

Here's the full story, from a fresh project to running migrations:

# 1. Initialise
alter init                            # scan models → schema.alter

# 2. Create the initial migration (one-time, with your migration manager)
#    Example with Alembic — see Migrations section below
alembic init alembic
alembic revision --autogenerate -m "initial schema"
alembic upgrade head                  # create tables in the database

# 3. Open the canvas and make changes
alter canvas

# — design on the canvas —
# add a "payments" table, click Commit
# the "Migrations" tab shows the SQL that needs to run

# 4. Apply canvas changes to code
alter apply --preview                 # see the unified diff
alter apply                           # write class Payments to models.py

# 5. Run the migration with your own tooling
#    Copy the SQL from the canvas Migrations tab, then:
alembic revision -m "add payments table"   # create revision file
# paste the SQL into the upgrade() function
alembic upgrade head

Migrations

Alter generates the SQL — you run it with whatever migration tool you already use.

The Migrations tab in the canvas shows the pending SQL at any time. The preview_migration MCP tool returns the same SQL to AI assistants. Copy it into your migration manager of choice.

Column rename detection: Alter's diff engine is name-based and cannot distinguish a column rename from a drop + add. When it detects a DROP COLUMN paired with an ADD COLUMN of the same type on the same table, the generated SQL includes a comment pointing out the potential rename and showing the equivalent ALTER TABLE … RENAME COLUMN statement. Review this comment before running the migration to avoid accidental data loss.

With Alembic (one-time setup)

alembic init alembic    # creates alembic.ini + alembic/env.py + alembic/versions/

Edit alembic/env.py so Alembic knows about your models:

from sqlmodel import SQLModel
import app.models  # ensure all models are imported and registered

target_metadata = SQLModel.metadata   # required for autogenerate

Initial migration

Create all tables from scratch:

alembic revision --autogenerate -m "initial schema"
alembic upgrade head

Incremental migrations (canvas or MCP driven)

After the initial migration, use the canvas Migrations tab to see the SQL for any canvas or MCP change, then apply it with your tool:

# 1. Make changes on the canvas or via MCP
# 2. See the SQL in the canvas Migrations tab (or call preview_migration via MCP)
# 3. Create and apply the migration:
alembic revision -m "add payments table"   # create an empty revision
# paste the SQL into upgrade() in the new file
alembic upgrade head

With other tools (Django, Flyway, raw SQL, etc.) — the workflow is the same: copy the SQL from the canvas Migrations tab and apply it however your project requires.

Adding a File to an Existing Schema

Got a legacy module or a new plugin with its own models? Add it without touching your main schema:

alter add app/legacy/models.py        # parse and merge new tables into schema.alter
alter add lib/plugins/billing.py      # tables already in the schema are skipped

alter add parses the file, adds any new tables (and their enum types), and saves schema.alter. Already-tracked tables are silently skipped — safe to run multiple times.

PostgreSQL Schema Support

Tables in a non-default PostgreSQL schema (i.e. with a __table_args__ = {"schema": "..."} entry) are fully supported end-to-end:

• Parsing — both {"schema": "billing"} dict form and the tuple form ({"schema": "billing"}, UniqueConstraint(...)) are recognised.
• SQL export — CREATE TABLE headers and REFERENCES clauses use the qualified schema.table name.
• Mermaid export — entity names use schema_table (underscore-joined) for valid Mermaid identifiers; relation lines follow the same convention.
• Validation — foreign keys may be written as table.column or schema.table.column.

Cross-File Support

Alter understands multi-file projects out of the box:

• Enums in separate files — if Role is defined in app/enums.py, Alter tracks its file_path so that alter apply never duplicates the enum class in your model file.
• Base class inheritance — columns inherited from mixin classes (e.g. UUIDBase, TimestampedBase) are tracked as inherited and never re-injected as explicit field definitions when applying to code.
• Multi-file models — tables can live in different files; alter apply writes each table to the correct file independently.

Enums on the Canvas

Enums are displayed on the canvas as read-only reference cards showing each enum's name and values. This lets you see which types are available when wiring up columns, but enums cannot be added, edited, or deleted from the canvas — the source file is the single source of truth.

To add or change an enum, edit the source file directly (e.g. app/enums.py), then sync:

alter sync          # re-parse models → refresh schema.alter

Or click Sync from Code in the canvas toolbar. The updated enum appears immediately.

Templates

Alter ships four starter templates, accessible from the Templates button in the canvas toolbar or via the CLI:

Template	Tables
saas-base	users, organizations, memberships, sessions
auth	users, sessions, tokens, oauth_accounts
cms	posts, categories, tags, media
ecommerce	products, orders, order_items, customers

Import a template into an existing project:

alter import templates/ecommerce.alter

Tables already in your schema are skipped — no duplicates.

Commands

Quick reference

Command	What it does
alter init	Create schema.alter from existing ORM model files (--force to overwrite)
alter canvas	Open the interactive ERD in your browser
alter apply	Write schema changes to your ORM model files
alter sync	Update schema.alter from your ORM model files
alter add	Add tables from a model file to the schema
alter diff	Show pending changes between schema and code
alter validate	Check your schema for errors and warnings
alter export	Export as SQL DDL, Mermaid ERD, or .alter JSON
alter import	Import tables from a .sql or .alter file
alter merge-driver	Git merge driver for .alter files
alter mcp	Start the MCP server

alter init

Scan your project for ORM model files and create schema.alter:

alter init                    # auto-detect ORM, scan models
alter init --orm sqlmodel     # force ORM
alter init --output mydb.alter  # write to a custom path
alter init --force            # overwrite an existing file without prompting

If schema.alter already exists, alter init will show the existing table count and ask for confirmation before overwriting. Use --force to skip the prompt in CI or scripted environments.

To re-scan after adding new model files without touching the existing schema, use alter sync (preserves canvas positions) or alter add <file> (merges a single file).

alter diff

Compare schema.alter with your ORM model files and show what has drifted:

alter diff                      # text summary (+ added, ~ modified, - removed)
alter diff --format markdown    # PR-ready markdown changelog

Useful before committing code changes or before opening a PR to make sure the canvas and the code are still in sync. Exits non-zero if there are differences.

alter validate

Check the schema for structural problems before applying or exporting:

alter validate

Reports errors, warnings, and info-level hints. Exits with code 1 if any errors are found — safe to use in CI.

Errors (must fix before applying):

• Broken FK references — target table or column does not exist
• Duplicate table or column names
• Unknown column types
• Invalid SQL identifiers — names starting with a digit or containing hyphens, spaces, or other special characters (123users, user-name)

Warnings (advisory):

• Tables without a primary key
• FK columns missing an index
• SQL reserved words used as names (select, from, table, …) — valid identifiers that can cause DDL issues on some databases

Foreign key references can be written as table.column or schema.table.column for tables in a non-default PostgreSQL schema.

alter export

Export the committed schema in different formats:

alter export                              # SQL DDL to stdout (default)
alter export --format mermaid             # Mermaid ERD diagram to stdout
alter export --format alter               # raw schema.alter JSON to stdout
alter export --output schema.sql          # write to a file instead of stdout
alter export --format mermaid --output erd.md   # write Mermaid to a file
alter export --proposed                   # export staged (uncommitted) changes

The Mermaid output can be pasted directly into GitHub Markdown, Notion, or any tool that renders ```mermaid fences:

```mermaid
erDiagram
  users {
    uuid id PK
    string email
  }
  posts {
    uuid id PK
    uuid author_id FK
  }
  users ||--o{ posts : "author_id"
```

alter import

Merge tables from an external source into schema.alter. Tables already present are skipped — safe to run multiple times:

alter import schema.sql             # import from a pg_dump or hand-written DDL
alter import other.alter            # import from another schema.alter file
alter import templates/saas.alter   # import a built-in template

Format is auto-detected from the file extension (.sql or .alter). You can also override it with --format sql or --format alter.

The command reports both added and skipped counts, so re-running on the same file is safe and informative:

Imported 0 new tables (3 skipped — already in schema) from schema.sql → schema.alter

alter merge-driver

A custom Git merge driver that merges schema.alter files structurally (by table name) instead of line-by-line, which eliminates most merge conflicts when two branches add different tables.

One-time setup (run once per machine):

git config --global merge.alter.name   "Alter schema merge driver"
git config --global merge.alter.driver "alter merge-driver %O %A %B"

Then add to your repo's .gitattributes:

*.alter merge=alter

After that, Git uses the driver automatically whenever a .alter file is involved in a merge or rebase. No further action needed.

MCP Server

Alter exposes your schema to any MCP-compatible AI assistant (Claude Code, Cursor, Windsurf, etc.) so it can read, modify, and commit schema changes programmatically — all through natural language.

Setup

Step 1 — Initialize the schema file (if you haven't already):

alter init    # scan your ORM models → create schema.alter

The MCP server requires schema.alter to exist before it can start.

Step 2 — Ensure mcp>=1.2.0 is installed.

alter mcp requires mcp>=1.2.0 (the FastMCP API used internally was added in that release). If you see an error on startup, upgrade:

pip install 'mcp>=1.2.0'
# or
uv add 'mcp>=1.2.0'

Step 3 — Register the server in your editor.

Most editors use the same JSON config. Add this to your MCP settings file:

{
  "mcpServers": {
    "alter": {
      "command": "uv",
      "args": ["run", "--directory", "/path/to/project", "alter", "mcp"]
    }
  }
}

Replace /path/to/project with the absolute path to your project root.

Editor	Config file
Claude Desktop	claude_desktop_config.json
Cursor	.cursor/mcp.json
Windsurf	.windsurf/mcp.json

For Claude Code, you can also register via the CLI instead of editing JSON:

claude mcp add alter -- uv run --directory /path/to/project alter mcp

Why uv run? It ensures the command runs inside your project's virtual environment, picking up the correct alterdb version and dependencies — no manual source .venv/bin/activate needed.

Step 4 — Restart your editor (or open a new session) so the MCP server connects. Verify by asking:

"What tools do you have available from alter?"

What AI assistants can do through MCP

• Read your current schema (tables, columns, relations, enums)
• Propose changes — add/remove/rename tables and columns in a staging area
• Add a file — parse a model file and merge its tables into the schema
• Preview diffs before committing anything
• Preview migration SQL — see the DDL that needs to run for pending changes
• Undo/redo any staged change
• Commit approved changes to schema.alter
• Apply to code — write committed schema changes to your ORM model files
• Export as SQL, Mermaid, or JSON
• Validate the schema for errors
• Query live data — run read-only SQL against a real database and get results back (see below)

apply_to_code requires a prior commit: if there are uncommitted staged changes when apply_to_code() is called, the tool returns a message asking you to call commit_changes() first. This prevents silently applying a stale snapshot while discarding your pending edits.

Example prompts

Once connected, just talk to your assistant:

Explore and understand:

• "Show me the current schema"
• "What tables reference the users table?"
• "How many columns does the orders table have? List them with their types"
• "Export the schema as a Mermaid diagram I can paste into our wiki"

Design and modify:

• "Add a payments table with id, amount, currency, and a foreign key to users"
• "Add a tags table and a many-to-many join table linking it to posts"
• "Rename the name column in users to full_name"
• "Add created_at and updated_at timestamp columns to every table"
• "Remove the legacy_notes column from orders"

Review and validate:

• "Show me the diff of what changed"
• "Preview the migration SQL for the pending changes"
• "Validate the schema — are there any broken foreign keys?"
• "Undo the last change"

Import and bootstrap:

• "Parse app/legacy/models.py and add its tables to the schema"
• "I have a SQL dump — import it into the schema"

The assistant stages changes, shows you a diff, and only commits to schema.alter with your approval — nothing is written to your model files until you also run alter apply.

Querying live data

Alter's MCP server can also run read-only SQL queries against a live PostgreSQL database, so your AI assistant can answer questions about actual data — not just schema structure.

Setup

1 — Install the database extra (if you haven't already):

pip install alterdb[db]
# or
uv add alterdb[db]

This adds psycopg2-binary, which is required for all live database tools.

2 — Set the DATABASE_URL environment variable before starting your editor or MCP session:

export DATABASE_URL="postgresql://user:password@localhost:5432/mydb"

Or add it to your editor's MCP config so it's always available:

{
  "mcpServers": {
    "alter": {
      "command": "uv",
      "args": ["run", "--directory", "/path/to/project", "alter", "mcp"],
      "env": {
        "DATABASE_URL": "postgresql://user:password@localhost:5432/mydb"
      }
    }
  }
}

That's it. No other configuration needed — the tools pick up DATABASE_URL automatically.

The three data tools

Tool	What it does
query_db	Execute a SELECT query, return results as a table, JSON, or CSV
describe_table_data	Show row count, column types, relationships, and sample rows for a table
explain_query	Show PostgreSQL's query execution plan (without running the query)

All queries run in a read-only transaction — INSERT, UPDATE, DELETE, and DDL are blocked at the database level. Results are capped at 1,000 rows (default: 100).

Example prompts

"How many users signed up in the last 30 days?"

The assistant calls read_schema to see the users table has a created_at column, then calls query_db:

| count |
| 847   |

1 row in 4ms

→ "847 users signed up in the last 30 days."

---

"Which plan do most of our paying customers use?"

| plan    | count |
| pro     | 1,204 |
| starter | 891   |
| team    | 342   |

3 rows in 12ms

---

"Tell me about the orders table before I write a query against it"

The assistant calls describe_table_data("orders"):

Table: public.orders (24,871 rows)

Columns:
  id:          uuid        NOT NULL DEFAULT gen_random_uuid()
  user_id:     uuid        NOT NULL
  status:      varchar     NOT NULL
  total_cents: integer     NOT NULL
  created_at:  timestamptz NOT NULL DEFAULT now()

References (outgoing):
  orders.user_id → users.id (CASCADE)

Referenced by (incoming):
  order_items.order_id → orders.id (CASCADE)

Sample data (5 rows):
id     | user_id | status    | total_cents | created_at
-------+---------+-----------+-------------+-----------
a1b2…  | x9y0…   | completed | 4999        | 2024-03-01…
…

---

"Why is my query slow? EXPLAIN this: SELECT * FROM orders JOIN users ON orders.user_id = users.id WHERE orders.status = 'pending'"

The assistant calls explain_query and returns the plan — no rows are fetched, no data is affected.

Hash Join  (cost=18.50..1842.30 rows=312 width=156)
  Hash Cond: (orders.user_id = users.id)
  ->  Seq Scan on orders  (cost=0.00..1810.71 rows=312 ...)
        Filter: ((status)::text = 'pending'::text)
  ->  Hash  (cost=14.70..14.70 rows=304 ...)
        ->  Seq Scan on users  (cost=0.00..14.70 rows=304 ...)

→ "The sequential scan on orders is the bottleneck — adding an index on orders.status would speed this up significantly."

Supported ORMs

• SQLModel — auto-detected from from sqlmodel import ...
• SQLAlchemy 2.0 (declarative) — auto-detected from from sqlalchemy import ...

License

MIT
