Ambiguous Monkey
A package that focuses on high-efficiency markerless 3D reconstruction analysis on large datasets.
Mel Xu
2025.6
Overview
This tool covers a workflow that involves multi-modal video synchronization, DeepLabCut analysis, Anipose reconstruction and customizable wiring.

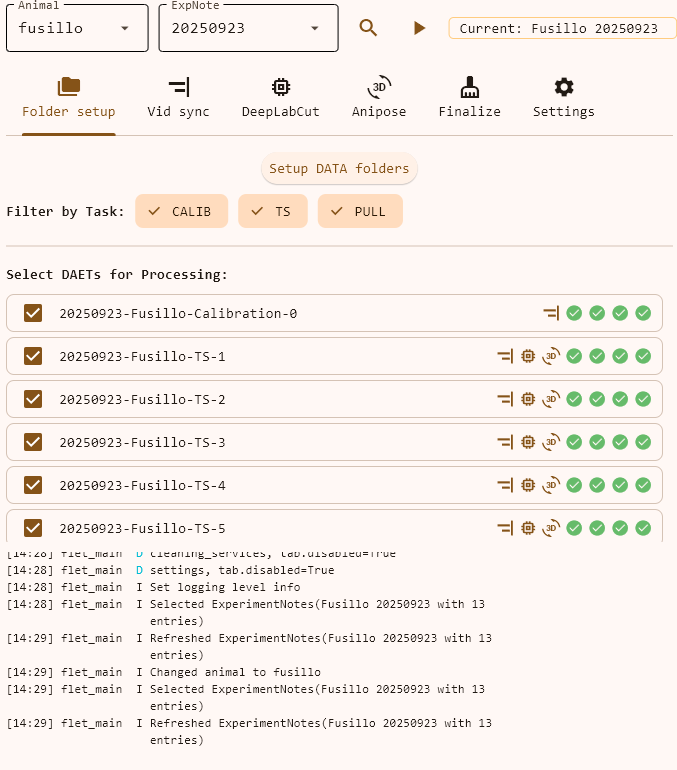

Useful command line functions as well as a user-friendly GUI are available from this package.
It is originally developped to help with handling our monkey behavioral data. We have 4 cameras recording simultaneuously the monkey behavior that generates tens of GBs of videos. This tool simplifies tedious organizing and processing steps into ideally one click.
This package is written and tested on Windows 11 and 10. Theoretically it also works on Unix, but that is not tested.
Installation
To install ammonkey, you will need to create a conda env per amm-env.yaml. The new env is named amm by default.
conda env create -f "whatever/path/amm-env.yaml"
Due to the package resolving and installation, this might take a while to finish.
Then the GUI can be started with:
ammonkey
That's it! To adapt different experiment setups, multiple parameters can be configured in site-packages/ammonkey/cfgs/amm-config.yaml, or by clicking the "open config" button in the setting tab in GUI.
If there is already an env with deeplabcut installed, [this hasn't been tested for compatibility yet]ammonkey can also be installed via:
pip install ammonkey
Workflow
Code examples are in ammonkey_example.py. Here explains the ideas how it works
Some terms
-
Experiment note is the source according to which the package processes data.
- Object is
ExpNote()
- Object is
-
DAET
- refers to a combination of Date-Animal-Experiment-Task;
- Created by and according to
ExpNote - Used as a unique identifier of each experiment entry (one row in
ExpNote).
-
Raw path is the path where raw data is dumped.
- Must contain string
'DATA_RAW'. This behavior can be changed by modifying.core.expNote.getDataPath(). - Must follow
DATA_RAW/(animal_name)/yyyy/mm/dd/yyyymmdd. This is parsed inExpNote._parsePathInfo() - Data in the path should be kept intact and not allowed to modify for integrity.
- Must contain string
-
Data path is the path where all processed data will appear.
- Converted from raw path by just replacing
DATA_RAW->DATA.
- Converted from raw path by just replacing
-
dlc == deeplabcut
-
ani == anipose
Steps
- Data setup
- Create data folders for storage
- Vid sync;
- DLC;
- Anipose;
- Collect final CSVs.
Details are covered in sections below and in example code ammonkey_example.py.
Batch process
The modular architecture of this package allows for date-wide processing which can be very useful if one looks back and realize multiple datasets are not processed yet.
- Batch sync:
ammonkey/scripts/batch_sync.py; - Batch DLC:
ammonkey/scripts/batch_dlc.py.
Tech Details
Below are module-specific docs generated by chatGPT.
ExpNote / DAET
1. Purpose
ExpNote and DAET together provide a lightweight, hash-friendly way to label, load, and query experimental video-note spreadsheets. DAET is an immutable identifier (Date-Animal-Experiment-Task), while ExpNote is a high-level interface that turns an Excel sheet plus a folder tree into easily filterable Python objects.:contentReference[oaicite:0]{index=0} :contentReference[oaicite:1]{index=1}
2. Key Concepts
| Concept | What it means |
|---|---|
| DAET | A frozen dataclass stringified as YYYYMMDD-Animal-Experiment-Task; unique & hashable. Two DAET objects w/ same four fields are exactly the same. Thus, it is not recommended to write same experiment-task fields when taking notes. Upon creation, if there are entries with same four fields, they will be auto-renamed, so will the output folders. |
| Task | Enum describing experiment categories (TS, BBT, BRKM, PULL, CALIB, ALL). |
| ExpNote | Loader/manager that converts an Excel notes file into DAET-centric records and video paths. |
3. Quick-start Example
from pathlib import Path
from ammonkey.expNote import ExpNote, Task
root = Path(r'P:\projects\monkeys\DATA_RAW\Pici\2025\04\20250403')
notes = ExpNote(root) # auto-parses animal/date and loads Excel
print(notes) # ➜ ExperimentNotes(Pici 20250403 with N entries)
# Access all DAETs
for daet in notes.daets:
print(daet)
# Filter for a specific task
ts_df = notes.filterByTask(Task.TS)
print(ts_df[['daet', 'Experiment']])
# Get video existence map for the first valid entry
first_valid = notes.getValidDaets()[0]
print(notes.checkVideoExistence(first_valid))
4. Public API Summary
4.1 class DAET(date:str, animal:str, experiment:str, task:str)
| Member | Description |
|---|---|
.d |
Alias for str(daet) |
.year |
Four-digit int year |
.isCalib |
True if "calib" in experiment |
fromString(s) |
Parse a YYYYMMDD-Animal-Exp-Task string |
fromRow(row, date, animal) |
Build from a Pandas row inside ExpNote |
4.2 class ExpNote(path, *, header_key='Experiment', …)
| Member | Use |
|---|---|
.daets / getDaets() |
List of all DAET objects in the sheet |
dupWithBlackList(daets:list[DAET]) |
Creates new ExpNote object that excludes any entry in the input list. |
dupWithWhiteList(daets:list[DAET]) |
Creates new ExpNote object that keeps only entries in the input list. |
getAllTaskTypes() -> list[Task] |
Returns all task types involved in this note. e.g. returns [Task.CALIB, Task.TS, Task.PULL] |
applyTaskFilter(tasks:list[Task]) |
Creates new ExpNote object that keeps only entries that match tasks in the list. |
checkSanity() -> bool |
Returns whether this note looks okay. |
is_daet_void(daet) -> bool |
Returns whether this DAET entry is marked as void ("do not process" mark) |
getRow(daet) |
Return Pandas row for an entry (DAET) |
getVidSetIdx(daet) |
Returns a list[int] of all the videos' index of given DAET. |
getVidPath(daet, cam_idx) |
Absolute Path to a single video file |
checkVideoExistence(daet) |
{cam_idx: bool} map of found files. e.g. {1:True, 2:False, 3:True, 4:True} |
getValidDaets(min_videos=2, skip_void=True) |
DAETs that are ready for processing |
getSummary() |
Dict with counts for quick reporting |
5. Typical Workflow
- Instantiate
ExpNotewith the raw-data folder that contains anAnimal_Date.xlsx. - Inspect
notes.getSummary()to verify entry counts. - Filter/Select DAETs via
getValidDaets()orfilterByTask(). - Locate Videos by calling
getVidPath()orgetVidSetPaths(). - Process only when
checkVideoExistence()confirms required files.
6. Error Handling & Logging
- Missing Excel columns raise
ValueError; missing files log warnings but do not crash. - Duplicate DAETs or malformed rows are reported through the module’s logger (
__name__). - Incorrect date formats in
DAETraiseValueErrorat construction time.
7. Best Practices
- Keep Excel headers exactly matched; customize
header_keyonly if the sheet layout differs. - Use the
Taskenum everywhere instead of raw strings to avoid typos. - Because
DAETis frozen and hashable, it can be used as a dictionary key or set element safely across a session. - For reproducibility across runs, store the string form of a DAET rather than relying on Python
hash()values, which vary per interpreter session.
8. Version Compatibility
Both classes rely only on the Python ≥ 3.10 standard library plus pandas ≥ 1.5. If your workflow touches on video paths, ensure the folder layout remains:
root/
│ Animal_Date.xlsx
├─ cam1/
├─ cam2/
├─ cam3/
└─ cam4/
Any deviation requires overriding cam_headers or extending getVidPath.
Video Synchronization
1. Purpose
sync.py implements a complete pipeline to detect and correct timestamp offsets across multi-camera video sets using LED flashes and audio cues. It produces per-DAET JSON configs and optionally writes synchronized output videos. :contentReference[oaicite:0]{index=0}
2. Key Components
| Class / Function | Role |
|---|---|
SyncConfig |
Holds thresholds, durations, file extensions and flags for detection & override. |
SyncResult |
Immutable record of LED starts, audio starts, corrected frames, status & message. |
VidSynchronizer |
Orchestrates detection (audio + LED), cross-validation, config writing, and final video sync. |
syncVideos(...) |
Convenience function: prepares folders, invokes VidSynchronizer, returns results. |
3. Quick-start Example
from ammonkey.expNote import ExpNote, Task
from ammonkey.sync import syncVideos, SyncConfig, CamConfig
notes = ExpNote(r'P:\projects\monkeys\DATA_RAW\Pici\2025\04\20250403')
cam_cfg = CamConfig() # default camera ROIs & LED colors
sync_cfg = SyncConfig(override_existing=True)
# Run full sync for Task.BBT only
results = syncVideos(notes,
cam_cfg=cam_cfg,
sync_cfg=sync_cfg,
task=Task.BBT)
# Inspect outcomes
for res in results:
print(f"{res.daet}: {res.status} — {res.message}")
4. Public API Summary
4.1 SyncConfig(...)
audio_test_duration: seconds for detection windowled_threshold,cross_validation_threshold: pixel & frame-offset tolerancesvideo_extension,output_size: format & resolution for outputoverride_existing: reprocess existing detections/syncs
4.2 SyncResult
.daet: associated DAET.led_starts,.audio_starts,.corrected_starts: per-cam frame lists.status:'success','warning', or'failed'.message: diagnostic text.config_path: JSON file location if created
4.3 VidSynchronizer
.setROI(daet=None, frame=500): launch ROI selector for LED zones..syncAll(task, skip_existing=True): run detection + video sync for all valid DAETs.._runAudioSync(daets),._runLEDSync(daet, audio_starts): low-level detectors.._crossValidate(led_starts, audio_starts): align LED vs audio, interpolate or flag errors.._createSyncConfig(...): write per-DAET JSON forSyncLED.process_videos.
4.4 syncVideos(...)
- Prepares folders via
dataSetup - Instantiates
VidSynchronizerand runs ROI setup - Returns list of
SyncResultobjects
5. Typical Workflow
- Prepare raw folder with Excel notes (
ExpNote) and camera subfolders. - Import and configure: instantiate
SyncConfig(tuning thresholds) and optionalCamConfig. - Run
syncVideos(notes, cam_cfg, sync_cfg, task)to detect & sync. - Review console/log for
SyncResultstatuses. - Inspect generated JSON configs in each DAET’s
SynchronizedVideosfolder. - Locate final synced videos under
SynchronizedVideos/{group}/subfolders.
6. Error Handling & Logging
- Uses
Woodlogger to write per-phase logs undernotes.data_path. - Falls back to audio-only if LED fails; marks as warning or failed based on deviation counts.
- Missing videos or ROI configs emit warnings but continue processing other cams.
- Exceptions during detection/sync produce a
SyncResultwithstatus='failed'and error message.
7. Best Practices
- ROI Configuration: call
.setROI()once interactively before batch runs. - Threshold Tuning: adjust
led_thresholdandcross_validation_thresholdon a small sample to minimize false detections. - Data Organization: maintain consistent camera folders (
cam1–cam4) and file naming to matchExpNoteconventions. - Idempotency: use
override_existing=FalseinSyncConfigto skip already processed entries.
8. Version Compatibility
- Python ≥ 3.10, pandas ≥ 1.5, plus dependencies for
SyncLED,SyncAud, andROIConfig. - Relies on the same folder layout as
ExpNote. - Tested on Windows & Linux file paths but uses
pathlibfor cross-platform support.
DLC Analysis
1. Purpose
dlc.py defines DLCModel and DLCProcessor to run DeepLabCut pose estimation on synchronized video folders. dlcCollector.py adapts and merges per-model outputs into a single folder for downstream analysis.
2. Key Components
| Component | Role |
|---|---|
initDlc() |
Lazy-imports DeepLabCut, sets ready flag. |
DLCModel |
Frozen dataclass wrapping model config; methods: runOnce(), pee(), path helpers. |
DLCProcessor |
Orchestrates batch processing: loads sync roots, skips calibration, merges outputs. |
mergeDlcOutput(*folders) |
Combines separate model outputs into a merged folder, writes combined inherit.json. |
copyH5(src, dst) |
Copies filtered H5 files for merging. |
getDLCMergedFolderName(...) |
Generates merged folder names from per-model final names. |
3. Quick-start Example
from ammonkey.expNote import ExpNote
from ammonkey.sync import syncVideos, Task
from ammonkey.dlc import initDlc, createProcessor_BBT
# 1. Initialize DLC
initDlc()
# 2. Load experiment notes and synchronize videos
notes = ExpNote(r'P:\projects\monkeys\DATA_RAW\Pici\2025\04\20250403')
syncVideos(notes, task=Task.BBT)
# 3. Create processor for BBT and run batch DLC
processor = createProcessor_BBT(notes)
results = processor.batchProcess() # dict of DAET → success flag
4. Public API Summary
initDlc() → int
Imports DeepLabCut; returns 1 on success, 0 on failure.
class DLCModel
.runOnce(vid_path, override_exist=True) → bool— run DLC on one folder..md5_short,.final_folder_name— unique identifiers..information() → list[str]— diagnostic info..pee(vid_path)— isolates output files, writes logs andinherit.json.
class DLCProcessor
.analyzeSingleDaet(daet) → bool— process one DAET..batchProcess(daets=None, min_videos=2) → dict[DAET, bool]— loop over DAETs.
mergeDlcOutput(*folders) → int
Validates input folders, copies H5 files, writes merged inherit.json.
5. Typical Workflow
- Call
initDlc()at startup. - Instantiate
ExpNoteand synchronize videos withsyncVideos(). - Create a
DLCProcessorvia a factory (createProcessor_TS/Pull/BBT/Brkm). - Run
processor.batchProcess()to perform DLC analysis. - Find merged outputs under
{DAET}/DLC/{merged_folder}.
6. Error Handling & Logging
- Initialization errors and missing models log via Python
logging. runOnce()logs and returnsFalseon import errors, missing paths, or analysis failures.mergeDlcOutput()raises on nonexistent folders or invalid argument counts.- All per-DAET logs and merged JSON live under
note.data_path / 'SynchronizedVideos'.
7. Best Practices
- Use processor factories (
createProcessor_*) to ensure consistent model presets. - Skip calibration DAETs automatically; no extra filtering needed.
- Inspect JSON logs (
inherit.json) for reproducibility rather than relying on in-memory hashes.
8. Version Compatibility
- Python ≥ 3.10
- DeepLabCut installed in the same environment
- pandas ≥ 1.5 (for
ExpNote) - Compatible with Windows & Linux via
pathlib
Anipose Processing & Finalization
1. Purpose
ani.py automates camera-calibration, video preparation, and 3D triangulation via the Anipose CLI. finalize.py gathers all generated 3D-pose CSVs into a clean folder structure and logs the collection.
2. Key Components
| Component / Function | Role |
|---|---|
getH5Rename(file_name, stem_only=False) |
Strip DLC postfix from H5 filenames |
insertModelToH5Name(...) |
(stub) Intended to inject model tag into H5 filename |
CalibLib |
Indexes historical calibration TOML files and finds closest match by date |
AniposeProcessor |
Manages per-DAET folder setup, calibration copy, CLI calls (calibrate, triangulate), and log writing |
violentCollect(ani_path, clean_path) |
Copy all *.csv from pose-3d subfolders into a single "clean" directory |
writeProcedureSummaryCsv(note, ani_path, clean_path) |
(stub) Intended to summarize DAET procedures into a single CSV |
3. Quick-start Example
from pathlib import Path
from monkeylab.expNote import ExpNote
from monkeylab.ani import AniposeProcessor, CalibLib
from monkeylab.finalize import violentCollect
# 1. Load notes and configure Anipose
notes = ExpNote(r'P:\projects\monkeys\DATA_RAW\Pici\2025\04\20250403')
processor = AniposeProcessor(note=notes, model_set_name='BBT-LR')
# 2. Prepare calibration files and root config
processor.setupCalibs()
processor.setupRoot()
# 3. Batch-setup 2D outputs and run triangulation
processor.batchSetup(use_filtered=True)
processor.calibrate() # runs `anipose calibrate`
processor.triangulate() # runs `anipose triangulate`
# 4. Collect all final CSVs
clean_dir = Path(r'P:\projects\monkeys\CLEAN_CSV')
violentCollect(processor.ani_root_path, clean_dir)
4. Public API Summary
getH5Rename(file_name, stem_only=False) → str
Remove auto-generated DLC postfix (_DLC_resnet…_shuffle…) from H5 filenames.
class CalibLib(lib_path: Path)
.updateLibIndex()— scan*.tomlcalibration files into a date→list index..lookUp(date: int) → Path | None— return exact or closest‐prior TOML; logs fallback.
class AniposeProcessor(note, model_set_name, ...)
.setupCalibs()— copy each DAET’s raw videos into per-DAET calibration folders..setupRoot()— copyconfig.tomland ensurecalibration.tomlexist in root..setupSingleDaet(daet, use_filtered, copy_videos)— prepare H5, logs, and calibs for one DAET..batchSetup(use_filtered, copy_videos)— runsetupSingleDaetfor all DAETs..calibrate()/.triangulate()— invoke Anipose CLI viasubprocess..pee(daet_root)— append triangulation record toscent.log.
violentCollect(ani_path: Path, clean_path: Path) → None
Copy all CSVs under ani_path/pose-3d into clean_path/{ani_name} and write a timestamped log.
writeProcedureSummaryCsv(...)
(to be implemented) Summarize per-DAET processing steps into a master CSV.
5. Typical Workflow
- Instantiate
ExpNoteand createAniposeProcessor. - Populate calibration library with
setupCalibs(). - Initialize root with
setupRoot(). - Copy filtered or unfiltered H5 and calibration files via
batchSetup(). - Run Anipose CLI commands:
.calibrate()then.triangulate(). - Collect final CSVs using
violentCollect()(and later implementwriteProcedureSummaryCsv()).
6. Error Handling & Logging
- Missing calibration folder raises
FileNotFoundError. - Fallback calibration selection logs a
WARNING. - Copy errors log via
logger.errorand continue. violentCollectskips existing CSVs; raises on invalid paths.
7. Best Practices
- Pre-populate
calib historywith well-named TOML files (calibration-YYYYMMDD…). - Run
setupCalibs()once per model set before any triangulation. - Verify that
config.tomlandcalibration.tomlexist underani_root_path. - Use
use_filtered=Trueto process only filtered 2D poses. - Implement
writeProcedureSummaryCsvto automate batch reporting.
8. Version Compatibility
- Python ≥ 3.10 (relies on
dataclasses,pathlib,subprocess). - Anipose CLI installed in specified
conda_env. - pandas ≥ 1.5 (for
ExpNoteintegration). - Compatible with Windows & POSIX paths via
pathlib.
Metadata
Release files for ammonkey 3.4.5
For a detailed explanation of source distributions (sdists) and built distributions (wheels), please see the package formats documentation.
Source distribution (sdist)
| File | Size | Uploaded | Provenance | Actions |
|---|---|---|---|---|
| ammonkey-3.4.5.tar.gz | 341.4 kB | With provenance | Details for ammonkey-3.4.5.tar.gz |
Built distribution (wheel)
| File | Interpreter | ABI | Platform | Actions Reset |
|---|---|---|---|---|
| ammonkey-3.4.5-py3-none-any.whl | Python 3 | none | any | Details for ammonkey-3.4.5-py3-none-any.whl |
Total release size: 713.4 kB
Release files / ammonkey-3.4.5.tar.gz
| Download URL | ammonkey-3.4.5.tar.gz |
|---|---|
| Size | 341.4 kB |
| Tags | Source |
|
SHA-256 checksum How to use checksums |
e453acbc055290a1470a38e3a81b8fbeed333a2d305ac2d26761adfdde3be654
|
|
BLAKE2b-256 checksum How to use checksums |
abaf75d0396c77d34e4445693dcde4e277f2953eaad5784bd4f1c8c9e680f484
|
| Upload date | |
|
Uploaded using Trusted Publishing? What is trusted publishing? |
Yes |
| Uploaded via |
twine/6.1.0 CPython/3.13.7
|
Provenance
Provenance describes where a file came from. On PyPI, provenance is shared via attestations, which provide a verifiable record of the build or publishing details. View details, limitations and caveats.
PyPI Publish Attestation
PyPI verified that this artifact, at this checksum, originated from the publisher listed below.
Signed by GitHub Actions, verified by PyPI on Mar 20, 2026.
Transparency logRelease files / ammonkey-3.4.5-py3-none-any.whl
| Download URL | ammonkey-3.4.5-py3-none-any.whl |
|---|---|
| Size | 371.9 kB |
| Tags | Python 3 |
|
SHA-256 checksum How to use checksums |
f362ca9f2fa471d5542ac948455f2a7fd18ecf1104a057058c3d170c919ed2c3
|
|
BLAKE2b-256 checksum How to use checksums |
911d6117034f30e09c84d0106f020e583271e64763a486eac8b92a377aae4fa5
|
| Upload date | |
|
Uploaded using Trusted Publishing? What is trusted publishing? |
Yes |
| Uploaded via |
twine/6.1.0 CPython/3.13.7
|
Provenance
Provenance describes where a file came from. On PyPI, provenance is shared via attestations, which provide a verifiable record of the build or publishing details. View details, limitations and caveats.
PyPI Publish Attestation
PyPI verified that this artifact, at this checksum, originated from the publisher listed below.
Signed by GitHub Actions, verified by PyPI on Mar 20, 2026.
Transparency logSecurity for ammonkey 3.4.5
Provenance
Provenance describes where a file came from. On PyPI, provenance is shared via attestations, which provide a verifiable record of the build or publishing details. View details, limitations and caveats.
Full provenance
Both files in this release have been uploaded with provenance metadata.
Attestation for ammonkey-3.4.5.tar.gz
PyPI Publish Attestation
PyPI verified that this artifact, at this checksum, originated from the publisher listed below.
Signed by GitHub Actions, verified by PyPI on Mar 20, 2026.
Transparency logA note on package security
PyPI is a repository for distributing packages, not a service for auditing them. While third-party security researchers and our staff do their best to detect and remove malicious packages, PyPI cannot guarantee the quality, security or suitability of any given package.
To learn more about protecting yourself from malicious actors, visit our package security documentation.
