AtlasTrack

Register histological brain sections to a reference atlas, and map probe trajectories into atlas coordinates.

This is a desktop app for wet-lab neuroscientists: load histology slide images, place each section in the atlas, register the series automatically, click your probe tracks, and export coordinates or figures.

What it does

Given one or more slide images and a little guidance:

1. Finds the sections in each slide and merges several slides into one coordinate space.
2. Places each section at its front-to-back atlas level - by hand in a side-by-side matcher, or automatically with DeepSlice.
3. Registers every section to the atlas: a regularized 2-D fit (elastix, with a bending-energy penalty and a tissue mask) plus a silhouette pre-align and an outer-contour snap. Damaged sections can be corrected by hand with a box transform or landmark points.
4. Maps probe tracks you click into atlas coordinates, per shank and per channel; optionally refined from recorded LFP depth features.
5. Exports per-channel CSV (CCF µm or Paxinos stereotaxic mm), an interactive 3-D HTML page, a HERBS .pkl, or your section series with atlas outlines.

Atlases come from BrainGlobe: Allen CCFv3, CCFv3-BBP Augmented, Chon/Kim Unified (Franklin-Paxinos names), and any other BrainGlobe id. All cover the same volume, so regions can be re-named from a different atlas without re-registering.

TUTORIAL.md walks through one slide start to finish.
MANUAL.md is the reference document.
Both are also available in the app under Help.

Install

From PyPI:

uv pip install "atlastrack[all]"    # recommended  (pip install also works)
atlastrack gui

The base install (atlastrack) is deliberately light. [all] adds three extras, each installable on its own:

From source, for development:

git clone https://github.com/vncntprvst/AtlasTrack
cd AtlasTrack
uv pip install -e ".[all,dev]"

Quote the target and use no spaces between extras - zsh and PowerShell treat [...] as a glob, and a space splits the argument.

Commands

atlastrack gui        # the app
atlastrack version
atlastrack gl-info    # diagnose GPU/OpenGL if the window will not open
atlastrack split | register | export      # headless equivalents

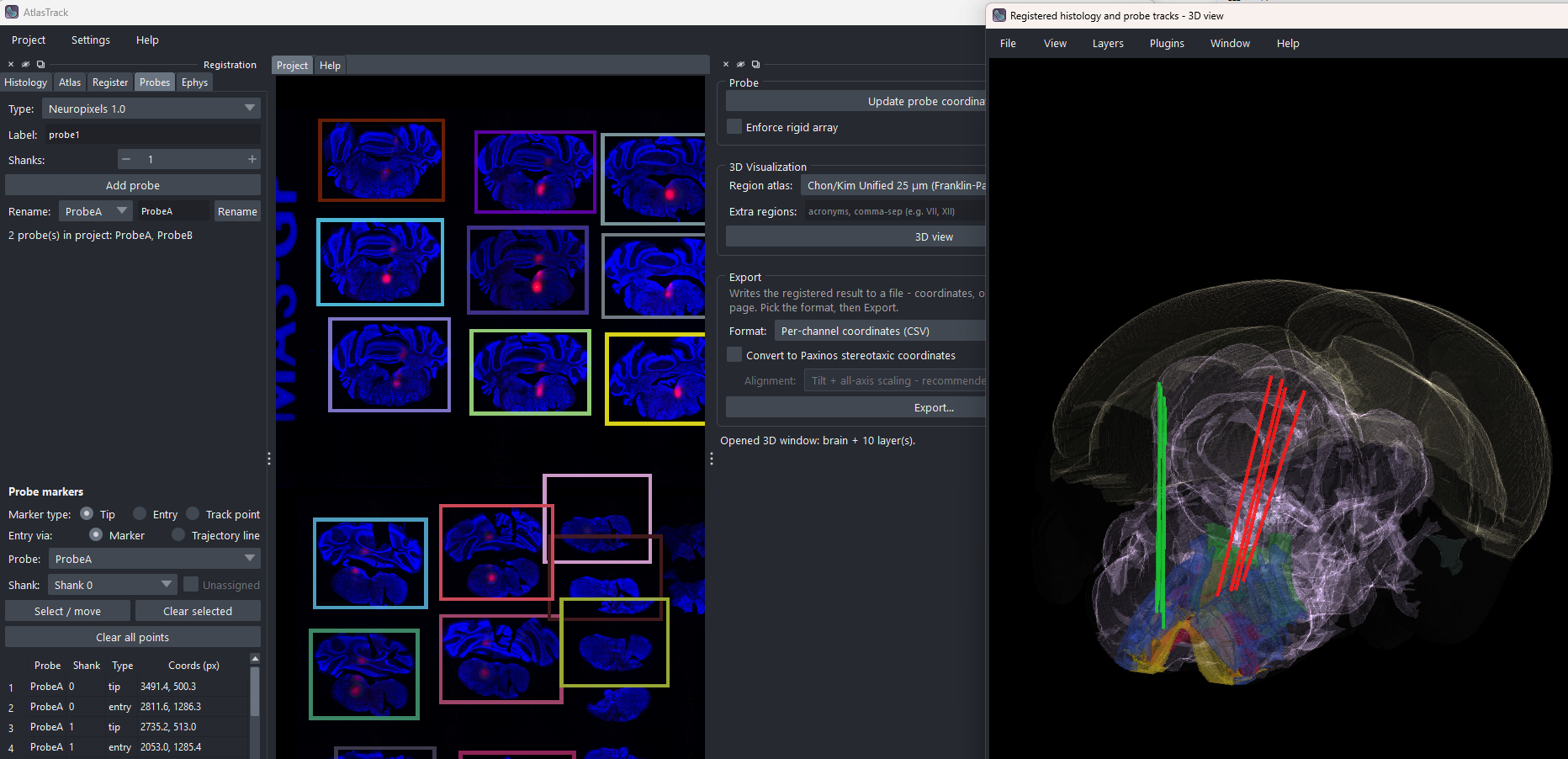

The window

The centre holds Project (your slide and the atlas overlay) and Help. On the left, the workflow in order: Histology → Atlas → Register → Probes → Ephys. On the right, 3D & Export. Menus: Project, Settings, Help.

Wheel zooms; Ctrl+wheel and Shift+wheel pan.

Layout

src/atlastrack/   io/ atlas/ sectioning/ landmarks/ registration/ probes/ viz/ gui/
tests/            pytest suite

Core packages are headless and unit-tested; only gui/ and viz/napari3d.py import napari/Qt, enforced by an import-linter contract. Coordinates are CCF (AP, ML, DV) in µm throughout. A project is one Pydantic model serialized to <slide>.atlastrack.json, with transform sidecars alongside.

Testing

uv pip install -e ".[all,dev]"
pytest -q          # GUI tests need a display
lint-imports       # the headless-core contract
