AVLite - Modular Autonomous Vehicle Stack for rapid prototyping, research, and education

AVLite

Modular Autonomous Vehicle Stack for rapid prototyping, research, and education.

Install · Quick Start · Architecture · Documentation · Plugins · Community

---

AVLite is a lightweight, extensible autonomous vehicle software stack designed for rapid prototyping, research, and education. It provides clean abstractions for perception, planning, and control while maintaining flexibility through a plugin-based architecture.

ROS2 & Autoware Ready — Optional ROS2 executer plugin with native Autoware message support (Trajectory, ControlCommand, etc.).

Architecture Overview

AVLite follows a modular architecture with clear separation of concerns:

flowchart TB
    subgraph ENTRY[" "]
        direction LR
        VIZ["🖥️ Visualization · c50\nReal-time Tkinter GUI"]
        HL["⌨️ Headless Mode\nTerminal dashboard · rich"]
        VIZ ~~~ HL
    end

    EXEC["⚙️ Execution Layer · c40\nSyncExecuter · AsyncThreadedExecuter · Factory"]

    subgraph COMPONENTS[" "]
        direction LR
        PERC["Perception · c10 (optional)\nLocalization · Mapping\nDetection · Tracking · Prediction"]
        PLAN["Planning · c20\nGlobal · Local · Lattice"]
        CTRL["Control · c30\nStanley · PID · Pure Pursuit · FTG"]
        WB["World Bridge · c40\nBasicSim · Carla · Gazebo · ROS2"]
        PERC ~~~ PLAN ~~~ CTRL ~~~ WB
    end

    COMMON["🔧 Common · c60\nSettings · Capabilities · TrajectoryTracker · CollisionChecker"]

    ENTRY --> EXEC
    EXEC --> COMPONENTS
    COMPONENTS --> COMMON

Core Components

• c10_perception: Interfaces and built-in algorithms for detection (FastBEVLidarDetection), tracking (KalmanTracker), prediction, and localization (LidarLocalization); Map / RaceMap in c11; OpenDRIVE HDMap parser in c18
• c20_planning: Global planning (GlobalCenterlineRacePlanner, HDMapGlobalPlanner) and local planning (VelocityLocalPlanner, lattice-based GreedyLatticePlanner)
• c30_control: Vehicle control algorithms (Stanley, PID, Pure Pursuit, Follow the Gap)
• c40_execution: Execution orchestration with sync/async modes and simulator bridges
• c60_apps: App infrastructure (c61_app_strategy, c62_factory, c63_plugins, c64_settings_schema, c65_setting_utils, c68_paths); no tkinter
• c50_common: Algorithm utilities only (c51–c56: capabilities, world/stack datatypes, trajectory, collision, FPS)
• plugins (avlite/plugins/): Built-in Tk visualizer package (p60_visualizer_tk), headless mode, config CLI; world bridges and alternative executers are available as optional plugins

Key Features

Strategy Pattern Architecture: All major components (perception, localization, planning, control) use the strategy pattern with automatic registration, allowing runtime selection and hot-reloading without code changes.

Capability-Based System: Components declare their requirements and capabilities, enabling automatic compatibility checking between perception/localization strategies and world bridges.

Optional Perception & Localization: Both perception and localization are optional in the execution pipeline. Run with ground truth data or plug in your own strategies as needed.

YAML-Based Configuration: Profile-based configuration system allows quick switching between different algorithm combinations and parameters.

Hot Reloading: Modify code and configuration files while the system is running without restarting.

Multiple Simulator Support: Works with BasicSim (built-in), CARLA, Gazebo, and ROS2/Autoware through abstract world bridge interface.

Extensible Plugin System: Add custom perception, planning, or control algorithms as plugins without modifying core code.

Why AVLite?

• Lightweight: Small codebase focused on clarity over production complexity
• No middleware lock-in: Works standalone; ROS2/Autoware integration is optional via a world-bridge/executer plugin
• Multi-simulator: Same code runs on BasicSim, Carla, or Gazebo
• Rapid iteration: Hot-reload code and tune parameters without restarting
• Minimal dependencies: Core needs only NumPy, Matplotlib, Tkinter
• Educational: Numbered modules and clean abstractions for learning

Installation

From PyPI (recommended):

pip install avlite

From source (development):

git clone https://github.com/AV-Lab/avlite.git
cd avlite
pip install -e ".[dev]"

Requires Python 3.10+.

Optional integrations (install separately as needed):

• CARLA: CARLA releases + the CARLA world-bridge plugin
• Gazebo: ROS 2 + the Gazebo world-bridge plugin
• ROS2 + Autoware: ROS 2 (Humble+) and optionally autoware_auto_msgs, plus the ROS2 world-bridge or executer plugin
• Joystick: the joystick controller plugin

Run from source:

python -m avlite

Install system-wide:

pip install .

Quick Start

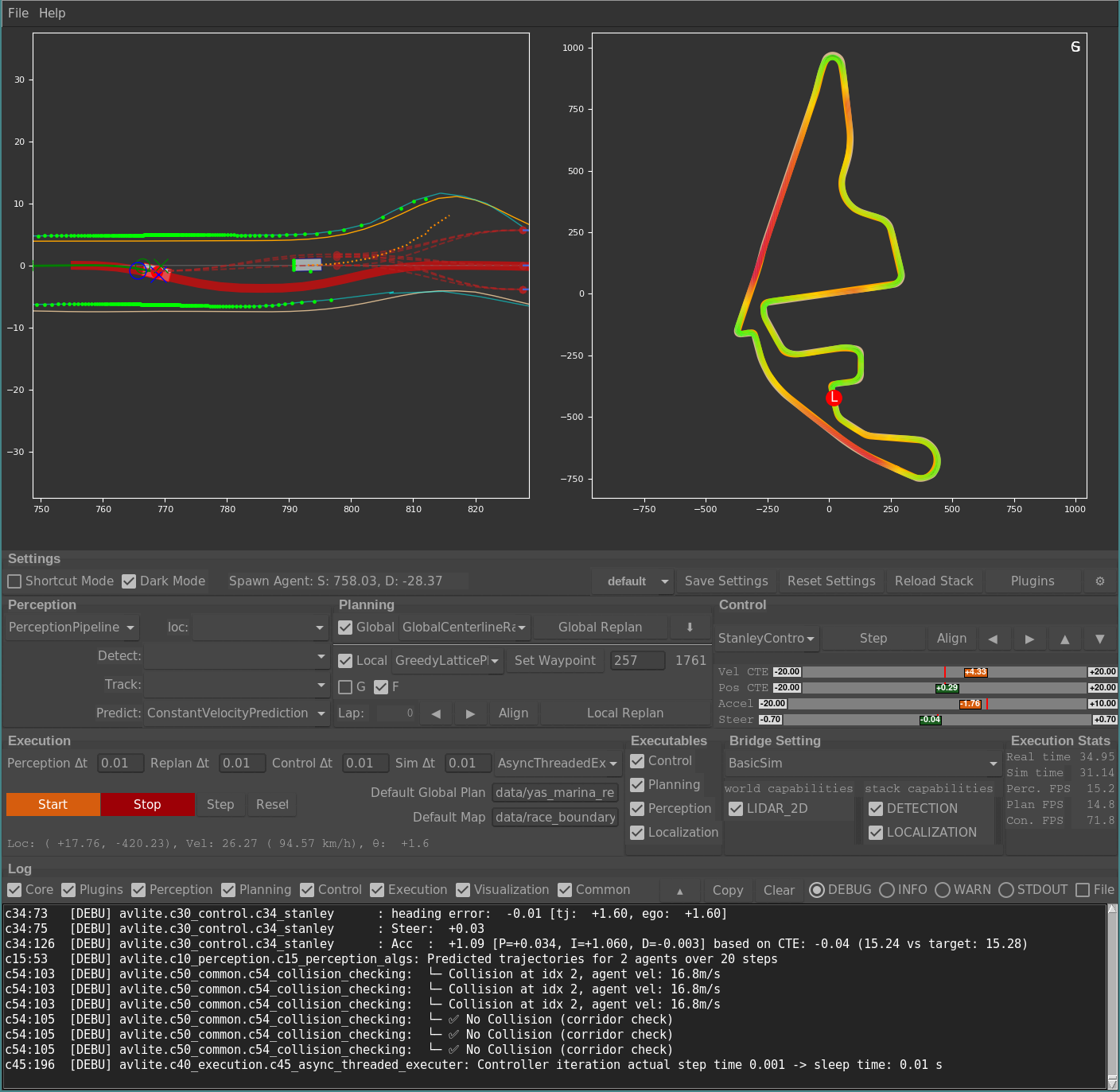

1. Launch the visualizer: python -m avlite
2. Select a profile from the Config tab (e.g., "default")
3. Click "Start/Stop Stack" to begin execution
4. Right-click on the plot to spawn NPC vehicles
5. Adjust parameters in real-time through the GUI

Headless Mode

For long-running deployments (robots, servers, CI) AVLite ships a minimal terminal dashboard that runs the executer without a GUI.

# Run with the 'default' profile
python -m avlite headless

# Pick a profile (saved from the visualizer)
python -m avlite headless -p my_robot_profile
python -m avlite headless my_robot_profile          # positional shortcut

# Useful options
python -m avlite headless -p my_robot_profile \
    --log-level WARNING \
    --control-dt 0.01 --replan-dt 0.5 --perceive

The dashboard shows live FPS, ego state, lap counter, and recent log lines. Press Ctrl+C to stop.

Requires the optional rich package:

pip install rich

Recommended workflow

1. Configure with the visualizer (python -m avlite): pick the bridge, strategies, and tune parameters until it behaves the way you want.
2. Save the result as a named profile from the Config tab.
3. Transfer (optional): export the profile as a single .yaml from the settings window (T) or with python -m avlite setting-cli export-profile <name>, then import on the target machine with Import profile or setting-cli import-profile.
4. Deploy that profile on your robot/server with python -m avlite headless -p <profile>.

The same YAML profiles drive both the GUI and headless mode, so what you see in the visualizer is what the robot will run.

Configuration files

Each profile is a single configs/<profile>.yaml file with sections for the core layers (c10_perception, c20_planning, c30_control, c40_execution), app bootstrap (c69_apps), and plugins (plugins:). Shipped defaults are in the repository configs/ directory. Saving from the GUI or settings window writes to ~/.config/avlite/ with the same filename; load prefers the user copy when present. User maps and trajectories live under ~/.config/avlite/data/; the Planning panel Save Global Plan button (⬇) opens a file picker there. Set AVLITE_CONFIG_DIR or AVLITE_DATA_DIR to use different directories.

python -m avlite setting              # settings GUI (no visualizer)
python -m avlite setting-cli help
python -m avlite setting-cli validate --profile default
python -m avlite setting-cli export-profile myprofile -o myprofile.yaml
python -m avlite setting-cli import-profile myprofile.yaml --force

See Configuration in the docs for paths, CLI, and resetting to repo defaults.

Community Plugins

AVLite has a community plugin system that lets anyone publish perception, planning, control, executer, or world-bridge strategies as a small Git repository. Community and member plugins are third-party or unverified code; AV-Lab does not guarantee their safety. Use for research and development at your own risk.

Browse and install from the GUI:

python -m avlite plugins

The browser has Community (public registry) and Members (AV-Lab private registry) tabs. It fetches the official community registry (https://github.com/AV-Lab/avlite-community-plugins) and lets you install, uninstall, and register plugins with the active profile. Installed plugins live under $XDG_DATA_HOME/avlite/plugins (or ~/.local/share/avlite/plugins); override with AVLITE_PLUGINS_DIR.

Member plugins (Members tab): sign in with GitHub (Device Flow) to browse plugins from the AV-Lab private registry. Your account must have access to that registry and each listed plugin repo. See docs/overview.md — Member plugins for details.

Publish your own plugin:

See the Plugin Development Guide — Publish via pull request for prerequisites, registry fields, and a PR checklist. Summary:

1. Build a plugin following the Plugin Development Guide.

2. Push it to a public Git repository.

3. Fork https://github.com/AV-Lab/avlite-community-plugins, add an entry to plugins.yaml:

   plugins:
     - name: my_perception_plugin
       description: One-line summary of what the plugin does
       repository: https://github.com/your-org/your-plugin-repo
       version: latest        # or a tag/commit SHA
       author: your-org
       category:
         - PerceptionStrategy


4. Open a pull request. Once merged it shows up in every user's python -m avlite plugins browser for install and register.

Project Structure

AVLite uses a numbered module system for easy navigation:

avlite/
├── c10_perception/         # Perception components (8 modules)
│   ├── c11_perception_model.py   # PerceptionModel, Map, RaceMap
│   ├── c12_perception_strategy.py
│   ├── c13_localization_strategy.py
│   ├── c14_mapping_strategy.py
│   ├── c15_perception_algs.py    # FastBEVLidarDetection, KalmanTracker, ConstantVelocityPrediction
│   ├── c16_localization_algs.py  # LidarLocalization (ICP)
│   ├── c18_hdmap_parser.py       # HDMap (OpenDRIVE parsing)
│   └── c19_settings.py
├── c20_planning/           # Planning components
│   ├── c21_planning_model.py
│   ├── c22_global_planning_strategy.py
│   ├── c23_local_planning_strategy.py
│   ├── c24_global_hdmap_planners.py  # HDMapGlobalPlanner
│   ├── c25_global_race_planners.py   # GlobalCenterlineRacePlanner
│   ├── c26_local_path_planners.py                    # ReferencePathPlanner
│   ├── c27_local_behavioral_and_velocity_planners.py # CruiseBehavioralPlanner, VelocityLocalPlanner
│   ├── c28_local_lattice_planners.py                 # Node/Edge/Lattice, GreedyLatticePlanner
│   └── c29_settings.py
├── c30_control/            # Control components
│   ├── c31_control_model.py
│   ├── c32_control_strategy.py
│   ├── c33_pid.py
│   ├── c34_stanley.py
│   ├── c35_pure_pursuit.py
│   └── c39_settings.py
├── c40_execution/          # Execution and simulation
│   ├── c41_world_bridge.py
│   ├── c42_execution_strategy.py
│   ├── c44_sync_executer.py
│   ├── c45_async_threaded_executer.py
│   ├── c46_basic_sim.py
│   └── c49_settings.py
├── c60_apps/               # App infrastructure (no tkinter)
│   ├── c61_app_strategy.py       # AppStrategy registry + bootstrap
│   ├── c62_factory.py            # executor_factory, load_stack_settings
│   ├── c63_plugins.py            # Plugin discovery, loading, log routing
│   ├── c64_settings_schema.py    # SettingsSchema, validation
│   ├── c65_setting_utils.py      # YAML profile load/save/export
│   └── c68_paths.py              # ConfigPaths, PluginPaths, DataPaths
├── c50_common/             # Algorithm utilities (c51–c56)
│   ├── c51_capabilities.py
│   ├── c52_world_sensor_datatypes.py
│   ├── c53_stack_datatypes.py
│   ├── c54_trajectory_tracker.py
│   ├── c55_collision_checking.py
│   └── c56_fps_tracker.py
└── plugins/               # Built-in plugins
    ├── p60_visualizer_tk/        # Tk visualizer + config + plugins apps (p61–p69)
    ├── p60_setting_cli/
    └── p60_headless_mode/

The numbering scheme allows quick navigation: search for "c23" to find local planning, "c34" for Stanley, "c35" for Pure Pursuit, etc.

Optional plugins

Additional world bridges (CARLA, Gazebo, ROS2), executers, and controllers are available as optional plugins. Register them in c62_community_plugins in the c69_apps section of configs/<profile>.yaml; each plugin's settings live under the profile's plugins: mapping, keyed by the plugin's dashed name.

Testing

Install dev dependencies and run the default fast suite (excludes slow and data-dependent tests):

pip install -e ".[dev]"
pytest

Run the full suite including slow timing tests and repo data/ regressions:

pytest -m ""

Run with coverage (advisory, no threshold enforced):

pytest --cov=avlite --cov-report=term-missing

Tests mirror the package layout under test/. Synthetic fixtures live in test/fixtures/ so CI does not depend on large map assets. Markers: slow for timing-sensitive tests, requires_data for Yas Marina and similar repo data checks.

Developing Custom Plugins

See the Plugin Development Guide for detailed instructions on creating custom perception, planning, and control components.

License

Distributed under the MIT License. See LICENSE for details.

---
