AxonX Studio

English · 简体中文

AxonX Studio is the browser workspace for AxonX. Run Tasks, develop with an Agent, and inspect logs, dependencies, workspace files and research charts. It supports English/Chinese, light/dark themes, and backend-configured remote machines.

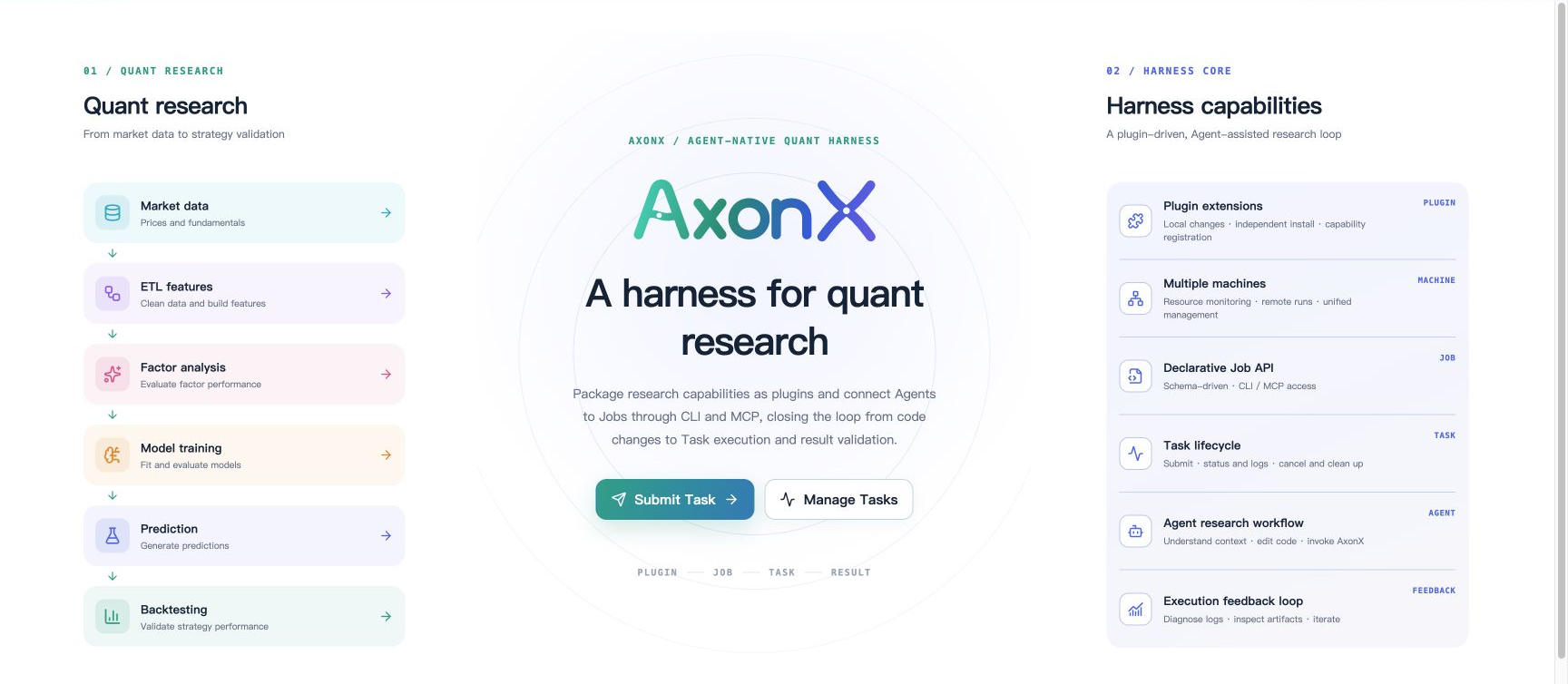

Studio home in the simulated Playground

The screenshot uses the static Playground with simulated data and execution.

Install and start

Use Python 3.12+ on macOS or Linux. Prebuilt Studio packages require no Node.js.

pip install "axonx[studio]"
export AXONX_SERVICE_TOKEN='replace-with-your-service-token'
axonx app --service.host 127.0.0.1

Open http://127.0.0.1:1024/ and enter the token in Settings → Local service token. Studio stores it in browser local storage. If AxonX is already installed, pip install axonx-studio and restart the service; service.web_enabled must be enabled.

Select Task definitions → demo, enter x = 2, y = 3, and run. Inspect the result and logs in Task details. Navigation preserves the command connection; reloading or closing the browser can stop execution. Leave Task Name empty for independent runs; a fixed-name rerun replaces the finished run.

Open Research → Data processing for datasets produced by ETL Tasks, Daily operations → Prediction comparison to check online and offline predictions, and Research → Strategy comparison to compare offline backtest results.

Follow Using Studio for navigation and failures, research setup for plugins/data, and Agent configuration for model credentials and code tools. Ordinary Tasks need no model credentials.

Static hosting

npm install @flowllm-ai/axonx-studio

Serve node_modules/@flowllm-ai/axonx-studio/dist/. Proxy /health, /jobs, /upload, /mcp and /proxy on the same origin to an AxonX backend, preserving Authorization and SSE streaming. Hash routes need no server-side page routes. Python hosting uses the packaged dist/ through static_dir().

Develop from source

Use Node.js 22.13+ (22.x), 24.x or 26+. Start the backend using the contribution guide, then run:

cd axonx_studio
npm ci
npm run dev

Open http://localhost:4173/. The development proxy defaults to http://127.0.0.1:1024; set AXONX_DEV_SERVER and restart Vite to change it. Vite also reads the repository-root .env. This variable configures only the development proxy.

# From the repository root:
npm --prefix axonx_studio run build
pip install ./axonx_studio

Restart AxonX after installation. Python distributions include existing dist/; npm run pack builds the UI and creates an npm archive with the shared version, without editing source metadata. npm run preview previews static assets without the development API proxy.

Extending Studio owns the directory map, routing, API/forms, generated contracts, Playground and checks. Artifact contracts define research views; deployment covers remote targets and hosting.

Released under the Apache License 2.0.
