BitCraft

AI-powered monitoring and analysis of Bitcoin transaction traffic, in your terminal.

BitCraft correlates blockchain transactions (wallets, txids, amounts) with network metadata (IPs, ports, timing, GeoIP country and ASN), clusters wallets, scores every transaction with machine learning, and presents ranked, explainable investigative leads in a terminal dashboard. It runs fully offline on Linux, Windows and macOS.

Built for Smart India Hackathon 2026, problem statement SIH26146 (NTRO, Blockchain & Cybersecurity).

---

Installation

BitCraft needs Python 3.10 or newer.

Method	Command	What you get
pipx (recommended)	pipx install bitcraft	The bitcraft command in its own isolated environment
pip	pip install bitcraft	The bitcraft command
From source	git clone https://github.com/RohanOnKeys/bitcraft && cd bitcraft && pip install -e .	The TUI plus the ML pipeline and API code
Docker (Linux)	docker compose up --build	Full stack: pipeline, PostgreSQL, Redis and the API
Air-gapped Linux	python packages/offline_bundle.py	A bundle with every wheel, image and dataset, installed with bash install.sh on a machine with no network

The pip and pipx packages contain the terminal interface. It connects to a BitCraft API at http://localhost:8000 and falls back to built-in demo data when none is running. The ML pipeline and API run from a source checkout or Docker (see Running the full system).

A Chocolatey package (choco install bitcraft) is prepared in packages/chocolatey and not yet published to the community repository.

---

Quick start

bitcraft demo          # opens BitCraft in a new, large terminal window with demo data
bitcraft               # same, using the API when it is running
bitcraft here          # run inside the current terminal
bitcraft status        # API health, data counts and pipeline status
bitcraft --help        # every command and option

Press Enter on the home screen, then use d dashboard, t threats, g graph explorer, w wallets, Enter on an alert for its detail, Esc to go back and q to quit. A terminal of 160 x 46 characters or larger shows every panel; Windows Terminal, a modern Linux terminal or iTerm2 look best.

---

Features

• Bulk ingestion of transaction and network metadata from CSV, JSON, JSON Lines and XML, with per-row validation
• Offline GeoIP enrichment (country, ASN, organisation) from the open DB-IP Lite databases
• Entity graph linking IP addresses, wallet addresses and transactions
• Wallet clustering with the common-input-ownership heuristic, and Louvain transaction communities
• Machine learning detection: a supervised risk model, a metadata model and an Isolation Forest, fused into one score
• Ranked, explainable alerts for transactions and wallets, each with a confidence score, SHAP reasons and evidence tagged real or modeled

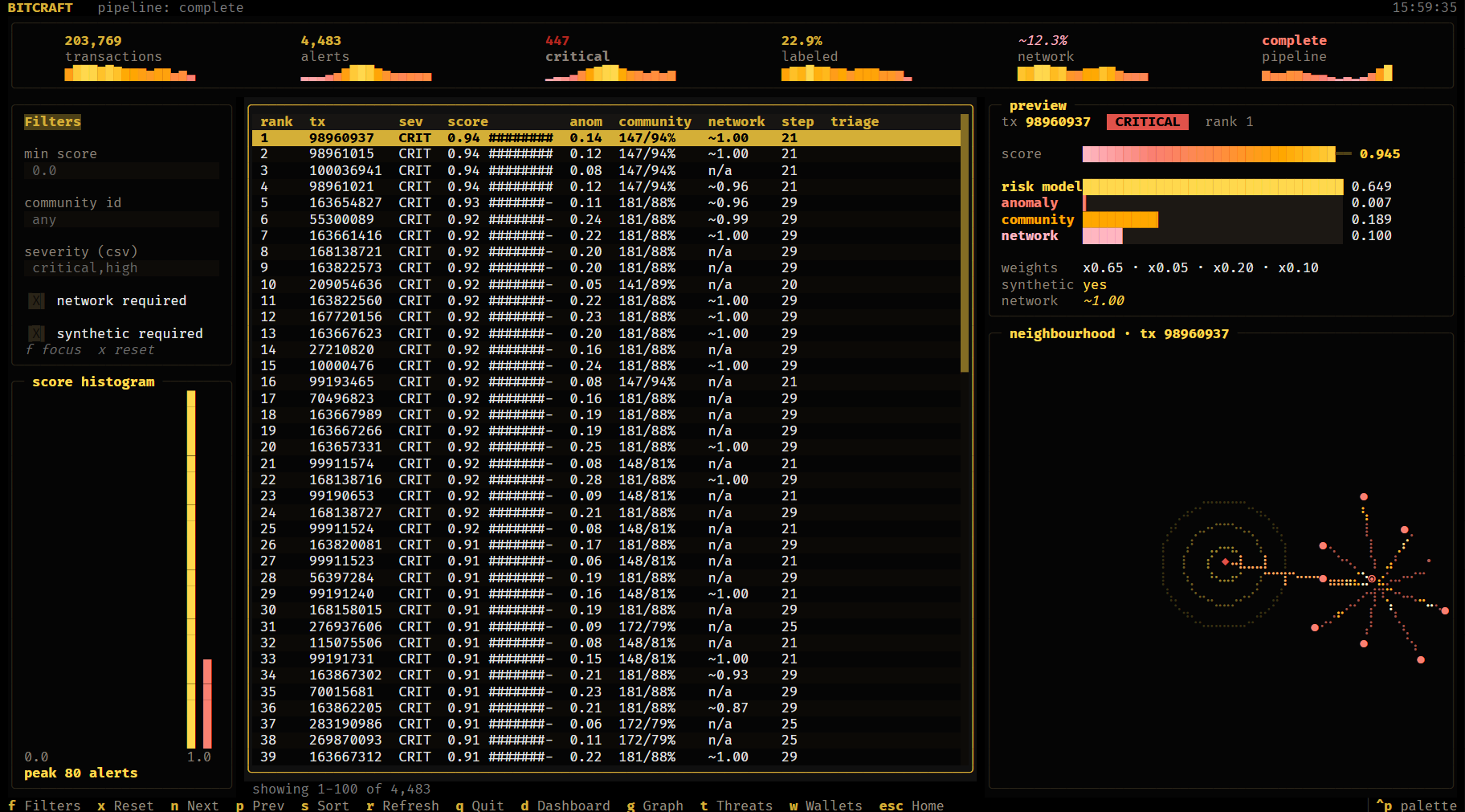

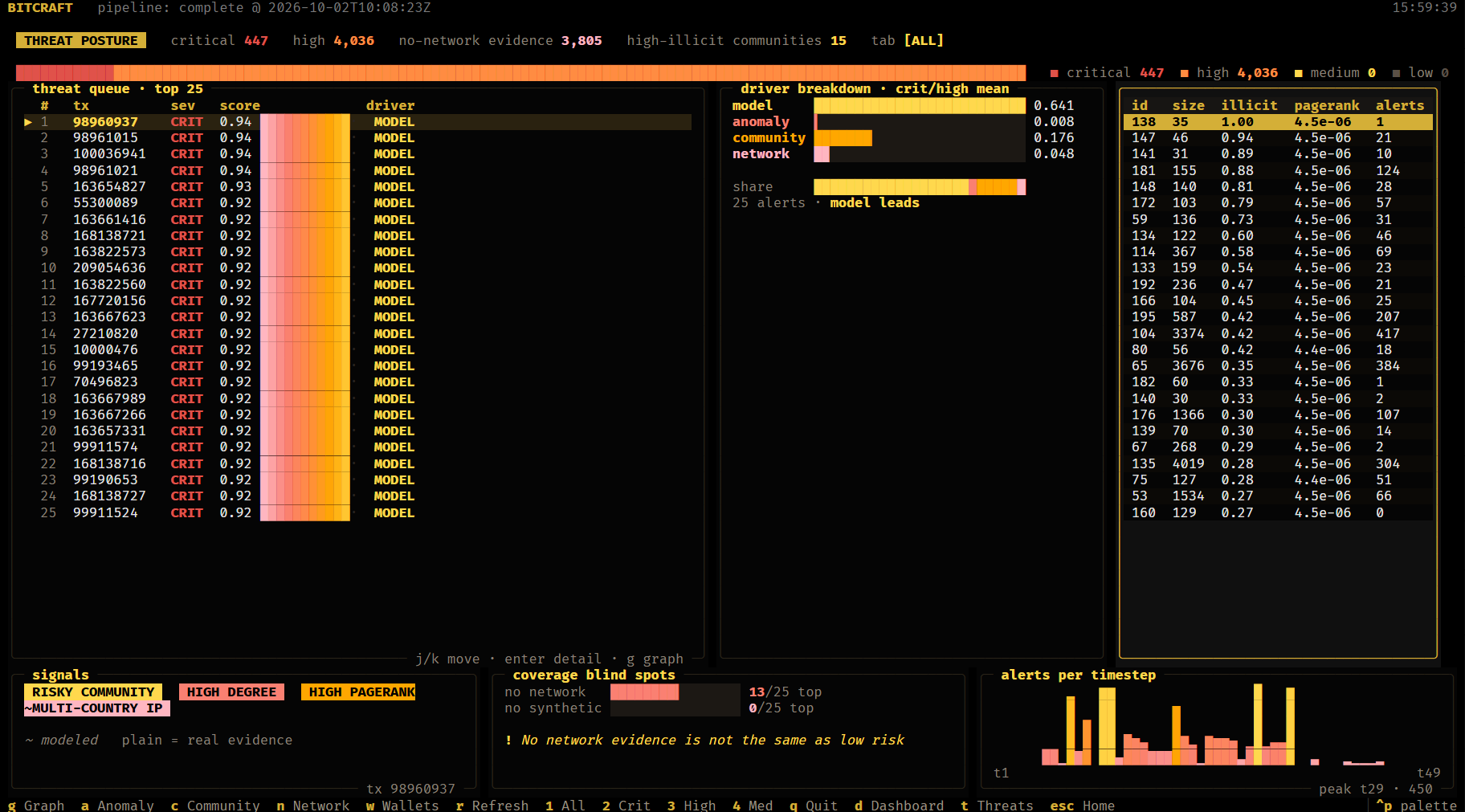

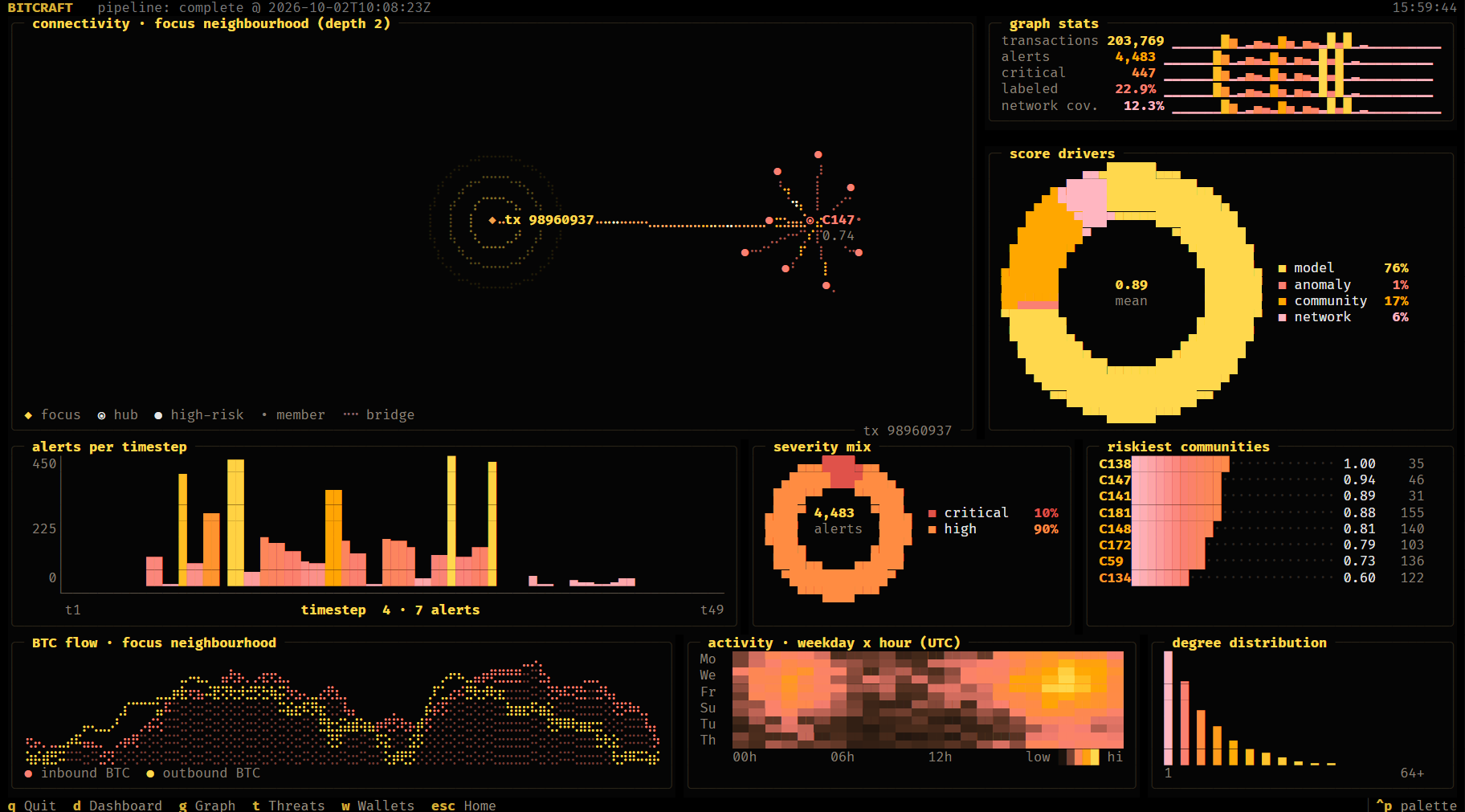

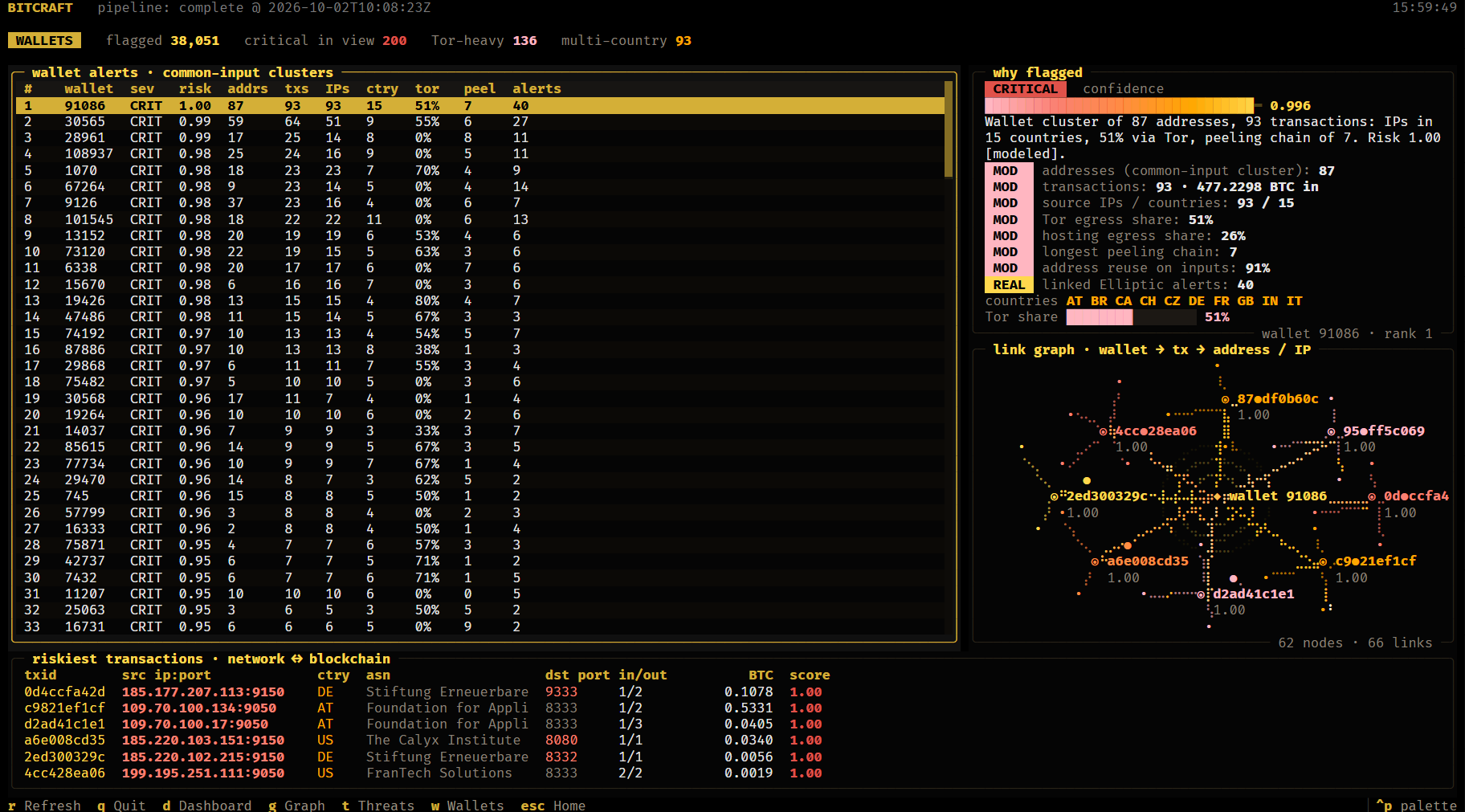

• Terminal dashboard with link analysis, threat overview, wallet investigation and alert detail
• Fully offline at runtime; Linux verified end to end with Docker

---

How it works

1. Ingest CSV, JSON or XML metadata and reject malformed rows with a reason.
2. Enrich every source and destination IP with GeoIP country and ASN, and flag Tor-exit and hosting networks.
3. Build the graph: addresses, transactions and IPs, plus the 203,769-node transaction graph and its communities.
4. Cluster wallets: addresses spent together in one transaction belong to the same owner.
5. Score: a gradient-boosted risk model, a metadata model on the correlated network and blockchain features, community illicit ratios and an Isolation Forest are fused into a composite score.
6. Explain: SHAP reasons and plain-language evidence for every alert, each item tagged real or modeled.
7. Serve and show: results load into SQLite or PostgreSQL behind a read-only FastAPI service that the TUI reads.

No ML code runs at request time; the pipeline writes its results once and the API only reads them.

---

Dataset

The problem statement calls for a synthetic dataset modeled on real Bitcoin P2P and transaction fields. BitCraft generates it (python -m ml.metadata_generator) on top of a labeled, Elliptic-derived base dataset, with every minimum field:

Field	Example
timestamp	2025-01-01T00:00:51Z
src_ip, dst_ip	185.220.101.22, 81.7.151.252
src_port, dst_port	9150, 8333
txid	64 hex characters
input_addresses[], output_addresses[]	Bitcoin addresses with valid checksums
input_amounts[], output_amounts[]	BTC, one per address
fee, script_type	0.00025, p2wpkh
geo_country, asn	Added offline from DB-IP Lite: DE, AS60729

Counts, amounts, fees, timestamps and labels come from the base dataset. Wallets, addresses, routable IPs and ports are synthesised, with laundering typologies planted (with noise) on illicit activity: address reuse, peeling chains, CoinJoin-style mixing, Tor and hosting egress, multi-country IP hopping and round payouts. The 50,000 records ship as CSV, JSON and XML, with GeoIP-enriched versions from python -m ml.ingest FILE --enrich --out FILE.

Every dataset (base tables, metadata and the DB-IP Lite GeoIP databases) is attached to each GitHub release and fetched with python -m ml.dataset download, no Kaggle account needed. To run with no download at all, python -m ml.synthetic generates a fully synthetic dataset in the same format.

---

Results

Held-out timesteps 35 to 49, never seen in training (16,670 labeled transactions, 6.5% illicit):

Score	AUC	Avg precision	Precision@100	Precision@500
Isolation Forest alone	0.197	0.037	0.00	0.00
Risk model alone	0.940	0.803	1.00	1.00
Composite (shipped ranking)	0.899	0.812	1.00	0.994

On the metadata layer the model reaches AUC 0.969, wallet clustering purity is 0.999, and 98% of the top 100 wallet alerts are illicit owners. That layer is synthetic, so those numbers measure recovery of the planted typologies rather than real-world accuracy. The model card explains the model choice and the leakage guards.

---

Running the full system

From a source checkout:

pip install -r requirements.txt -r backend/requirements.txt
pip install -e .
python -m ml.dataset download          # every dataset, about 235 MB, SHA-256 verified
python -m ml.pipeline                  # about 5 minutes; writes ml/artifacts/
cd backend && python -m app.loader     # loads the results into backend/bitcraft.db
bitcraft                               # starts the API and opens the TUI

With no DATABASE_URL, the API uses a local SQLite file and Redis is optional. docker compose up --build runs the same pipeline on PostgreSQL and Redis and serves the API on port 8000; on a fresh clone it downloads the datasets first. Interactive API docs are at http://localhost:8000/docs.

API: /alerts, /alerts/{tx_id}, /graph/{tx_id}?depth=, /communities, /communities/{id}, /entities, /entities/{id}, /entities/{id}/graph, /addresses/{address}, /ips/{ip}, /metadata/{tx_id}, /stats/summary, /stats/charts, /threats/overview, /pipeline/status, /pipeline/metrics.

---

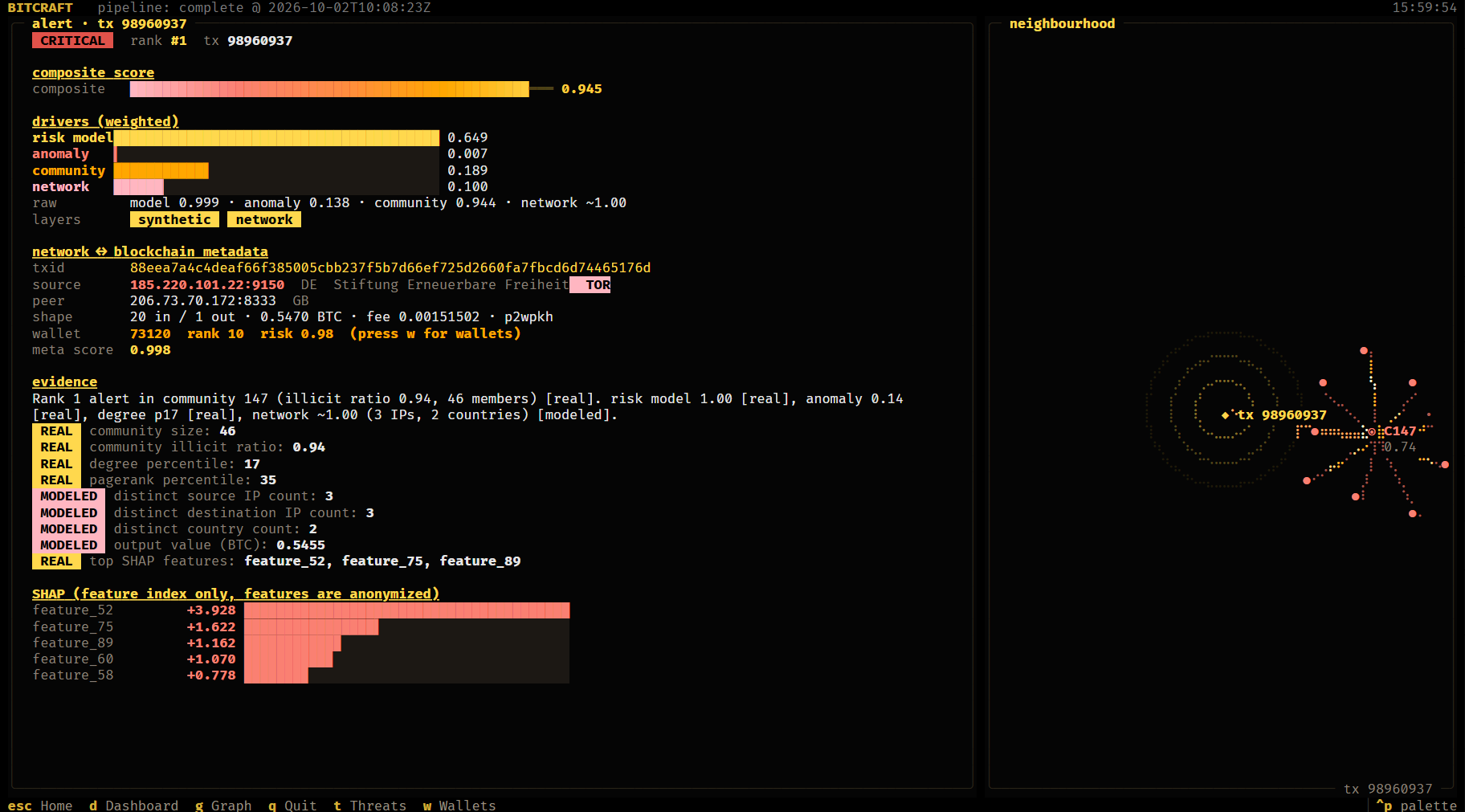

Explainable alerts

Every alert shows its composite score, the weighted drivers behind it, the correlated network and blockchain metadata (txid, source and peer IP:port, GeoIP country and ASN, Tor flag, inputs and outputs, wallet), evidence tagged real or modeled, and SHAP reasons. Missing network evidence is shown as n/a, never as low risk.

---

Documentation

Document	Contents
User manual	Install, data, pipeline, API, TUI, offline deployment, troubleshooting
Architecture	Diagrams: system, pipeline stages, score fusion, data relationships, database, entity graph
Technical writeup	Approach, model choice, explainability and results
Model card	Models, evaluation protocol, metrics and limitations
Dataset provenance	What is real, what is synthetic, GeoIP attribution
Submission checklist	Each requirement of SIH26146 and where it is met

---

Project structure

bitcraft/     terminal interface and the `bitcraft` command (the pip package)
ml/           ingestion, GeoIP, entity graph, models, scoring, explainability, pipeline
backend/      FastAPI service and the artifact loader
packages/     PyPI and Chocolatey packaging, air-gapped bundle builder
docs/         manual, writeup, model card, provenance, screenshots
tests/        ML, backend and TUI tests
datasets/     local data (not in git; `python -m ml.dataset download`)

---

Tech stack

Layer	Technology
Data and features	pandas, PyArrow, NetworkX, python-louvain
Machine learning	scikit-learn (HistGradientBoosting, Isolation Forest), SHAP
GeoIP	DB-IP Lite (MMDB) via maxminddb
API and storage	FastAPI, SQLAlchemy, SQLite or PostgreSQL, Redis
Terminal interface	Textual, Rich
Packaging	PyPI, Chocolatey, Docker Compose

---

License

• Code & Application: BitCraft is open source under the Apache License 2.0.
  Copyright 2026 The BitCraft Authors: Rohan Pattanayak, Jagadish Prasad Pattanaik, Shreya Mishra, Shreya Mohanty, Ashutosh Badapanda, and Rosalin Nayak. See NOTICE.
• Datasets & Schemas: Dataset pipelines, schemas, and synthetic metadata layers are licensed under Apache License 2.0.
  Copyright 2026 Ashutosh Badapanda. See datasets/NOTICE.
• Third-Party Data: IP geolocation by DB-IP (CC BY 4.0). The Elliptic-derived dataset is distributed separately, as release archives, and subject to its upstream research license.
