BlockStreamer

Licensed under the Apache License 2.0.

Execute ordered PyTorch blocks with master weights in pinned CPU memory or on NVMe, asynchronous CUDA prefetch, and at most prefetch_ahead + 1 resident blocks. Includes inference, first-order training with backward re-fetch, LoRA finetuning of models far larger than host RAM, a fused per-block optimizer, correctness tests, and a measured transfer/compute crossover benchmark.

Three models have been LoRA-finetuned end to end on a single 8 GB laptop GPU: Qwen3-VL-8B, Qwen3-VL-32B, and gpt-oss-120b. See NVMe offload and LoRA finetuning.

Prior art and binding decision

Accelerate's cpu_offload_with_hook leaves a module on the execution device until its offload hook runs; BlockStreamer instead schedules an explicit bounded window of individual blocks and transfer-ready events. Accelerate documentation ZeRO-Infinity is a broader training system that spans GPU, CPU, and NVMe memory across many devices. BlockStreamer now spans the same three tiers, but for one GPU and an ordered block list, with no sharding, collectives, or partitioning: the unit of movement is a block, not a shard, and the residency bound is a block count the caller sets. ZeRO-Infinity paper FSDP CPUOffload moves parameters and gradients to CPU within FSDP's sharding and distributed training machinery; this library has no distributed collectives or parameter sharding. FSDP documentation BlockStreamer's smaller scope makes the residency policy explicit, at the cost of less general model execution and substantial Python/event overhead for tiny blocks.

Binding mechanism: torch.func.functional_call. Each block executes with a dictionary of its staged GPU parameters and buffers, with strict key checking and PyTorch's tied-weight handling. Registered parameters stay on pinned CPU storage, or on meta when a shard manifest supplies them from disk. Construction and .to() replace CPU storage to pin/convert it while preserving Parameter identity; .data is never used to bind staged GPU weights for compute. Functional-call documentation

The tradeoff is functional state discipline: blocks must not mutate registered parameters or buffers, retain staged tensors, or use custom kernels that cache parameter pointers outside module lookups. Detected registered-state mutation raises an error. Python attributes, global state, hooks, and opaque external caches cannot all be audited automatically; callers must keep those free of side effects. Training BatchNorm's running-state updates and mutable KV caches are unsupported. Ordinary dropout is supported through RNG replay during recomputation.

Install and run

Requires Python 3.11+, PyTorch 2.4+, and a CUDA GPU. Install a CUDA-enabled PyTorch wheel suitable for your GPU first. For the published package:

python -m pip install block-streamer

torch is the only hard dependency. The streaming core, LoRA, and the fused optimizer need nothing else. block_streamer.planner, block_streamer.runners, and block_streamer.gptoss read real Hugging Face checkpoints and additionally need transformers and safetensors; they import these lazily, so the rest of the package works without them:

python -m pip install "block-streamer[models]"

For development, clone the repository and install from its root:

python -m pip install -e ".[dev]"
python -m pytest -q

The development environment here uses .venv with the preinstalled CUDA PyTorch available through system site packages. On this Windows workspace:

.venv/Scripts/python.exe -m pytest -q
.venv/Scripts/python.exe benchmark.py --widths 128 256 512 1024 --tokens 32 2048 8192 --runs 10 --warmup 4

import torch
from torch import nn
from block_streamer import StreamedModel

blocks = nn.Sequential(nn.Linear(256, 512), nn.GELU(), nn.Linear(512, 256))
x = torch.randn(16, 256, device="cuda:0", dtype=torch.bfloat16)

with StreamedModel(
    blocks, device="cuda:0", prefetch_ahead=1, dtype=torch.bfloat16
) as streamed:
    out = streamed(x)
    print(streamed.stats())

Construction takes ownership of the supplied Sequential, ModuleList, or list of modules, pins their parameters and buffers on CPU, and defaults to .eval(). Make a deepcopy first if another model must retain independent state. Evaluation forwards disable autograd, including when the caller did not use no_grad(). Call .train() to enable the training path. .eval() propagates to every block.

Inputs must already be on the execution device and have a suitable dtype. Additional positional and keyword arguments are passed unchanged to every block:

out = streamed(x, attention_mask=mask, position_ids=positions)

Every block must accept the supplied arguments. A block may return a tensor or a tuple whose first element is the next hidden state. Intermediate auxiliary tuple elements are discarded; the final block's entire result is returned. Tensor leaves in ordinary tuple/list/dict output trees are cloned so a returned parameter view cannot keep staged weights resident. There is no automatic per-layer KV-cache selection or collection; use adapter blocks to express that policy. Read-only attention masks, positions, rotary tensors, and cache values can pass through.

streamed.to(device="cuda:0", dtype=torch.float16) changes execution placement and repins CPU state. Perform conversion before constructing an optimizer or a pending training graph. CPU execution and inherited .cuda(), .cpu(), .half(), and parent-module conversions are rejected; use this wrapper's .to() instead. close() and context exit drain outstanding work; the wrapper remains reusable.

Streams, residency, and memory budget

The engine uses two streams: the compute stream active at construction and a separate transfer stream. Borrowing the compute stream avoids creating persistent cuBLAS workspaces for every new wrapper. A call made on another CUDA stream is bridged to the compute stream, with input storage protected by record_stream().

The scheduler initially stages up to prefetch_ahead + 1 blocks. Compute waits on each block's H2D-ready event. Every transfer-created tensor consumed by compute calls record_stream(compute_stream) in BufferPool.acquire(), protecting it from premature caching-allocator reuse. PyTorch allocator documentation A compute-completion event is host-synchronized before eviction and replacement staging. This conservative retirement rule enforces the actual live-block limit, including in-flight transfers, and introduces host scheduling overhead. The forward returns after its work completes; H2D and compute can still overlap within it.

The GPU pool uses PyTorch's caching allocator with event-retired slots. Allocations are sized per block, so heterogeneous shapes, integer buffers, and mixed state dtypes require no homogeneous-buffer fallback. prefetch_ahead=0 is supported; 1 provides two slots. Parameter-free blocks still count as logical slots. CUDA reserved cache memory may exceed live tensor payload and is not the residency invariant. For heterogeneous models the byte bound is the largest live window's summed state size, not a fixed number of bytes per block.

Set buffer_budget_bytes=... for a per-slot parameter-plus-buffer payload limit. An oversized block raises a clear error before its copy. This is not a total-VRAM budget: activations, CUDA library workspaces, gradients, and allocator rounding are additional. Every H2D source is checked for pinned CPU storage immediately before copying; an unpinned source fails loudly. Meta/sparse state and distinct tensor objects sharing backing storage are rejected. Weight tying by sharing the same Parameter object is supported within and across blocks.

stats() reports cumulative H2D bytes/time, D2H gradient bytes, GPU transfer-wait time (stall_ms), host eviction wait time, current/peak resident blocks, and peak parameter/state payload bytes. GPU stall time measures event waits on the compute stream; it excludes host launch delays. Host eviction wait can include compute and transfer waiting, so these two times must not be added as independent costs. residency_history retains the last 4,096 transitions; an optional residency_observer receives every transition. reset_stats() resets all counters.

Training design and usage

The inference suite passed on CUDA before the training implementation was added. The training design makes these choices:

1. Re-fetch weights during backward. Keeping forward weights would require O(all blocks) parameter VRAM. Instead, save block inputs on GPU, discard staged weights, and re-fetch/recompute one block at a time during backward. A training step transfers each block's state twice and performs an extra forward compute. Backward stops at the lowest block holding a trainable parameter, so adapting only the top layers halves the re-fetch rather than merely discarding the gradients. Saved activations are O(depth) on GPU by default; block_streamer.microbatch offloads them to pinned host memory when depth makes that impossible.
2. Offload gradients after each block. Compute that block's gradients on GPU, copy them into pinned CPU tensors on the compute stream, and make CPU reads wait for the completion event. Return CPU parameter gradients through autograd so normal .grad accumulation works. Peak GPU memory also includes one block's gradients and recomputation graph, plus saved activations and input gradients. Shared parameters' CPU gradient contributions are summed after copies finish.
3. CPU optimizer and state, by default. An ordinary CPU optimizer on model.parameters() runs its step on CPU and does not stream to GPU. This incurs host RAM for every gradient and every moment, which is what caps this path near 1B parameters on a 16 GB host. block_streamer.fused_optim.FusedDiskAdam lifts that cap by consuming each block's gradients during backward; see NVMe offload and LoRA finetuning. No automatic fp32 master-weight conversion or integrated loss scaling is provided.
4. Custom torch.autograd.Function. It owns the forward/backward schedule, saves version-checked master state and block inputs, then visits blocks in reverse with the same bounded prefetch window. Block N-1 is fetched ahead of its recompute/backward while block N executes. This avoids relying on module hook order and explicitly returns gradients for tensor arguments and weights.

streamed = StreamedModel(blocks, dtype=torch.float32).train()
optimizer = torch.optim.Adam(streamed.parameters(), lr=1e-3)
x = torch.randn(16, 256, device="cuda")
target = torch.zeros_like(x)

for _ in range(10):
    optimizer.zero_grad(set_to_none=True)
    loss = (streamed(x) - target).float().square().mean()
    loss.backward()
    optimizer.step()  # CPU parameters, CPU gradients, CPU optimizer state

Recomputation restores PyTorch CPU/CUDA RNG states and CUDA autocast settings. Backward does not advance the caller's RNG. First-order gradients, frozen/unused parameters, tied weights, extra tensor arguments, and final tuple-output losses are supported. Higher-order differentiation, torch.compile, CUDA graph capture, distributed execution, and concurrent/reentrant calls are unsupported. Modules must not modify block inputs in place, change execution behavior between forward and backward, or retain GPU weights in external state. Normal in-place changes to saved tensors are version-checked; edits through .data bypass PyTorch's protection.

NVMe offload and LoRA finetuning

Keeping master weights in pinned host RAM caps the model near 1B parameters on a 16 GB machine: weights, gradients, and Adam state together cost about 8 bytes per parameter. Moving only the weights to disk barely helps, because gradients and optimizer state still sit in RAM (about 6 B/param, so ~1.3x). Two things actually raise the ceiling:

• LoRA over a streamed, frozen base. The base is read-only, so there is no optimizer state and nothing is written back. Disk holds 2 B/param and SSD endurance is a non-issue.
• A fused per-block optimizer (block_streamer.fused_optim) that reads a block's moments, updates on GPU, writes back, and discards the gradient before the next block. Host memory then holds one block rather than the model. It writes 12 B/param every step, which exhausts a 300 TBW consumer SSD in a few hundred steps for any model above ~8B, so block_streamer.planner gates it behind an explicit check.

Per-parameter cost and the resulting ceiling, for bf16 compute with Adam on a 16 GB host and ~330 GB of free disk:

mode	RAM B/param	disk B/param	writes/step	max params
all pinned RAM (the original path)	8	0	0	~1.0B
weights to disk only	6	2	0	~1.3B
full finetune, fused step, fp32 Adam	~0	14	12	~21B
full finetune, fused step, 8-bit Adam	~0	8	6	~37B
LoRA, frozen base	~0	2	0	~150B

The last row is why LoRA is the default. Writing nothing per step removes both the endurance limit and two thirds of the per-step traffic.

Start with block_streamer.planner, which reads a checkpoint's real safetensors headers and reports capacity, throughput, and endurance before anything is downloaded:

python -m block_streamer.planner --models gpt-oss-120b Qwen3-VL-32B

It computes sizes from tensor shapes, never from an index's metadata.total_size -- several published indexes report a parameter count there rather than a byte count, which understates a BF16 checkpoint by 2x. Verdicts are RAM (the existing pinned path already fits, so none of this is needed), LORA_DISK, FULL_FT_DISK, or INFEASIBLE, with a reason for each rejection: too large for free disk, too large for VRAM even after sub-splitting layers, or too few steps before the drive's rated write endurance is exhausted.

End to end

import torch
from block_streamer.lora import LoRAConfig
from block_streamer.runners import Qwen3VLRunner

# Converts the checkpoint to per-block shards on first use, then streams them.
runner = Qwen3VLRunner(
    "models/Qwen3-VL-8B",
    "models/shards-qwen8b",
    LoRAConfig(rank=8, alpha=16, top_fraction=0.5),
    prefetch_ahead=2,
    dtype=torch.bfloat16,
).train()

optimizer = torch.optim.AdamW(runner.trainable_parameters(), lr=2e-4)
logits = runner(input_ids)
loss = torch.nn.functional.cross_entropy(
    logits[:, :-1].reshape(-1, logits.shape[-1]).float(), input_ids[:, 1:].reshape(-1)
)
loss.backward()
optimizer.step()

.train() matters: StreamedModel constructs in eval(), and the inference path runs under no_grad, so a forward taken in eval mode produces a loss with no grad_fn. top_fraction=0.5 puts adapters on the top half of the decoder, which halves the backward re-fetch because the walk stops at the lowest trainable block.

train_qwen8b.py, train_qwen32b.py, and train_gptoss.py are the exact scripts used for the runs below.

Measured results

Three models LoRA-finetuned end to end on one RTX 5050 Laptop (8 GB VRAM, 15.7 GB RAM, consumer NVMe), bf16, rank 8, adapters on the top half of layers, sequence length 128:

model	streamed	blocks	peak VRAM	median s/step	loss
Qwen3-VL-8B	12.94 GiB	36 x 368 MiB	3.52 GiB	14.2	13.14 -> 0.33 (60 steps)
gpt-oss-120b	58.61 GiB	36 x 1.63 GiB	5.69 GiB	82.3	13.69 -> 0.40 (30 steps)
Qwen3-VL-32B	58.13 GiB	64 x 0.91 GiB	5.83 GiB	94.1	13.45 -> 4.83 (30 steps)

These runs overfit a single fixed token sequence. They demonstrate that gradients flow correctly through the streaming machinery end to end; they are not useful finetunes on real data. Qwen3-VL-32B was still descending steeply at step 30, with 10M adapter parameters against Qwen3-VL-8B's 3.8M.

Effective throughput was 1.47, 1.15, and 1.00 GB/s respectively. At least three effects are mixed into that spread and three measurements cannot separate them: page cache (12.9 GiB partly fits in 15.7 GB of RAM, 58 GiB does not), per-block overhead (Qwen3-VL-32B makes 96 block visits per step against gpt-oss's 54, so its smaller blocks cost more per byte), and MXFP4 dequantization compute in gpt-oss. block_streamer.planner therefore assumes a flat, deliberately conservative 1.0 GB/s rather than fitting a curve to three points; it predicts 21/94/94 s against the 14.2/82.3/94.1 measured, erring toward over-estimating.

MXFP4 and the backward pass

gpt-oss ships its experts packed: one layer is 1.63 GiB of uint8 blocks and scales. Upcasting the checkpoint to bf16 would take it from 61 GiB to roughly 230 GiB, and dequantizing a single layer yields 5.93 GiB of dense experts, which does not fit beside anything else on an 8 GB card. So the packed tensors stream verbatim and each expert is dequantized inside the routing loop, 47 MiB at a time.

That is sufficient for forward and insufficient for backward. Autograd needs the dense weight to compute dL/dx, so it retains every expert it touched -- about 6 GiB per layer -- and recompute runs out of memory even though forward fit. gptoss._MXFP4Matmul saves only the packed tensors, which are the block's staged state and therefore free, and re-derives the dense weight in backward. Gradients are bit-identical to the dense path.

Components

module	role
block_streamer.planner	capacity/throughput/endurance verdicts from real checkpoints
block_streamer.shards	flat per-block shard files and their manifest
block_streamer.diskpool	disk -> pinned ring -> GPU staging, background readers
block_streamer.lora	adapters over streamed frozen base weights
block_streamer.microbatch	micro-batch looping inside one block visit, activation offload
block_streamer.fused_optim	per-block Adam with disk-resident state
block_streamer.adapters	per-family block assignment, expert-major MoE
block_streamer.gptoss	MXFP4 experts dequantized one expert at a time
block_streamer.runners	end-to-end drivers (Qwen3-VL, gpt-oss)

Blocks are built on meta and materialized only when a slot stages them, so a model far larger than RAM can be constructed. Pass a manifest to opt in:

from block_streamer import ShardManifest, StreamedModel

manifest = ShardManifest.load("shards-qwen8b")
model = StreamedModel(meta_blocks, prefetch_ahead=2, manifest=manifest)

Limits

Sequence length 128 was used throughout; gpt-oss's 128-token sliding-window attention coincides with full attention there, and longer sequences need real sliding-window masks passed as block kwargs, which is not implemented.

The runs are text-only, and stricter than that: Qwen3VLRunner takes with_vision=False by default and the scripts leave it there, so the vision tower was never even loaded. The 2.32 GiB of resident state measured for Qwen3-VL-8B is embeddings, final norm, and lm_head alone. Passing with_vision=True loads and freezes the tower, but nothing here has fed it an image, so the whole image path is unexercised despite two of the three models being VLMs.

The fused optimizer is correctness-tested against torch.optim.Adam at small scale only, because the planner rejects every full-finetune target on this hardware on endurance grounds. Micro-batch looping and activation offload (block_streamer.microbatch) are tested for gradient equivalence and byte-identical reads but were not used in the runs above, which are batch 1.

Only Qwen3-VL and gpt-oss have runners. block_streamer.adapters carries a GLM-4.x adapter validated against a real manifest for block assignment and sizing, but no GLM model was downloaded or run. Qwen3-VL-MoE stores experts fused in one tensor per layer, so it needs expert-dimension slicing (block_streamer.adapters.chunk_fused_experts) rather than name-based splitting; that slicing is unit-tested but never exercised against a real MoE checkpoint, since Qwen3-VL-235B needs 439 GiB and does not fit.

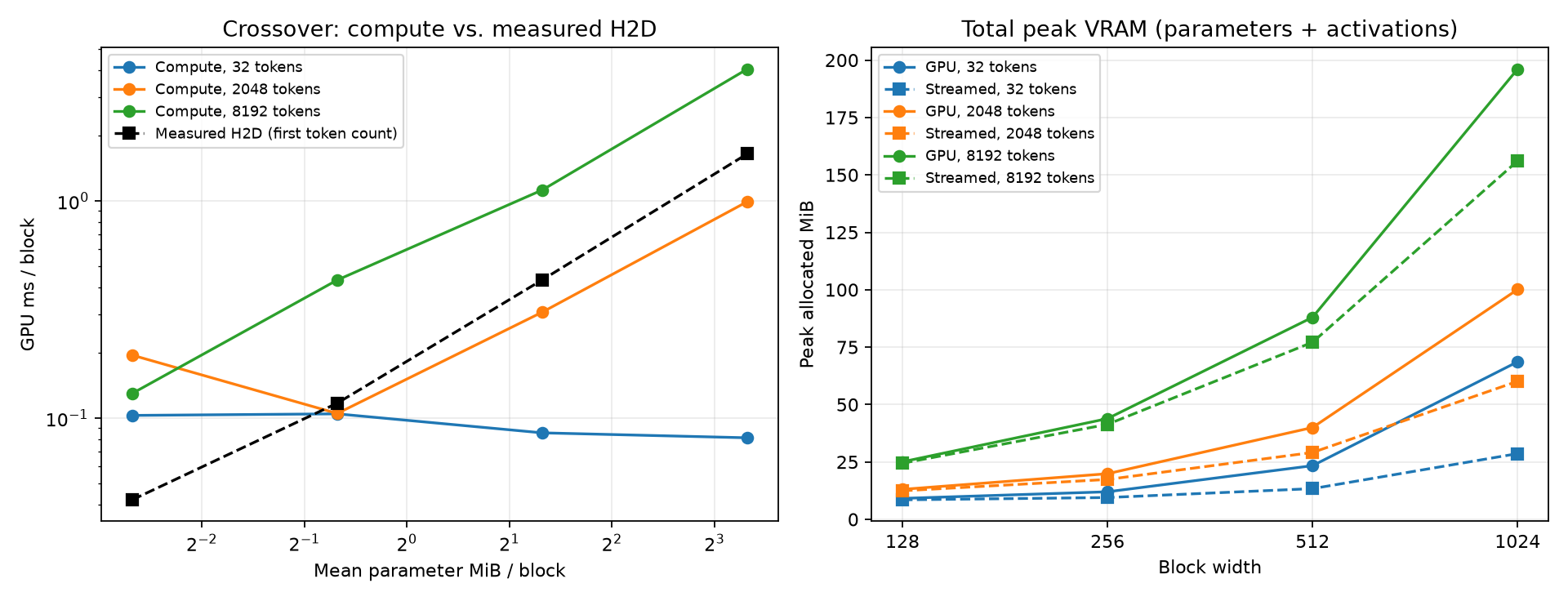

Measured crossover and memory

Local measurement: NVIDIA GeForce RTX 5050 Laptop GPU (8 GB), Windows WDDM, PyTorch 2.11.0+cu128 / CUDA runtime 12.8, bf16, six heterogeneous MLP blocks, prefetch_ahead=1, four warmups and ten timed runs. These are measurements on this machine, not predictions for a desktop PCIe Gen4 x16 link. The benchmark records 31.5 GB/s as the nominal Gen4 x16 reference but uses measured pinned H2D time for its conclusions. See the complete report.

Headline: at 32 and 2,048 tokens, the sampled compute/H2D crossover falls between widths 128 and 256. At 8,192 tokens, compute time exceeds H2D time at every sampled width; no width crossover was observed. At width 1,024, increasing tokens from 2,048 to 8,192 changes the measured regime from bandwidth-bound to compute-bound. Small-block CUDA event intervals include host launch gaps; the small-width "compute-bound" label means the measured compute path takes longer than H2D, not that GPU arithmetic units are saturated. This sweep is an empirical roofline diagnostic, not a hardware FLOP/s roofline or a universal crossover constant.

Width / tokens	GPU median ms	Streamed median ms	GPU peak MiB	Streamed peak MiB	Activation/workspace increment MiB
1,024 / 32	0.569	10.524	68.625	28.625	0.438
1,024 / 2,048	5.915	14.883	100.125	60.125	28.000
1,024 / 8,192	24.304	29.825	196.125	156.125	112.000

For these width-1,024 cases, baseline parameter payload is 60 MiB and streamed peak parameter payload is 20 MiB. The 8,192-token activation/workspace increment alone is 112 MiB: parameter streaming does not eliminate activation-dominated VRAM. This implementation saves memory but was slower in every sampled case.

The benchmark reports raw torch.cuda.max_memory_allocated() for total peak VRAM, exact parameter/state tensor payload maxima, and an independently measured activation/workspace increment: peak baseline allocation above the warmed baseline with weights already resident. Existing input/library allocations are also recorded. Separate maxima occur at different times; subtracting peak parameter payload from total peak does not produce an exact activation peak. PyTorch's aggregate allocator counter also cannot distinguish an activation from a temporary workspace. Therefore an exact additive parameter-versus-activation split is not claimed.

Latency uses synchronized wall-clock intervals and reports medians, means, population variance, minima, and maxima. The requested overlap score is:

1 - (streamed_median_ms - all_on_GPU_median_ms) / isolated_H2D_ms

It is not clamped: Python, event, cloning, and scheduling overhead can make it negative; noise can put it above one. The score is 0.454 for width 1,024 / 8,192 tokens in this run. Kernel overlap cannot fully hide transfer when per-block H2D time exceeds compute time. Increasing token count changes arithmetic intensity; increasing width alone need not produce a crossover.

Profiler and validation status

benchmark.py exports results/trace.json, readable by Chrome tracing or Perfetto, and checks whether GPU activities are present. On this machine CUPTI initialization returned CUPTI_ERROR_INVALID_DEVICE, so the exported trace contains CPU events only and trace_gpu_activity is false. GPU timeline overlap is therefore not visually verified here. CUDA-event timing, real GPU parity tests, and memory measurements did run. Re-run on a compatible CUPTI/driver setup to capture GPU kernels and copies; --no-trace explicitly skips profiler collection.

The final local suite passed 55 tests on CUDA, with Ruff lint/format checks also passing. Tests cover inference in fp32/bf16/fp16 at prefetch depths 0–3, heterogeneous blocks and nonpersistent buffers, extra arguments and tuple results, every residency transition, a 100-iteration bandwidth-starved allocator stress, nondefault caller streams, inference mode, output aliases, tied weights, unpinned and over-budget errors, and exception cleanup. Training tests cover fp32/bf16/fp16 gradient parity at depths 1–3, CPU pinned gradients, extra-input gradients, dropout RNG replay, unused/shared parameters, accumulation, autocast with frozen weights, CPU Adam state placement, and a 12-step SGD toy loss curve.

The offload tests add bit-exact shard round-trips across mixed dtypes, disk-backed inference parity and the residency bound at prefetch depths 0–5, a 100-iteration deep-prefetch stress, proof that the pinned ring is the only large pinned allocation and every base parameter stays on meta, fused-optimizer parity against torch.optim.Adam over 20 steps, projected-wear accounting, LoRA identity at initialization, the absence of gradients on any non-adapter parameter, a LoRA loss curve, micro-batch gradient equivalence with byte-identical reads at N = 1, 2 and 4, expert-major visiting order, fused-expert slicing, and the MXFP4 gradient/memory check described above.

Inference atol=rtol is 1e-5 for fp32, 8e-3 for bf16, and 1e-3 for fp16, allowing roughly one low-precision rounding unit at unit scale. Backward (atol, rtol) is (2e-5, 2e-4), (2e-3, 3e-2), and (5e-4, 5e-3) respectively; backward includes reductions and multiple gradient contributions. The convergence curves use fp32 with (2e-6, 2e-5) tolerances and must decrease by at least 10%. These checks are evidence for the tested workloads, not proof for arbitrary custom modules or hardware. The environment emitted a Triton CUDA-toolkit discovery warning; the tests use PyTorch CUDA operations and do not require Triton compilation.
