Overview
The cas_visualizer library provides multiple ways to visualize Common Analysis System (CAS) annotations from dkpro-cassis and Udapi. It supports rendering in various formats:
- Spacy-style HTML spans - Interactive span visualizations using spaCy's displaCy
- Dependency trees - Both UDPipe format and spaCy-style HTML
- Tables - CSV/HTML tabular representation of annotations
- Heatmaps - Matplotlib heatmaps showing annotation density
- DOCX - Microsoft Word documents with colored span annotations
Quick start
(see examples for complete implementations)

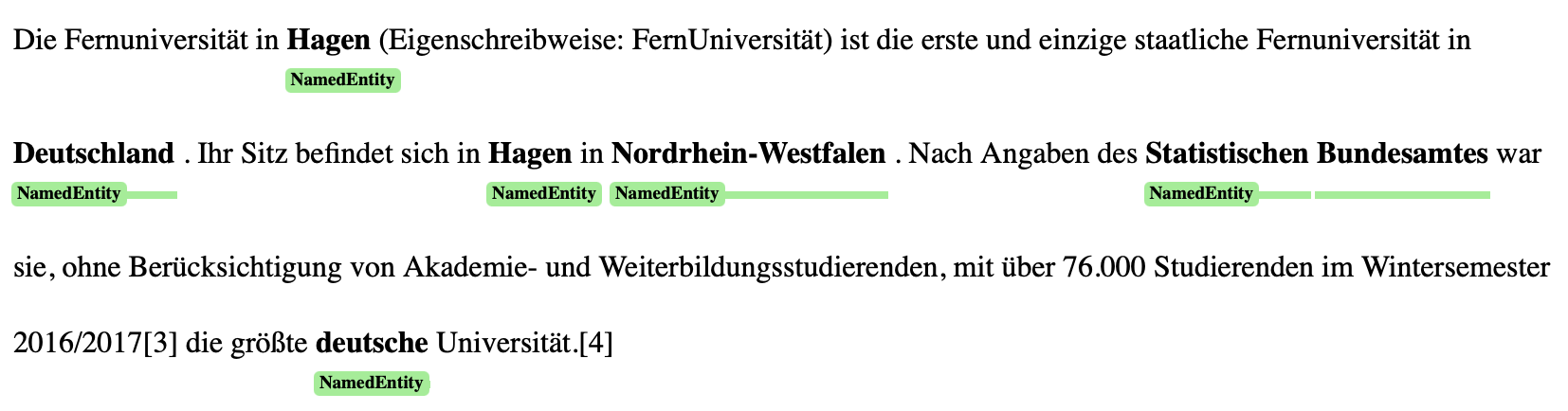

1. Basic Span Visualization
We require a CAS file or cassis.Cas object containing text:
from cassis import load_cas_from_xmi, load_typesystem
from cas_visualizer import SpacySpanVisualizer
# Load CAS and TypeSystem
cas = load_cas_from_xmi('../data/hagen.txt.xmi', typesystem=load_typesystem('../data/TypeSystem.xml'))
ts = load_typesystem('../data/TypeSystem.xml')
# Create visualizer
vis = SpacySpanVisualizer(ts)
# Configure annotation types
vis.add_type(name='de.tudarmstadt.ukp.dkpro.core.api.ner.type.NamedEntity', color='lightblue')
# Render to HTML
html = vis.visualize(cas)
print(html) # Display in browser or save to file
2. Configuration Examples
Map feature values to labels and colors:
vis.add_feature(
name='de.tudarmstadt.ukp.dkpro.core.api.ner.type.NamedEntity',
feature='value',
value='PERSON',
label='Person',
color='lightblue'
)
vis.add_feature(
name='de.tudarmstadt.ukp.dkpro.core.api.ner.type.NamedEntity',
feature='value',
value='LOCATION',
label='Location',
color='lightgreen'
)

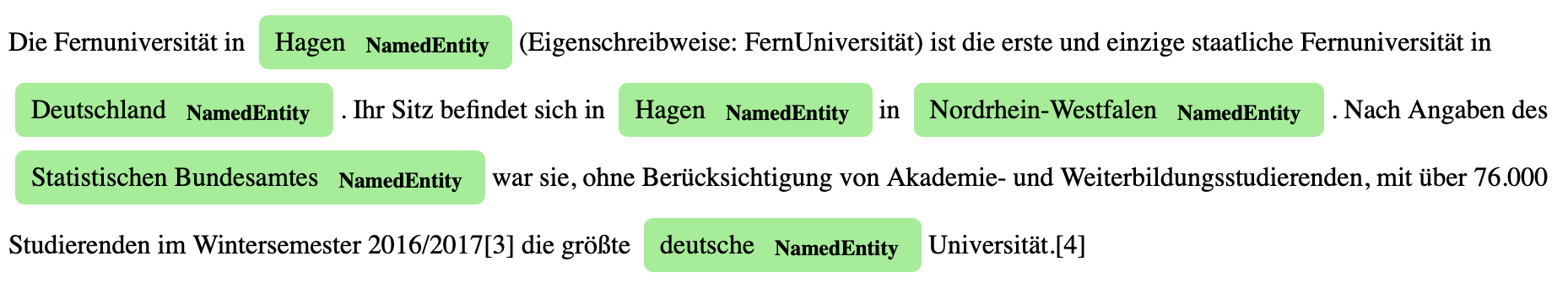

Highlighting mode (instead of underlines):
# Default is underline via SpanRenderer
# Use HIGHLIGHT mode via EntityRenderer
vis = SpacySpanVisualizer(ts)
vis.render_mode = "HIGHLIGHT" # or "UNDERLINE" (default)
html = vis.visualize(cas)
3. Other Visualizers
Dependency trees:
from cas_visualizer import SpacyDependencyVisualizer, UdapiDependencyVisualizer
# spaCy-style HTML
dep_vis = SpacyDependencyVisualizer(ts)
html = dep_vis.visualize(cas)
# UDPipe format (string-based)
udapi_vis = UdapiDependencyVisualizer(ts)
conllu = udapi_vis.visualize(cas)
Tables:
from cas_visualizer import TableVisualizer
table_vis = TableVisualizer(ts)
table_vis.add_type(name='de.tudarmstadt.ukp.dkpro.core.api.ner.type.NamedEntity')
# CSV format
csv_output = table_vis.visualize(cas, output_format='csv')
# HTML format
html_output = table_vis.visualize(cas, output_format='html')
Heatmaps:
from cas_visualizer import HeatmapVisualizer
heatmap_vis = HeatmapVisualizer(ts)
heatmap_vis.add_type(name='de.tudarmstadt.ukp.dkpro.core.api.ner.type.NamedEntity')
# Returns matplotlib Figure object
fig = heatmap_vis.visualize(cas)
fig.show() # or fig.savefig('heatmap.png')
API Reference
Core Classes
All visualizers inherit from the Visualizer base class:
class Visualizer(abc.ABC):
"""Base class for CAS visualizers."""
def __init__(self, ts: str | Path | TypeSystem):
"""Initialize with TypeSystem (file path or TypeSystem object)."""
def add_type(self, name: str, feature: str | None = None,
color: str | None = None, label: str | None = None) -> None:
"""Register a CAS type for visualization."""
def add_feature(self, name: str, feature: str, value: Any,
color: str | None = None, label: str | None = None) -> None:
"""Map specific feature values to labels and colors."""
def visualize(self, cas: Cas, *, start: int = 0, end: int = -1,
output_format: str = "html") -> str:
"""Build and render visualization."""
def list_types(self) -> list[str]:
"""List registered type names."""
def clear_types(self) -> None:
"""Clear all type configurations."""
Available Visualizers
SpacySpanVisualizer- HTML span visualization (underline or highlight)DocxSpanVisualizer- DOCX document with colored spansTableVisualizer- Tabular representation (CSV/HTML)SpacyDependencyVisualizer- spaCy-style dependency tree HTMLUdapiDependencyVisualizer- UDPipe conllu formatHeatmapVisualizer- Matplotlib annotation density heatmap
Architecture
The library is organized into separate modules for each visualizer type:
cas_visualizer/_base.py- Base classes (Visualizer,VisualizerException,TypeConfig)cas_visualizer/span.py- Span visualizerscas_visualizer/dependency.py- Dependency tree visualizerscas_visualizer/table.py- Table visualizercas_visualizer/heatmap.py- Heatmap visualizercas_visualizer/util.py- Utility functionscas_visualizer/__init__.py- Public API exports
All visualizers follow a consistent interface:
build(cas, start, end)- Build internal representationrender(spec, output_format)- Render to output formatvisualize(cas, output_format)- Convenience method combining both
Development
Setup
git clone https://github.com/zesch/cas-visualizer.git
cd cas-visualizer
poetry install
Running Tests
# Run all tests
poetry run pytest
# With coverage
poetry run pytest --cov=cas_visualizer
# Specific test file
poetry run pytest tests/test_span_visualizer.py -v
Code Quality
# Format code
poetry run black cas_visualizer/ tests/
poetry run isort cas_visualizer/ tests/
# Lint
poetry run flake8 cas_visualizer/ tests/
# Type check
poetry run mypy cas_visualizer/
# Or use pre-commit hooks
pre-commit install
pre-commit run --all-files
CI/CD
The project uses GitHub Actions for:
- Testing on Python 3.11, 3.12, 3.13 (Linux, macOS, Windows)
- Linting with Black, isort, flake8
- Type checking with mypy
- Coverage reporting
Workflows run on every push and pull request to main and develop branches.
How to Publish
Only for maintainers:
- Update version in
pyproject.toml - Run
poetry build - Push to GitHub - CI/CD will handle the rest (when release automation is configured)
Or manually:
poetry publish
