cdxcore documentation

This module contains a number of lightweight tools, developed for managing data analytics and machine learning projects.

Install using:

pip install -U cdxcore

Documentation can be found here: https://quantitative-research.de/docs/cdxcore. cdxcore is best used with Python 3.12 and above, but is tested vs Python 3.10 onwards.

Highlights

Dynamic plotting: simple live/animated plots built on Matplotlib.
Config management: validated, discoverable configurations with automatic help.
Versioning & caching: code-versioned I/O and reproducible hashing for pipelines.
PrettyObject: dictionary-like objects that allow attribute access.
Utilities: formatting helpers, binary I/O, shared-memory arrays, and more.

Main Functionality

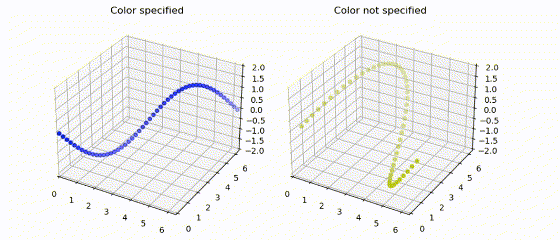

cdxcore.dynaplot is a framework for simple dynamic graphs with matplotlib. It has a simple methodology for animated updates for graphs (e.g. during training runs), and allows generation of plot layouts without knowing upfront the number of plots (e.g. for plotting a list of features).

cdxcore.config allows robust management of configurations. It automates help, validation checking, and detects misspelled configuration arguments.

from cdxcore.config import Config, Int, Float

class Network(object):
    def __init__( self, config ):
        self.depth      = config("depth", 1, Int>0, "Depth of the network")
        self.width      = config("width", 1, Int>0, "Width of the network")
        self.activation = config("activation", "selu", str, "Activation function")
        config.done() # see below

config = Config()
config.network.depth         = 10
config.network.width         = 100
config.network.activation    = 'relu'

network = Network(config.network)
config.done()

cdxcore.subdir wraps various file and directory functions into convenient objects. Useful if files have common extensions.

from cdxcore.subdir import SubDir
import numpy as np
root   = SubDir("!")   # current temp directory
subdir = root("test")  # sub-directory 'test'
subdir.write("data", np.zeros((10,2)))
data   = subdir.read("data")

Caching: SubDir supports code-versioned file i/o which is used by @cdxcore.subdir.SubDir.cache for an efficient code-versioned caching protocol for functions and objects:

from cdxcore.subdir import SubDir
cache   = SubDir("!/.cache;*.bin")

@cache.cache("0.1")
def f(x,y):
   return x*y

_ = f(1,2)    # function gets computed and the result cached
_ = f(1,2)    # restore result from cache
_ = f(2,2)    # different parameters: compute and store result

Code versioning is implemented in cdxcore.version:

from cdxcore.version import version

@version("0.0.1")
def f(x):
    return x

print( f.version.full )   # -> 0.0.1

Hashing (which is used for caching above) is implemented in cdxcore.uniquehash:

class A(object):
    def __init__(self, x):
        self.x = x
        self._y = x*2  # protected member will not be hashed by default

from cdxcore.uniquehash import UniqueHash
uniqueHash = UniqueHash(length=12)
a = A(2)
print( uniqueHash(a) ) # --> "2d1dc3767730"

cdxcore.pretty provides a PrettyObject class whose objects operate like dictionaries. This is for users who prefer attribute . notation over item access when building structured output.
```
from cdxcore.pretty import PrettyObject
pdct = PrettyObject(z=1)

pdct.num_samples = 1000
pdct.num_batches = 100
pdct.method = "signature"
```

General purpose utilities

cdxcore.verbose provides user-controllable context output for providing progress updates to users.
cdxcore.util offers a number of utility functions such as standard formatting for dates, big numbers, lists, dictionaries etc.
cdxcore.npio provides a low level binary i/o interface for numpy files.
cdxcore.npshm provides shared memory numpy arrays.
cdxcore.rolling provides robust rolling statistics: exponentially weighted location and scale estimators which flag outliers, for regular and irregular time steps.
