chartcn

A shadcn-inspired chart library — a thin wrapper around matplotlib that turns a pandas DataFrame into a clean chart in one call, in light and dark mode.

It doesn't add chart types or draw anything itself — it makes the shadcn charts look the default: rounded bar ends, borderless axes, a faint horizontal grid, and light/dark card surfaces, over a colorblind-safe palette. Every function returns the underlying matplotlib Axes, so you can always drop down to raw matplotlib.

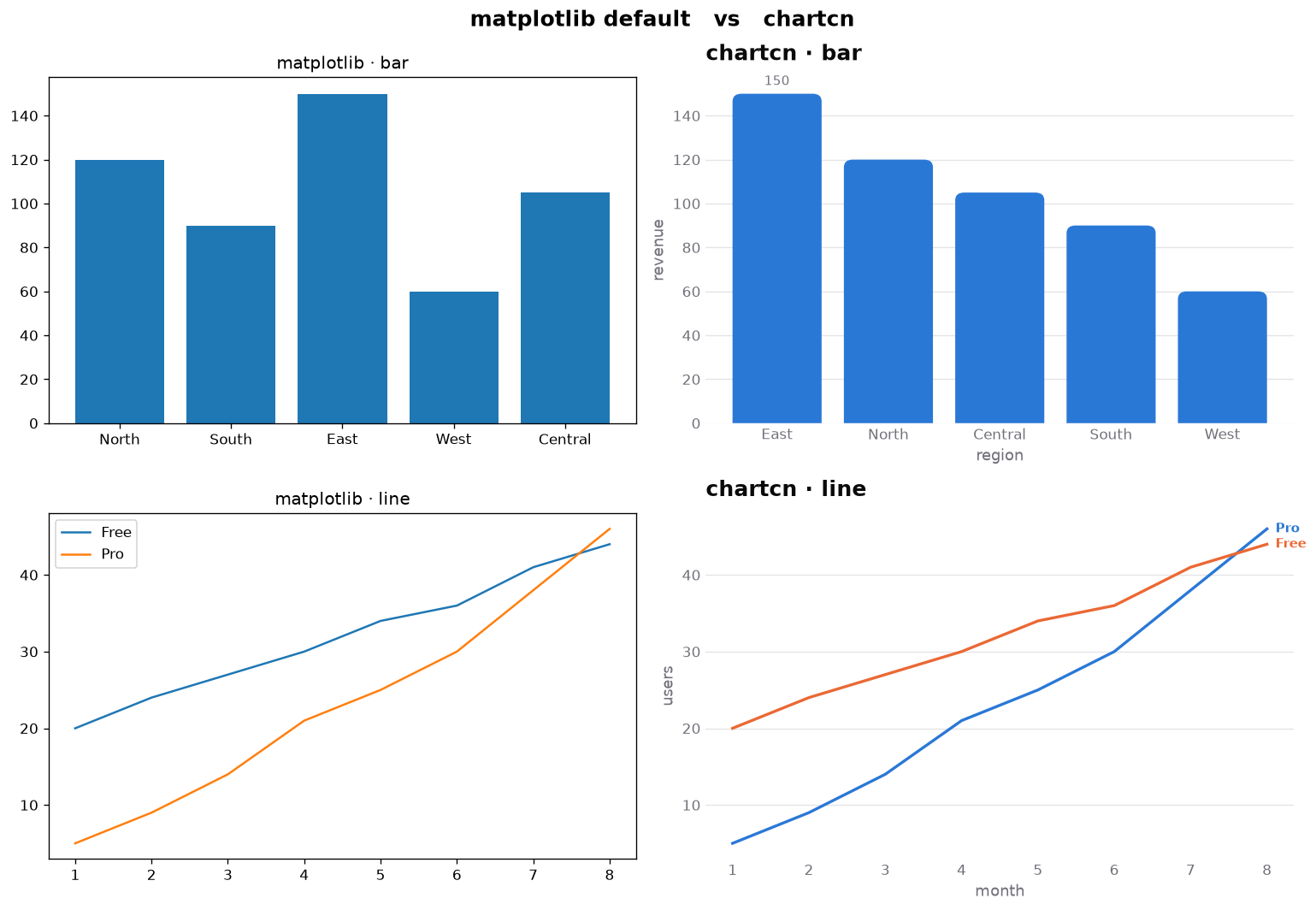

Same data, one call — matplotlib's defaults (left) vs chartcn (right):

Install

pip install chartcn

Requires Python 3.10+ (pulls in matplotlib and pandas).

Quickstart

import pandas as pd
import chartcn as viz

sales = pd.DataFrame(
    {"region": ["North", "South", "East", "West"], "revenue": [120, 90, 150, 60]}
)
ax = viz.bar(sales, x="region", y="revenue", sort="desc", title="Revenue by region")
ax.figure.savefig("revenue.png", dpi=150, bbox_inches="tight")

The return value is a real matplotlib Axes, so you keep full control — compose into your own figure with ax=, or drop to raw matplotlib any time:

import matplotlib.pyplot as plt

fig, ax = plt.subplots()
viz.bar(sales, x="region", y="revenue", ax=ax, title="Q3 sales")
ax.axhline(100, color="0.6", lw=1)   # raw matplotlib

Charts

# One series is the point, the rest are context
viz.line(usage, x="month", y="active_users", by="plan", highlight="Pro")

# Grouped bars
viz.bar(survey, x="quarter", y="responses", by="channel")

# A distribution in dark mode
viz.hist(latency, x="ms", bins=40, theme="dark", title="Request latency")

Every function shares the same keywords, so learning one teaches the rest: x, y, by, highlight, sort, label, texture, title, subtitle, caption, xlabel, ylabel, theme, palette, ax.

• highlight= accents one series/group and grays the rest (dropping the legend) — the honest alternative to giving every series a loud color.
• label="auto" labels only the extreme or highlighted mark, never every point.
• texture=True adds hatches (bar/hist), dash patterns (line), or marker shapes (scatter) so a chart stays legible in black-and-white and for colorblind readers.

Theming

light is the default; switch per call, per block, or globally:

viz.bar(sales, x="region", y="revenue", theme="dark")   # per call

with viz.theme("dark"):                                  # scoped
    viz.bar(sales, x="region", y="revenue")

viz.set_theme("dark")                                    # global

Build your own by passing palette= to any chart, or with dataclasses.replace(viz.LIGHT, ...) to tweak chrome knobs (axis_lines, bar_radius, value_axis).

Examples

Runnable scripts for every chart, emphasis, theming, and grayscale/texture output live in examples/, with a rendered gallery in examples/README.md.

License

MIT
