cmd-viewer 0.2.0

Terminal-first molecular dynamics viewer for GROMACS trajectories.

cmd

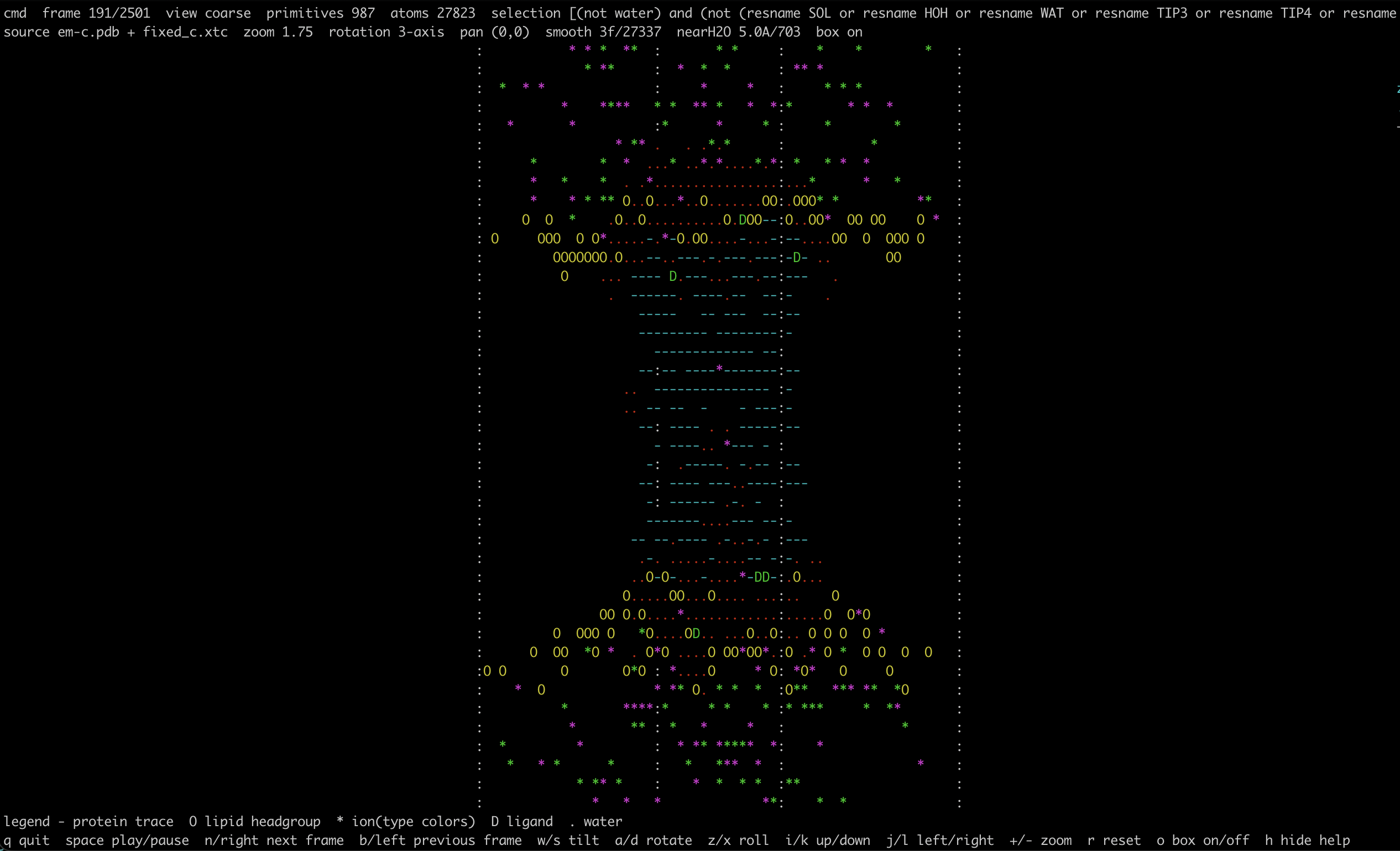

cmd is a terminal-first molecular dynamics viewer for quick trajectory checks on local machines, remote shells, and HPC systems. It is designed for plain terminal use: no GUI server, no OpenGL setup, and no heavy visualization stack.

The internal Python package is named cmd_viewer to avoid colliding with Python's standard-library cmd module. The installed executable is cmd.

Features

• .pdb / .gro structures with optional .xtc / .dcd trajectories.
• MDAnalysis-backed selections with VMD-like conveniences such as atomname normalization and a built-in lipids keyword.
• Water hidden by default, with optional dynamic nearby-water overlays for hydrated pockets and pores.
• View modes for fast checks: points, trace, coarse, and cartoon.
• Camera rotation, zoom, panning, playback, XYZ axis overlay, and orthorhombic box overlay.
• Saved view files for reusing manually oriented viewpoints.
• Native animated GIF export for sharing trajectories or adding them to slides.

Install

From PyPI:

pip install cmd-viewer

With GIF export support:

pip install "cmd-viewer[export]"

For local development from this repository:

pip install -e .
pip install -e ".[export,dev]"

Quick Start

Open a trajectory:

cmd system.gro traj.xtc
cmd system.pdb trajectory.dcd

Protein-focused view:

cmd system.gro traj.xtc --selection protein --view-mode cartoon

Membrane overview:

cmd system.gro traj.xtc --selection "protein or lipids or element K or element CL" --view-mode coarse

Track individual ions by residue id color:

cmd system.gro traj.xtc --selection "resname K" --color-mode resid
cmd system.gro traj.xtc --selection "resname CL" --color-mode resid

Show nearby pore or pocket water:

cmd system.gro traj.xtc --selection protein --near-water 5

Use bundled test systems:

cmd test-trajs/traak/after90ns-k.pdb test-trajs/traak/traj_comp.xtc --selection protein --view-mode cartoon
cmd test-trajs/popc/em.gro test-trajs/popc/whole.xtc --view-mode coarse
cmd test-trajs/ga/reference-structure-2M-KCl.gro test-trajs/ga/04-pt7scaling-11pA.xtc --selection "resname K" --color-mode resid

Saved Views And GIFs

For systems that need a specific orientation, save the view once and reuse it.

1. Open the system and choose a view:

cmd system.gro traj.xtc --view-mode coarse --save-view pore-view.json

2. Rotate, zoom, and pan interactively, then press v.

3. Reuse that view later:

cmd system.gro traj.xtc --view-mode coarse --view-file pore-view.json

4. Export a GIF from the saved viewpoint:

cmd system.gro traj.xtc --view-mode coarse --view-file pore-view.json --save-gif pore.gif --gif-stride 5 --gif-fps 12

GIF export uses the same selections, view modes, smoothing, nearby-water overlays, color modes, and box state as the terminal viewer. GIFs are scene-only by default, so the exported frame does not include the header, legend, or controls.

Useful GIF options:

• --gif-start FRAME: first 0-based frame to export.
• --gif-stop FRAME: stop before this 0-based frame.
• --gif-stride N: export every Nth frame.
• --gif-fps FPS: animation playback rate.
• --gif-width COLS and --gif-height ROWS: output size in terminal cells.
• --gif-scale PX: final raster scale. The default is 2.
• --gif-hide-box: hide orthorhombic box boundaries.
• --gif-no-loop: write a non-looping GIF.
• --gif-show-ui: include the header, legend, and controls in the GIF.

Examples:

cmd system.gro traj.xtc --view-mode coarse --save-gif overview.gif
cmd system.gro traj.xtc --view-mode cartoon --selection protein --save-gif protein.gif --gif-fps 15 --gif-stride 2
cmd system.gro traj.xtc --selection "resname K" --color-mode resid --save-gif ions.gif --gif-width 90 --gif-height 35
cmd system.pdb trajectory.dcd --view-file openmm-view.json --save-gif openmm.gif --gif-width 120 --gif-height 45

Controls

• q: quit
• h: toggle help
• f: toggle full-window molecular view
• space: play / pause
• n or right arrow: next frame
• b or left arrow: previous frame
• w / s: tilt camera
• a / d: rotate camera
• z / x: roll camera
• i / k: translate view up / down
• j / l: translate view left / right
• + / -: zoom
• r: reset camera
• o: toggle box overlay
• v: save the current view to --save-view

The current zoom limit is 32x. Translation is screen-space panning, which is useful after zooming into a local region.

View Modes

• points: atom-level point cloud for fast whole-system inspection.
• trace: residue-level backbone-like trace using CA, BB, P, C4', or related trace atoms.
• coarse: protein as trace lines, lipid headgroups as O, ions as colored *, ligands as D, and water as ..
• cartoon: a coarse protein-focused mode with simple secondary-structure heuristics. Helix-like segments use @ / o, sheet-like segments use directional arrows, and loops use lighter line glyphs.

Examples:

cmd system.gro traj.xtc --view-mode points
cmd system.gro traj.xtc --view-mode trace --selection protein
cmd system.gro traj.xtc --view-mode coarse --selection "protein or lipids"
cmd system.gro traj.xtc --view-mode cartoon --selection protein

Selections

Selections are passed to MDAnalysis. Core selection terms such as resname, name, resid, boolean operators, and ranges are available. cmd also normalizes atomname to name and provides a lipids keyword that expands to common lipid residue names.

Examples:

cmd system.gro traj.xtc --selection "protein"
cmd system.gro traj.xtc --selection "lipids"
cmd system.gro traj.xtc --selection "protein or lipids"
cmd system.gro traj.xtc --selection "resid 10:50 and atomname CA"
cmd system.gro traj.xtc --selection "resname POPC and name P"
cmd system.gro traj.xtc --selection "protein and around 6 resname LIG"

Smoothing

--smooth N applies centered trajectory smoothing over N frames. By default, smoothing targets proteins and lipid residues only; ions are excluded because their fast jumps usually make smoothing misleading.

cmd system.gro traj.xtc --view-mode coarse --smooth 5
cmd system.gro traj.xtc --view-mode cartoon --smooth 7 --smoothres "protein"

Dynamic Water Overlay

--near-water 5 shows water oxygens within 5 A of a target selection and updates that subset every frame. The default target is protein; use --near-water-target to override it.

cmd system.gro traj.xtc --selection protein --near-water 5
cmd system.gro traj.xtc --view-mode cartoon --selection protein --near-water 4
cmd system.gro traj.xtc --near-water 5 --near-water-target "protein or lipids"

Notes And Limits

• Box drawing currently supports orthorhombic unit cells only.
• Large systems are downsampled to a bounded number of displayed primitives so the viewer remains responsive over SSH and on shared systems.
• The renderer is intentionally terminal-first; it is meant for quick checks, not publication-quality molecular graphics.

Development And Releases

For the ongoing maintenance and release workflow, see RELEASING.md.

The repository includes:

• .github/workflows/package-checks.yml: builds the package, checks version consistency, runs tests, and validates distributions on pushes and pull requests.
• .github/workflows/release.yml: builds and publishes to PyPI using Trusted Publishing when a GitHub release is published.

Roadmap

• improve playback performance for very large systems
• add residue / chain / segment centering shortcuts
• add small-selection ball-and-stick or stick-like modes
• package for conda-based HPC installation
