cnsplots

Overview

cnsplots is a Python visualization library designed specifically for creating publication-ready scientific figures. It takes care of the tedious styling details so you can focus on your science.

Why cnsplots?

• 🎨 Publication-Ready: Pre-configured styles matching Cell, Nature, and Science journal requirements
• 🎯 Simple API: Create complex multi-panel figures with just a few lines of code
• 📐 Precise Control: Specify dimensions in points, inches, or millimeters for publication layouts
• 🖋️ Adobe Illustrator Compatible: SVG exports with editable fonts (no text-to-path conversion)
• 📊 Statistical Integration: Built-in statistical tests and annotations
• 🔧 Highly Customizable: Full control over colors, fonts, and styling
• 🌈 Rich Color Palettes: Curated color schemes optimized for scientific visualization
• 🧩 Multi-Panel Support: Easy creation of complex figure layouts

Features

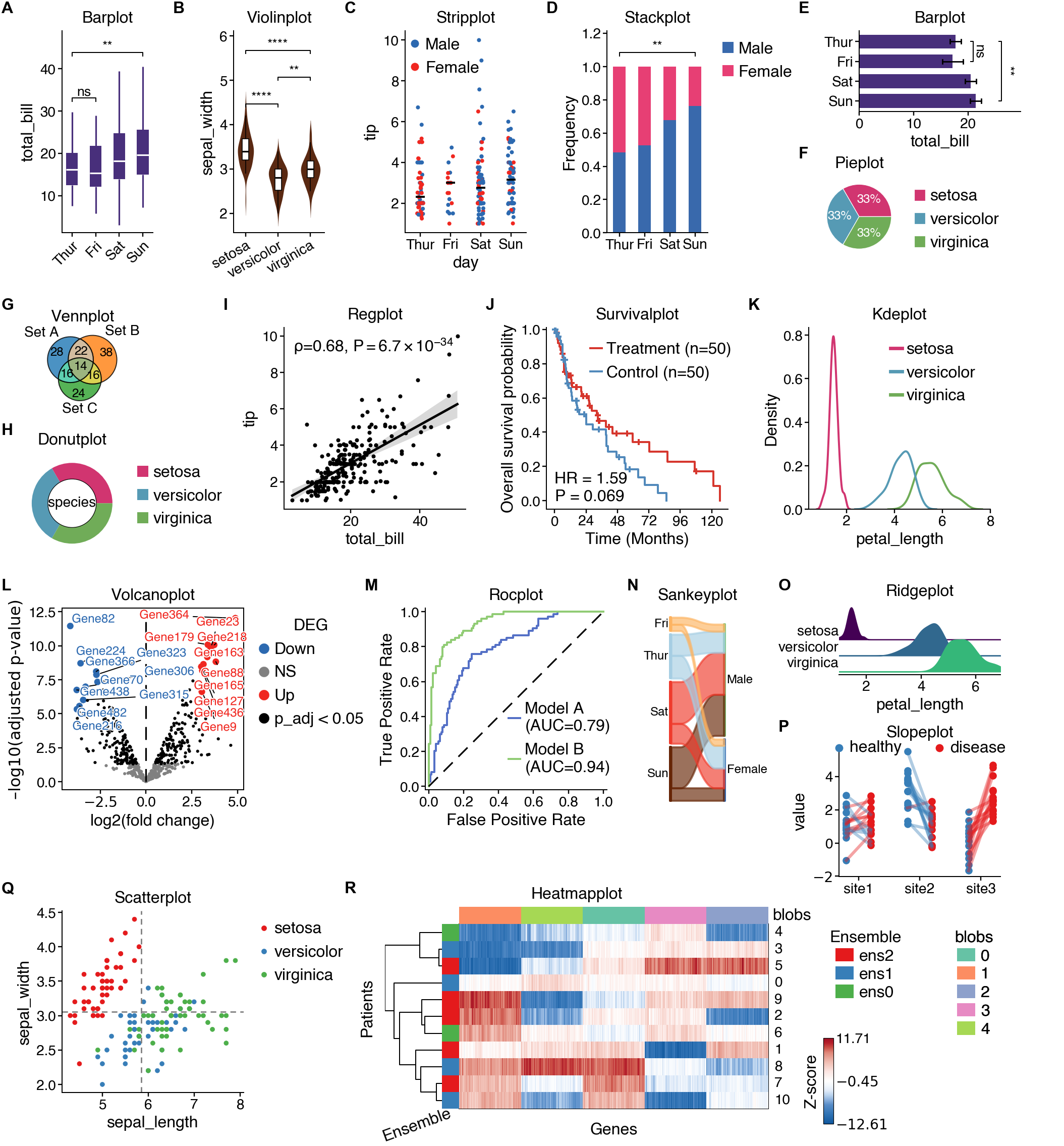

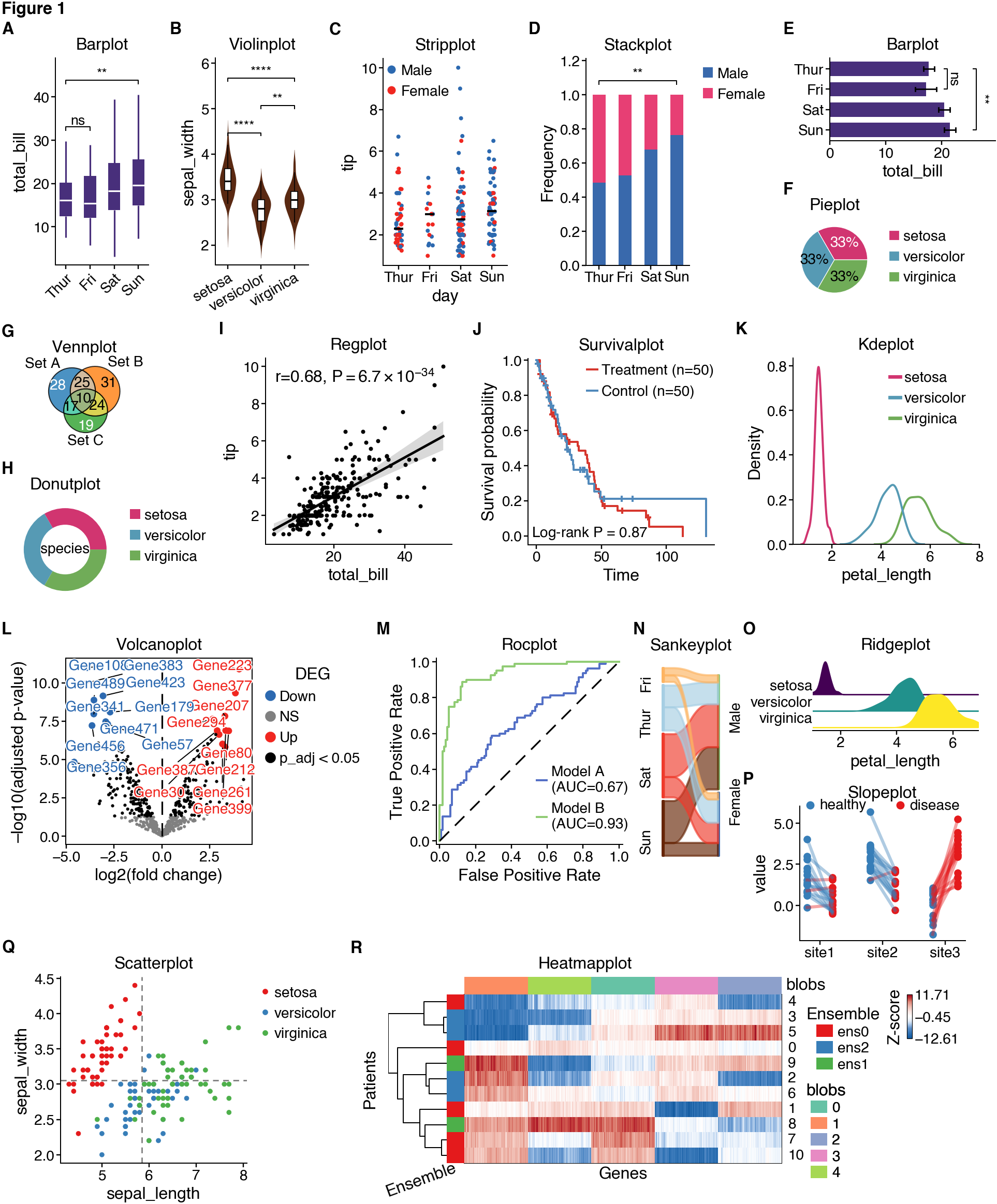

📊 25+ Plot Types

Basic Plots

• Box plots, violin plots, bar plots, strip plots
• Scatter plots, line plots, regression plots
• Histograms, KDE plots, ridge plots

Scientific Plots

• Survival plots (Kaplan-Meier)
• Cumulative incidence plots
• ROC curves and forest plots
• Volcano plots and GSEA plots
• Confusion matrices

Specialized Plots

• Heatmaps with hierarchical clustering
• Dot plots for enrichment
• Venn diagrams and UpSet plots
• Sankey diagrams
• Pie and donut charts
• QQ plots and slope plots

🎨 Beautiful Color Palettes

Multiple curated palettes including:

• Qualitative: Cell, Nature, Science, Ecotyper1-6, Set1-3, Tableau, Bold
• Sequential: Parula, gnuplot, custom gradients
• Diverging: BlueRed, BuRd_custom, OrBu_custom

📐 Multi-Panel Figures

Create complex layouts with automatic panel labeling (A, B, C...):

import cnsplots as cns

mp = cns.multipanel(max_width=540)

# Panel A
mp.panel("A", width=150, height=150)
cns.boxplot(data=df1, x="group", y="value")

# Panel B
mp.panel("B", width=150, height=150)
cns.scatterplot(data=df2, x="x", y="y")

# Continues...

Installation

From PyPI

pip install cnsplots

This installs every supported plotting and scientific integration. Imports remain lazy, so those backends are loaded only when their APIs are first used.

Agent Skill

Install the bundled cnsplots skill so Codex and Claude Code can build plots using the package's current workflow and API:

cnsplots skill install

By default this installs the skill for both agents at user scope. Target one agent or the current project when needed:

cnsplots skill install --agent codex
cnsplots skill install --agent claude --scope project

Use $cnsplots in Codex or /cnsplots in Claude Code to invoke it explicitly. Inspect, update, or remove an installation with the same agent and scope options:

cnsplots skill status
cnsplots skill install --force
cnsplots skill uninstall --agent claude --scope project
cnsplots skill --help

Status reports the destination, installed version, and whether the content matches the bundled skill. Updates overwrite current packaged files and remove unchanged obsolete files, while preserving unrelated files and modified obsolete files. Uninstall removes only unchanged managed files and preserves local edits. See the installation guide for ownership tracking, legacy installations, and exit codes.

For Development

First install uv, then:

git clone https://github.com/faridrashidi/cnsplots
cd cnsplots
make install

This installs the package with its development and documentation dependencies.

Quick Start

Basic Usage

import cnsplots as cns

# Load example data
df = cns.datasets.load_dataset("tips")

# Create a figure (width, height in points)
fig = cns.figure(width=100, height=150)

# Create a publication-ready boxplot
cns.boxplot(data=df, x="day", y="total_bill")

# Save as vector graphic
cns.savefig("figure.svg", fig=fig)

Statistical Comparisons

# Add statistical significance annotations
cns.figure(150, 150)
cns.boxplot(
    data=df,
    x="day",
    y="total_bill",
    pairs=[("Thur", "Fri"), ("Sat", "Sun")],  # Compare these pairs
    test="t-test_welch",
    p_adjust="holm",
)
# Prints: P-values were determined by two-sided Welch's t-test.

Custom Colors

# Use custom color palette
cns.figure(200, 150, color_cycle="Ecotyper1")
cns.violinplot(data=df, x="day", y="total_bill", hue="sex")

Examples Gallery

Explore our comprehensive examples gallery featuring:

• 📦 Basic statistical plots
• 🧬 Genomics and bioinformatics visualizations
• 📈 Time-series and survival analysis
• 🎯 Machine learning results (ROC, confusion matrices)
• 🔬 Multi-omics data visualization
• 🎨 Custom color schemes and styling

Documentation

Full documentation is available at cnsplots.farid.one

• Installation Guide
• API Reference
• Examples Gallery

Key Concepts

Figure Dimensions

Specify width and height in points by default: one point is 1/72 inch. These are the legacy logical 72-DPI units, so existing numeric calls retain their physical size. Use unit="pt", unit="in", or unit="mm" explicitly:

fig = cns.figure(width=100, height=150)
print(fig.get_size_inches())  # [1.38888889 2.08333333]
print(fig.canvas.get_width_height())  # (200, 300) at the default display DPI of 144

# Equivalent 2 × 1 inch canvases
cns.figure(144, 72, unit="pt")
cns.figure(2, 1, unit="in")
cns.figure(50.8, 25.4, unit="mm")

figure dimensions describe the whole canvas. Display DPI determines its pixel dimensions; export DPI determines raster resolution without changing the physical size. The 100 × 150 point canvas exports as 400 × 600 pixels at the default export DPI of 288 when saved with bbox_inches=None. The default bbox_inches="tight" instead crops around artists and adds pad_inches (in inches), so the saved dimensions can differ from the full canvas.

cns.multipanel(max_width=..., unit="mm") sets the full canvas width and the unit inherited by explicit mp.panel(..., width=..., height=...) sizes. Panel sizes describe the axes area; labels, titles, and margins contribute to the layout and total height. A panel can override unit independently. Margins remain in points and label pad_left/pad_top remain in display pixels. Omitted dimensions always use settings stored in points, regardless of unit.

cns.figure(...) returns the Matplotlib Figure and makes it current for subsequent plotting calls. Retain it to export a specific figure with fig=.

Color Palettes

Access curated color palettes:

# Qualitative palettes (for categorical data)
cns.figure(color_cycle="Ecotyper1")  # Default, optimized for journals
cns.figure(color_cycle="Cell")  # Custom Cell-inspired journal palette
cns.figure(color_cycle="Nature")  # Nature-inspired journal palette
cns.figure(color_cycle="Science")  # Science-inspired journal palette
cns.figure(color_cycle="Set1")  # ColorBrewer Set1

# Sequential palettes (for continuous data)
cns.figure(color_map="parula")  # MATLAB-style
cns.figure(color_map="gnuplot")  # Default sequential

# Get individual colors
red = cns.RED
blue = cns.BLUE

Statistical Tests

Many plot functions include built-in statistical testing:

# Boxplot with Mann-Whitney U test and Holm correction
cns.boxplot(
    data=df,
    x="group",
    y="value",
    pairs="all",
    test="Mann-Whitney",
    p_adjust="holm",
)

# Barplot with Mann-Whitney U test and false-discovery-rate correction
cns.barplot(
    data=df,
    x="group",
    y="value",
    pairs=[("A", "B"), ("A", "C")],
    test="Mann-Whitney",
    p_adjust="fdr_bh",
)

# Stackplot with an explicit chi-squared test and Bonferroni correction
cns.stackplot(
    data=df,
    x="group",
    stack="category",
    pairs="all",
    test="chi-squared",
    p_adjust="bonferroni",
)

Export for Publication

# SVG for vector graphics (recommended)
cns.savefig("figure.svg")

# High-resolution PNG
cns.savefig("figure.png", dpi=300, transparent=False)

# PDF with editable text
cns.savefig("figure.pdf")

# Keep the full figure canvas instead of cropping to its contents
cns.savefig("figure-full.pdf", bbox_inches=None)

savefig uses the current figure unless fig= is supplied. Omitted export options use cns.settings; per-call dpi, transparent, bbox_inches, and pad_inches overrides leave those settings unchanged. Use bbox_inches="tight", pad_inches=0.1 for a tight crop with padding in inches.

For Illustrator-optimized SVG post-processing, install MuPDF's mutool. Without it, cns.savefig("figure.svg") falls back to a standard matplotlib SVG and emits a warning instead of failing.

Requirements

• Python ≥ 3.10
• Core: matplotlib, numpy, pandas, seaborn
• Included integrations: lifelines, gseapy, scanpy, and other plotting backends
• Optional external tool: MuPDF's mutool for enhanced SVG post-processing

See pyproject.toml for complete dependency list.

Contributing

Contributions are welcome! Please feel free to submit a Pull Request. For major changes, please open an issue first to discuss what you would like to change.

Citation

If you use cnsplots in your research, please cite:

@software{cnsplots,
  author = {Rashidi, Farid},
  title = {cnsplots: Publication-Ready Scientific Plots},
  year = {2026},
  url = {https://github.com/faridrashidi/cnsplots}
}

License

This project is licensed under the BSD 3-Clause License - see the LICENSE.md file for details.

Acknowledgments

Built with:

• matplotlib - Core plotting library
• seaborn - Statistical visualizations
• lifelines - Survival analysis
• PyComplexHeatmap - Complex heatmaps
• UpSetPlot - Set intersections

Inspired by the visualization standards of Cell, Nature, and Science journals.

Support

• 📖 Documentation
• 🐛 Issue Tracker
• 💬 Discussions

Related Projects

• matplotlib - The foundation of Python plotting
• seaborn - Statistical data visualization
• plotnine - Grammar of graphics for Python
• altair - Declarative visualization
