APB interface modules for Cocotb

GitHub repository: https://github.com/daxzio/cocotbext-apb

Introduction

APB simulation models for cocotb.

The APB protocol is cover in these documents APB Protocol Specification and APB Architecture Specification

Installation

Installation from pip (release version, stable):

$ pip install cocotbext-apb

Installation from git (latest development version, potentially unstable):

$ pip install https://github.com/daxzio/cocotbext-apb/archive/main.zip

Installation for active development:

$ git clone https://github.com/daxzio/cocotbext-apb
$ pip install -e cocotbext-apb

Documentation and usage examples

See the tests directory for complete testbenches using these modules.

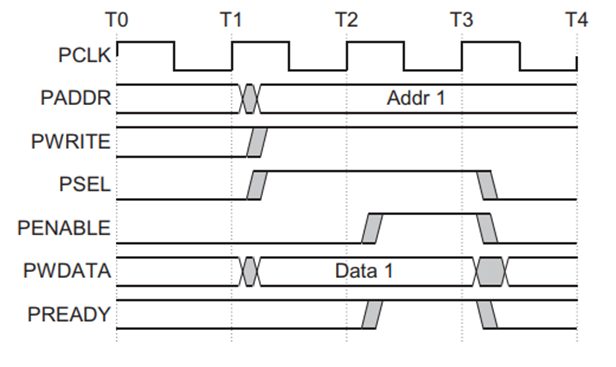

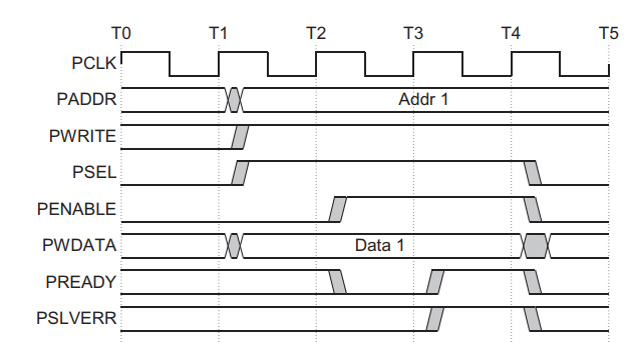

APB Write

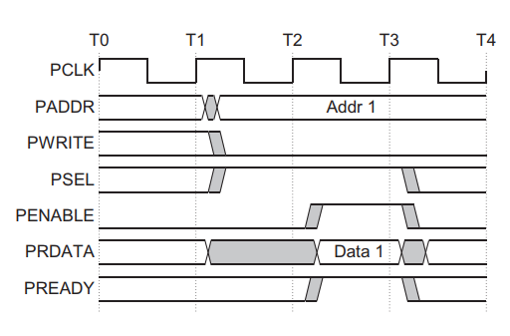

APB Read

APB Bus

The APBBus is used to map to a APB interface on the dut. Class methods from_entity and from_prefix are provided to facilitate signal default name matching.

Required:

• psel
• pwrite
• paddr
• pwdata
• pready
• prdata

Optional:

• pstrb
• pprot
• pslverr

APB Host

The ApbHost class implements an APB driver and is capable of generating read and write operations against APB devices.

The host automatically handles data wider than the bus width by splitting transactions into multiple sequential APB accesses at consecutive addresses. This allows seamless transfers of wide data values across narrower APB interfaces.

To use these modules, import the one you need and connect it to the DUT:

from cocotbext.apb import ApbHost, ApbBus

bus = ApbBus.from_prefix(dut, "s_apb")
apb_driver = ApbHost(bus, dut.clk)

The first argument to the constructor accepts an ApbBus object. These objects are containers for the interface signals and include class methods to automate connections.

Once the module is instantiated, read and write operations can be initiated in a couple of different ways.

ApbMaster is a subclass of ApbHost and remains available for existing testbenches.

ApbHost constructor parameters

• bus: ApbBus object containing APB interface signals
• clock: clock signal
• timeout_max: Maximum clock cycles to wait for pready signal before timing out (optional, default 1000). Set to -1 to disable timeout.
• reset: reset signal (optional)
• reset_active_level: reset active level (optional, default True)

Additional optional arguments for ApbHost

• seednum: For random testing a seed can be supplied, default None, random seed.

Address Mapping

The ApbHost supports address mapping through its addrmap attribute, an AddressMap instance. Register names can be used instead of numeric addresses in read(), write(), read_nowait(), write_nowait(), and poll(), which makes testbenches easier to read and maintain.

Configure the map with addaddrmap() or by assigning directly to a device index:

from cocotbext.apb import ApbHost, ApbBus

bus = ApbBus.from_prefix(dut, "s_apb")
apb_driver = ApbHost(bus, dut.clk)

# Preferred: addaddrmap() updates log column alignment automatically
apb_driver.addaddrmap({
    'STATUS'    : 0x00,
    'BUSY'      : 0x04,
    'CONFIG'    : 0x08,
    'INTERRUPT' : 0x0c,
})

# Equivalent for device 0:
# apb_driver.addrmap[0] = { ... }

# Use string names instead of numeric addresses
await apb_driver.write('STATUS', 0x12)
await apb_driver.read('CONFIG')

# Indexed access using string format
await apb_driver.read('STATUS[0]', 0x12)
await apb_driver.read('STATUS[1]', 0x34)

# Indexed access using index parameter (useful with variables)
for i in range(4):
    await apb_driver.write('STATUS', data[i], index=i)
    await apb_driver.read('STATUS', expected[i], index=i)

When a map is configured, transaction logs show register names instead of raw addresses (for example Read STATUS : 0x00000012 rather than Read 0x00000000: 0x00000012). See tests/test_addrmap for a complete cocotb example.

Indexed register access: for register arrays, use either bracket notation ("STATUS[0]", "STATUS[1]", …) or the index parameter (read("STATUS", data, index=0)). Both add index * wbytes to the base address, where wbytes is the bus data width in bytes.

Multi-device: pass device=N to addaddrmap() or assign addrmap[N] = {...} for each slave. Use the device parameter on read/write calls to select the target.

Methods

• enable_logging(): Enable debug logging
• disable_logging(): Disable debug logging
• enable_backpressure(seednum=None): Enable random delays on the interface
• disable_backpressure(): Disable random delays on the interface
• wait(): blocking wait until all outstanding operations complete
• write(addr, data, strb=-1, prot=ApbProt.NONSECURE, error_expected=False, device=0, length=-1, index=-1): write data (bytes or int), to addr (int or string when addrmap is configured), wait for result. If an slverr is experienced a critical warning will be issued by default, but will reduced this to an info warning if error_expected=True. If data is wider than the bus width, it will automatically be split into multiple sequential APB write accesses at consecutive addresses. The optional length parameter can override the automatic length calculation, should be a multiple of the number of bytes in the wdata bus. The optional device parameter specifies the slave index to target. The optional index parameter adds an offset to the address equal to index * wbytes, useful for accessing indexed registers (alternative to using string format like "STATUS[0]").
• write_nowait(addr, data, strb=-1, prot=ApbProt.NONSECURE, error_expected=False, device=0, length=-1, index=-1): write data (bytes or int), to addr (int or string when addrmap is configured), submit to queue. If an slverr is experienced a critical warning will be issued by default, but will reduced this to an info warning if error_expected=True. If data is wider than the bus width, it will automatically be split into multiple sequential APB write accesses at consecutive addresses. The optional length parameter can override the automatic length calculation, should be a multiple of the number of bytes in the wdata bus. The optional device parameter specifies the slave index to target. The optional index parameter adds an offset to the address equal to index * wbytes, useful for accessing indexed registers (alternative to using string format like "STATUS[0]").
• read(addr, data=bytes(), prot=ApbProt.NONSECURE, error_expected=False, device=0, index=-1, length=-1): read bytes, at addr (int or string when addrmap is configured), if data supplied check for match, wait for result. If an slverr is experienced a critical warning will be issued by default, but will reduced this to an info warning if error_expected=True. If data is wider than the bus width, it will automatically be split into multiple sequential APB read accesses at consecutive addresses. The optional length parameter can override the automatic length calculation, should be a multiple of the number of bytes in the wdata bus. The optional device parameter specifies the slave index to target. The optional index parameter adds an offset to the address equal to index * wbytes, useful for accessing indexed registers (alternative to using string format like "STATUS[0]").
• read_nowait(addr, data=bytes(), prot=ApbProt.NONSECURE, error_expected=False, device=0, index=-1, length=-1): read bytes, at addr (int or string when addrmap is configured), if data supplied check for match, submit to queue. If an slverr is experienced a critical warning will be issued by default, but will reduced this to an info warning if error_expected=True. If data is wider than the bus width, it will automatically be split into multiple sequential APB read accesses at consecutive addresses. The optional length parameter can override the automatic length calculation, should be a multiple of the number of bytes in the wdata bus. The optional device parameter specifies the slave index to target. The optional index parameter adds an offset to the address equal to index * wbytes, useful for accessing indexed registers (alternative to using string format like "STATUS[0]").
• poll(addr, data=bytes(), device=0): poll address, at addr (int or string when addrmap is configured), until data at address matches data. The optional device parameter specifies the slave index to target.
• addaddrmap(addrmap, device=0): register a name-to-address map for device. Preferred over direct assignment because it updates log column alignment.
• format_addr(addr, device=0): reverse lookup — return the register name for addr, or 0x........ if unmapped.

AddressMap

AddressMap is a protocol-agnostic helper for name-to-address resolution on memory-mapped register maps. It is used internally by ApbHost (via the addrmap attribute) and is also exported for standalone use or integration with other bus masters (for example OBI).

Import:

from cocotbext.apb import AddressMap

Data model

AddressMap is a dict subclass keyed by device index. Each value is a plain dict mapping register name (str) to byte address (int):

AddressMap
├── 0 → {"STATUS": 0x00, "CONFIG": 0x08, ...}   # device 0
├── 1 → {"CTRL": 0x1000, ...}                   # device 1 (multi-device)
└── word_bytes, multi_device, _label_width      # configuration

Constructor parameters:

• word_bytes: bus data width in bytes (default 4). Used for indexed register offsets and reverse lookup alignment.
• multi_device: reserve extra column width in log output when multiple slaves are present (default False).

Forward lookup (name → address)

resolve(addr, device=0, index=-1) converts a register name or integer address to a byte address:

• If addr is an int, it is returned unchanged (plus any index offset).
• If addr is a str, the base name is looked up in the map for device. Bracket notation adds N * word_bytes for each [N] suffix (e.g. "AES_KEY_SHARE0[3]" → base + 3 × word_bytes).
• If index != -1, index * word_bytes is added after name resolution.

am = AddressMap(word_bytes=4)
am.add({"STATUS": 0x00, "CONFIG": 0x08})

am.resolve(0x08)              # 0x08  (integer passthrough)
am.resolve("STATUS")          # 0x00
am.resolve("STATUS[2]")       # 0x08
am.resolve("STATUS", index=1) # 0x04

Reverse lookup (address → name)

format(addr, device=0) returns the register name for a byte address. When the address falls within a mapped register array (aligned to word_bytes), bracket notation is used for non-zero indices. Unmapped addresses are formatted as 0x.........

am.format(0x00)   # "STATUS"
am.format(0x08)   # "STATUS[2]"  (if STATUS base is 0x00, word_bytes=4)
am.format(0x99)   # "0x00000099" (unmapped)

Registering maps

• add(addrmap, device=0): store a name→address dict for device and recompute log column width. This is what ApbHost.addaddrmap() delegates to.
• Direct assignment am[device] = {...} also works (dict subclass), but does not update column width unless add() or _update_label_width() is called.

Log formatting

format_col(label, prefix="") pads a register label so read/write data columns align in log output. ApbHost uses this internally when logging transactions.

Standalone example

from cocotbext.apb import AddressMap

REGS = {
    "STATUS": 0x00,
    "BUSY": 0x04,
    "CONFIG": 0x08,
}

am = AddressMap(word_bytes=4)
am.add(REGS)

# Forward lookup for a custom driver
addr = am.resolve("CONFIG")

# Reverse lookup for debug output
label = am.format(addr)          # "CONFIG"
col = am.format_col(label)         # padded for aligned columns

Unit tests for reverse lookup live in tests/test_format_addr.py. Cocotb integration tests are in tests/test_addrmap.

APB Monitor

The ApbMonitor class tracks APB bus transactions and verifies signal synchronization.

Usage

from cocotbext.apb import ApbMonitor
monitor = ApbMonitor(bus, dut.clk)

Methods

• enable_check_sync(): Enable checking that signal changes are aligned with the clock edge, default.
• disable_check_sync(): Disable the synchronous signal check.

Multi-Device Support

The ApbHost supports multiple devices on the same bus instance. To use this feature:

1. Signal Connection:

   • psel must be a vector (e.g., [1:0] for 2 slaves).
   • prdata must be a concatenated vector of all slave read data outputs (e.g., [63:0] for 2 slaves with 32-bit data width).

2. Access:

   • Use the device parameter in read, write, read_nowait, and write_nowait methods to specify the target slave index (integer).
   • The ApbHost will assert the corresponding bit in psel (1 << device) and slice the prdata appropriately.

Example:

# Write to slave 0
await tb.intf.write(0x100, 0xDEADBEEF, device=0)

# Read from slave 1
val = await tb.intf.read(0x200, device=1)

APB Device

The ApbDevice class implements an APB device and is capable of completing read and write operations from upstream APB hosts. This module can either be used to perform memory reads and writes on a MemoryInterface on behalf of the DUT, or it can be extended to implement customized functionality.

To use these modules, import the one you need and connect it to the DUT:

from cocotbext.apb import ApbBus, ApbDevice, MemoryRegion

apb_device = ApbDevice(ApbBus.from_prefix(dut, "m_apb"), dut.clk, dut.rst)
region = MemoryRegion(2**apb_device.read_if.address_width)
apb_device.target = region

The first argument to the constructor accepts an ApbBus object. These objects are containers for the interface signals and include class methods to automate connections.

It is also possible to extend these modules; operation can be customized by overriding the internal _read() and _write() methods. See ApbRam for an example.

ApbSlave is a subclass of ApbDevice and remains available for existing testbenches.

ApbDevice constructor parameters

• bus: ApbBus object containing APB interface signals
• clock: clock signal
• reset: reset signal (optional)
• reset_active_level: reset active level (optional, default True)
• target: target region (optional, default None)

ApbDevice editable attibutes

It is possible to set area of addressable memory to be treated a priviledged address space or instruction address space. If an APB host tries to access these regions, but has not set the correct prot value, NONSECURE for example, the ApbDevice will issue a slverr duting the pready phase of it response.

The ApbDevice has two attributes that can be edited by the user to allocate addresses and/or address ranges to the priviledged or instruction space.

• privileged_addrs
• instruction_addrs

Both attributes are arrays, and each element can be a single address, or a two element list, with a low address to a high address:

tb.ram.privileged_addrs =  [[0x1000, 0x1fff], 0x3000]
tb.ram.instruction_addrs = [[0x2000, 0x2fff], 0x4000]

If there is a read or a write with an address in this space, and the prot from the master does not match, it will report the type of error, as a warning, and assert slverr. The access will also be unsuccessful, the write will not occur and a read will result in all zeros being returned.

APB RAM

The ApbRam class implements APB RAMs and is capable of completing read and write operations from upstream APB hosts. These modules are extensions of ApbDevice. Internally, SparseMemory is used to support emulating very large memories.

To use these modules, import and connect it to the DUT:

from cocotbext.apb import ApbBus, ApbRam

apb_ram = ApbRam(ApbBus.from_prefix(dut, "m_apb"), dut.clk, dut.rst, size=2**32)

The first argument to the constructor accepts an ApbBus object. These objects are containers for the interface signals and include class methods to automate connections.

Once the module is instantiated, the memory contents can be accessed in a couple of different ways. First, the mmap object can be accessed directly via the mem attribute. Second, read(), write(), and various word-access wrappers are available. Hex dump helper methods are also provided for debugging. For example:

apb_ram.write(0x0000, b'test')
data = apb_ram.read(0x0000, 4)
apb_ram.hexdump(0x0000, 4, prefix="RAM")

Multi-port memories can be constructed by passing the mem object of the first instance to the other instances. For example, here is how to create a four-port RAM:

apb_ram_p1 = ApbRam(ApbBus.from_prefix(dut, "m00_apb"), dut.clk, dut.rst, size=2**32)
apb_ram_p2 = ApbRam(ApbBus.from_prefix(dut, "m01_apb"), dut.clk, dut.rst, mem=apb_ram_p1.mem)
apb_ram_p3 = ApbRam(ApbBus.from_prefix(dut, "m02_apb"), dut.clk, dut.rst, mem=apb_ram_p1.mem)
apb_ram_p4 = ApbRam(ApbBus.from_prefix(dut, "m03_apb"), dut.clk, dut.rst, mem=apb_ram_p1.mem)

ApbRam and ApbLiteRam constructor parameters

• bus: ApbBus object containing APB interface signals
• clock: clock signal
• reset: reset signal (optional)
• reset_active_level: reset active level (optional, default True)
• size: memory size in bytes (optional, default 2**32)
• mem: mmap or SparseMemory backing object to use (optional, overrides size)

Attributes:

• mem: directly access shared mmap or SparseMemory backing object

Methods

• read(address, length): read length bytes, starting at address
• read_words(address, count, byteorder='little', ws=2): read count ws-byte words, starting at address
• read_dwords(address, count, byteorder='little'): read count 4-byte dwords, starting at address
• read_qwords(address, count, byteorder='little'): read count 8-byte qwords, starting at address
• read_byte(address): read single byte at address
• read_word(address, byteorder='little', ws=2): read single ws-byte word at address
• read_dword(address, byteorder='little'): read single 4-byte dword at address
• read_qword(address, byteorder='little'): read single 8-byte qword at address
• write(address, data): write data (bytes), starting at address
• write_words(address, data, byteorder='little', ws=2): write data (ws-byte words), starting at address
• write_dwords(address, data, byteorder='little'): write data (4-byte dwords), starting at address
• write_qwords(address, data, byteorder='little'): write data (8-byte qwords), starting at address
• write_byte(address, data): write single byte at address
• write_word(address, data, byteorder='little', ws=2): write single ws-byte word at address
• write_dword(address, data, byteorder='little'): write single 4-byte dword at address
• write_qword(address, data, byteorder='little'): write single 8-byte qword at address
• hexdump(address, length, prefix=''): print hex dump of length bytes starting from address, prefix lines with optional prefix
• hexdump_line(address, length, prefix=''): return hex dump (list of str) of length bytes starting from address, prefix lines with optional prefix
• hexdump_str(address, length, prefix=''): return hex dump (str) of length bytes starting from address, prefix lines with optional prefix
