cocotbext-qspi

QSPI flash verification for cocotb: a bus driver, a device-level API over the JEDEC command set, and a NOR flash model to test against.

Requires cocotb 2.0+. Tests run on Icarus Verilog.

pip install cocotbext-qspi

Why another SPI extension

cocotbext-spi covers single-lane SPI. This one covers flash specifically: dual and quad I/O reads, the write-enable latch, status polling, page program and sector erase — and it targets cocotb 2.x.

Pointing a testbench at the models

The Verilog ships inside the package, so there is nothing to vendor. Ask the package where it is:

VERILOG_DIR := $(shell python3 -c \
    "import cocotbext.qspi as q; print(q.verilog_dir())")

VERILOG_SOURCES  = $(VERILOG_DIR)/qspi_flash.v
VERILOG_SOURCES += $(VERILOG_DIR)/qspi_flash_test.v

Or from Python, cocotbext.qspi.verilog_dir() returns a pathlib.Path.

Usage

import cocotb
from cocotb.clock import Clock
from cocotbext.qspi import QspiFlash, CMD_QIOR4

@cocotb.test()
async def test_flash(dut):
    cocotb.start_soon(Clock(dut.clk, 20, unit="ns").start())

    flash = QspiFlash(dut)
    await flash.initialize()

    assert await flash.read_id() == [0xEF, 0x40, 0x18]

    # program() sets WEL, then polls the status register until WIP clears.
    await flash.program(0x1000, [0xDE, 0xAD, 0xBE, 0xEF])

    assert await flash.read(0x1000, 4) == [0xDE, 0xAD, 0xBE, 0xEF]
    assert await flash.read(0x1000, 4, opcode=CMD_QIOR4) == [0xDE, 0xAD, 0xBE, 0xEF]

    await flash.erase_sector(0x1000)
    assert await flash.read(0x1000, 4) == [0xFF] * 4

The protocol, and two things that catch people out

SPI mode 0: the master launches data while the clock is low, the device samples it on the rising edge, and vice versa.

The opcode is always single-lane. Only the address, mode byte and data widen. A quad I/O read is not "everything on four lanes" — it is one single-lane command byte, then four-lane address and data. Getting this wrong is the most common reason a driver talks to nothing.

Programming only clears bits. NOR flash needs an erase to set a bit back to 1. Programming 0x0F over 0xF0 gives 0x00, not 0x0F.

What it looks like on the wire

All three diagrams below are generated from a real simulation — capture.py runs the transactions, Icarus dumps a VCD, and render.py draws it. Nothing is drawn by hand, so they cannot drift away from what the model does.

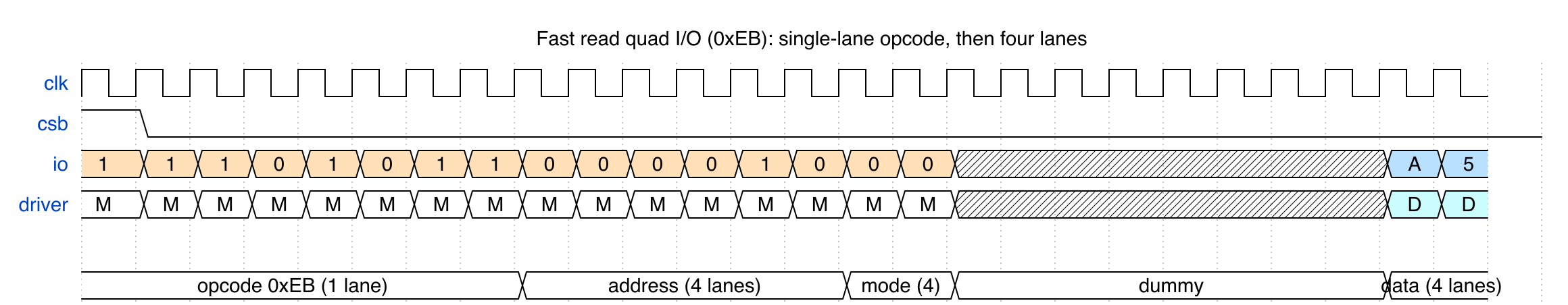

A quad I/O read. The opcode goes out one bit per clock on a single lane; only then does the bus widen to four lanes for the address and data. Note the eight dummy cycles, where neither side drives while the bus turns around:

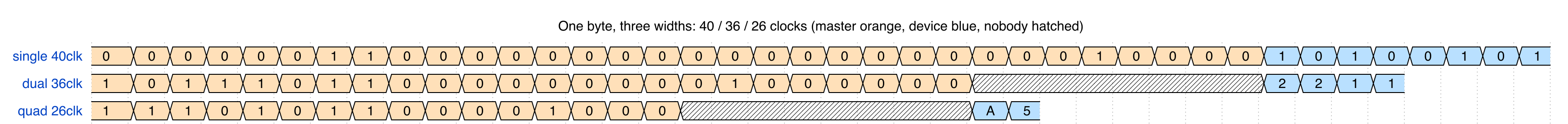

The same byte read three ways. This is the whole point of the wide modes — 40 clocks single-lane, 36 dual, 26 quad, for one byte at the same address:

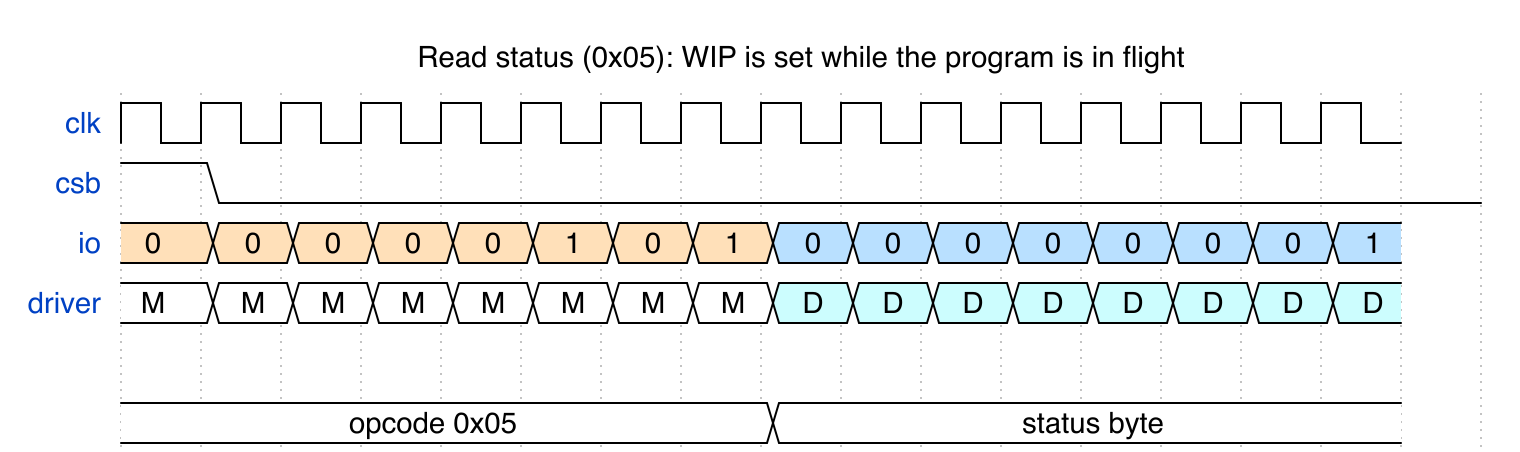

A status read while a program is in flight. The device answers 0x01 — WIP set — which is what wait_ready() polls for:

To regenerate them:

make -C docs/waveforms        # run the sim, dump capture.vcd
make -C docs/waveforms svg    # capture.vcd -> *.svg

Commands

RSTEN arms a reset for the next command only; anything in between cancels it, so a stray 0x99 cannot reset a device mid-operation. initialize() issues the pair, so a test cannot inherit the write enable latch from whatever ran before it.

Status register: bit 0 WIP (write in progress), bit 1 WEL (write enable latch). wait_ready() polls it rather than assuming a fixed delay, which is what a real controller must do.

Bus signals

QspiBus.from_entity(dut) picks up clk, csb and io, plus io_out and io_oe.

A simulator will not let a testbench drive an inout net, so the top level splits the master's half into a value and a per-lane output enable:

wire [3:0] io;
assign io[0] = io_oe[0] ? io_out[0] : 1'bz;
assign io[1] = io_oe[1] ? io_out[1] : 1'bz;
assign io[2] = io_oe[2] ? io_out[2] : 1'bz;
assign io[3] = io_oe[3] ? io_out[3] : 1'bz;

Per-lane, not bus-wide: in single-lane mode the master drives io0 while the device answers on io1.

Note also that csb is left uninitialised in qspi_flash_test.v. The model frames transactions on chip-select edges, and an initialiser there races cocotb's first write at time 0 — the edge is lost and the device never starts. initialize() drives the sequence explicitly.

Testing

Two suites, and the split matters:

make -C tests                      # against our own JEDEC model: 11 tests
make -C tests -f Makefile.interop  # against PicoSoC's spiflash.v: 5 tests

The interop suite drives spiflash.v — a model this project did not write — and checks the bytes against known $readmemh content.

That distinction earned its keep. Testing only against our own model proves the driver and the model agree; it does not prove either is right. Driving somebody else's model immediately found that the master was dropping the first bit of every byte — our model had the same off-by-one assumption, so the closed loop had been happily agreeing with itself.

Layout

Licence

MIT. tests/reference/spiflash.v is ISC, © Claire Xenia Wolf.
