codedocent

Code visualization for non-programmers.

A docent is a guide who explains things to people who aren't experts. Codedocent does that for code.

The problem

You're staring at a codebase you didn't write — maybe thousands of files across dozens of directories — and you need to understand what it does. Reading every file isn't realistic. You need a way to visualize the code structure, get a high-level map of what's where, and drill into the parts that matter without losing context.

Codedocent parses the codebase into a navigable, visual block structure and explains each piece in plain English. It's an AI code analysis tool — use a cloud provider for speed or run locally through Ollama for full privacy. Point it at any codebase and get a structural overview you can explore interactively, understand quickly, and share as a static HTML file.

What's new in v1.0.0

Architecture Mode

Visualize your codebase as a zoomable dependency graph. Three levels of detail:

• Level 0 — Modules: See all modules as nodes with dependency edges between them
• Level 1 — Files: Drill into a module to see its files and their internal + external dependencies
• Level 2 — Code: Click through to the existing CodeDocent file view (functions, classes, complexity)

Export MD button at each level generates structured context you can feed to AI tools.

codedocent /path/to/code --arch    # jump straight to architecture view

Or choose option 4 in the setup wizard.

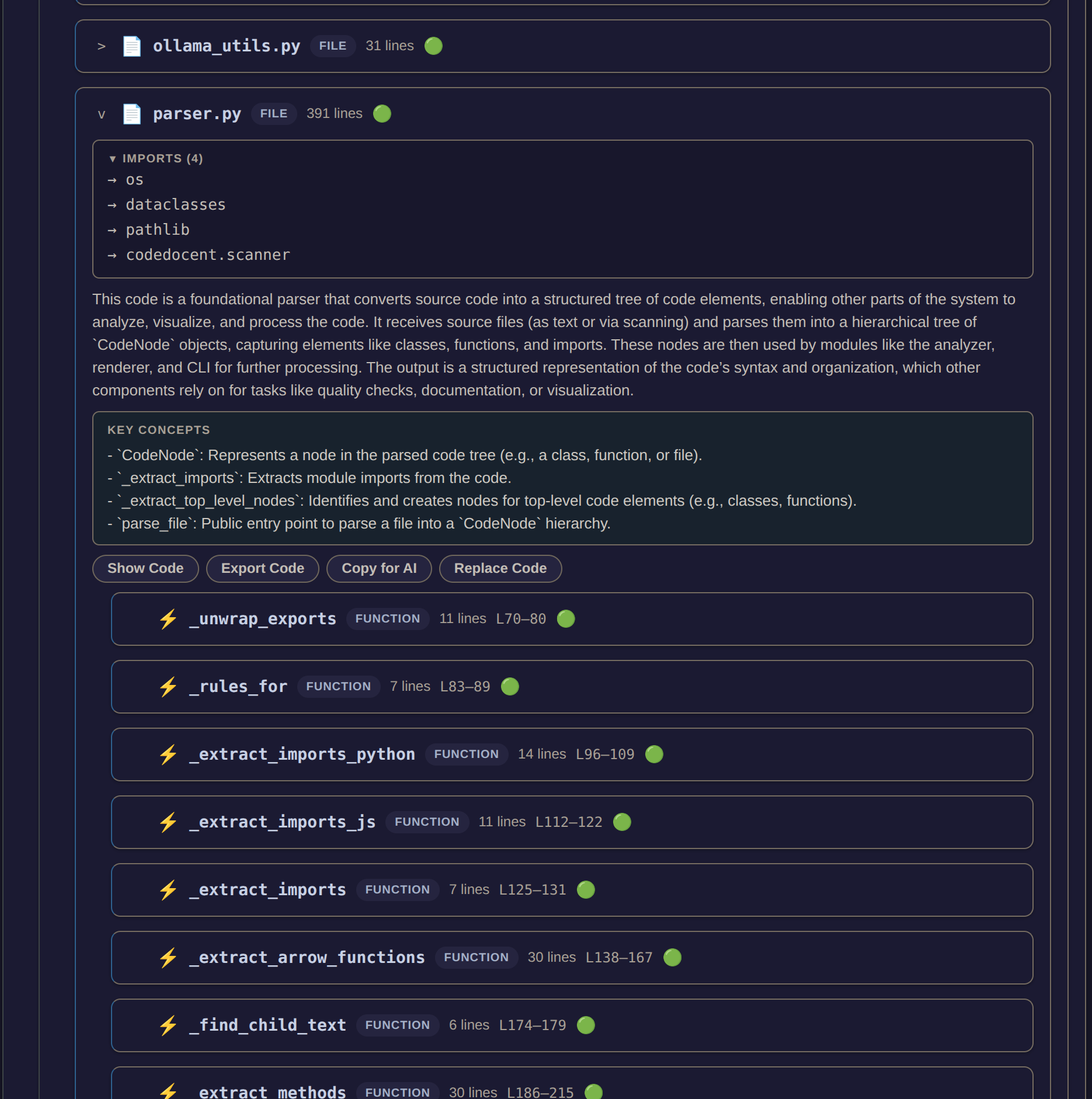

Enhanced AI Summaries

AI analysis now understands where each file sits in the system:

• Dependency context — the prompt tells the AI what this file imports and what imports it
• ROLE — what job does this code do? Foundation, orchestrator, utility, entry point?
• KEY CONCEPTS — main functions, classes, and data structures with one-line descriptions
• Better prompts — explains code in terms of data flow and system role, not just syntax

Who this is for

• Developers onboarding onto an unfamiliar codebase — get oriented in minutes instead of days
• Non-programmers (managers, designers, PMs) who need to understand what code does without reading it
• Solo developers inheriting legacy code — map out the structure before making changes
• Code reviewers who want a high-level overview before diving into details
• Security reviewers who need a structural map of an application
• Students learning to read and navigate real-world codebases

What you see

Nested, color-coded blocks representing directories, files, classes, and functions — the entire structure of a codebase laid out visually. Each block shows a plain English summary, key concepts, pseudocode, and quality warnings. Click any block to drill down; breadcrumbs navigate you back up. You can export code from any block or paste replacement code back into the source file.

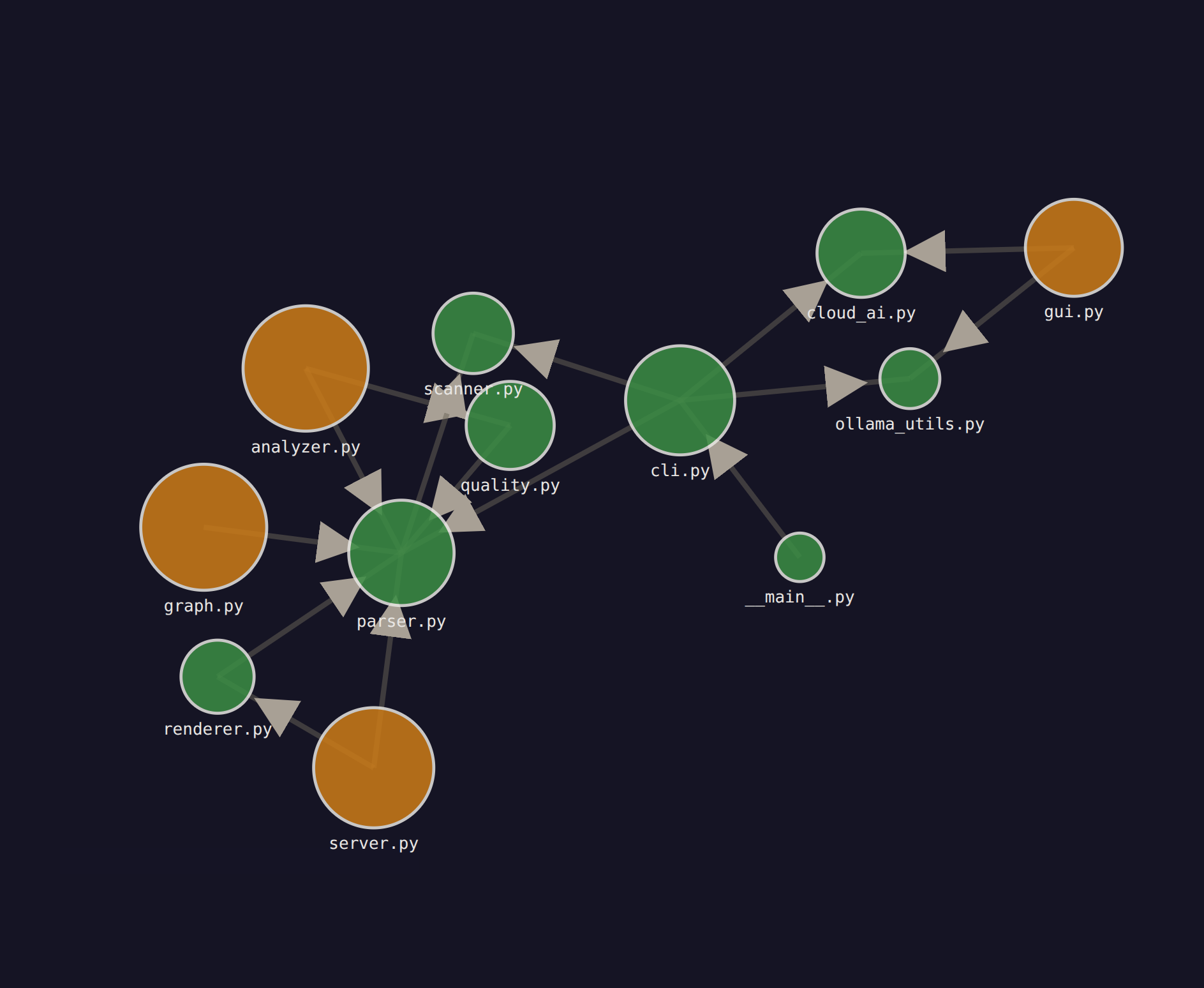

In architecture mode, a D3.js force-directed graph shows modules and files as nodes with directed dependency edges. Click any node to drill deeper.

Install

pip install codedocent

Requires Python 3.10+. Cloud AI needs an API key set in an env var (e.g. OPENAI_API_KEY). Local AI needs Ollama running. --no-ai skips AI entirely.

Quick start

codedocent                         # setup wizard — walks you through everything
codedocent /path/to/code           # interactive mode (recommended)
codedocent /path/to/code --arch    # architecture mode — dependency graph
codedocent /path/to/code --full    # full analysis, static HTML output
codedocent --gui                   # graphical launcher
codedocent /path/to/code --cloud openai    # use OpenAI
codedocent /path/to/code --cloud groq      # use Groq
codedocent /path/to/code --cloud custom --endpoint https://my-llm/v1/chat/completions

GUI launcher

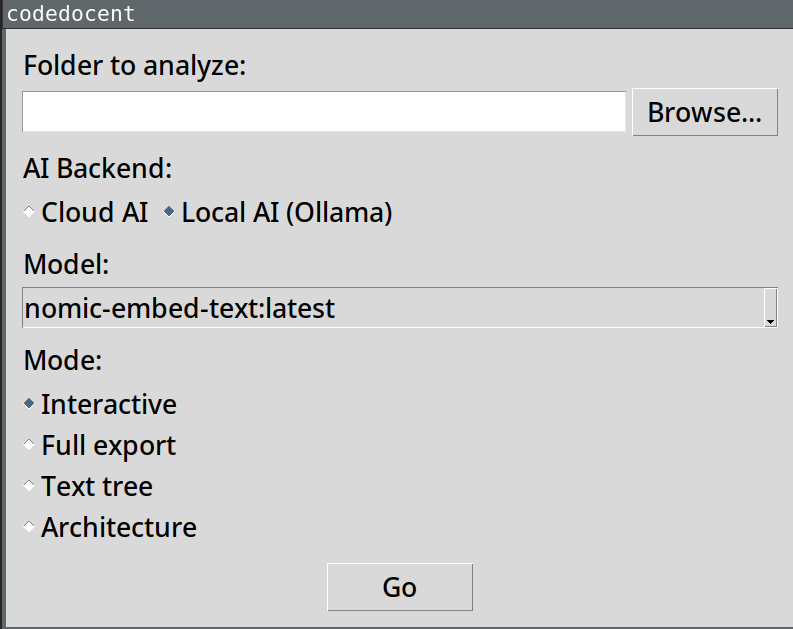

If you prefer clicking over typing, codedocent --gui opens a graphical launcher. Pick a folder, choose your AI backend (cloud or local Ollama), select a model, and choose a mode — Interactive, Full export, Text tree, or Architecture. Hit Go.

codedocent --gui

How it works

Parses code structure with tree-sitter, scores quality with static analysis, and sends individual blocks to a cloud AI provider or local Ollama model for plain English summaries and pseudocode. Interactive mode analyzes on click — typically 1-2 seconds per block. Full mode analyzes everything upfront into a self-contained HTML file you can share. Architecture mode builds a dependency graph from import statements and renders it as a zoomable D3 visualization.

AI options

• Cloud AI — send code to OpenAI, OpenRouter, Groq, or any OpenAI-compatible endpoint. Fast, no local setup. Your code is sent to that service. API keys are read from env vars (OPENAI_API_KEY, OPENROUTER_API_KEY, GROQ_API_KEY, CODEDOCENT_API_KEY for custom endpoints).
• Local AI — Ollama on your machine. Code never leaves your laptop. No API keys, no accounts.
• No AI (--no-ai) — structure and quality scores only.

The setup wizard (codedocent with no args) walks you through choosing.

Supported languages

Full AST parsing for Python and JavaScript/TypeScript (functions, classes, methods, imports). File-level detection for 23 extensions including C, C++, Rust, Go, Java, Ruby, PHP, Swift, Kotlin, Scala, HTML, CSS, and config formats.
