coil-geom 0.2.2

Parametric coil and inductor geometry generator

coil-geom

coil-geom is a Python package for generating and visualizing coil and inductor geometries using clean, parametric definitions.
It is designed for engineering, scientific visualization, and symbolic / schematic-style plotting.

• Pure geometry first (NumPy-friendly)
• Easy plotting with Matplotlib
• Suitable for electronics, physics, and CAD-style workflows

---

🔗 Project Links

• GitHub Repository: https://github.com/uhwang/Coil-Geom
• PyPI Page: https://pypi.org/project/coil-geom/
• Issue Tracker: Report a bug

Installation

pip install coil-geom

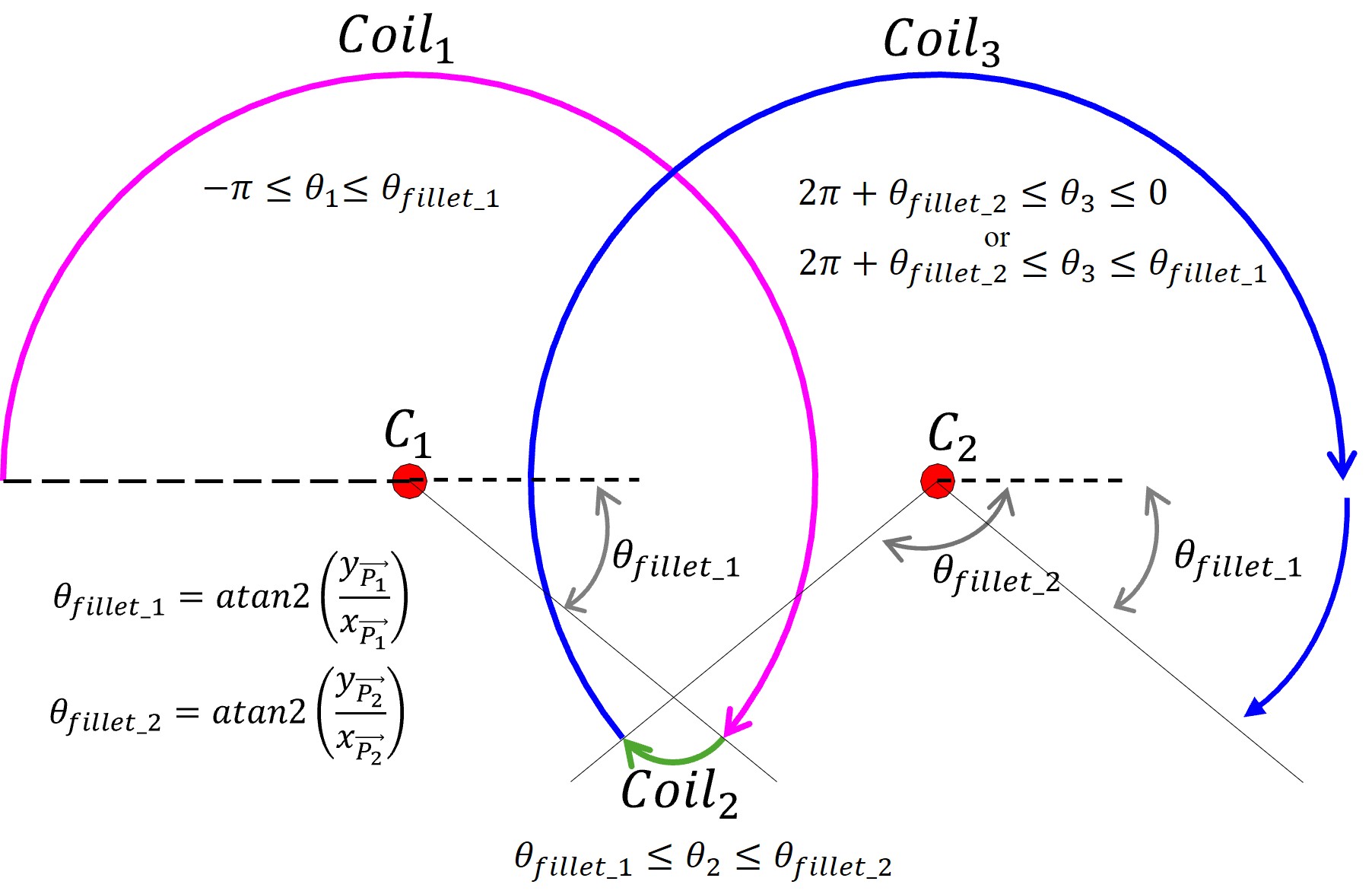

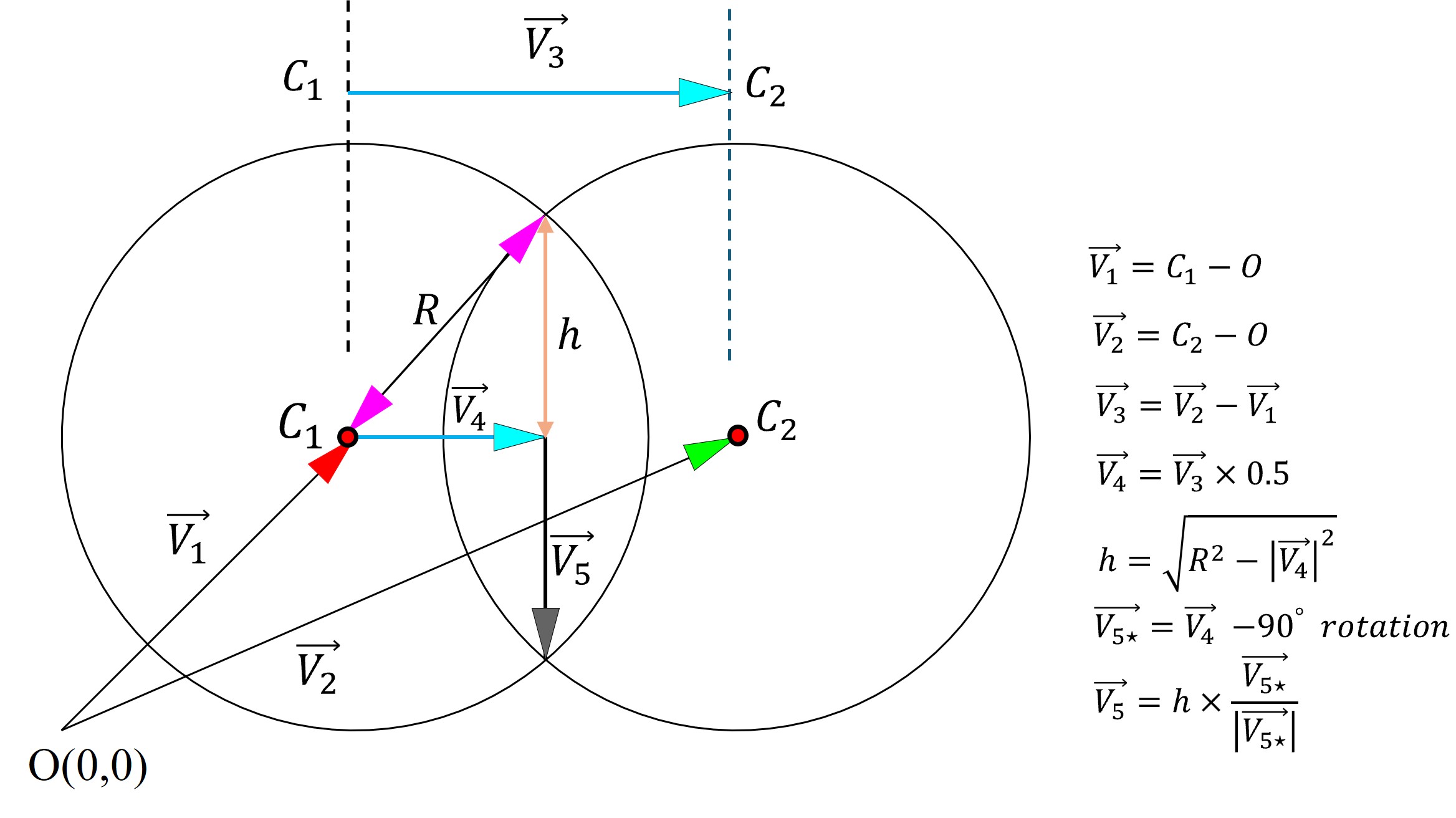

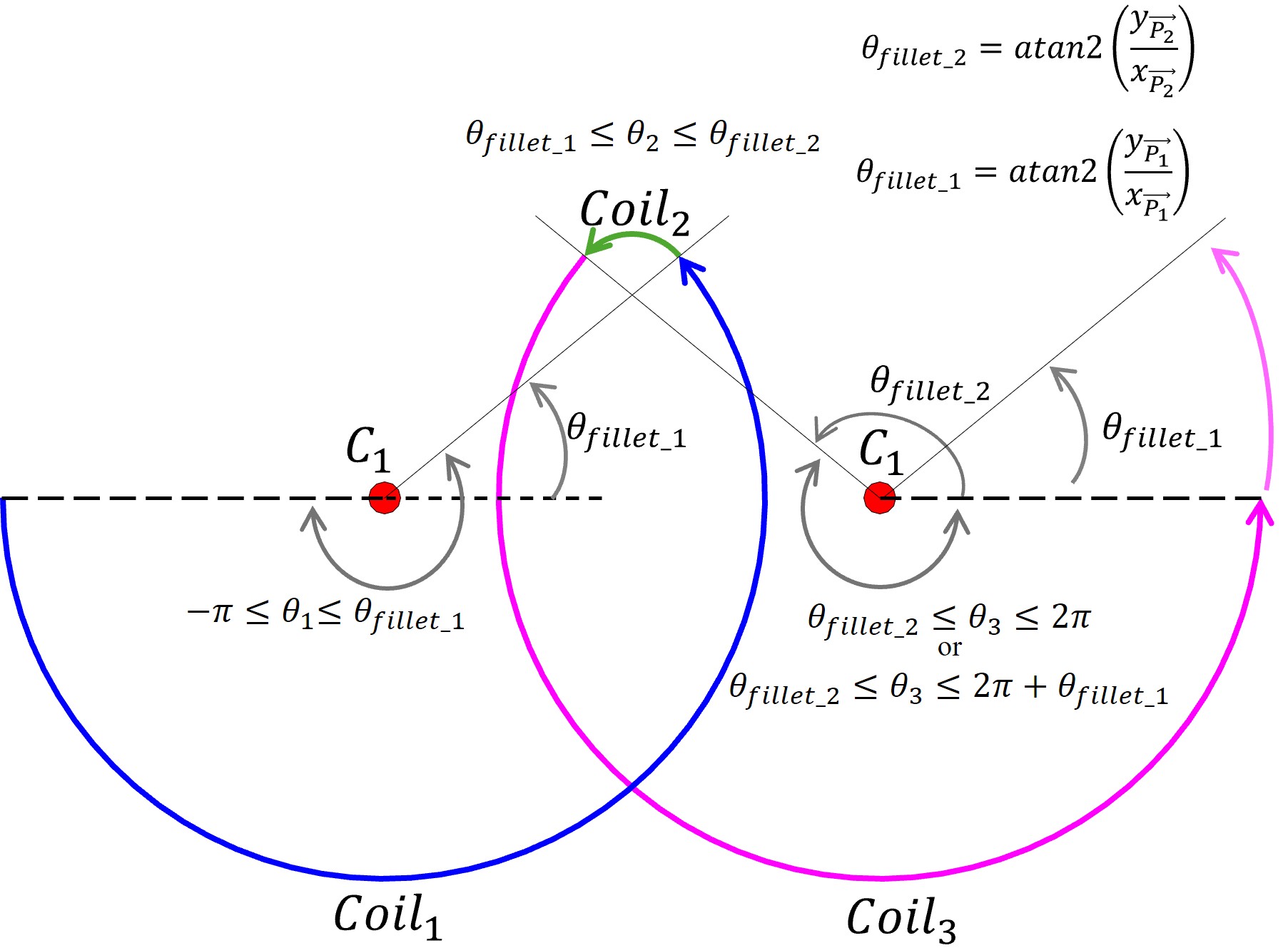

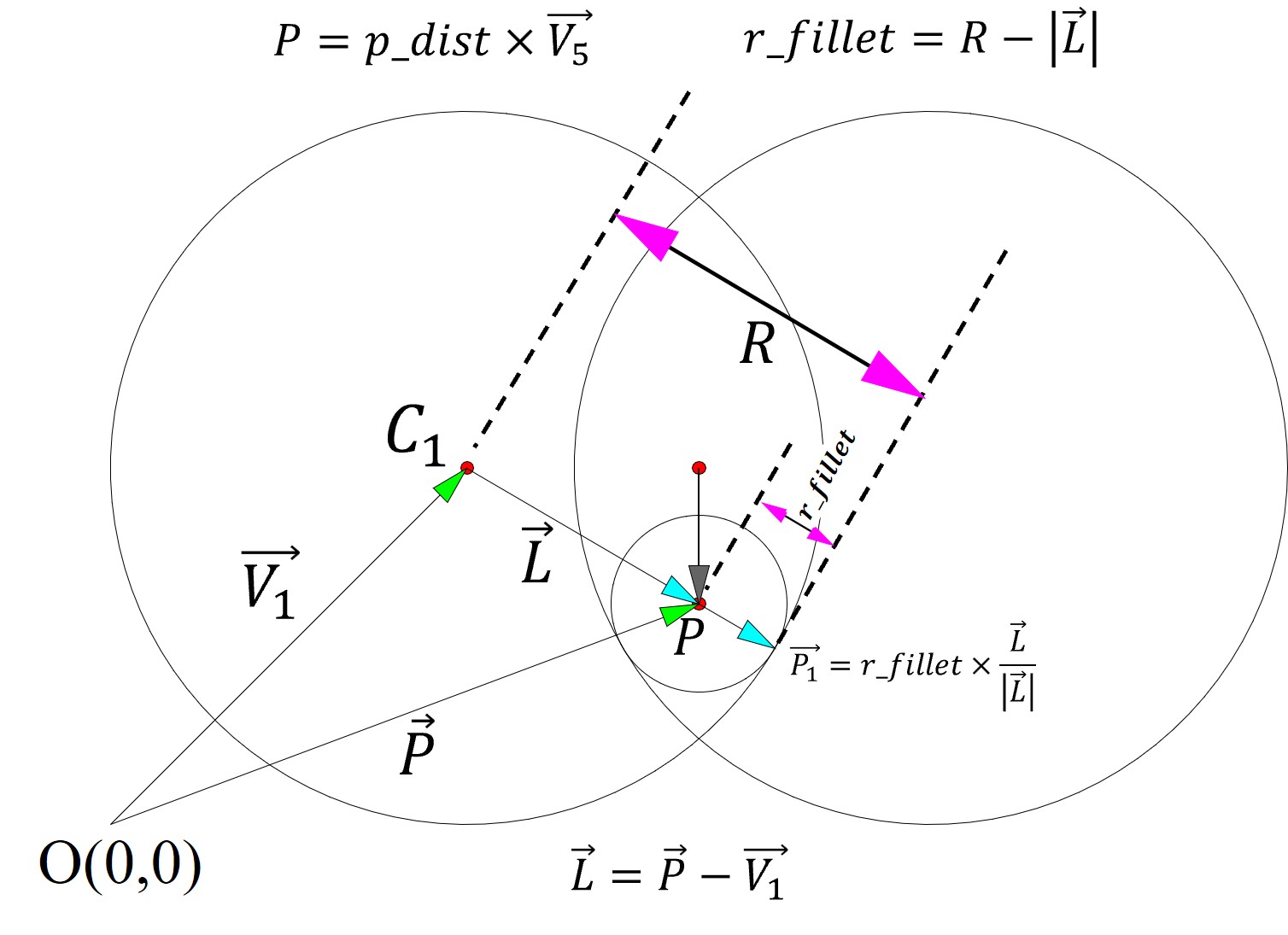

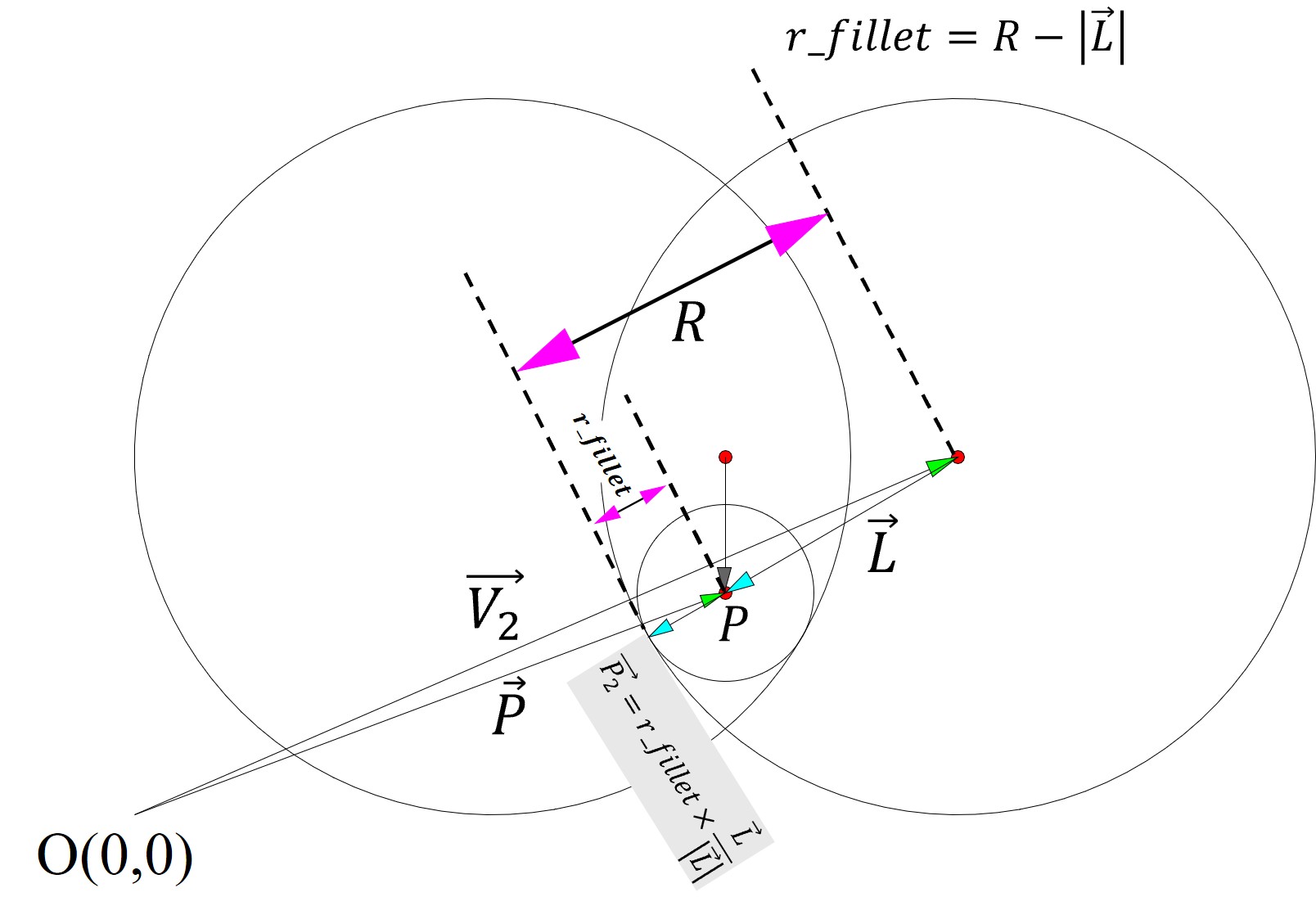

Mathematical Background

import matplotlib.pyplot as plt
import coil_geom as cg

coil = cg.CoilGeom()
xc, yc = coil.circle_coil()
xe, ye = coil.ellipse_coil()
xu, yu = coil.circle_coil(p_dist=-0.7)

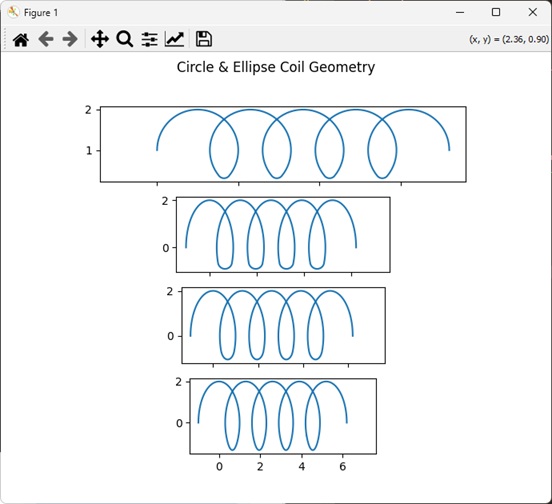

fig, axs = plt.subplots(nrows=3, ncols=1, sharex=True, figsize=(8, 6))
fig.suptitle('Circle & Ellipse Coil Geometry')
axs[0].plot(xc, yc)
axs[1].plot(xe, ye)
axs[2].plot(xu, yu)

plt.show()
