colorsynth

A Python library for creating false-color images from spectral cubes: 3D Numpy arrays with two spatial axes and one spectral axis.

colorsynth collapses the spectral axis into red, green, and blue channels by mapping the spectrum into the human visible range and weighting it by the CIE 1931 color-matching functions. The shape of the spectrum controls the hue of each pixel, and the total intensity controls its brightness, so features like Doppler shifts are visible directly in the image.

Installation

colorsynth is available on the Python Package Index and can be installed using pip:

pip install colorsynth

Quickstart

Define a spectral cube containing a Gaussian emission line at every point, with a center wavelength that increases from left to right and a total intensity that increases from top to bottom, and collapse it into an RGB image using colorsynth.rgb():

import numpy as np
import matplotlib.pyplot as plt
import astropy.units as u
import colorsynth

# Define a wavelength grid for the spectral axis
wavelength = np.linspace(400, 700, num=61) * u.nm

# Define a spatial grid
x = np.linspace(0, 1, num=101)[:, np.newaxis, np.newaxis]
y = np.linspace(0, 1, num=101)[np.newaxis, :, np.newaxis]

# Define a spectral cube containing a Gaussian emission line at every point
center = 420 * u.nm + (680 - 420) * u.nm * y
width = 15 * u.nm
spd = x * np.exp(-np.square((wavelength - center) / width))

# Collapse the wavelength axis of the cube into RGB channels
rgb = colorsynth.rgb(spd, wavelength, axis=~0, spd_min=0, spd_max=1)

# Display the result as a false-color image
plt.imshow(rgb)
plt.show()

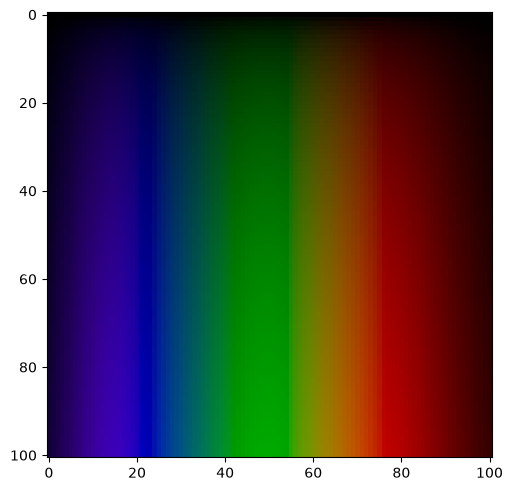

A synthetic spectral cube colorized with colorsynth.rgb()

The center wavelength of the emission line appears as hue, and its total intensity appears as brightness.

Gallery

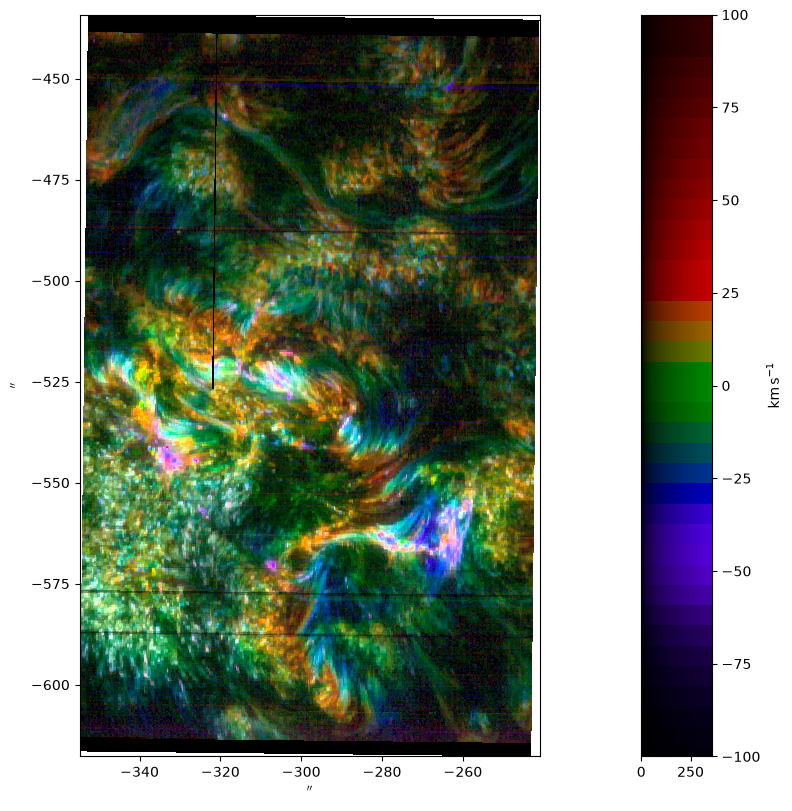

An Si IV 1403 A spectroheliogram captured by the Interface Region Imaging Spectrograph and colorized using colorsynth.rgb(). The code to create this image can be found in the documentation.

IRIS spectroheliogram
