config-networks 0.6.9069

lightweight repository for building torch networks from a config file

Lightweight repository for building torch networks from a config file



For examples of config dicts, look in net_configs. To generate a network given a dictionary, use net = CustomNN(structure=config_dict). For example, net = CustomNN(structure=ast.literal_eval(open(<config file>).read()))

A valid configuration is a dictionary. The required keys are:

• input_shape: the UNBATCHED input shape of the network. -1 represents a variable dimension size (for seq-to-seq layers like transformers).
• layers: list of network layers, each layer is a dictionary with layer specific keys

setup

Tested with Python ≥ 3.7

• Can install directly as a package:

  pip install config_networks


• OR can install by cloning the repository:

  git clone https://github.com/pranavraj575/config_networks
  cd config_networks
  pip install -e .


  Optionally, install with dev tools:

  pip install -e .[dev]


  If installed with dev, can test installation, and reformat before pushing:

  python -m pytest
  ruff check; ruff format; pyright


layer dictionaries

All layer dictionaries are REQUIRED to contain type: name of layer type.

Supported torch layer types include identity, relu, tanh, dropout, flatten, linear, cnn, maxpool, avgpool. If a layer corresponds to a torch module, any keys that correspond to a keyword argument of that module will automatically get passed to that module. E.g. for "type":"softmax", having the additional key "dim":-1 will automatically pass this to create torch.nn.Softmax(dim=-1). We describe keys that are required (and some optional ones) in detail below.

There are also special types. split breaks the network into two parallel networks at a particular layer, and can combine the results. This is useful for different heads (i.e. policy, value network), or for resnets to sum a computation with the identity map. repeat makes k copies of a block.

identity, sigmoid, relu, tanh

Identity, Sigmoid, ReLU, Tanh torch layers respectively.

These layers require no additional dictionary keys, and do not change the network shape.

Example: {"type": "ReLU"}

leakyrelu

LeakyReLU activation layer, has optional parameter negative_slope with default "negative_slope":1e-2.

Example: {"type": "LeakyReLU", "negative_slope": 1e-2}

softmax

The Softmax torch layer.

• dim: optional parameter with default "dim": -1, probability of element to be zeroed

Example: {"type": "Softmax", "dim": -1}

dropout, dropout1d, dropout2d, dropout3d

The Dropout, Dropout1D, Dropout2D, and Dropout3D torch layers respectively.

• p: optional parameter with default "p": 0.5, probability of element to be zeroed

Example: {"type": "Dropout", "p": 0.69}

flatten

Flatten torch layer

• start_dim: optional parameter with default "start_dim": 1, represnents first dimension for flattening
• end_dim: optional parameter with default "end_dim": -1, represents last dimension to be flattened

Example: {"type": "Flatten", "start_dim": -3, "end_dim": -1}

Note: This layer behaves differently with batched and unbatched input

unflatten

Unflatten torch layer

• dim: required parameter, represnents which dimension to expand
• unflattened_size: required parameter, represents what shape to expand to

Example: {"type": "Flatten", "start_dim": 1, "end_dim": -1}

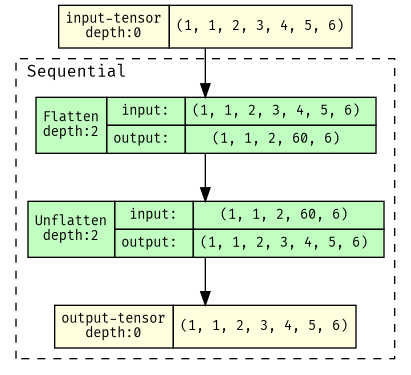

net_configs/flatten_unflatten.json has an example of flattening, then unflattening:

linear

Linear torch layer

• out_features: REQUIRED parameter, the number of output features to transform input to
• bias: optional parameter with default "bias": True, whether to include bias

Note that input_features is calculated automatically, and does not need to be specified.

Example: {"type": "linear", "out_features": 128, "bias": False}

embedding

Embedding torch layer

• num_embeddings: REQUIRED parameter, the number of unique embeddings to store
• embedding_dim: REQUIRED parameter, the dimension of each embedding

Example: {"type": "Embedding", "num_embeddings": 128, "embedding_dim": 512}

cnn, maxpool, avgpool

Conv2d, MaxPool2d, AvgPool2d torch layers respectively

• out_channels: REQUIRED FOR cnn, number of output channels of the layer.
• kernel_size: REQUIRED parameter, the shape of the kernel passed to each torch layer
• stride: optional parameter with default "stride": (1,1), stride to use
• padding: optional parameter with default "padding": (0,0), padding to use

Example: {"type": "CNN", "out_channels": 16, "kernel_size": [5, 5], "stride": [3, 3]}

torch.nn.<MODULE NAME>

Can retrieve any module in torch.nn, assuming the spelling and capitalization is correct. Relevant keyword arguments will be passed to the torch.nn init function.

• output_shape: REQUIRED parameter, the unbatched output shape after this layer is passed This is necessary to calculate the input dimension of the next layer, and cannot be easily pulled from torch documentation.

Example: {"type": "torch.nn.LogSoftmax", "dim": -1, "output_shape": [4]}

Alternatively works if torch.nn is unspecified: {"type": "LogSoftmax", "dim": -1, "output_shape": [4]}

net_configs/resnet.txt has an example of using this to make a torch.nn.Softmax layer:

custom

Can retrieve a custom module (that inherits torch.nn.Module). Relevant keyword arguments will be passed to the module init function.

• module: REQUIRED parameter, the constructor of the custom module.
• output_shape: REQUIRED parameter, the unbatched output shape after this layer is passed This is necessary to calculate the input dimension of the next layer, and cannot be easily pulled from torch documentation.

Example: {"type": "custom", "module": Scale, "scalar": -1, "output_shape": [10]}

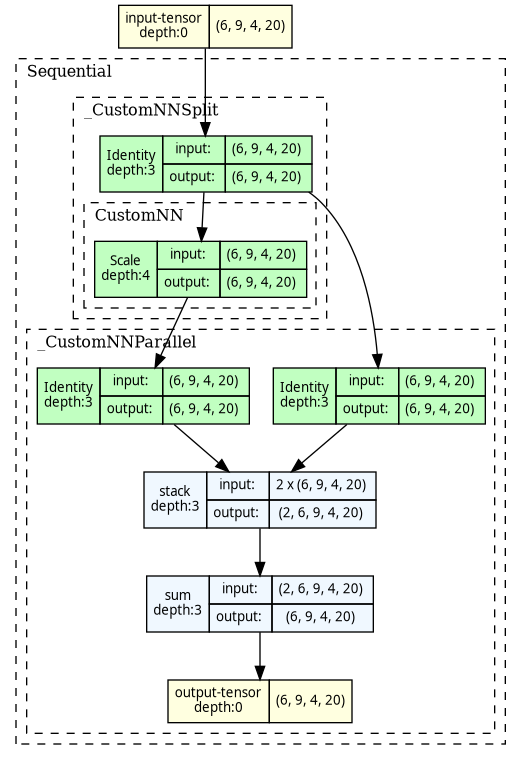

Example of this is in example\use_custom_module.py:

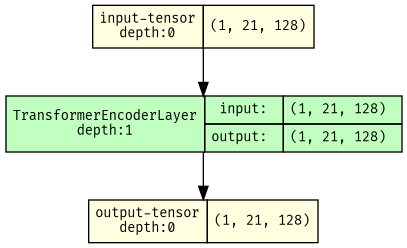

Another example (which uses a variable input shape of (-1,128)) is in net_configs/encoder_layer.json:

split

Splits network into branches, computed independently.

• branches: REQUIRED parameter, list of lists of layer dictionaries. With k lists of layer dictionaries, the network will split into k branches, each computing the network associated with one of the branches. If a list is replaced with None, the associated branch will be the identity.
• combination: optional parameter with default "combination": "tuple". Determines how to combine the results of branches. Works the same as the combination argument for the parallel layer below. Specifying this is equivalent to adding a parallel layer with no branches.

This is computed recursively, so splits can be repeatedly applied (though there is probably no reason to do this). An example of this is in net_configs/split_cnn.json. A example of splitting multiple times is in net_configs/double_split_cnn.json.

The input for each branch will be the output of the layer immediately before it. This is why we do not need to specify the input shape.

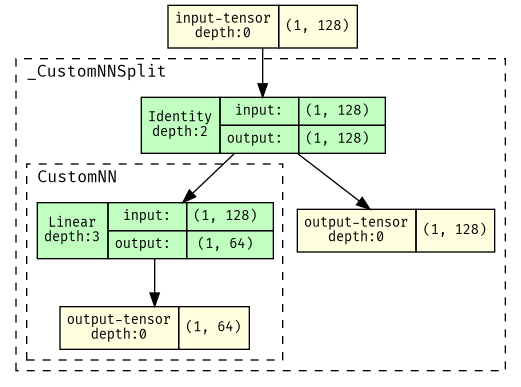

Example (this splits into an identity branch, and a branch that computes a single linear layer):

{"type": "split", "branches": [None, [{"type": "linear", "out_features": 64}]], "combination": "tuple"}

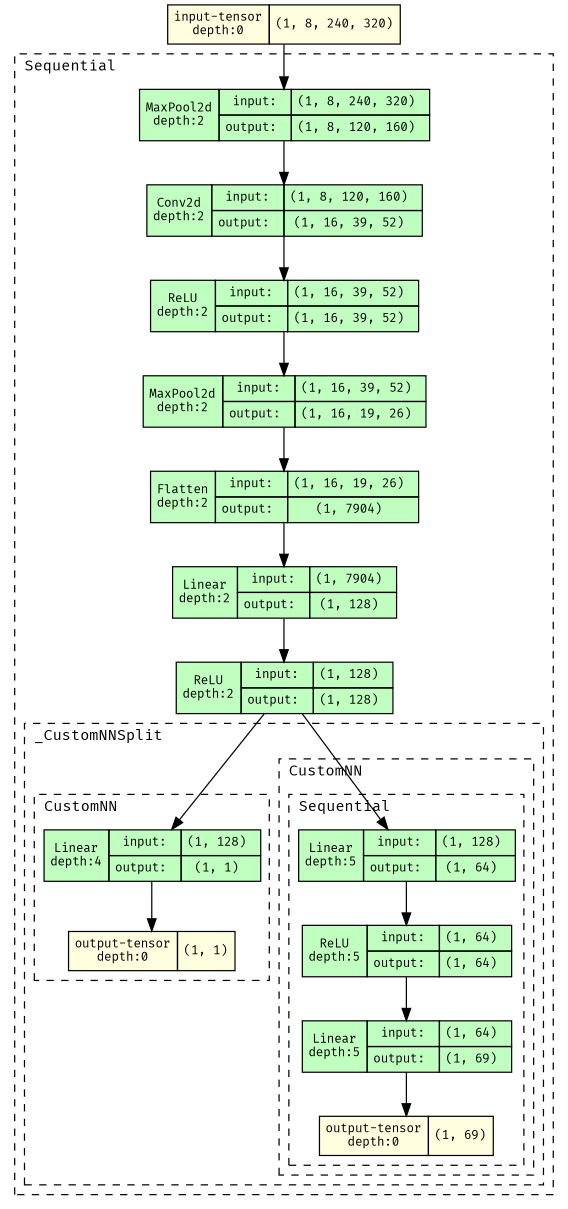

Splitting once:

Note that the torchviz display does not order the output tuple in any particular way. The true output shape is ((69,), (1,)).

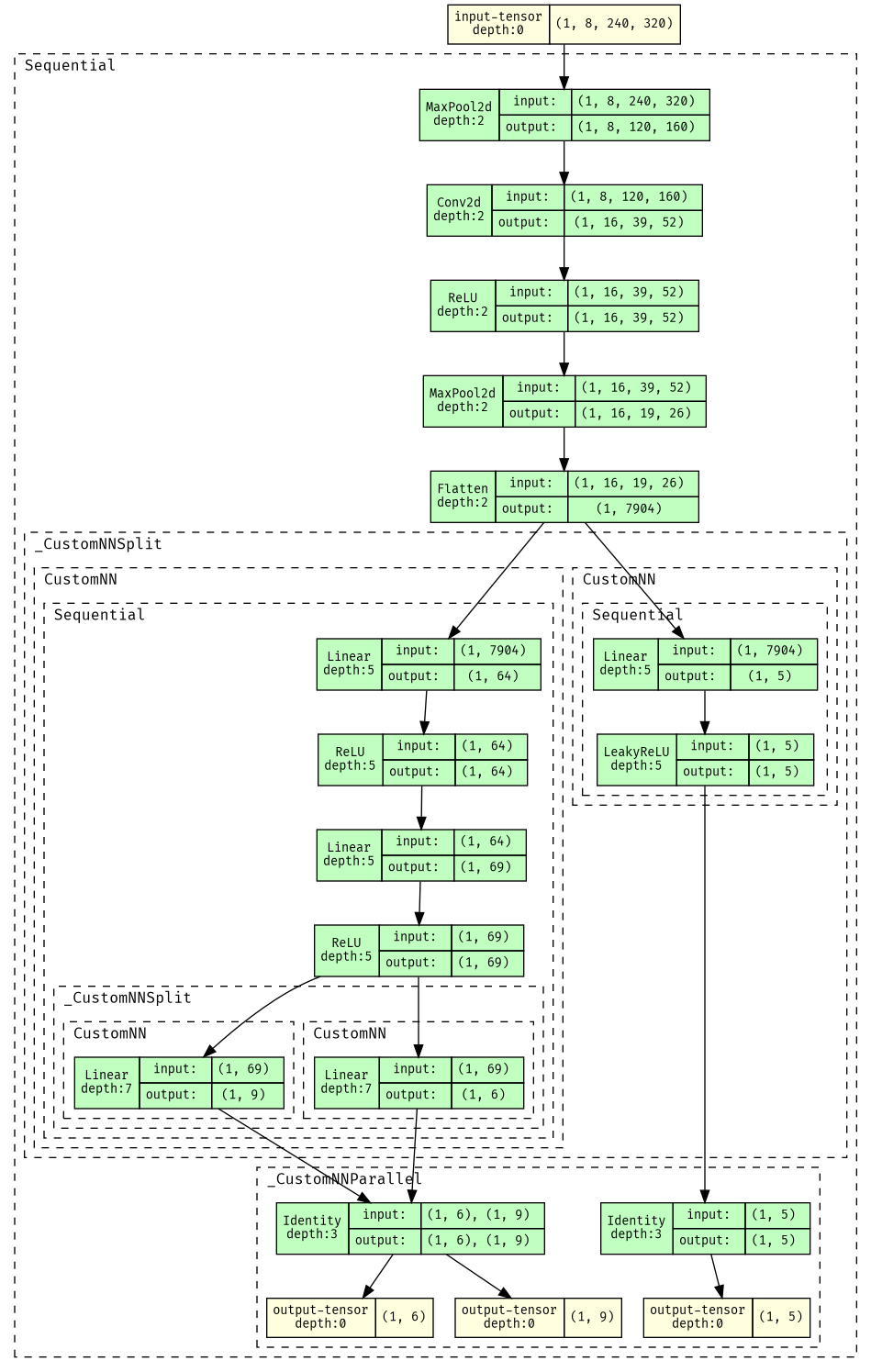

Splitting multiple times:

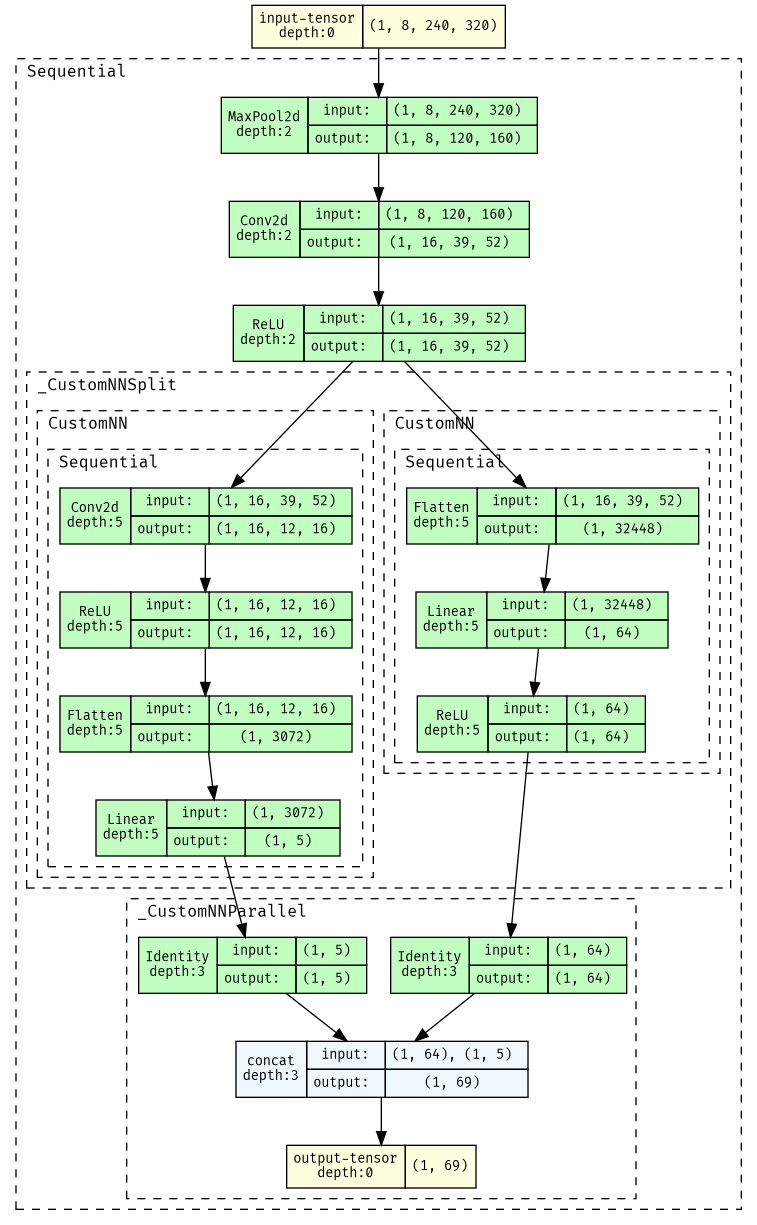

Splitting and recombining (net_configs/small_split_recombine_cnn.json):

parallel

Computes a tuple of k tensors independently, may merge at end of computation. This can compute a dictionary (if branches is a dict type). In this case, look at parallel (dictionary input).

• branches: optional parameter, list of k lists of layer dictionaries. Defaults to doing no computation. Each list can also be None to do no computation
• combination: optional parameter with default "combination": "tuple". Determines how to combine the results of branches.

  • For "tuple", the result will be a k-tuple of the outputs of each branch. Optional "extract_sub_tuples" argument, with defaut "extract_sub_tuples":[]. "extract_sub_tuples" is a list of indices for branches with tuple outputs that should be extracted and tupled at a higher level. I.e. if the output shape of branch 0 is (5,), branch 1 is ((2,),(3,)), and branch 2 is (4,) the overall output shape will be ((5,),((2,),(3,)),(4,)) normally. If "extract_sub_tuples":[1], the output shape will instead be ((5,),(2,),(3,),(4,)). net_configs/tuple_extraction.txt has an example of using this as described.

  • For "dict", the result will be a dict of the outputs of each branch. In this case, "output_keys" must be additionally specified, which is a list of keys that will refer to each element in the tuple. Optional "extract_sub_tuples" argument, that works the same as in "tuple".

    small_split_cnn_output_dict.txt has an example of using this to create a dictionary {'policy':policy, 'value':value}..

    • For "sum", the results of each branch will be summed. For this, each branch MUST have the same output dimension. If "combined_idxs" is additionally included (e.g. "combined_idxs":[0,2]), only the specified branches will be summed. The result will be a tuple of (uncombined branch 0, uncombined branch 1, ... , sum of combined branches) If "idx_of_combination" is specified, the combination will be placed at this index (otherwise it will be placed last). net_configs/tuple_sum.txt and net_configs/tuple_sum_specific_indices.txt have examples of using this as described.
    • For "concat", the results of each branch will be concatenated. The dimension of concatenation will be the optional dim key, with default "dim":-1. This can also specify "combined_idxs" with the same behavior as in sum. This will concatenate in the order specified by "combined_idxs", or in default order if unspecified.

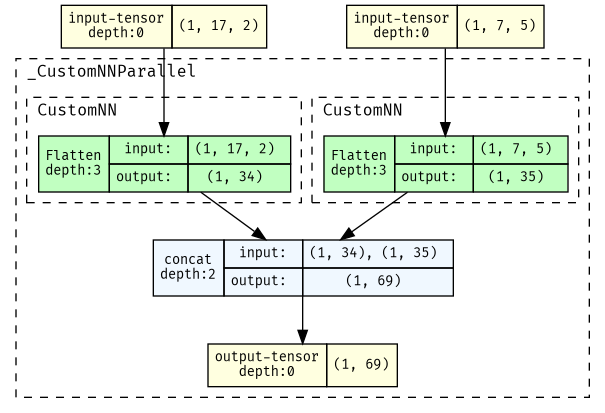

Example (this flattens both inputs, then concatenates them):

{"type": "parallel", "combination": "concat", "branches": [[{"type": "flatten"}], [{"type": "flatten"}]]}

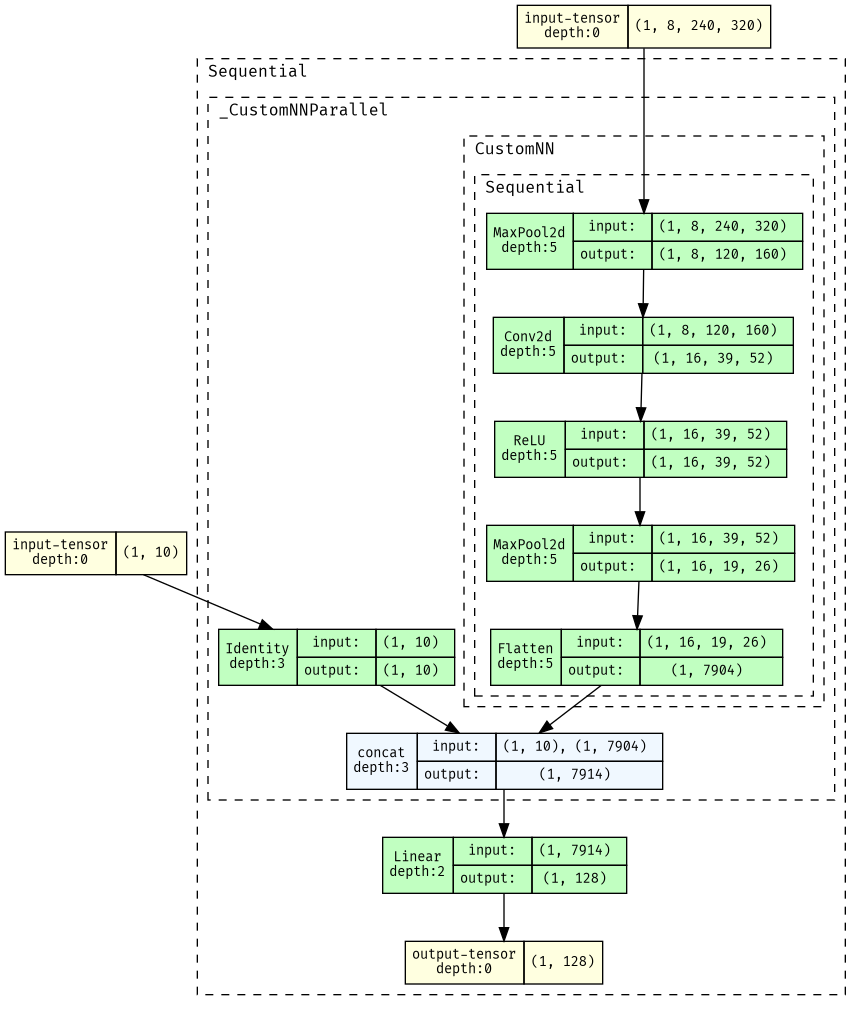

net_configs/multimodal.txt has an example of using these to take in (image, vector) input:

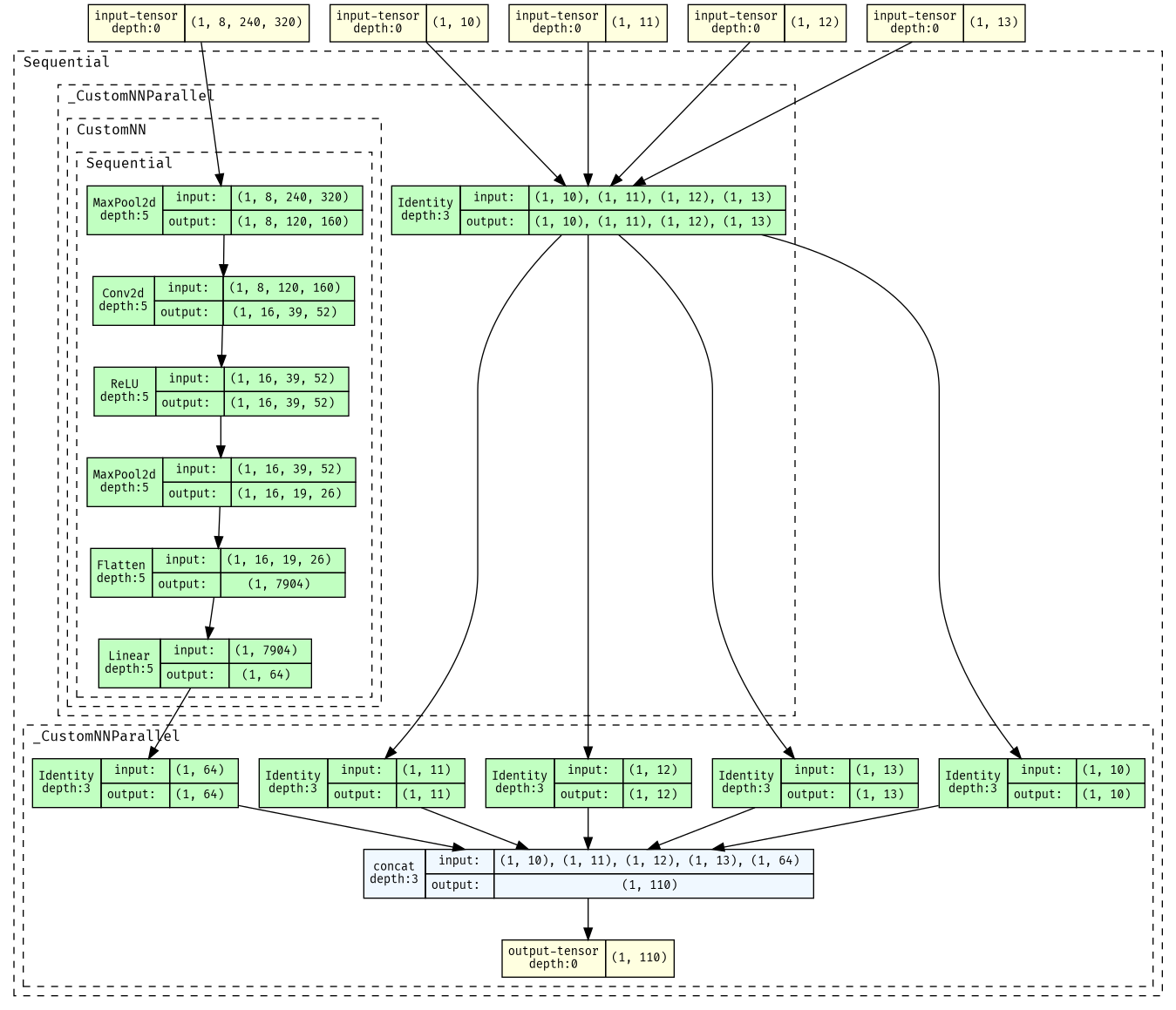

Example of using this to extract (then concatenate) sub-tuples (net_configs/tuple_extraction.txt):

Note that the input shape is actually (((10,), (11,), (12,), (13,)), (8, 240, 320)), the package torchviz does not correctly display subtuples.

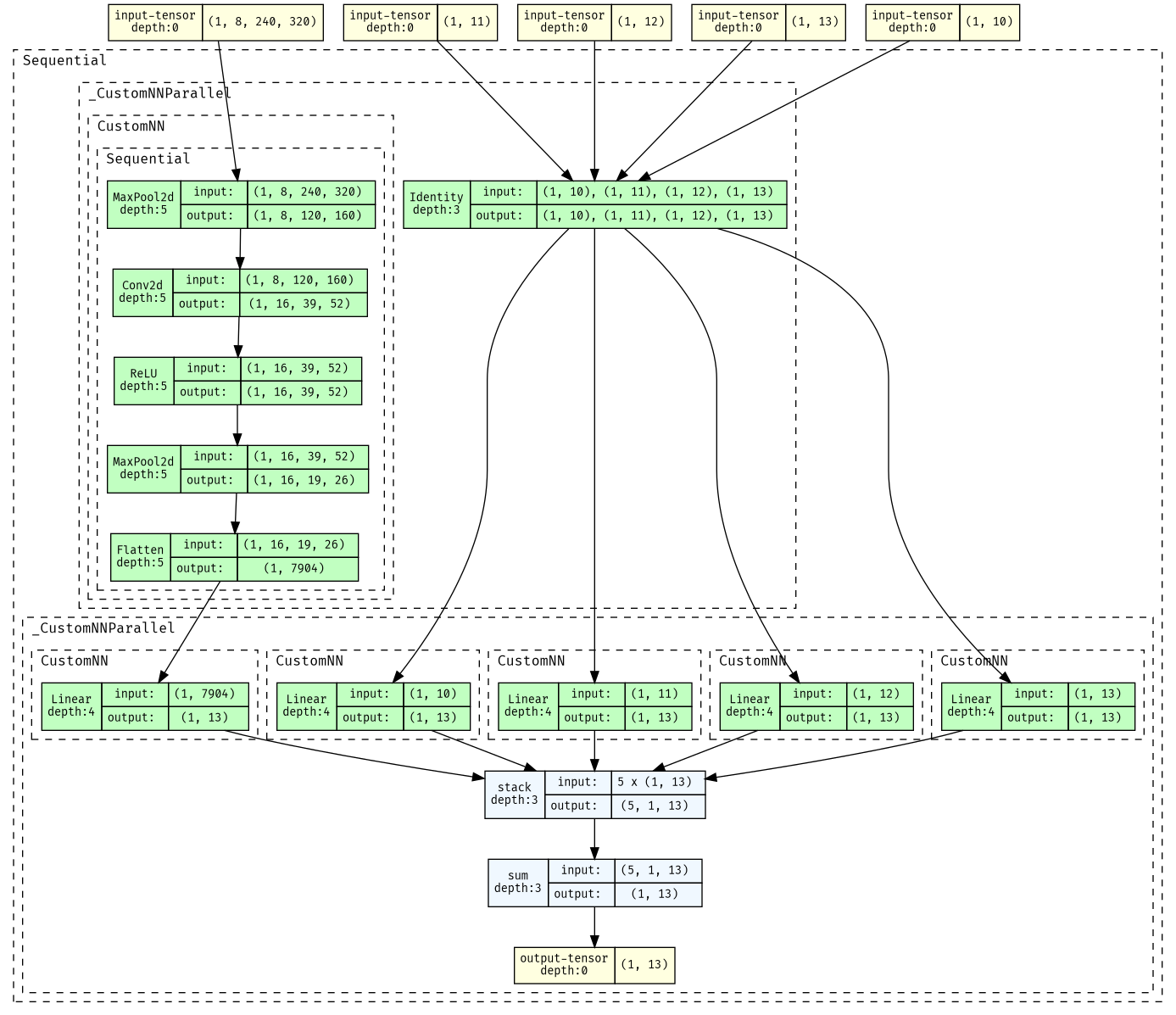

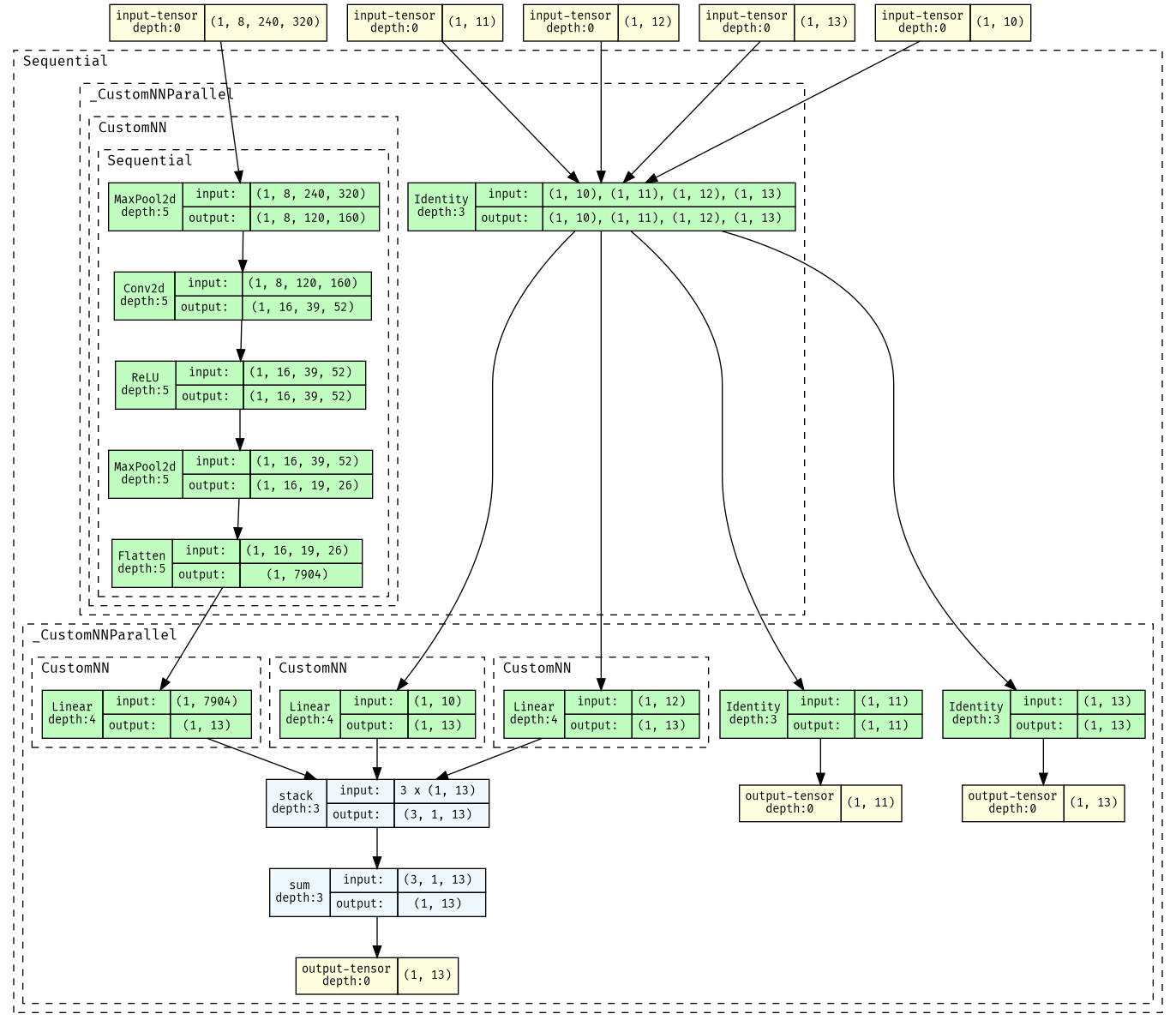

Example of using this to sum all branches (net_configs/tuple_sum.txt), and specific branches (net_configs/tuple_sum_specific_indices.txt):

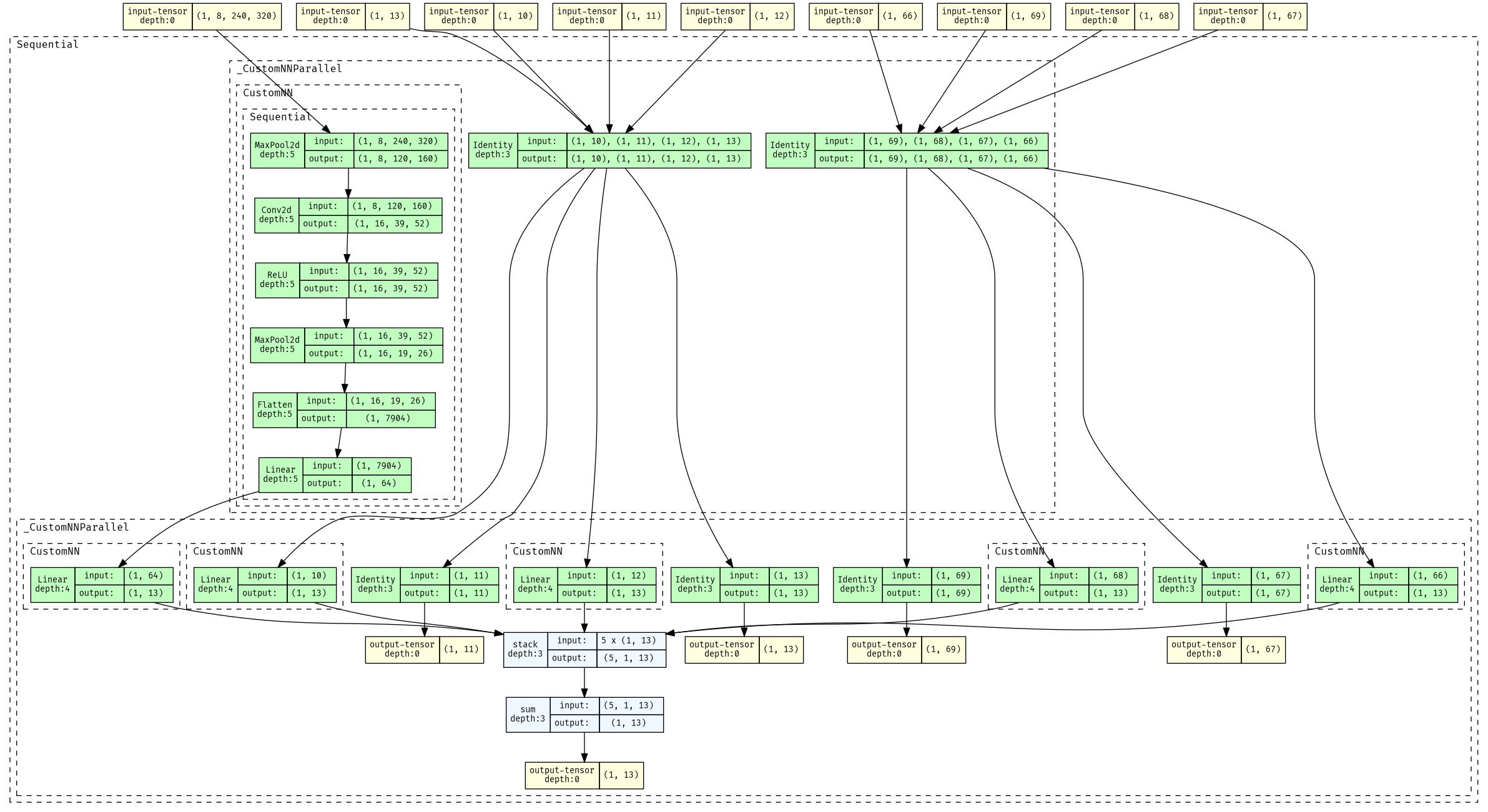

Example of using this to extract (then sum) multiple sub-tuples (net_configs/tuple_multiple_extraction.txt):

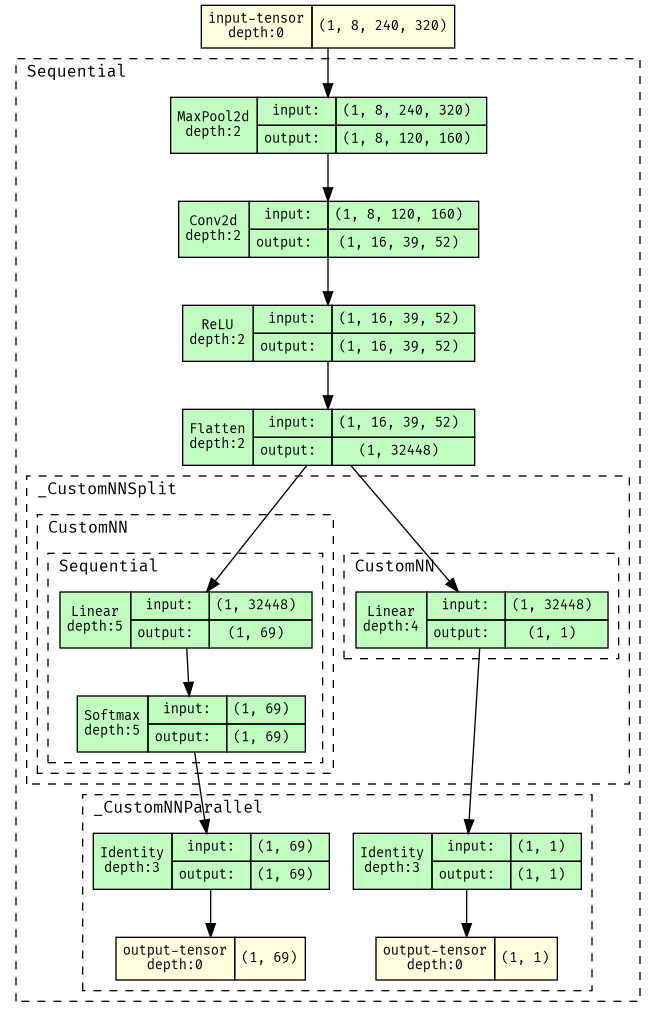

Example of using this to output dictionarysmall_split_cnn_output_dict.txt:

Note that torchviz does not display the dictionary output shape, which is {'policy': (69,), 'value': (1,)}

parallel (dictionary input)

Computes a dictionary of k tensors independently, may merge at end of computation.

• branches: required parameter, DICTIONARY of {key -> list of layer dictionaries}. Each list can also be None to do no computation
• combination: optional parameter with default "combination": "dict". Determines how to combine the results of branches.
  • For "dict", the result will be a dictionary of the outputs of each branch, defaulting to the keys being unchanged. However, if "output_keys_to_combination" is additionally included (e.g. "output_keys_to_combination":{"input_keys":["vector", "vector2"],"combination":"tuple"}), we can control the keys and combination method of the output dictionary. "output_keys_to_combination" should be a dictionary with the following keys:
    • combination: Required parameter, determines the combination method used (same as in parallel, the tuple version).
    • input_keys: Required parameter, points to a list of keys in the order they will be combined.
    • Any other arguments (e.g. "extract_sub_tuples" specified in this dictionary will behave exactly as in the parallel combination)
  • For any other combination method is provided, this will again behave exactly the same as in the parallel combination. In this case, "key_order" is a required parameter that decides the order of the keys when passed to the combination method.

Examples are somewhat in depth, can be found in net_configs/multimodal_dict.txt (which does not specify a combination method), net_configs/multimodal_dict_concat.txt (which concatenates all branches), and net_configs/multimodal_dict_concat_some_keys.txt (which creates a new dict by concatenating various selections of keys).

Visualization of net_configs/multimodal_dict.txt (with input shape {'vector':(10,),'image':(8, 240, 320)} and output shape {'image': (7904,), 'vector': (10,)}):

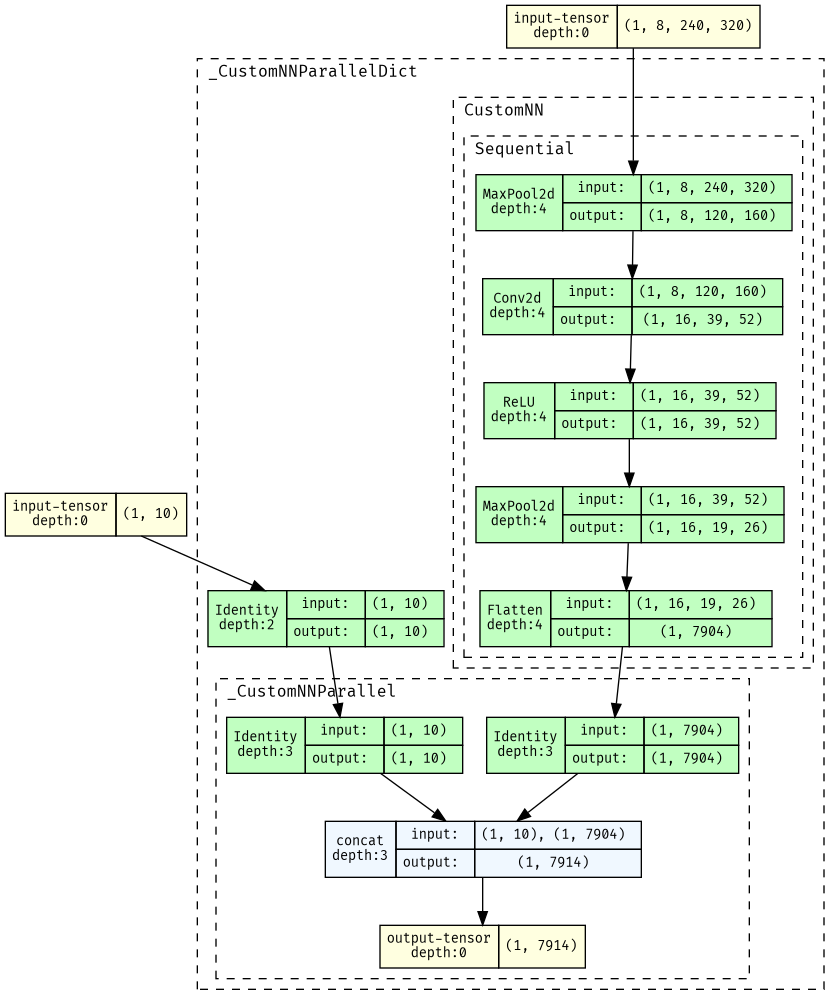

Visualization of net_configs/multimodal_dict_concat.txt (with input shape {'vector':(10,),'image':(8, 240, 320)} and output shape (7914,)):

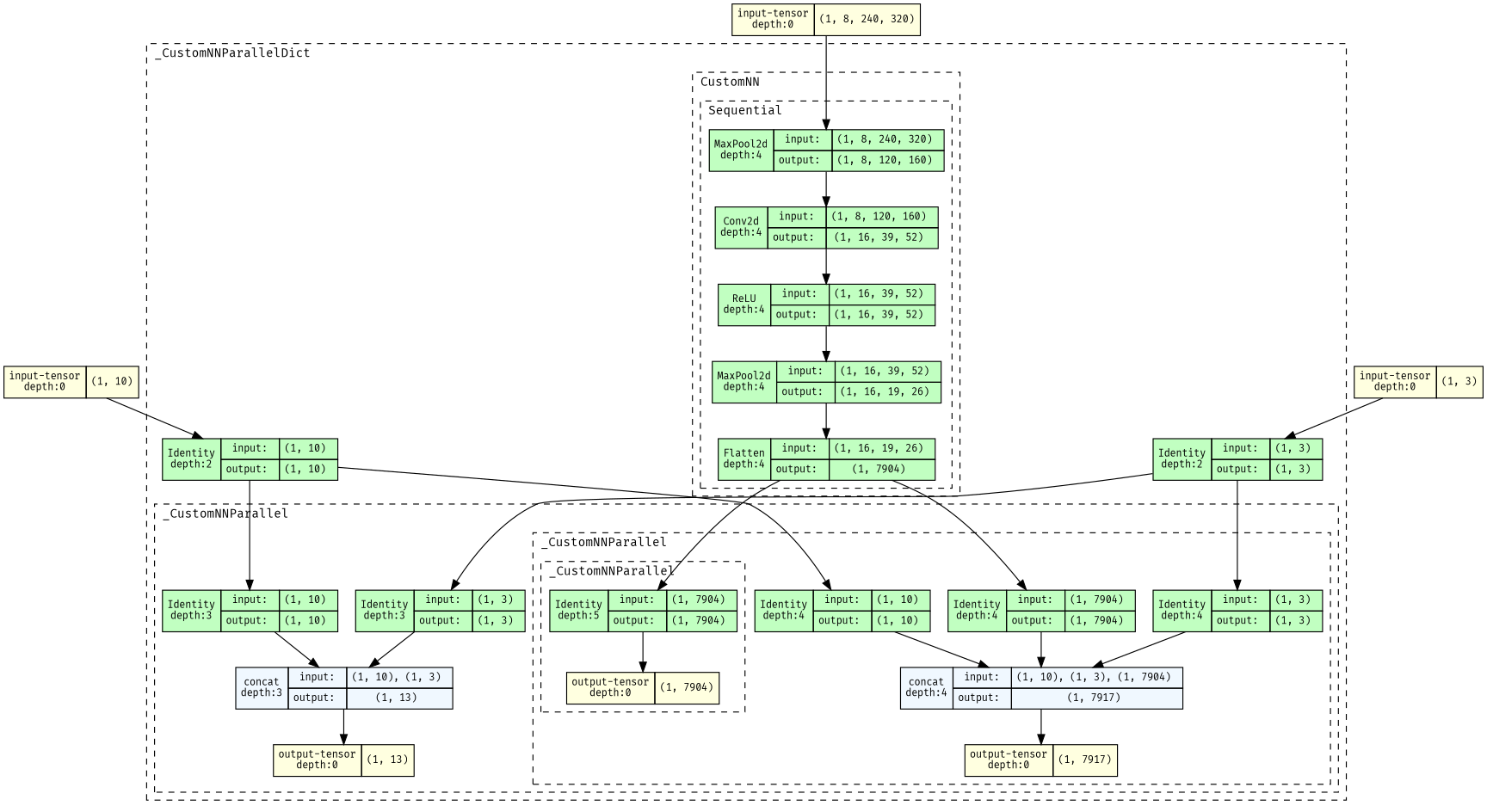

Visualization of net_configs/multimodal_dict_concat_some_keys.txt (with input shape {'vector':(10,),'vector2':(3,),'image':(8, 240, 320)} and output shape {'vectors': (13,), 'concatenated': (7917,), 'image': ((7904,),)}):

repeat

Repeats a block a certian number of times.

• block: REQUIRED parameter, list of layer dictionaries to be repeatedly added.
• times: REQUIRED parameter, number of times to repeat block.

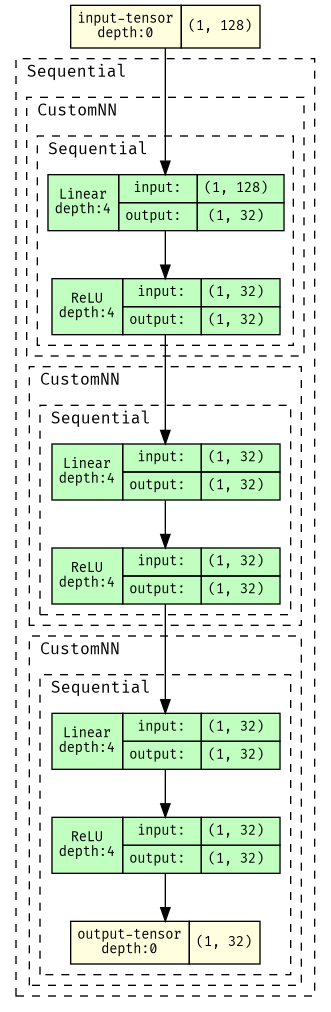

Example (this repeats a linear+activation layer a few times):

{"type": "repeat", "times": 3, "block": [{"type": "linear", "out_features": 32}, {"type": "relu"}]}

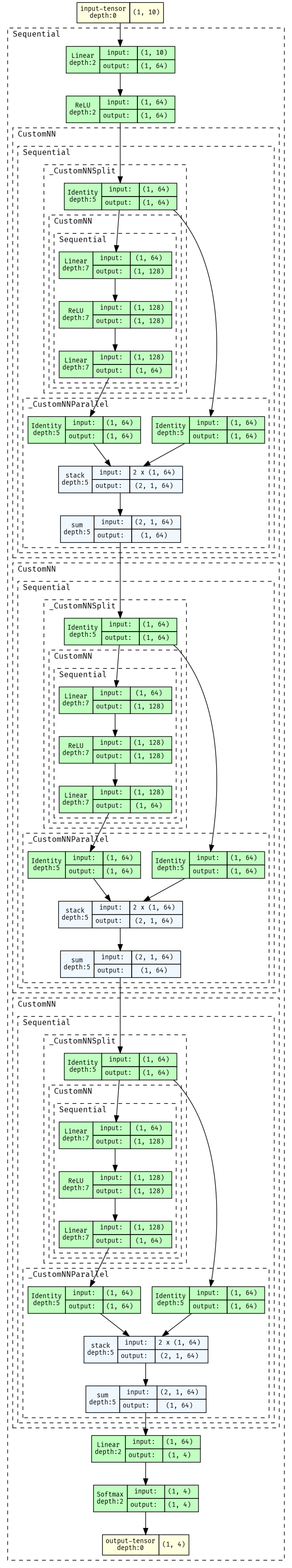

net_configs/resnet.txt has an example of using this to make a resnet, which repeatedly computes x'=f(x)+x:

visualize network

To make network visualizations, install torchview:

sudo apt-get install graphviz
pip install torchview

Example script to make visualization of a .json config file is example/viz.py

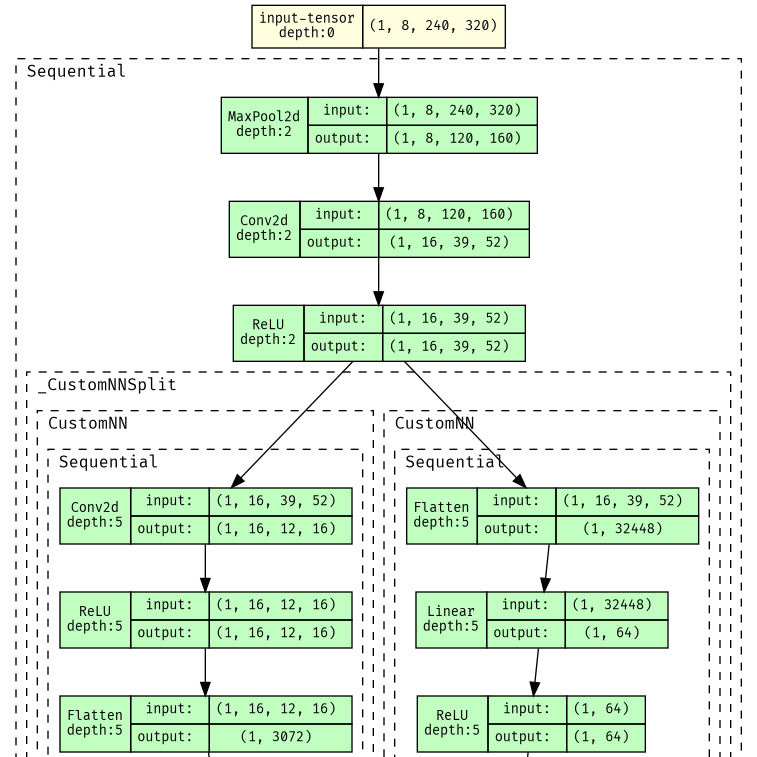

Result of python example/viz.py --config_file net_configs/small_split_recombine_cnn.json --save_gif --duration 200 --scroll 10:

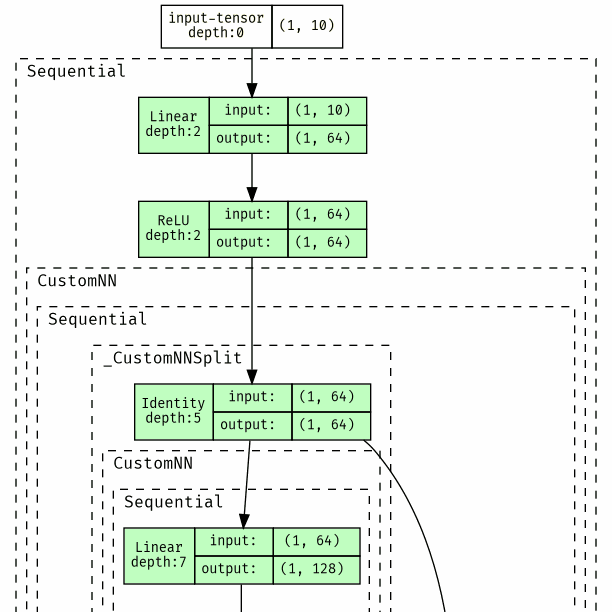

Result of python example/viz.py --config_file net_configs/resnet.txt --save_gif --duration 200 --scroll 10:
