ConsoleLink

ConsoleLink is an original software tool designed to communicate with existing lighting desks and add new features:

• Web interface that mirrors and controls the console from any browser
• Art-Net output

It keeps these consoles usable when the manufacturer's software is not updated or supported on current operating systems.

ConsoleLink was tested with SmartFade ML, by Electronic Theatre Controls, Inc. (ETC). Support for more lighting desks may be added in later releases.

Disclaimer: ConsoleLink is an independent project and is not affiliated with, endorsed by, or sponsored by ETC. SmartFade and SmartSoft are trademarks of ETC and are used here only to identify compatible products. Use at your own risk; no warranty is provided.

Contents

• Screenshots
• Requirements
• Install
  • macOS
  • Linux and Raspberry Pi
  • Windows
  • Other ways: pip, conda
• Usage
  • macOS menu-bar app
  • Art-Net output
• Contributing
• License

Screenshots

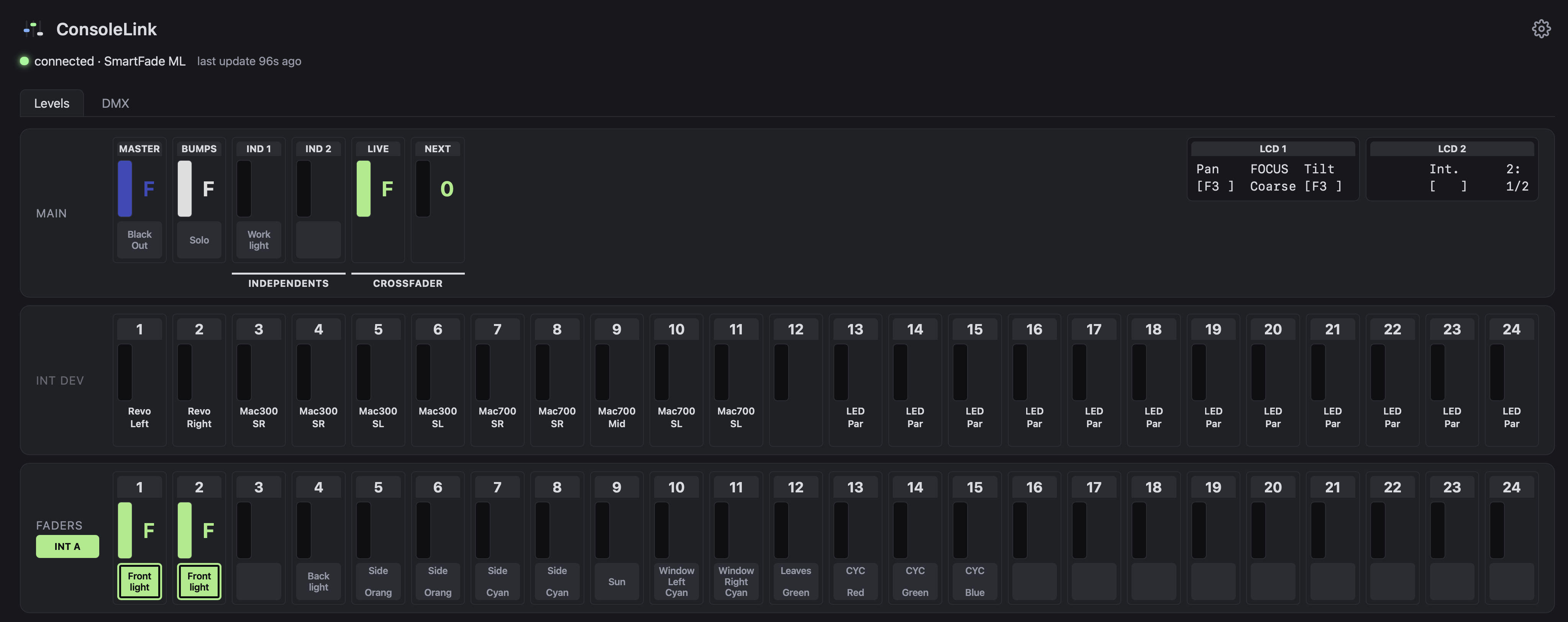

The web app (consolelink) in a desktop browser:

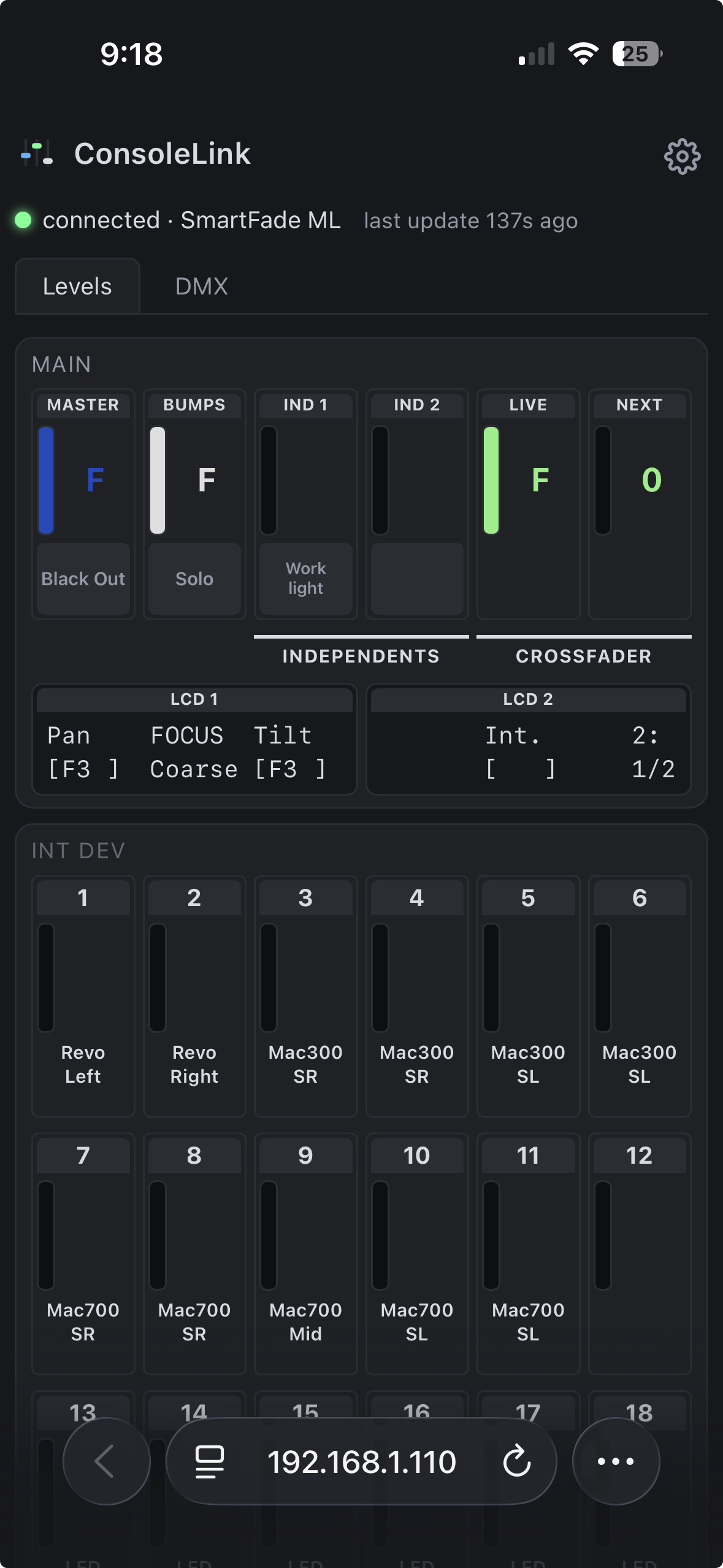

And on a phone, where each row wraps to 6 columns:

Requirements

• Python 3.13 or newer
• The console connected over USB and powered on

Install

The recommended way is pipx: it installs a command-line app into its own private environment and puts the command on your PATH, so there is no virtual environment to create or activate. It installs the consolelink command and all dependencies. To update later: pipx upgrade consolelink.

macOS

1. Install Python 3.13 or newer and pipx. macOS's built-in python3 is older (3.9), so use Homebrew: brew install python pipx, then pipx ensurepath.

2. Install ConsoleLink with the menu-bar app (below):

   pipx install 'consolelink[menubar]'


   For the command line only: pipx install consolelink. The menubar extra adds rumps and keyring, which the menu-bar app needs.

USB access works out of the box on macOS.

Linux and Raspberry Pi

1. Check that python3 --version reports 3.13 or newer, then install pipx: sudo apt install pipx, then pipx ensurepath.

2. Install ConsoleLink:

   pipx install consolelink


3. On 32-bit Raspberry Pi OS only, install libusb (often already there): sudo apt install libusb-1.0-0.

4. Allow your user to access the console over USB, see USB permissions below.

USB permissions

On Linux, regular users can't access raw USB devices by default, so consolelink will report Access denied (insufficient permissions). Instead of running it with sudo, add a udev rule.

First, with the console plugged in, check its vendor and product IDs:

lsusb | grep 14d5

You should see a line containing ID 14d5:0201 (SmartFade ML). Then create the rule, adjusting the product ID if yours differs:

sudo tee /etc/udev/rules.d/99-consolelink.rules <<'EOF'
SUBSYSTEM=="usb", ATTRS{idVendor}=="14d5", ATTRS{idProduct}=="0201", MODE="0660", GROUP="plugdev", TAG+="uaccess"
EOF
sudo udevadm control --reload-rules && sudo udevadm trigger

Then unplug and replug the console. If you're connecting over SSH or on a headless system, make sure your user is in the plugdev group (sudo usermod -aG plugdev $USER, then log out and back in).

Windows

1. Install Python 3.13 or newer from python.org, then pipx: py -m pip install --user pipx, then py -m pipx ensurepath and open a new terminal.

2. Install ConsoleLink:

   pipx install consolelink


3. Switch the console to the generic WinUSB driver, once: libusb can't open it through the ETC driver installed with SmartSoft. Use Zadig: Options → List All Devices. The console shows up as two ETC SmartFade entries, interface 0 and interface 1: select each in turn, choose WinUSB and click Replace Driver. Then replug the console; no reboot needed.

   SmartSoft won't see the console while it uses WinUSB. To switch back, uninstall the device in Device Manager (tick "delete the driver software") and replug, or reinstall SmartSoft.

Other ways: pip, conda

The same packages with plain pip, inside a virtual environment created with Python 3.13 or newer (on macOS, Homebrew's versioned packages such as python@3.13 only provide python3.13, not python3: use that command instead):

python3 -m venv consolelink-env
source consolelink-env/bin/activate      # Windows: consolelink-env\Scripts\activate
pip install 'consolelink[menubar]'       # macOS; everywhere else: pip install consolelink

Activate the environment again in any new terminal before running consolelink. The per-system steps above (USB permissions on Linux, WinUSB on Windows) still apply.

Using conda? conda install pipx and follow the pipx steps, or run the pip command inside a conda environment.

Usage

consolelink [--debug] [--capture PATH] [--no-web] [--artnet [DEST]]
            [--listen localhost|network] [--port N] [--allow-write [PASSWORD]]

Then open http://localhost:8765. The page updates live as controls move; it also auto-reconnects if the console is unplugged and replugged.

For terminal use only, without the web server: consolelink --no-web --debug prints every control change (and any message type that isn't decoded yet) until Ctrl+C.

By default only the machine running consolelink can open the page. With --listen network the server listens on all network interfaces, so a phone or another computer on the same network can open it too, at http://<IP>:8765. To get the IP of the machine running consolelink:

ipconfig getifaddr en0   # macOS (en0 is usually Wi-Fi; try en1 for Ethernet)
hostname -I              # Linux
ipconfig                 # Windows (look for "IPv4 Address" under your Wi-Fi or Ethernet adapter)

Command-line options (consolelink --help lists them too):

• --debug: per-control change logging to stderr (including DMX changes), plus a liveness heartbeat, handshake diagnostics, and a line for every message type that has no decoder yet.
• --capture PATH: append every message (decoded or not) as a timestamped hex line to PATH, for comparing against a packet capture when something behaves unexpectedly.
• --no-web: don't start the web server, just poll the console. Needs at least one of --debug, --capture, --artnet.
• --listen localhost|network: who can open the web page. localhost (the default) means only this machine; network also serves it to every device on the same network. Not for --no-web.
• --port N: port of the web page. Default 8765.
• --allow-write [PASSWORD]: let the web page control the console: BlackOut, Solo, Ind 1/2, the bump buttons (press and hold the LED under a fader), the MEMS page, and the 24 faders, MASTER, BUMPS, LIVE and NEXT (drag a bar), and in MEMS mode the INT ONLY and GO MODE buttons. Off by default. With the default --listen localhost the password is optional: without one, the controls are unlocked straight away, and the server only accepts writes from the page served on localhost (it checks the Host and Origin headers, so another website open in your browser can't press buttons). With --listen network a PASSWORD is required, and every write must carry it: type it once in the page's settings ("Control password", kept in that browser) and the controls unlock. The password travels in the URL over plain HTTP, so it keeps casual users out and nothing more: enable writing over the network only on a network you trust. On a touch screen a fader must be tapped (it gets an outline) before it drags, so scrolling the page doesn't move faders.
• --artnet [DEST]: send both DMX universes as Art-Net to DEST (an IP address, or broadcast). Bare --artnet sends to 127.0.0.1. Off by default.

Advanced options (Art-Net tuning):

• --artnet-universe N: Art-Net universe for console universe 1; universe 2 goes to N+1. Default 0.
• --artnet-rate HZ: maximum send rate when levels change. Default 40.
• --artnet-keepalive SEC: re-send the last frame this often when nothing changes. Default 1.

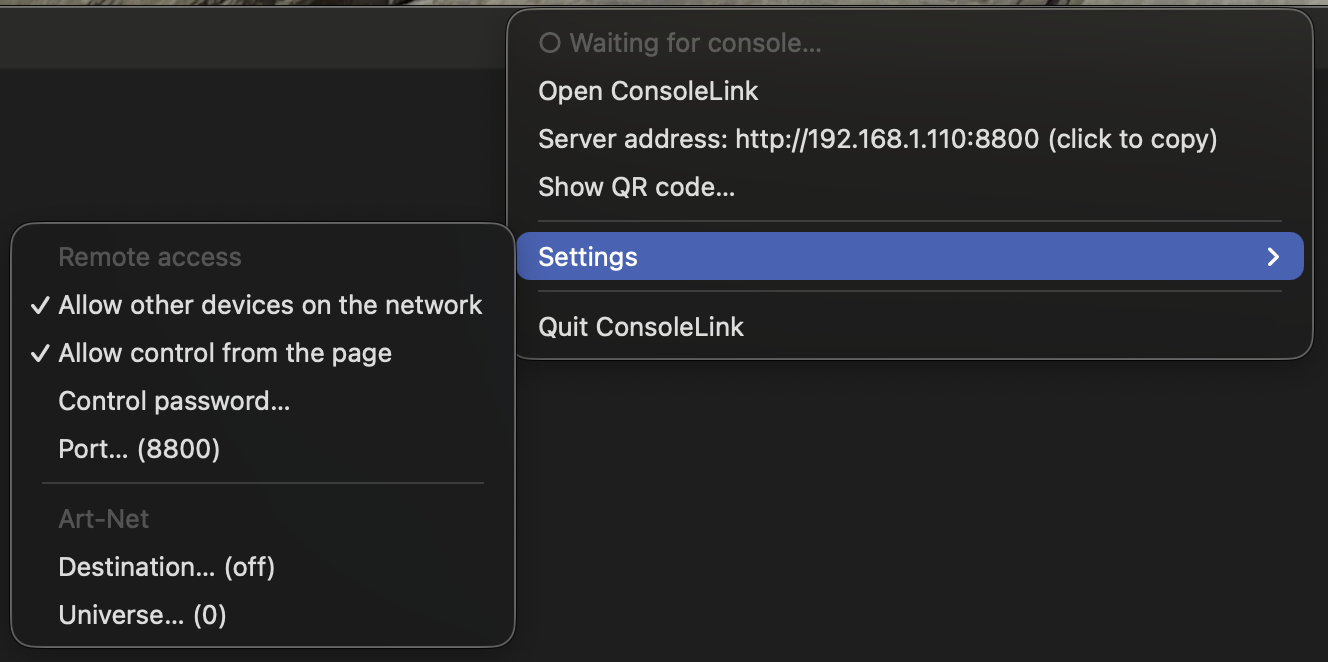

macOS menu-bar app

On macOS the same service can run from the menu bar instead of the command line (no Dock icon, no flags to remember). It needs the menubar extra (see Install); then start it with:

consolelink-menubar

The menu-bar icon (the favicon's three faders, faded while there is no console) and the first menu line show whether the console is connected. The menu has:

• Open ConsoleLink: opens the page in the browser.
• Server address (only when other devices are allowed): the address another device opens; click to copy it. Show QR code… opens a small window with that address as a QR code: scan it with a phone or tablet camera to open the page. The code holds the address only, never the password.
• Settings: allow other devices on the network (--listen network), allow control from the page (--allow-write), the control password, the Art-Net destination and universe, and the port. The password is kept in the macOS Keychain; the rest in ~/Library/Application Support/ConsoleLink/settings.json. A change is saved and applied right away (the service restarts).
• Quit ConsoleLink: releases the console before exiting.

Only one program can use the console at a time, so don't run consolelink and the menu-bar app together. The command line works as before on every system; the menu-bar app is macOS only.

Art-Net output

consolelink --artnet                    # visualiser on this machine
consolelink --artnet 192.168.1.50       # an Art-Net node or another computer
consolelink --artnet broadcast          # whole local network

Console universe 1 and 2 are sent as Art-Net universes 0 and 1 (change with --artnet-universe). Art-Net counts from 0, so some software labels these "1" and "2" — if a visualiser shows nothing, try the neighbouring universe numbers. On the same machine, set the visualiser's Art-Net input to listen on UDP port 6454 (some let you pick the network interface: choose loopback or "all").

If several programs on this machine listen on port 6454 (say a visualiser and an Art-Net monitor), a unicast destination reaches only one of them. Use --artnet broadcast to feed all of them.

The console only reports DMX when a patched output changes, but Art-Net receivers expect a steady stream, so the last frame is re-sent every second (--artnet-keepalive) while nothing moves. If the console is unplugged, the last frame keeps being sent.

Frames go console → USB → this program → UDP with no timing guarantee, so this is fine for visualisation and casual use, not for anything where a stall or a frozen frame would be a problem.

Contributing

Working on the code, running the tests or making a release? See CONTRIBUTING.md, which also explains how the console protocol works and how it was studied.

License

MIT -- see LICENSE.
