CrysViz - Crystal Structure Visualisation & Analysis

Light-weight browser-based crystal structure visualisation and analysis with on-device rendering.

Version 0.9.10 Beta 2026-08-28

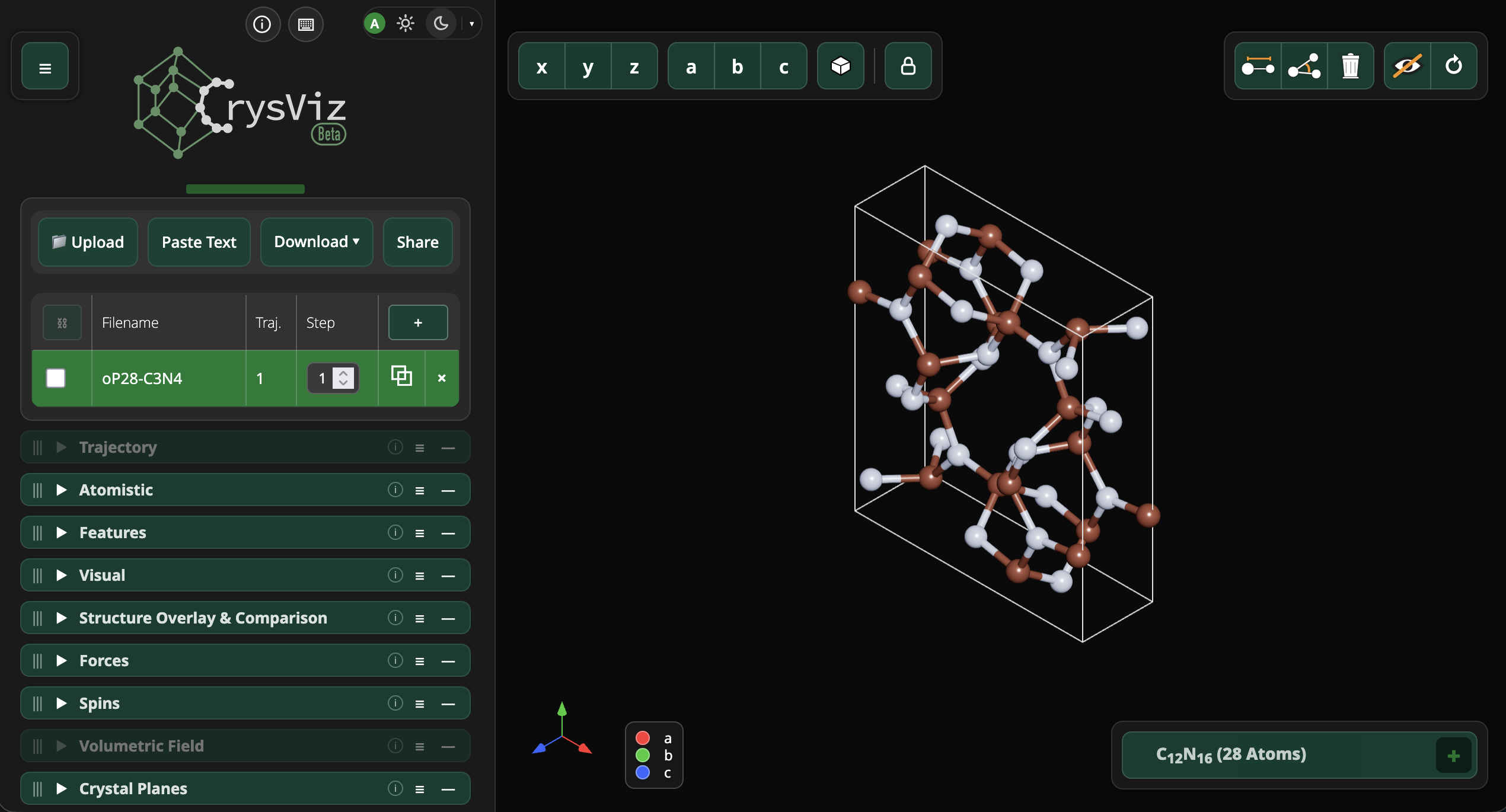

CrysViz is a standalone visualisation tool built on top of Three.js. Paste a POSCAR/OUTCAR/CIF snippet, drop a local file (POSCAR, OUTCAR, CIF or QE input/output), or grab an OPTIMADE endpoint (or just Materials Project or Alexandria IDs). Your crystal structures will NOT leave your device!

Copyright (C) 2025-2026 Florian Trybel, Abhijith S Parackal, Oscar Bulancea-Lindvall, Henricus R.A. ten Eikelder and Rickard Armiento

Key Features

• No backend required; runs entirely in the browser, no data leaves your machine. Runs in nearly every device (in particular smartphons and tablets) and in every browser.
• Visualise Input and output from VASP, Quantum Espresso, and CIF files.
• Measure distances and angles.
• Use custom bond lengths with the optional ability to display atoms outside the unit cell that are bonded neighbours.
• Customizable color schemes can be choosen for any individual atoms
• Forces and spin visualisation. Dynamically for relaxaton or MD trajectories
• Trajectory player. Load VASP OUTCARs and Quantum Espresso vc-relax output files directly and visualise the trajectories. Long MD trajecetories might be beyond your browsers memory limits.
• Symmetry anlysis and structure refinement (powered by Moyo WASM)
• Relxations and molecular dynamics simulations directly on your device with NEP potentials with upt to several hundred atoms.
• Possibility to activate a calculation backend. This allows structural relaxations with any ASE compatible calculater, e.g., MACE, UPET, VASP, QE; trajectory is added and can be played using the trajectory player.
• Bond length histogram (angles and coordiantion numbers are comming soon).
• and many more...

This project is licensed under the GNU Affero General Public License v3.0 (AGPL-3.0). This program is free software: you can redistribute it and/or modify it under the terms of the GNU Affero General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Affero General Public License for more details. You should have received a copy of the GNU Affero General Public License along with this program. If not, see https://www.gnu.org/licenses/.

Maintainer

• Florian Trybel - Project lead
• Abhijith S Parackal
• Rickard Armiento
• Oscar Bulancea-Lindvall
• Henricus R.A. ten Eikelder

Local in-browser installation and use

If you do not want to use CrysViz over the Internet, you can run it via a webserver on your own computer:

• Clone the CrysViz repository from GitHub

• Start the local server:

  make serve


• Visit the URL shown.

Run CrysViz as a stand-alone application

The stand-alone application uses pywebview, which requires a native GUI backend. This sometimes works automatically via CrysViz dependency handling, but if not, follow the installation instructions for pywebview).

We suggest that you set up pywebview and CrysViz in a venv. For pywebview to access its required system packages, you may need to create it as, e.g.:

python3 -m venv --system-site-packages .venv
source .venv/bin/activate
python -m pip install pywebview

And then test that the pywebview backend works:

import webview
webview.create_window('Hello world', 'https://pywebview.flowrl.com/')
webview.start()

Now you can install CrysViz into the venv as:

python -m pip install -e .

(Good alternatives are via pipx install or uv tool install if you have these tools available.)

And then run the standalone application with:

crysviz

Python API

If you have the standalone application installed, you can also use the Python API for visualization and remote-control from Python. For example:

from crysviz import Payload, Viewer, show

payload = Payload("silicon.cif", "data_Si\n_cell_length_a 5.43\n")
with Viewer([payload]) as viewer:
    structures = viewer.list_structures()
    viewer.select(structures[0].id, frame=0)
    viewer.update_lattice([[5.7, 0.0, 0.0], [0.2, 5.4, 0.0], [0.0, 0.0, 5.2]])
    viewer.update_fractional_positions([[0.0, 0.0, 0.0]], commit=False)
    viewer.commit_positions()
    viewer.recenter_camera()

# Equivalent concise construction; returns once the window is ready.
viewer = show(["structure.cif"])

For more, see examples.

Third-Party Libraries

1. THREE.js

   • Repository: https://github.com/mrdoob/three.js/
   • License: MIT
   • Copyright: THREE.js authors
   • See docs/external/three/LICENSE for the full license text.
   • License and code can be found in docs/external/three/

2. Moyo

   • Repository: https://github.com/spglib/moyo
   • License: MIT or Apache-2.0
   • Copyright: Kohei Shinohara
   • See docs/external/moyo-test/LICENSE for the full license text.
   • Explicitly moyo-wasm is used.
   • License and code can be found in docs/external/moyo-test/

3. NEP_CPU

   • Repository: https://github.com/brucefan1983/NEP_CPU
   • License: GPL-3.0
   • Copyright: NEP_CPU authors
   • See docs/external/nep_wasm/LICENSE-NEP_CPU for the full license text.
   • Explicitly NEP_CPU is compliled into a WASM module.
   • License and code can be found in docs/external/nep_wasm/

4. NEP89 Weights (from GPUMD)

   • Repository: https://github.com/brucefan1983/GPUMD
   • License: GPL-3.0
   • Copyright: GPUMD authors
   • The weights can be found in docs/external/nep_wasm/
   • See docs/external/nep_wasm/LICENSE-GPUMD for the full license text.

5. three-wboit

   • Repository: https://github.com/stevinz/three-wboit
   • License: MIT
   • Copyright: Stephens Nunnally (@stevinz); portions mrdoob and three.js authors, Alexander Rose
   • See docs/external/three-wboit/LICENSE for the full license text.
   • Used by the optional "Weighted blended (WBOIT)" rendering pipeline.
   • License and code can be found in docs/external/three-wboit/

6. three-depthpeeling-demo

   • Repository: https://github.com/gkjohnson/three-depthpeeling-demo
   • License: MIT
   • Copyright: Garrett Johnson
   • See docs/external/three-depthpeeling/LICENSE for the full license text.
   • Adapted (not verbatim) for the optional "Depth peeling" rendering pipeline; see docs/external/three-depthpeeling/README.md for the divergences.
   • License and code can be found in docs/external/three-depthpeeling/

7. THREE.js-RayTracing-Renderer

   • Repository: https://github.com/erichlof/THREE.js-RayTracing-Renderer
   • License: CC0 1.0 (public domain; attribution given as a courtesy) The CC0 dedication applies to the upstream original only; CrysViz's local adaptations in docs/external/three-raytracing/ and the first-party ray/path tracing code under docs/render/pipeline/ are licensed AGPL-3.0.
   • Author: Erich Loftis (@erichlof)
   • See docs/external/three-raytracing/LICENSE for the full license text.
   • GLSL chunk library adapted for the optional "Ray tracing" rendering pipeline; see docs/external/three-raytracing/README.md for the adaptations.
   • License and code can be found in docs/external/three-raytracing/

8. THREE.js-PathTracing-Renderer

   • Repository: https://github.com/erichlof/THREE.js-PathTracing-Renderer
   • License: CC0 1.0 (public domain; attribution given as a courtesy) The CC0 dedication applies to the upstream original only; CrysViz's local adaptations in docs/external/three-pathtracing/ and the first-party ray/path tracing code under docs/render/pipeline/ are licensed AGPL-3.0.
   • Author: Erich Loftis (@erichlof)
   • See docs/external/three-pathtracing/LICENSE for the full license text.
   • GLSL chunk library adapted for the optional "Path tracing" rendering pipeline; see docs/external/three-pathtracing/README.md for the adaptations.
   • License and code can be found in docs/external/three-pathtracing/

9. QR Code generator

   • Repository: https://github.com/nayuki/QR-Code-generator
   • License: MIT
   • Copyright: Project Nayuki
   • Loaded on demand from jsDelivr (npm nayuki-qr-code-generator) to draw the QR code in the share-link dialog.

Other Attributions

• CrysViz uses some color maps from the Scientific colour maps by Fabio Crameri (Version 8)
• OPTIMADE compatible structure providers including Materials Project and Alexandria.
