custom-decision-trees 3.0.1

A package for building customizable decision trees and random forests.

Custom Decision Trees

Custom Decision Trees is a Python package that lets you build Decision Trees / Random Forests models with advanced configuration :

Main Features

Splitting criteria customization

Define your own cutting criteria in Python language (documentation in the following sections).

This feature is particularly useful in "cost-dependent" scenarios. Examples:

• Trading Movements Classification: When the goal is to maximize economic profit, the metric can be set to economic profit, optimizing tree splitting accordingly.
• Churn Prediction: To minimize false negatives, metrics like F1 score or recall can guide the splitting process.
• Fraud Detection: Splitting can be optimized based on the proportion of fraudulent transactions identified relative to the total, rather than overall classification accuracy.
• Marketing Campaigns: The splitting can focus on maximizing expected revenue from customer segments identified by the tree.

Multi-conditional node splitting

Allow trees to split nodes with one or more simultaneous conditions.

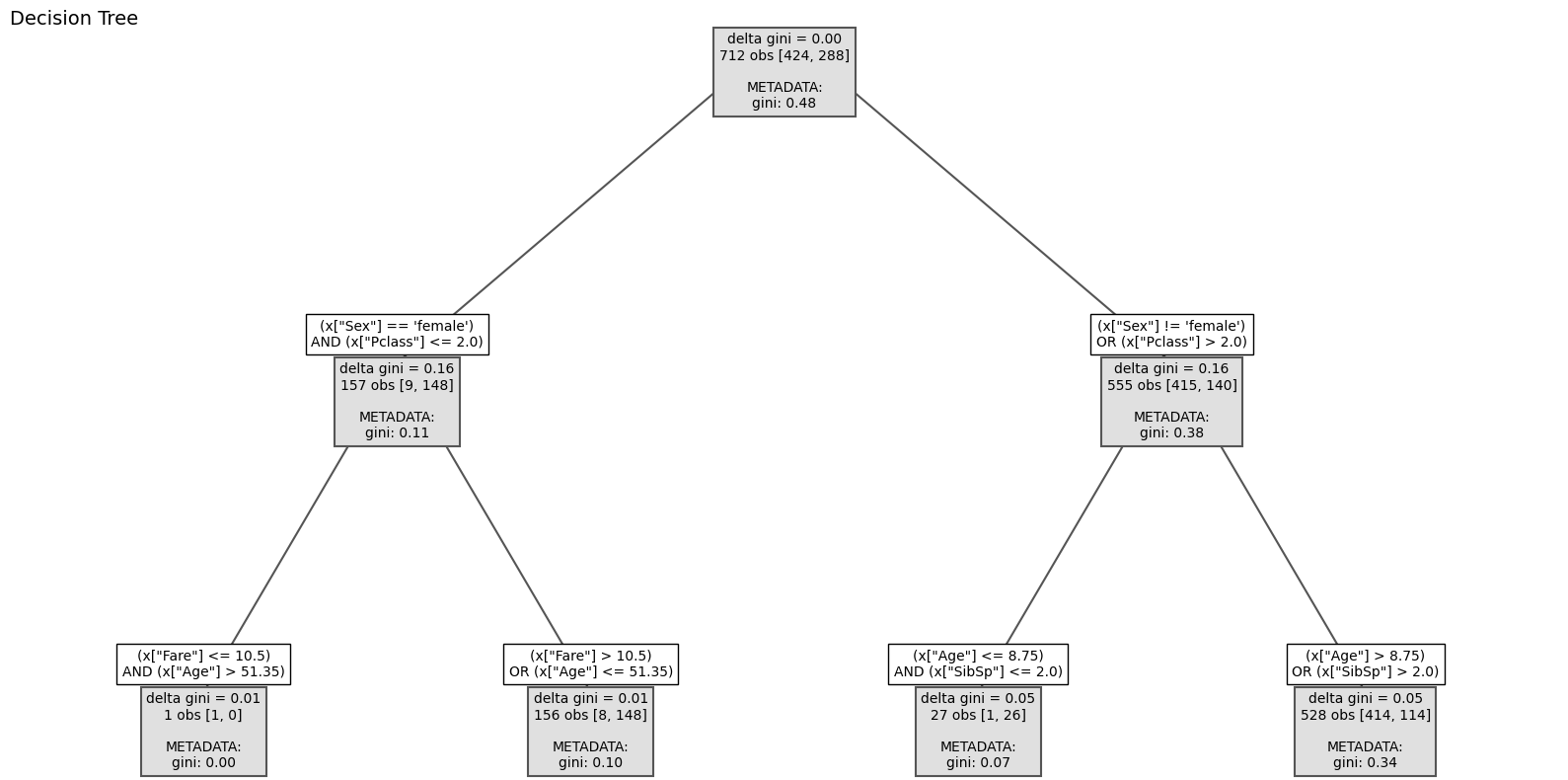

Example of multi-condition splitting on the Titanic dataset:

Other features

• Supports classification and regression
• Supports multiclass classification
• Supports standard decision tree parameters (max_depth, min_samples_split, max_features, n_estimators, etc.)
• Supports STRING type explanatory variables
• Ability to control the number of variable splitting options when optimizing a split (i.e nb_max_cut_options_per_var parameter).
• Ability to control the maximum number of splits to be tested per node to avoid overly long calculations in multi-condition mode (i.e nb_max_split_options_per_node parameters)
• Possibility of parallelizing calculations (i.e n_jobs parameters)

Reminder on splitting criteria

Splitting in a decision tree is achieved by optimizing a metric. For example, Gini optimization consists in maximizing the $\Delta_{Gini}$ :

• The Gini Index represents the impurity of a group of observations based on the observations of each class (0 and 1):

$$ I_{Gini} = 1 - p_0^2 - p_1^2 $$

• The metric to be maximized is $\Delta_{Gini}$, the difference between the Gini index on the parent node and the weighted average of the Gini index between the two child nodes ($L$ and $R$).

$$ \Delta_{Gini} = I_{Gini} - \frac{N_L * I_{Gini_L}}{N} - \frac{N_R * I_{Gini_R}}{N} $$

At each node, the tree algorithm finds the split that minimizes $\Delta$ over all possible splits and over all features. Once the optimal split is selected, the tree is grown by recursively applying this splitting process to the resulting child nodes.

Usage

See ./notebooks/ folder for complete examples.

Installation

pip install custom-decision-trees

Define your metric

To integrate a specific measure, the user must define a class containing the compute_metric and compute_delta methods, then insert this class into the classifier.

Example of a class with the Gini index :

import numpy as np

from custom_decision_trees.metrics import MetricBase


class Gini(MetricBase):

    def __init__(
            self,
            n_classes: int = 2,
        ) -> None:

        self.n_classes = n_classes
        self.max_impurity = 1 - 1 / n_classes

    def compute_gini(
            self,
            metric_data: np.ndarray,
        ) -> float:

        y = metric_data[:, 0]

        nb_obs = len(y)

        if nb_obs == 0:
            return self.max_impurity

        props = [(np.sum(y == i) / nb_obs) for i in range(self.n_classes)]

        metric = 1 - np.sum([prop**2 for prop in props])

        return float(metric)

    def compute_metric(
            self,
            metric_data: np.ndarray,
            mask: np.ndarray,
        ):

        gini_parent = self.compute_gini(metric_data)
        gini_side1 = self.compute_gini(metric_data[mask])
        gini_side2 = self.compute_gini(metric_data[~mask])

        delta = (
            gini_parent -
            gini_side1 * np.mean(mask) -
            gini_side2 * (1 - np.mean(mask))
        )

        metadata = {"gini": round(gini_side1, 3)}

        return float(delta), metadata

Train and predict

Once you have instantiated the model with your custom metric, all you have to do is use the .fit and .predict_proba methods:

from custom_decision_trees import DecisionTreeClassifier

gini = Gini()

decision_tree = DecisionTreeClassifier(
    metric=gini,
    max_depth=2,
    nb_max_conditions_per_node=2 # Set to 1 for a traditional decision tree
)

decision_tree.fit(
    X=X_train,
    y=y_train,
    metric_data=metric_data,
)

probas = model.predict_probas(
    X=X_test
)

probas[:5]

>>> array([[0.75308642, 0.24691358],
           [0.36206897, 0.63793103],
           [0.75308642, 0.24691358],
           [0.36206897, 0.63793103],
           [0.90243902, 0.09756098]])

Print the tree

You can also display the decision tree, with the values of your metrics, using the print_tree method:

decision_tree.print_tree(
    feature_names=features,
    metric_name="MyMetric",
)

>>> [0] 712 obs -> MyMetric = 0.0
    |   [1] (x["Sex"] <= 0.0) AND (x["Pclass"] <= 2.0) | 157 obs -> MyMetric = 0.16
    |   |   [3] (x["Age"] <= 2.0) AND (x["Fare"] > 26.55) | 1 obs -> MyMetric = 0.01
    |   |   [4] (x["Age"] > 2.0) OR (x["Fare"] <= 26.55) | 156 obs -> MyMetric = 0.01
    |   [2] (x["Sex"] > 0.0) OR (x["Pclass"] > 2.0) | 555 obs -> MyMetric = 0.16
    |   |   [5] (x["SibSp"] <= 2.0) AND (x["Age"] <= 8.75) | 27 obs -> MyMetric = 0.05
    |   |   [6] (x["SibSp"] > 2.0) OR (x["Age"] > 8.75) | 528 obs -> MyMetric = 0.05

Plot the tree

decision_tree.plot_tree(
    feature_names=features,
    metric_name="delta gini",
)

Random Forest

Same with Random Forest Classifier :

from custom_decision_trees import RandomForestClassifier

random_forest = RandomForest(
    metric=gini,
    n_estimators=10,
    max_depth=2,
    nb_max_conditions_per_node=2,
)

random_forest.fit(
    X=X_train,
    y=y_train,
    metric_data=metric_data
)

probas = random_forest.predict_probas(
    X=X_test
)

Regression

The "regression" mode is used in exactly the same way as "classification", i.e., by specifying the metric from a Python class.

your_metric = YourMetric()

decision_tree_regressor = DecisionTreeRegressor(
    metric=your_metric,
    max_depth=2,
    min_samples_split=2,
    min_samples_leaf=1,
    max_features=None,
    nb_max_conditions_per_node=2,
    nb_max_cut_options_per_var=10,
    n_jobs=1
)

decision_tree_regressor.fit(
    X=X,
    y=y,
    metric_data=metric_data,
)

See /notebooks folder for complete examples.
