DashKaplanMeier Dash Component

Dash component built with React to render Kaplan–Meier survival curves with enhanced interactivity and styling options. This component is ideal for visualizing survival analysis data directly within Dash applications.

Features

• Plot Kaplan–Meier survival curves from preprocessed data.
• Support for multiple curves with different group labels.
• Interactive tooltips and hover effects.
• Customizable colors and dimensions.
• Fully integrated with Dash callback system.

Installation

pip install dash-kaplan-meier

Install requirements

pip install dash
pip install lifelines

Usage

Here’s how to use the DashKaplanMeier component in your Dash app:

import dash
from dash import html, Dash
import dash_kaplan_meier as dkm
from dash_kaplan_meier.survival_stats import compute_survival_stats

# Example data
time        = [your time values list here]
event       = [your event values list here]
group       = [you rgroup values list here]

# Compute statistics
stats       = compute_survival_stats(time ,event, group)

# Dash app
app         = Dash()

# Dash app layout with DashKaplanMeier component
app.layout = html.Div([
    dkm.DashKaplanMeier(
        id              = 'km-example',
        time            = time,
        event           = event,
        group           = group,
        showCIs         = True,
        colors          = ['blue', 'green', 'red'],
        showStatistics  = True,
        logrankP        = stats["logrank_p"],
        coxP            = stats["cox_p"],
        hazardRatio     = stats["hazard_ratio"],
        layout          ={  'title': 'Kaplan-Meier Survival Curve Example',
                            "xaxis": {"title": {"text": "Time (months)"}},
                            "yaxis": {"title": {"text": "Survival Probability"}}},
        title           = "Kaplan-Meier curves",
        config          = {'responsive': True}
    )
])

if __name__ == '__main__':
    app.run(debug=True)

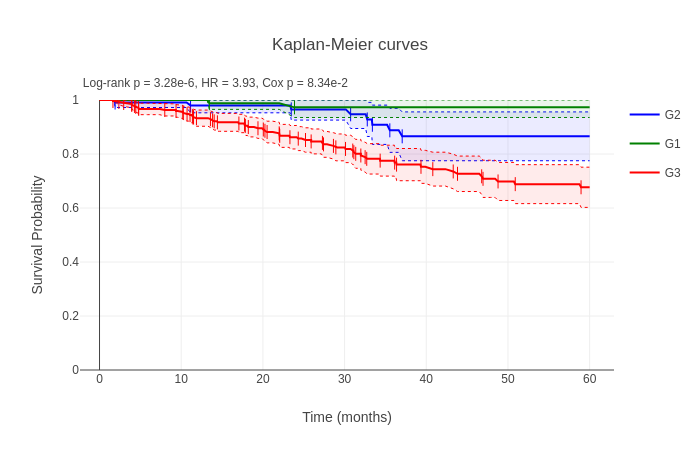

Plot Example

Contributing

See CONTRIBUTING.md

License

MIT License. See LICENSE file for details.
