data-availability 0.2.0

Plot data availability for seismic

data-availability

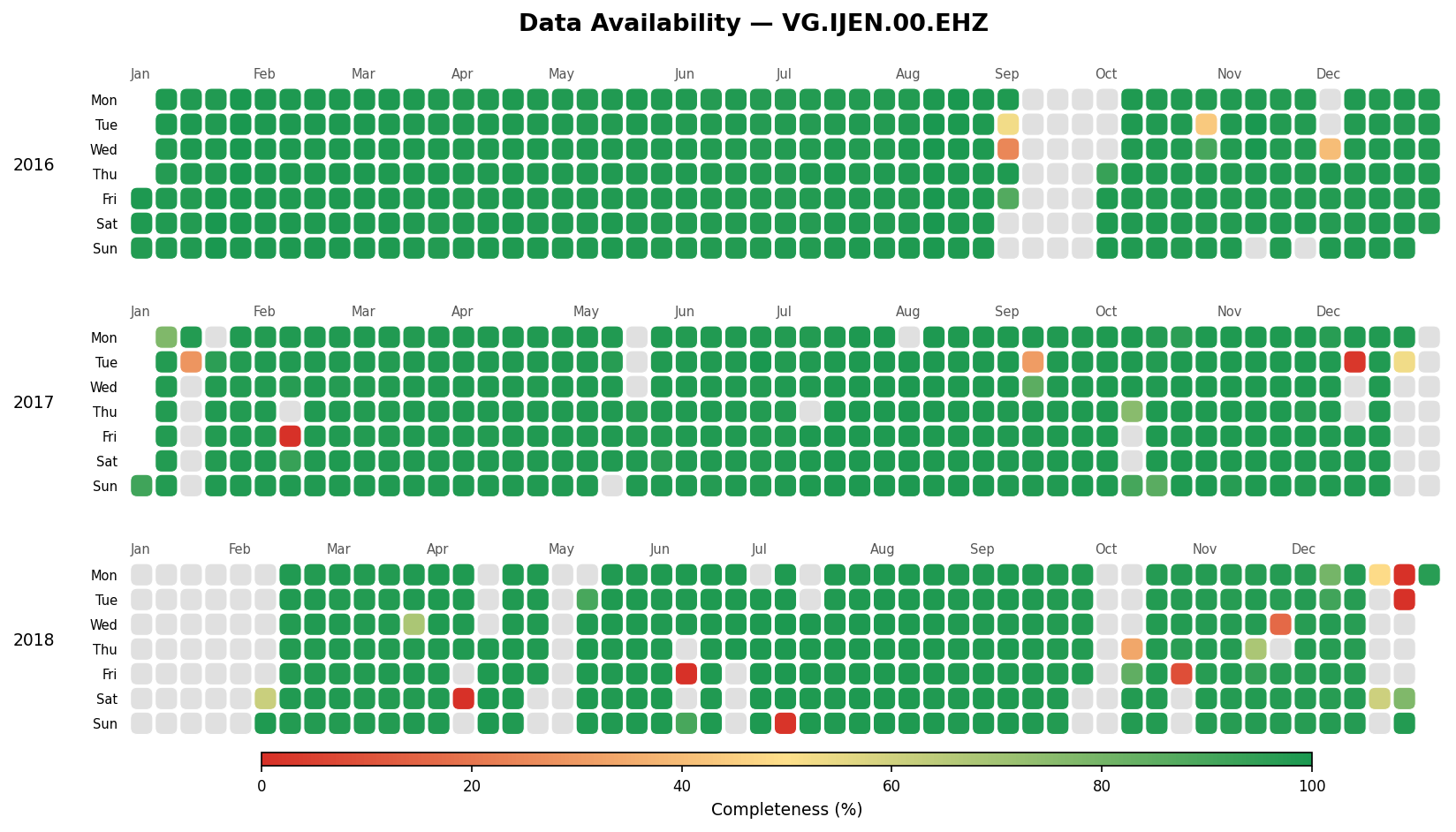

GitHub contribution-style calendar heatmaps for data completeness over time.

Useful for monitoring instrument data quality or any time-series availability tracking. Generates a matplotlib Figure with one subplot per calendar year, each day rendered as a color-coded tile on a red-yellow-green gradient.

Input: Excel (.xlsx/.xls) or CSV with date and completeness (0–100) columns.
Output: A matplotlib.figure.Figure — save or display as needed.

Installation

pip install data-availability

Or with uv:

uv add data-availability

Quick start

Fluent builder (recommended)

import matplotlib.pyplot as plt
from data_availability import PlotAvailability

fig = (
    PlotAvailability("data.xlsx")
    .select(years="2023")
    .plot(title="Sensor Uptime", tile_shape="squircle")
)
plt.savefig("availability.png", dpi=150, bbox_inches="tight")

One-call helpers

from data_availability import plot_from_file, plot_from_df

# From a file
fig = plot_from_file("data.csv", title="My Data")

# From a pre-loaded DataFrame
import pandas as pd
df = pd.read_csv("data.csv")
fig = plot_from_df(df, title="My Data")

Seismic SDS data

from data_availability import PlotSeismicAvailability

fig = (
    PlotSeismicAvailability(
        start_date="2023-01-01",
        end_date="2023-12-31",
        sds_dir="/data/sds",
        station="IJEN",
        channel="EHZ",
        network="VG",
        location="00",
        n_jobs=4,
    )
    .plot(title="IJEN EHZ Availability 2023")
)
fig.savefig("ijen_availability.png", dpi=150, bbox_inches="tight")

API reference

PlotAvailability(filepath)

Fluent builder class for Excel/CSV data.

fig = (
    PlotAvailability("data.xlsx")
    .select(
        date_column="date",          # column name for dates
        completeness_column="completeness",  # column name for values (0–100)
        years=["2022", "2023"],      # filter to specific years (optional)
    )
    .plot(
        title="Data Availability",
        tile_shape="square",         # "square" or "squircle"
        hspace=0.2,
        figsize_per_year=2.2,
        missing_color="#e0e0e0",
        cbar_bottom=20,
        cbar_height=10,
        tile_gap=0.9,
        title_pad=40,
    )
)

PlotSeismicAvailability(...)

Reads a SeisComP Data Structure (SDS) archive, computes per-day completeness, and renders the heatmap. Supports parallel processing via n_jobs.

PlotSeismicAvailability(
    start_date="2023-01-01",  # YYYY-MM-DD
    end_date="2023-12-31",    # YYYY-MM-DD (inclusive)
    sds_dir="/data/sds",      # root of the SDS archive
    station="IJEN",
    channel="EHZ",
    network="VG",
    location="00",
    channel_type="D",         # SDS data-type qualifier (default "D")
    n_jobs=1,                 # parallel workers (default 1 = serial)
    verbose=False,
).plot(title="IJEN EHZ")

plot_from_file(filepath, **kwargs) / plot_from_df(df, **kwargs)

Functional alternatives that accept the same keyword arguments as .plot() plus date_column and completeness_column.

load_data(filepath, date_column, completeness_column)

Load and normalize an Excel or CSV file into a DataFrame ready for plotting.

Input format

Column	Type	Notes
date	date string or datetime	parsed automatically
completeness	float	clipped to [0, 100]; strings replaced with NaN

Column names are configurable via date_column / completeness_column parameters.

Development

# Install with dev extras
uv sync --group dev

# Run the example
uv run main.py

# Lint and format
uv run ruff check --fix .
uv run ruff format .

# Type check
uv run ty check

License

MIT © Martanto
