data-availability

Calendar heatmaps and daily bar strips that show data completeness over time.

Use it to monitor instrument data quality or to track the availability of any time series. It returns a matplotlib Figure with one subplot per calendar year, with each day colored on a red-yellow-green gradient by its completeness.

Input: Excel (.xlsx/.xls) or CSV with date and completeness (0–100) columns.
Output: A matplotlib.figure.Figure — save or display as needed.

There are two kinds of figure:

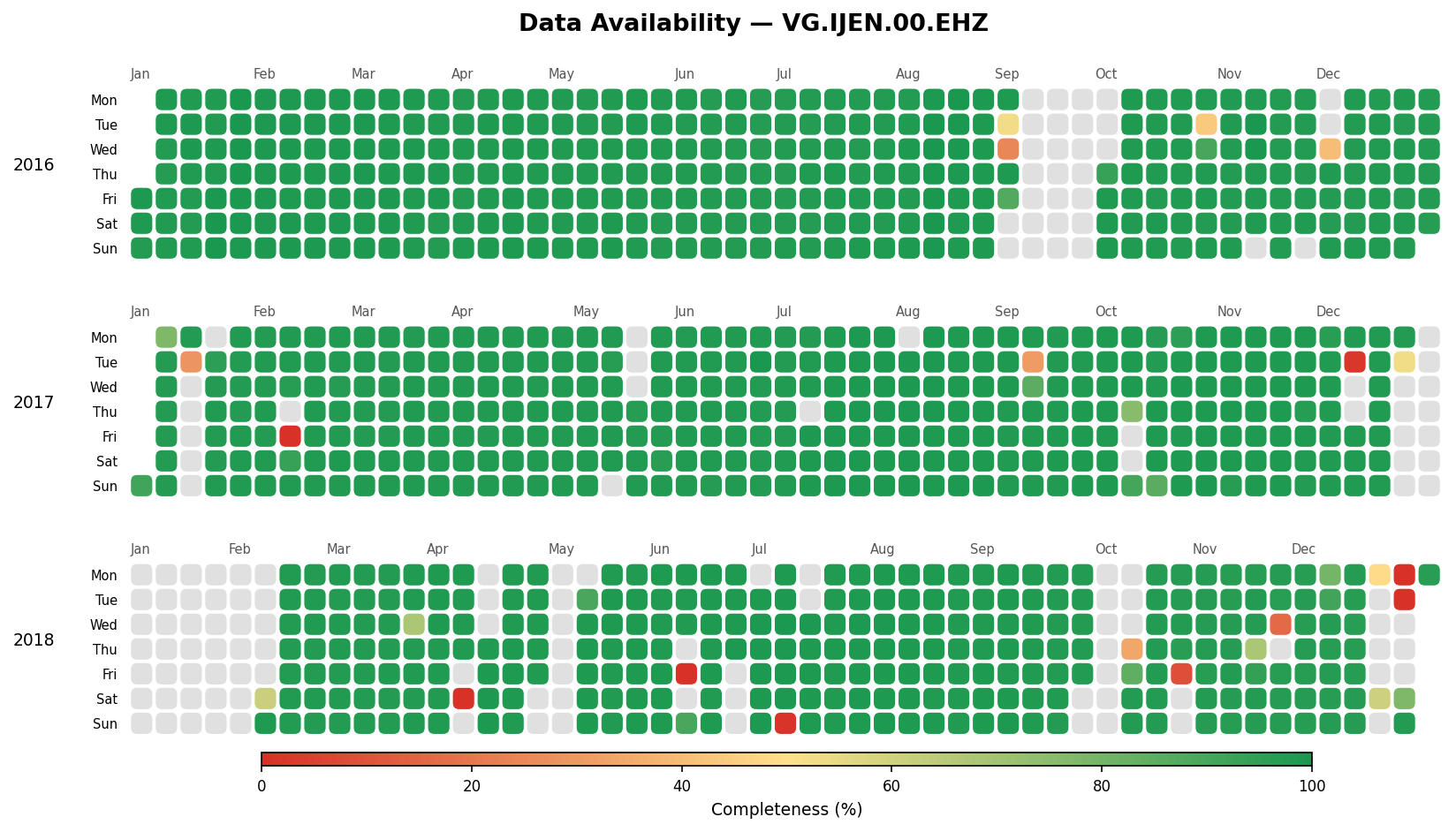

• kind="calendar" (default): a GitHub contribution-style heatmap, with one tile per day on a Mon–Sun × week grid.

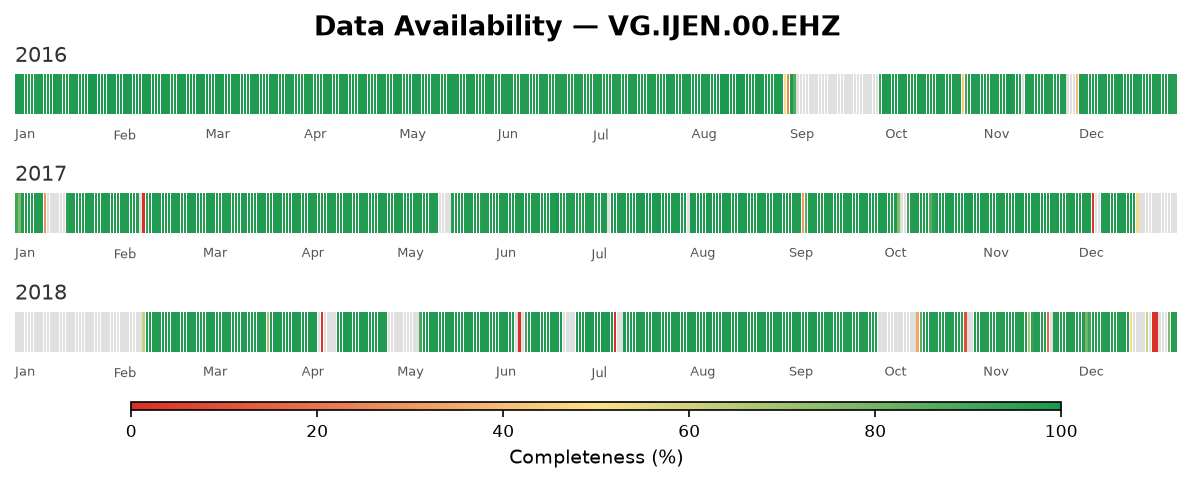

• kind="bar": a status-page style strip, with one thin bar per day and month labels underneath.



Installation

pip install data-availability

Or with uv:

uv add data-availability

Quick start

Fluent builder (recommended)

import matplotlib.pyplot as plt
from data_availability import PlotAvailability

fig = (
    PlotAvailability("data.xlsx")
    .select(years="2023")
    .plot(title="Sensor Uptime", tile_shape="squircle")
)
plt.savefig("availability.png", dpi=150, bbox_inches="tight")

# Same data as a daily bar strip
fig = (
    PlotAvailability("data.xlsx")
    .select(years=["2022", "2023"])
    .plot(title="Sensor Uptime", kind="bar", fig_width=10)
)
fig.savefig("availability-bar.png", dpi=150, bbox_inches="tight")

One-call helpers

from data_availability import plot_from_file, plot_from_df

# From a file
fig = plot_from_file("data.csv", title="My Data")

# From a pre-loaded DataFrame
import pandas as pd
df = pd.read_csv("data.csv")
fig = plot_from_df(df, title="My Data")

Seismic SDS data

from data_availability import SeismicAvailability

sa = SeismicAvailability(
    start_date="2023-01-01",
    end_date="2023-12-31",
    sds_dir="/data/sds",
    station="IJEN",
    channel="EHZ",
    network="VG",
    location="00",
    n_jobs=4,
)

fig = sa.plot(title="IJEN EHZ Availability 2023")
fig.savefig("ijen_availability.png", dpi=150, bbox_inches="tight")

fig = sa.plot(title="IJEN EHZ Availability 2023", kind="bar")

# Optional: persist the per-day completeness DataFrame
sa.to_excel()               # writes <NSLC>_<start>-<end>.xlsx into CWD
sa.to_excel("ijen.xlsx")    # or pass an explicit path
records = sa.to_json()      # or serialise to JSON records

On Windows, wrap the call in if __name__ == "__main__": when using n_jobs > 1 — Python's spawn start method requires it.

API reference

PlotAvailability(filepath)

Fluent builder class for Excel/CSV data.

fig = (
    PlotAvailability("data.xlsx")
    .select(
        date_column="date",          # column name for dates
        completeness_column="completeness",  # column name for values (0–100)
        years=["2022", "2023"],      # filter to specific years (optional)
    )
    .plot(
        title="Data Availability",
        kind="calendar",             # "calendar" (heatmap) or "bar" (daily strip)
        hspace=None,                 # default: 0.2 calendar, 1.4 bar
        figsize_per_year=None,       # inches per year; default: 2.2 calendar, 1.2 bar
        fig_width=20.0,              # figure width in inches
        missing_color="#e0e0e0",     # days absent from the data
        cbar_bottom=20,              # px between last subplot and colorbar
        cbar_height=10,              # colorbar height in px
        title_pad=40,                # px between first subplot and title
        tile_shape="square",         # calendar only: "square" or "squircle"
        tile_gap=0.9,                # calendar only: tile size (< 1 adds gaps)
        bar_gap=0.8,                 # bar only: bar width (< 1 adds gaps)
        color_bins=None,             # None = continuous; int or edge list = discrete bins
    )
)

tile_shape and tile_gap are ignored when kind="bar", and bar_gap is ignored when kind="calendar". Any other kind raises ValueError.

color_bins changes the continuous color scale into discrete completeness classes. It works for both kinds and on every plot* entry point:

.plot(color_bins=5)                     # 0–20, 20–40, 40–60, 60–80, 80–100
.plot(color_bins=4)                     # 0–25, 25–50, 50–75, 75–100
.plot(color_bins=[0, 50, 80, 95, 100])  # custom edges (must start at 0, end at 100)

Each bin covers [lo, hi), except that exactly 100% falls in the top bin.

SeismicAvailability(...)

Reads a SeisComP Data Structure (SDS) archive, computes per-day completeness, and renders the heatmap. Supports parallel processing via n_jobs.

sa = SeismicAvailability(
    start_date="2023-01-01",  # YYYY-MM-DD
    end_date="2023-12-31",    # YYYY-MM-DD (inclusive)
    sds_dir="/data/sds",      # root of the SDS archive
    station="IJEN",
    channel="EHZ",
    network="VG",
    location="00",
    channel_type="D",         # SDS data-type qualifier (default "D")
    n_jobs=1,                 # parallel workers (default 1 = serial)
    verbose=False,
)

sa.plot(title="IJEN EHZ")    # returns a matplotlib Figure; accepts the same
                             # kwargs as PlotAvailability.plot() (title defaults to NSLC)
sa.get_df()                  # DataFrame: nslc, date, filepath, completeness
sa.to_json()                 # list of records
sa.to_excel(path=None)       # write DataFrame to Excel; default filename in CWD

.plot() drops zero-completeness days, so days with no data render as missing_color (grey) instead of red at the bottom of the colormap, in both kinds. Call .get_df() for the unfiltered per-day results.

plot_from_file(filepath, **kwargs) / plot_from_df(df, **kwargs)

Functional alternatives that accept the same keyword arguments as .plot() (including kind) plus date_column and completeness_column.

Rows with a completeness of 0 are dropped before plotting, so those days render as missing_color (grey) in both kinds. If no row has a completeness above 0, they raise ValueError.

load_data(filepath, date_column, completeness_column)

Load and normalize an Excel or CSV file into a DataFrame ready for plotting.

Logging

A stderr console handler at INFO level is attached automatically on import — you don't need to configure anything to see log output. Opt into rotating daily file logs (general + errors) by calling configure_logging:

from data_availability import configure_logging

configure_logging(log_dir="./logs", console_level="DEBUG")

The library never creates directories or writes files on import.

Input format

Column	Type	Notes
date	date string or datetime	parsed automatically
completeness	float	clipped to [0, 100]; strings replaced with NaN

Column names are configurable via date_column / completeness_column parameters.

Development

# Install with dev extras
uv sync --group dev

# Run the example (writes output.png and output-bar.png)
uv run main.py

# Lint and format
uv run ruff check --fix .
uv run ruff format .

# Type check
uv run ty check

License

MIT © Martanto
