Project description
Django Data Wizard is an interactive tool for mapping tabular data (e.g. Excel, CSV, XML, JSON) into a normalized database structure via Django REST Framework and wq.io. Django Data Wizard allows novice users to map spreadsheet columns to serializer fields (and cell values to foreign keys) on-the-fly during the import process. This reduces the need for preset spreadsheet formats, which most data import solutions require.
The Data Wizard supports straightforward one-to-one mappings from spreadsheet columns to database fields, as well as more complex scenarios like natural keys and Entity-Attribute-Value (or "wide") table mappings. It was originally developed for use with the ERAV data model provided by vera.
Usage
Django Data Wizard provides a web interface, JSON API, and CLI for specifying a data source to import (e.g. a previously-uploaded file), selecting a serializer, mapping the data columns and identifiers, and (asynchronously) importing the data into the database.
Installation
# Recommended: create virtual environment
# python3 -m venv venv
# . venv/bin/activate
pip install data-wizard
See https://github.com/wq/django-data-wizard to report any issues.
Initial Configuration
Within a new or existing Django project, add data_wizard
to your INSTALLED_APPS
:
# myproject/settings.py
INSTALLED_APPS = (
# ...
'data_wizard',
'data_wizard.sources', # Optional
)
# This can be omitted to use the defaults
DATA_WIZARD = {
'BACKEND': 'data_wizard.backends.threading',
'LOADER': 'data_wizard.loaders.FileLoader',
'PERMISSION': 'rest_framework.permissions.IsAdminUser',
}
If you would like to use the built-in data source tables (FileSource
and URLSource
), also include data_wizard.sources
in your INSTALLED_APPS
. Otherwise, you will want to configure one or more custom data sources (see below).
Note: In version 1.1.0 and later, Django Data Wizard uses a simple threading backend for executing asynchronous tasks. The old celery backend can also be used but this is no longer required.
Next, add "data_wizard.urls"
to your URL configuration.
# myproject/urls.py
from django.urls import path, include
urlpatterns = [
# ...
path('datawizard/', include('data_wizard.urls')),
]
Note: If you are upgrading from 1.0, you will need to update your URLs to add the
datawizard/
prefix as shown above.
Finally, register one or more target models with the wizard. Like the Django admin and admin.py
, Data Wizard will look for a wizard.py
file in your app directory:
# myapp/wizard.py
import data_wizard
from .models import MyModel
data_wizard.register(MyModel)
If needed, you can use a custom serializer class to configure how the target model is validated and populated.

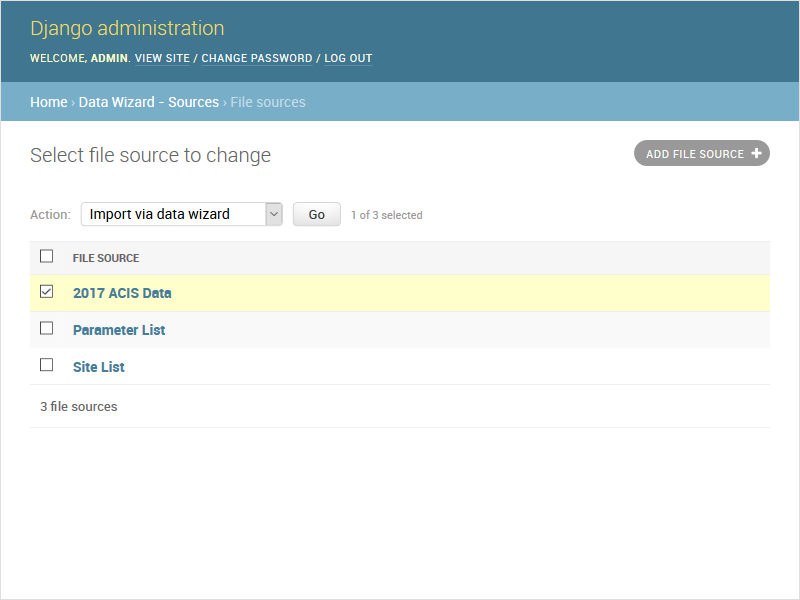

Once everything is configured, create a data source in the Django admin, select "Import via data wizard" from the admin actions menu, and navigate through the screens described below.
API Documentation
Django Data Wizard is implemented as a series of views that can be accessed via the Django admin as well as via a JSON API.
New Run
POST /datawizard/
Creates a new instance of the wizard (i.e. a Run
). If you are using the Django admin integration, this step is executed when you select "Import via Data Wizard" from the admin actions menu. If you are using the JSON API, the returned run id
should be used in all subsequent calls to the API. Each Run
is tied to the model containing the actual data via a generic foreign key.
parameter | description |
---|---|
object_id |
The id of the object containing the data to be imported. |
content_type_id |
The app label and model name of the referenced model (in the format app_label.modelname ). |
loader |
(Optional) The class name to use for loading the dataset via wq.io. The default loader (data_wizard.loaders.FileLoader ) assumes that the referenced model contains a FileField named file . |
serializer |
(Optional) The class name to use for serialization. This can be left unset to allow the user to select it during the wizard run. |
auto
POST /datawizard/[id]/auto
The auto
task attempts to run the entire data wizard process from beginning to end. If any input is needed, the import will halt and redirect to the necessary screen. If no input is needed, the auto
task is equivalent to starting the data
task directly. This is an asynchronous method, and returns a task_id
to be used with the status API.
The run_detail.html template provides an example form that initiates the auto
task. The auto
task itself uses the run_auto.html template.
status
GET /datawizard/[id]/status.json?task=[task]
The status
API is used to check the status of an asynchronous task (one of auto
or data
). The API is used by the provided data_wizard/js/progress.js to update the <progress>
bar in the run_auto.html and run_data.html templates. Unlike the other methods, this API is JSON-only and has no HTML equivalent. An object of the following format will be returned:
{
// General properties
"status": "PROGRESS", // or "SUCCESS", "FAILURE"
"stage": "meta", // or "data"
"current": 23, // currently processing row
"total": 100, // total number of rows
// "FAILURE"
"error": "Error Message",
// Task complete ("SUCCESS")
"action": "records", // or "serializers", "columns" "ids"
"message": "Input Needed", // if action is not "records"
"skipped": [...], // rows that could not be imported
"location": "/datawizard/[id]/records",
}
The potential values for the status
field are the same as common Celery task states, even when not using the celery
backend. When running an auto
task, the result is SUCCESS
whenever the task ends without errors, even if there is additional input needed to fully complete the run.

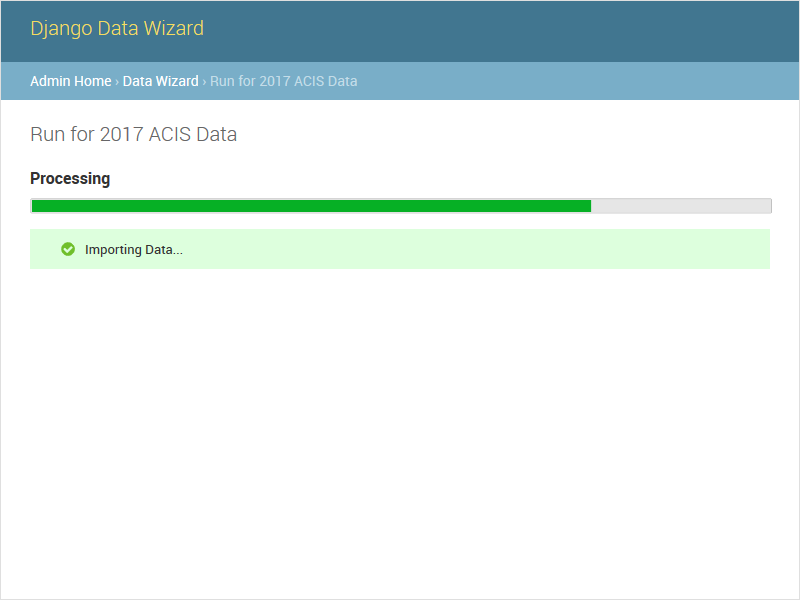

The default run_auto.html and run_data.html templates include a <progress>
element for use with the status task.
serializers
GET /datawizard/[id]/serializers
The serializers
task provides a list of all registered serializers. This screen is shown by the auto
task if a serializer was not specified when the Run
was created. The default run_serializers.html template includes an interface for selecting a registered serializer. If a serializer is already selected, the template will display the label and a button to (re)start the auto
task.

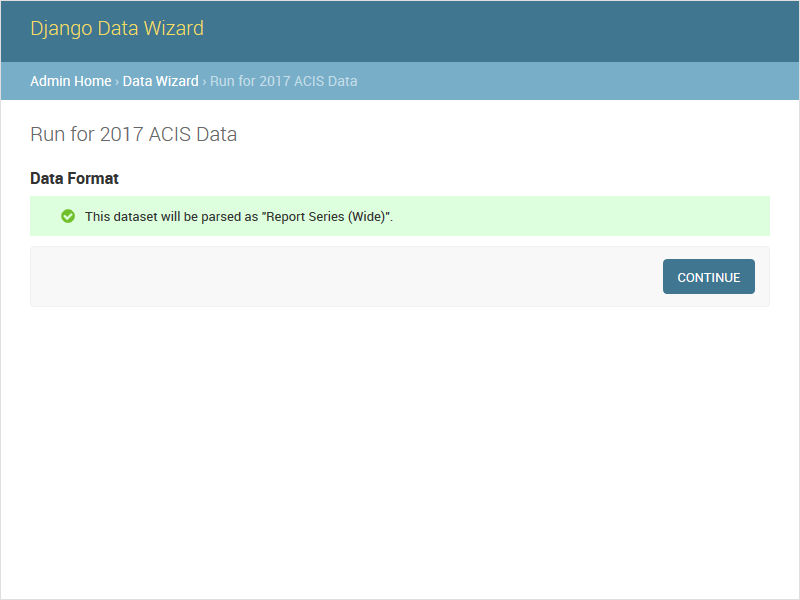

updateserializer
POST /datawizard/[id]/updateserializer
The updateserializer
task updates the specified Run
with the selected serializer class name. This is typically called from the form generated by the serializers
task, and will redirect to that task when complete.
parameter | description |
---|---|
serializer |
The class name (or label) of the serializer to use for this run. |
columns
GET /datawizard/[id]/columns
The columns
task lists all of the columns found in the dataset (i.e. spreadsheet) and their mappings to serializer fields. This screen is shown by the auto
task if there are any column names that could not be automatically mapped. The potential mappings are one of:
- simple serializer field names (e.g.
field
) - nested field names (for natural keys, e.g.
nested[record][field]
) - EAV attribute-value mappings (e.g.
values[][value];attribute_id=1
).
To enable a natural key mapping, the registered serializer should be an instance of NaturalKeyModelSerializer
, as in this example. To enable an EAV mapping, the registered serializer should include a nested serializer with many=True
and at least one foreign key to the attribute table, as in this example.
The default run_columns.html template includes an interface for mapping data columns to serializer fields. If all columns are already mapped, the template will display the mappings and a button to (re)start the auto
task.

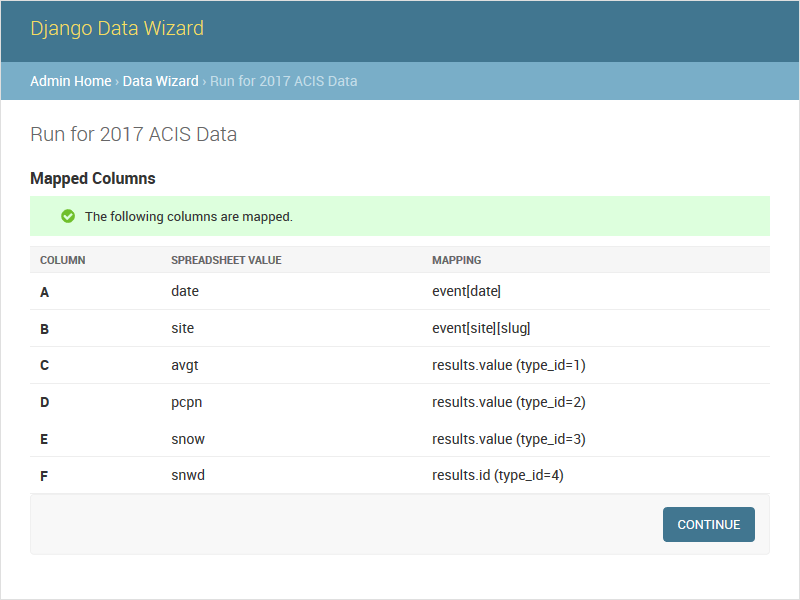

updatecolumns
POST /datawizard/[id]/updatecolumns
The updatecolumns
task saves the specified mappings from data columns to serializer fields. This is typically called from the form generated by the columns
task, and will redirect to that task when complete.
parameter | description |
---|---|
rel_[relid] |
The column to map to the specified serializer field. The relid and the complete list of possible mappings will be provided by the columns task. |

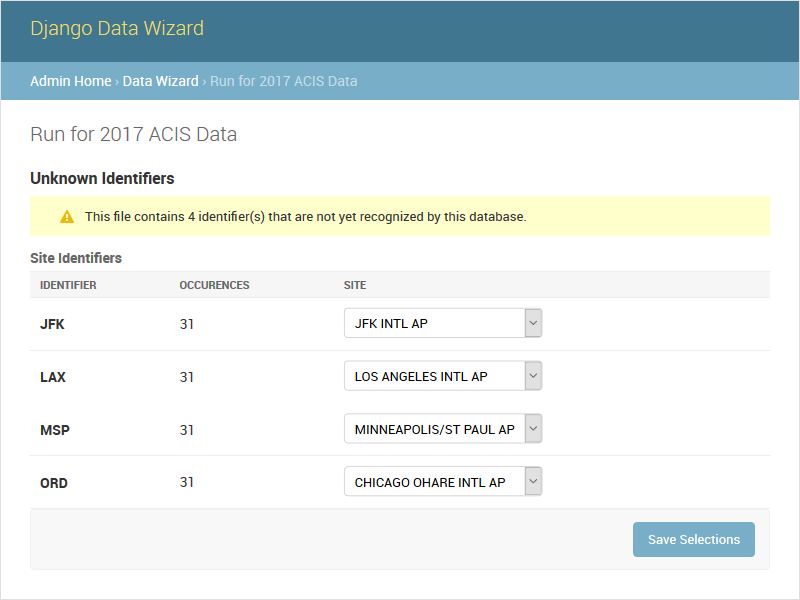

ids
GET /datawizard/[id]/ids
The ids
task lists all of the identifiers found in the dataset (i.e. spreadsheet) that are in a column known to correspond to a foreign key. This screen is shown by the auto
task if there are any identifiers that could not be automatically mapped to foreign key values. The potential mappings depend on the serializer field used to represent the foreign key.
- Existing record ID or slug (for PrimaryKeyRelatedField, SlugRelatedField, and NaturalKeySerializer)
"new"
(NaturalKeySerializer
only)
The primary difference is that NaturalKeySerializer
allows for the possibility of creating new records in the foreign table on the fly, while the regular related fields do not.
The default run_ids.html template includes an interface for mapping row identifiers to foreign key values. If all ids are already mapped (or indicated to be new natural keys), the template will display the mappings and a button to (re)start the auto
task.

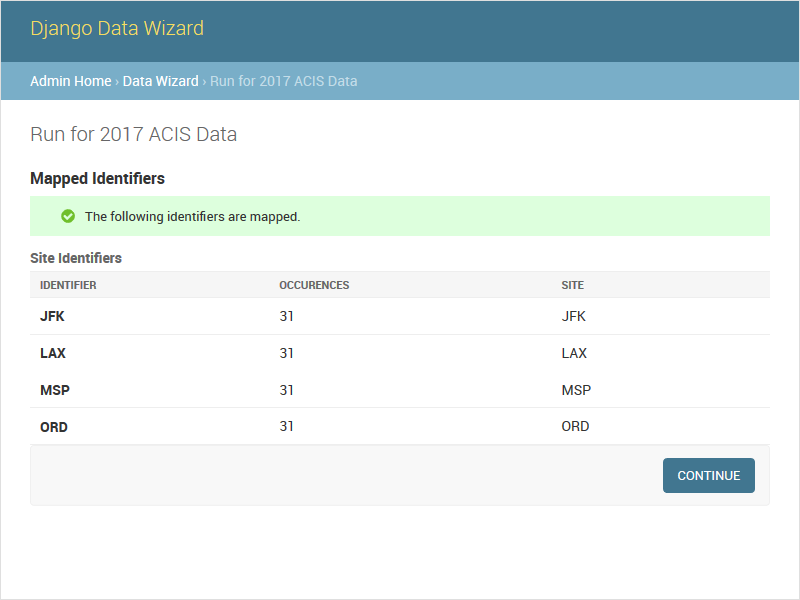

updateids
POST /datawizard/[id]/updateids
The updateids
task saves the specified mappings from row identifiers to foreign key values. This is typically called from the form generated by the ids
task, and will redirect to that task when complete.
parameter | description |
---|---|
ident_[identid]_id |
The identifier to map to the specified foreign key value. The identid and the complete list of possible mappings will be provided by the ids task. |
data
POST /datawizard/[id]/data
The data
task starts the actual import process (and is called by auto
behind the scenes). Unlike auto
, calling data
directly will not cause a redirect to one of the other tasks if any meta input is needed. Instead, data
will attempt to import each record as-is, and report any errors that occured due to e.g. missing fields or unmapped foreign keys.
This is an asynchronous method, and returns a task_id
to be used with the status
API. The default run_data.html template includes a <progress>
element for use with status task.

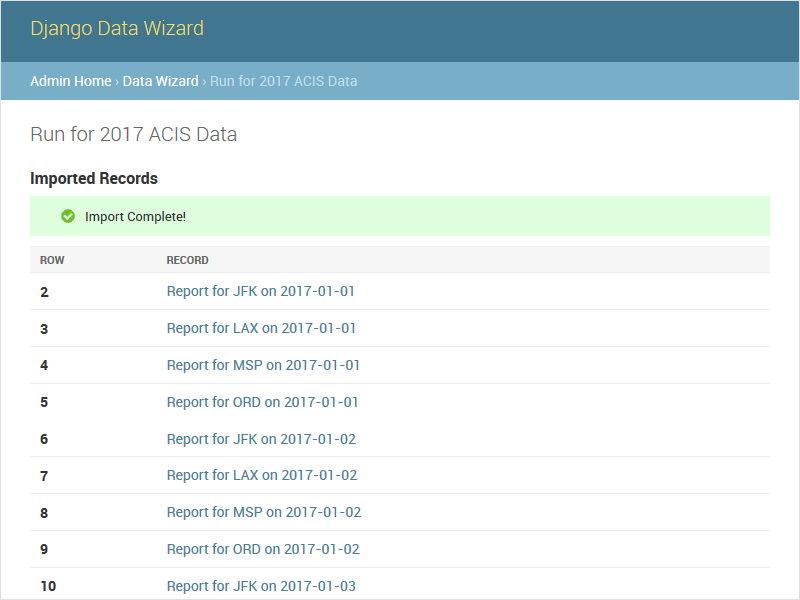

records
GET /datawizard/[id]/records
The records
task provides a list of imported rows (including errors). It is redirected to by the auto
and data
tasks upon completion. When possible, the records
task includes links to the get_absolute_url()
or to the admin screen for each newly imported record. The default run_records.html template includes an interface for displaying the record details.

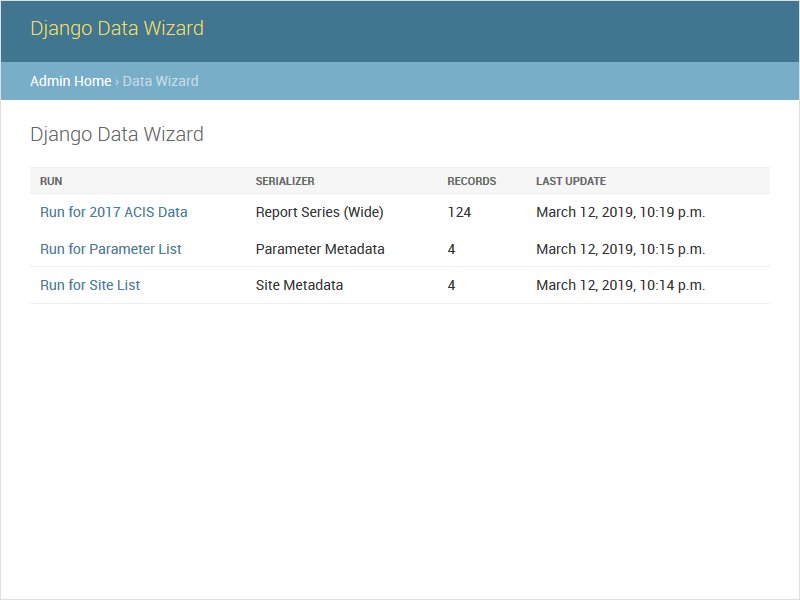

Run List
GET /datawizard/
Django Data Wizard provides a list view that summarises prior runs and the number of records imported by each. Incomplete runs can also be restarted from this list.

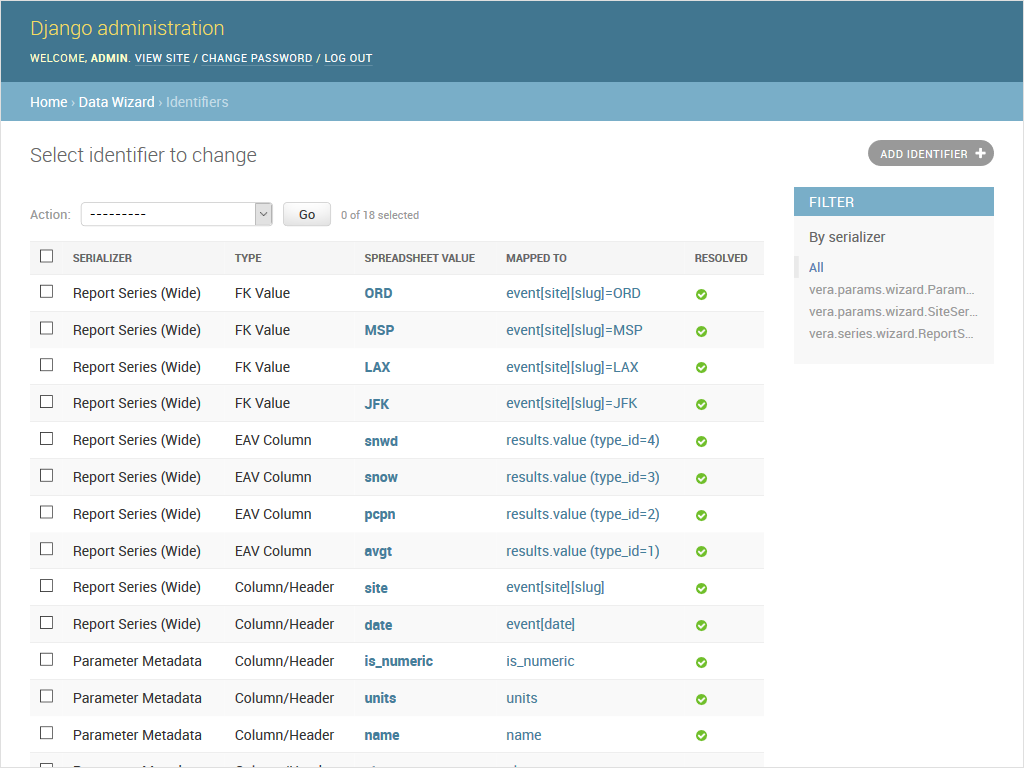

Identifier Admin
GET /admin/data_wizard/identifer/
As of version 1.1.0, Django Data Wizard identifier mappings can be viewed and edited via the Django Admin. Runs can also be viewed through the admin - though the Run List above will generally be more useful.
Command-Line Interface
Django Data Wizard provides a single management command, runwizard
, that can be used to initiate the auto
task from the command line. This can be used to facilitate automated processing, for example as part of a regular cron job. Note that the CLI does not (currently) support interactively mapping columns and ids, so these should be pre-mapped using the web or JSON API.
Usage:
./manage.py runwizard myapp.mymodel 123 \
--loader myapp.loaders.customloader \
--serializer myapp.serializer.customserializer \
--username myusername
The basic usage is similar to the New Run API. Only a content type and object id are required, while the other arguments will be auto-detected if possible. In particular, you may want to use set_loader() to predefine the default loader
and serializer
for any models you plan to use with the CLI.
The runwizard
command will create a new Run
and immediately start the auto
task. Errors will be shown on the console.
Custom Serializers
Data Wizard uses instances of Django REST Framework's Serializer class to determine the destination fields on the database model. Specifically, the default serializer is NaturalKeyModelSerializer, which is based on ModelSerializer.
You can override the default serializer by calling data_wizard.register()
with a name and a serializer class instead of a model class. Multiple serializers can be registered with the wizard to support multiple import configurations and destination models.
# myapp/wizard.py
from rest_framework import serializers
import data_wizard
from .models import TimeSeries
class TimeSeriesSerializer(serializers.ModelSerializer):
# (custom fields here)
class Meta:
model = TimeSeries
fields = '__all__'
# Use default name & serializer
data_wizard.register(TimeSeries)
# Use custom name & serializer
data_wizard.register("Time Series - Custom Serializer", TimeSeriesSerializer)
At least one serializer or model should be registered in order to use the wizard. Note the use of a human-friendly serializer label when registering a serializer. This name should be unique throughout the project, but can be changed later on without breaking existing data. (The class path is used as the actual identifier behind the scenes.)
Custom Data Sources
Django Data Wizard uses wq.io to determine the source columns present on the spreadsheet or other data source. Django Data Wizard can use any Django model instance as a source for its data, provided there is a registered loader that can convert the source model into a wq.io iterable. Data Wizard provides two out-of-the the box loaders, FileLoader and URLLoader, that can be used with the provided models in data_wizard.sources
(FileSource
and URLSource
, respectively).
Extending FileLoader
The default FileLoader
can be used with any Django model with a FileField
named file
. You can use a model with a different FileField
name by creating a subclass of data_wizard.loaders.FileLoader
and setting it as the loader for your model.
# myapp/models.py
from django.db import models
class FileModel(models.Model):
spreadsheet = models.FileField(upload_to='spreadsheets')
# myapp/loaders.py
from data_wizard import loaders
class FileLoader(loaders.FileLoader):
file_attr = 'spreadsheet'
# myapp/wizard.py
import data_wizard
from .models import FileModel
data_wizard.set_loader(FileModel, "myapp.loaders.FileLoader")
You can also set the default loader globally:
# myapp/settings.py
DATA_WIZARD = {
'LOADER': 'myapp.loaders.FileLoader'
}
Custom Loader
The default loaders support any file format supported by wq.io (Excel, CSV, JSON, and XML). Additional formats can be integrating by creating a custom wq.io class and then registering it with the wizard. For example, the Climata Viewer uses Django Data Wizard to import data from climata's wq.io-based web service client. To do this, extend data_wizard.loaders.BaseLoader
with a custom load_io()
function that returns the data from wq.io, as in the example below.
It is likely that you will want to use a specific serializer with your custom loader. If so, override default_serializer
or get_serializer_name()
on the loader. By default, these return None
, which requires the user to specify the serializer when creating or executing the Run
.
# myapp/models.py
from django.db import models
class CustomIOSource(models.Model):
some_option = models.TextField()
# myapp/loaders.py
from data_wizard import loaders
from .io import CustomIO
class CustomIOLoader(loaders.BaseLoader):
default_serializer = 'mydataapp.wizard.CustomSerializer'
def load_io(self):
source = self.run.content_object
return CustomIO(some_option=source.some_option)
# myapp/wizard.py
import data_wizard
from .models import CustomIOSource
data_wizard.set_loader(CustomIOSource, "myapp.loaders.CustomIOLoader")
Task Backends
As of version 1.1.0, Django Data Wizard no longer requires the use of celery
as a task runner. Any of the following backends can be configured with via the BACKEND
setting:
# myproject/settings.py
DATA_WIZARD = {
"BACKEND": "data_wizard.backends.threading" # Default in 1.1.x
"data_wizard.backends.immediate"
"data_wizard.backends.celery" # Only choice in 1.0.x
}
For backwards compatibility with 1.0.x, the default backend reverts to celery
if you have CELERY_RESULT_BACKEND
defined in your project settings. However, it is recommended to explicitly set BACKEND
, as this behavior may change in a future major version of Data Wizard.
data_wizard.backends.threading
The threading
backend creates a separate thread for long-running asynchronous tasks (i.e. auto
and data
). The threading backend leverages the Django cache to pass results back to the status API. As of Django Data Wizard 1.1.0, this backend is the default unless you have configured Celery.
data_wizard.backends.immediate
The immediate
backend completes all processing before returning a result to the client, even for the otherwise "asynchronous" tasks (auto
and data
). This backend is suitable for small spreadsheets, or for working around threading issues. This backend maintains minimal state, and is not recommended for use cases involving large spreadsheets or multiple simultanous import processes.
data_wizard.backends.celery
The celery
backend leverages Celery to handle asynchronous tasks, and is usually used with Redis as the memory store.
Celery is no longer required to use Django Data Wizard, unless you would like to use the celery
backend. If so, be sure to configure these libraries first or the REST API may not work as expected. You can use these steps on Ubuntu:
# Install redis and celery
sudo apt-get install redis-server
pip install celery redis
Once Redis is installed, configure the following files in your project:
# myproject/settings.py
DATA_WIZARD {
'BACKEND': 'data_wizard.backends.celery'
}
CELERY_RESULT_BACKEND = BROKER_URL = 'redis://localhost:6379/1'
# myproject/celery.py
from __future__ import absolute_import
from celery import Celery
from django.conf import settings
app = Celery('myproject')
app.config_from_object('django.conf:settings')
app.autodiscover_tasks(lambda: settings.INSTALLED_APPS)
# myproject/__init__.py
from .celery import app as celery_app
Finally, run celery with celery -A myproject
. You may want to use celery's daemonization to keep the process running in the background. Any time you change your serializer registration, be sure to reload celery in addition to restarting the Django WSGI instance.
Note that the requirement for an extra daemon means this backend can break more easily after a server restart. Even worse, you may not notice that the backend is down for several months (e.g. until a user tries to import a spreadsheet). For this reason, we recommend using one of the other backends unless you are already using celery for other background processing tasks.
wq Framework integration
The Django Data Wizard has built-in support for integration with the wq framework. Configuration is mostly the same, except that you do not need to add "data_wizard.urls"
to your urls.py as the wizard with register itself with wq.db instead.
Data Wizard includes mustache templates for each of the above tasks to integrate with the wq.app UI. Be sure to enable the wq/progress.js plugin for use with the run_auto.html
and run_data.html
template. You could allow the user to initiate an import run by adding the following to the detail HTML for your model:
<!-- filemodel_detail.html -->
<h1>{{label}}</h1>
<a href="{{rt}}/media/{{file}}" rel="external">Download File</a>
<form action="{{rt}}/datawizard/" method="post" data-ajax="true" data-wq-json="false">
{{>csrf}}
<input type="hidden" name="content_type_id" value="myapp.filemodel">
<input type="hidden" name="object_id" value="{{id}}">
<button type="submit">Import Data from This File</button>
</form>
// myapp/main.js
define(['wq/app', 'wq/progress', ...],
function(app, progress, ...) {
app.use(progress);
app.init(config).then(...);
});
Project details
Release history Release notifications | RSS feed
Download files
Download the file for your platform. If you're not sure which to choose, learn more about installing packages.
Source Distribution
Built Distribution
Hashes for data_wizard-1.1.0-py3-none-any.whl
Algorithm | Hash digest | |
---|---|---|
SHA256 | fb2debe3558525c27a8cc5be82f662ab14c2bfb788d0d80f743e64976acdb8d1 |
|
MD5 | 42edcc26c33ed58e2a75ae362d027907 |
|
BLAKE2b-256 | dcecb8f664ac91e719cbd929696cdb0c70041511dcd780cbcb941f46f26642f7 |
