deepecohab 0.5.1

EcoHab with some machine learning

DeepEcoHab: fast and intuitive data analysis platform for your EcoHab experiments

DeepEcoHab is an analytics platform built for preprocessing, analysis and visualization of data acquired in the DeepEcoHab.

Our backend is built on Polars - Extremely fast Query Engine for DataFrames, written in Rust and frontend utilizes Plotly Dash which allows for system independent operation - running the app in your Chromium based browser - providing an interactive, high quality and responsive visualization of experiments regardless of their length.

Quick start

On Windows, three steps get you from nothing to a running dashboard:

uv tool install deepecohab   # install as a standalone app
deepecohab-shortcut          # create a desktop icon

Then double-click the DeepEcoHab icon on your desktop. See Installation for uv setup and other platforms.

Installation

We keep DeepEcoHab lean to ensure easy integration and fast installation. In the spirit of open-source we build on uv — a fast, self-contained Python package manager.

Step 1 — Install uv

Windows:

powershell -ExecutionPolicy ByPass -c "irm https://astral.sh/uv/install.ps1 | iex"

Linux / macOS:

curl -LsSf https://astral.sh/uv/install.sh | sh

Step 2 — Install DeepEcoHab

For most users the simplest path is to install DeepEcoHab as a standalone application. This puts the deepecohab and deepecohab-shortcut commands on your PATH in an isolated environment — no virtual environment to create or activate:

uv tool install deepecohab

That's it. Run deepecohab to launch the dashboard, which opens automatically in your browser.

If the commands aren't found afterwards, run uv tool update-shell and reopen your terminal.

Desktop shortcut (Windows)

After uv tool install deepecohab, create a clickable desktop icon with:

deepecohab-shortcut

This places a DeepEcoHab shortcut on your desktop. Double-clicking it starts the dashboard and opens it in your browser — no terminal required. This is the recommended way to launch DeepEcoHab on Windows.

On Linux / macOS there is no desktop shortcut — simply run deepecohab from the terminal to launch the dashboard.

Using DeepEcoHab as a library

If you want to run the example notebooks or call DeepEcoHab from your own Python code, install it into an environment instead of as a tool:

uv venv
# Windows:        .venv\Scripts\activate
# Linux / macOS:  source .venv/bin/activate
uv pip install deepecohab

Already have an environment running python>=3.12? Just run pip install deepecohab.

We recommend VSCode with the Jupyter extension to run the example notebooks provided in the repository.

How it works

A DeepEcoHab analysis follows three stages. The first two run from Python (the example notebooks walk through them end to end); the third is the interactive dashboard.

1. Create a project from your raw EcoHab .txt files with deepecohab.create_ecohab_project(...). This builds a project folder with a config.toml describing your layout, light/dark phases, timezone and animal IDs.
2. Run the analysis pipeline with deepecohab.df_registry.run_pipeline(config_path). Results (chasings, activity, sociability, social hierarchy, …) are written to the project as fast parquet files.
3. Explore the results by launching the dashboard — run deepecohab (or double-click the desktop shortcut), select your project in the app, and browse and compare plots interactively.

Example data

We provide 3 example datasets that reflect 3 main possibilites for an EcoHab layout.

• example_notebook for a vanilla 4 cage, 8 antenna setup.
• example_notebook_custom_layout for a custom layout that can be user defined in the config.toml of the created project.
• example_notebook_field for a field EcoHab layout.

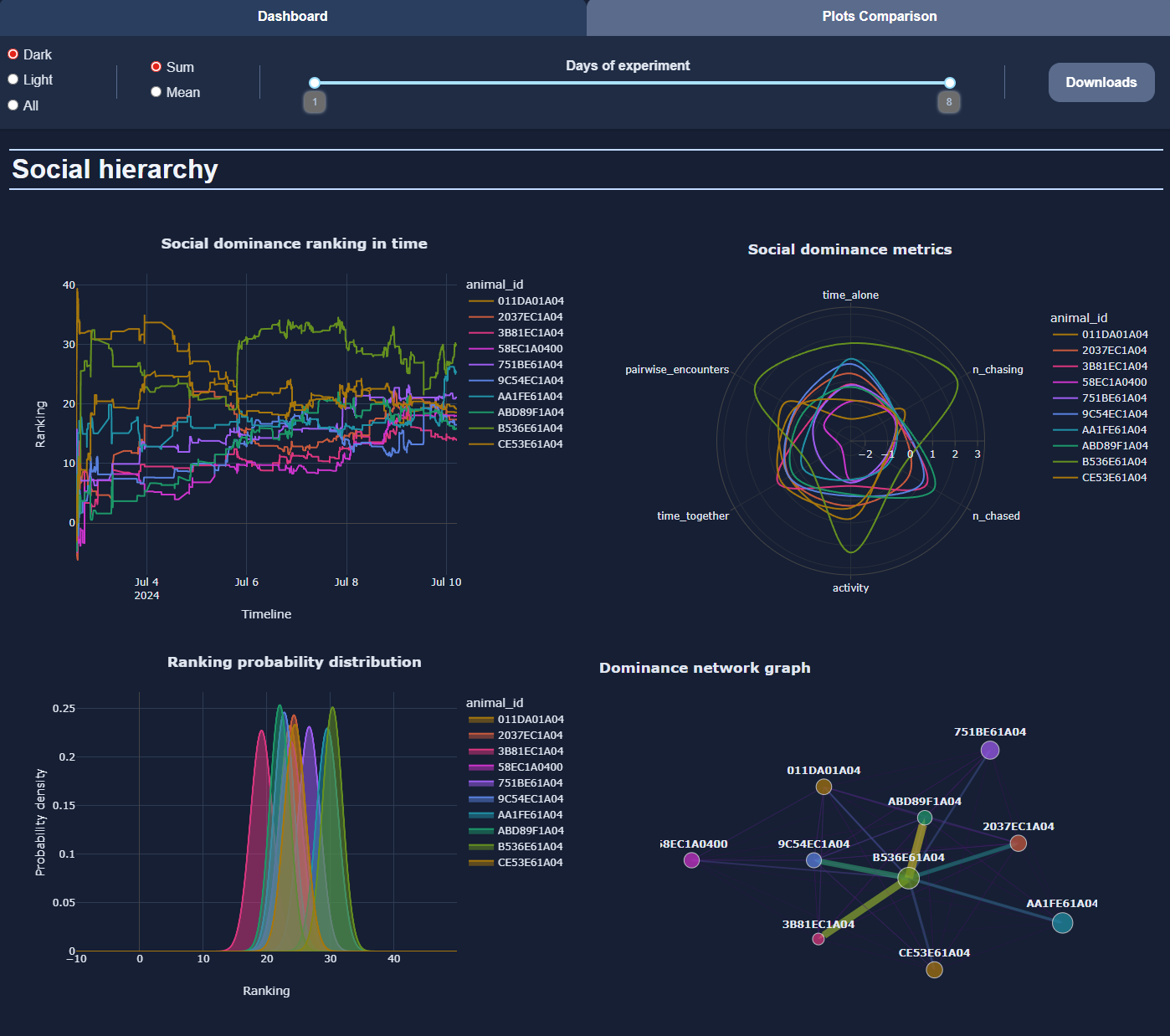

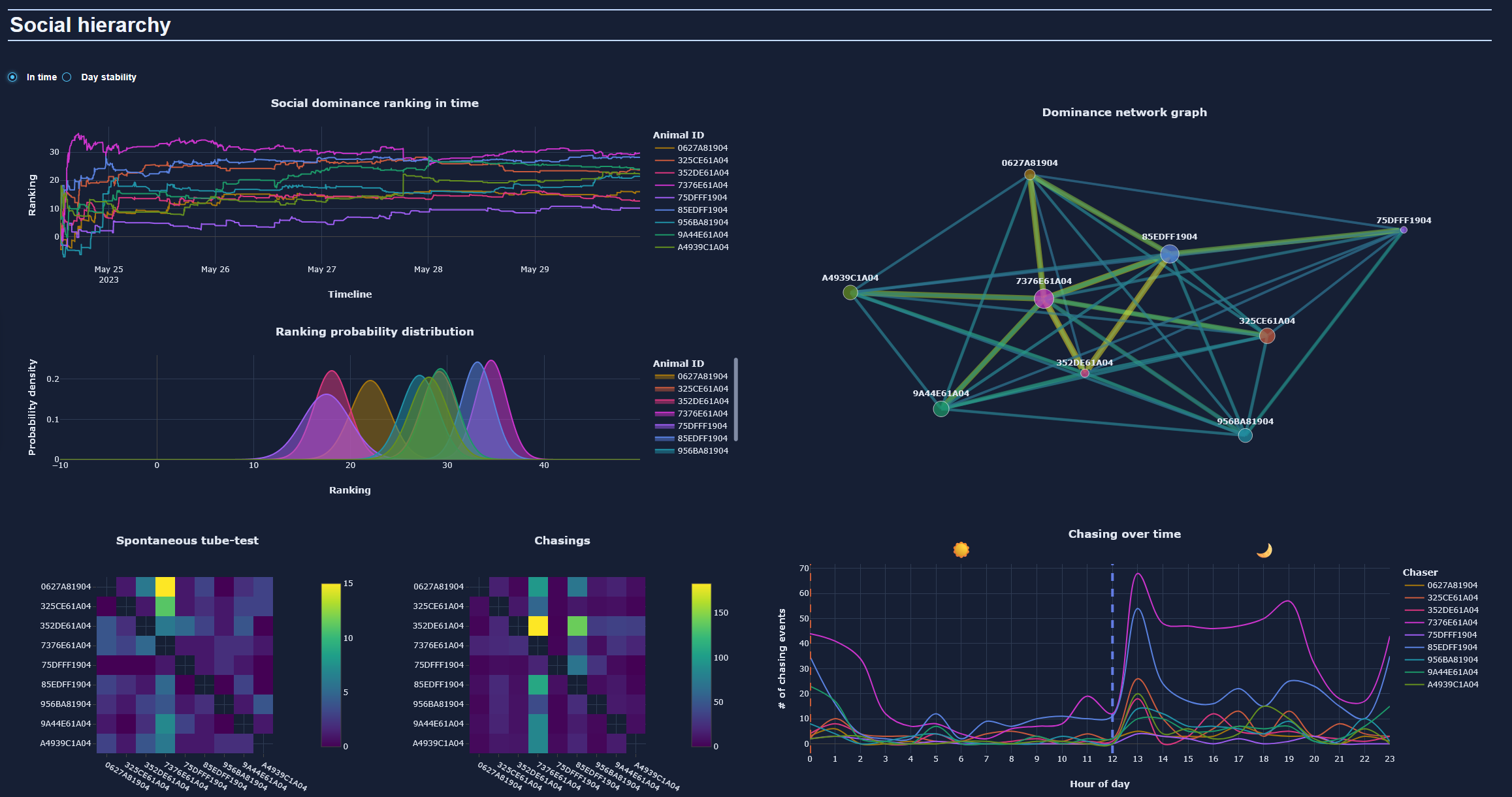

Dashboard

The dashboard contains visualization of the experiment analysis results. It is divided into two tabs: main dashboard tab and a tab for comparisons (when the user wants to compare same plot in different days/phases etc.) and 3 sections:

1. Social hierarchy
2. Activity
3. Sociability

All providing multiple plots controlled via the settings block located on top.

Data structure:

The data is stored in parquet format - an open-source, column-oriented data storage format which allows extremely fast read/write operations of large dataframes.

To get the list of available keys simply call: deepecohab.df_registry.list_available() similarily deepecohab.plot_registry.list_available() can be called to obtain the list of currently available visualizations.

Roadmap

1. Full web-app style GUI, deployable via a docker container.
2. Group analysis - combined analysis of multiple cohort, comparing different groups of cohorts.
3. Pose estimation based analysis of animal interactions and more detailed social structure analysis.
