Delaunay-Watershed 3D

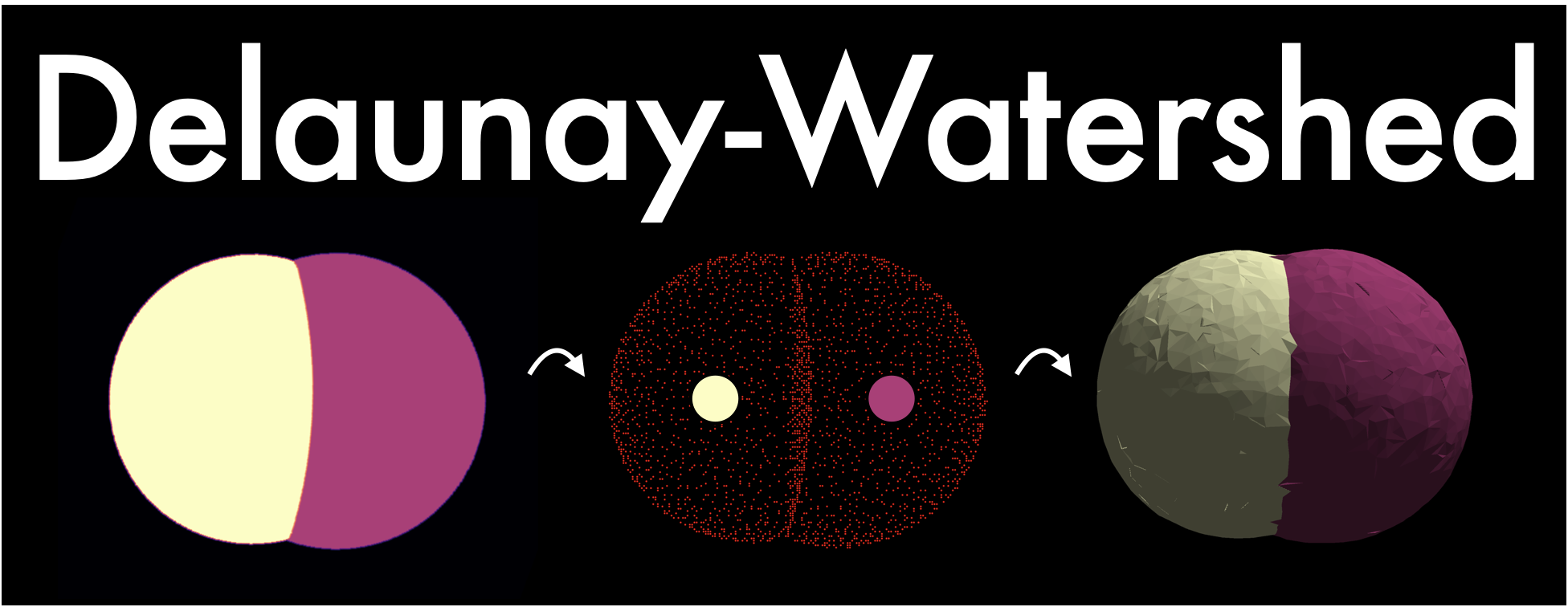

Delaunay-Watershed-3D is an algorithm designed to reconstruct in 3D a sparse surface mesh representation of the geometry of multicellular structures or nuclei from instance segmentations. It accomplishes this by building multimaterial meshes from segmentation masks. These multimaterial meshes are perfectly suited for storage, geometrical analysis, sharing and visualization of data. We provide as well visualization tools based on polyscope.

Delaunay-Watershed was created by Sacha Ichbiah during his PhD in Turlier Lab, and is improved and maintained by Matthieu Perez and Hervé Turlier. For support, please open an issue. If you use this library in your work please cite the article: Ichbiah S., Delbary F., McDougall A., Dumollard R., Turlier H. Embryo mechanics cartography: inference of 3D force atlases from fluorescence microscopy. Nature Methods 20(12), 1989–1999 (2023).

If you are interested in 2D images and meshes, please look at the foambryo-2D package instead.

Introductory notebooks are provided for two examples (cells or nuclei in multicellular aggregates). The algorithm takes as input 3D segmentation masks and returns multimaterial triangle meshes in 3D.

This method is used as a backend for foambryo, our 3D tension and pressure inference Python library.

What's new in 0.5.0

0.5.0 is the first release on PyPI since 0.3.6. In short (the full list is in the CHANGELOG, and what can mislead you is in the release notes):

• Every reconstructed mesh is different: its trijunction vertices are now moved onto the junction curves the mask itself gives. Triangles and labels are unchanged. Set algorithm.relocate_junctions = False to get the 0.4 meshes back exactly.
• The default reconstruction is still the published algorithm (the one 0.3.6 shipped); other reconstruction variants are available opt-in, among them get_link_checked_mesh_reconstruction_algorithm.
• New tools: extract_junction_curves (trijunction curves read from the mask), count_self_intersections, and an optional metadata appendix in .rec/.arec files.
• Old names removed: get_v0_3_algorithm, get_a1b_algorithm, get_a3_a5_algorithm and their get_*_mesh_reconstruction_algorithm aliases.
• New licence, GPL-3.0 (see License), and Python 3.11 or later is required.

Installation

Delaunay-Watershed requires Python 3.11 or later. Tested for 0.5.0 on macOS 14.8.4 on Apple silicon (arm64), with Python 3.12. Other operating systems, and the other supported Python versions (3.11 or later), are expected to work but were not tested for this release.

We recommend to install delaunay-watershed from the PyPI repository directly, in a virtual environment.

pip install delaunay-watershed-3d

If you want to use our visualization tools, install the package with the viewing option:

pip install "delaunay-watershed-3d[viewing]"

For developers, you may also install delaunay-watershed by cloning the source code and installing from the local directory

git clone https://github.com/VirtualEmbryo/delaunay-watershed.git
pip install ./delaunay-watershed

Quick start example

Load an instance segmentation, construct its multimaterial mesh, save it to a file for later, and visualize it:

from dw3d import get_default_mesh_reconstruction_algorithm
from dw3d.viewing import plot_cells_polyscope

# Get a mesh reconstruction algorithm
mesh_reconstruction_algorithm = get_default_mesh_reconstruction_algorithm()

# Load the segmentation image
import skimage.io as io
segmentation_mask = io.imread("data/Images/1.tif")  # in a clone of this repository

# Reconstruct a multimaterial mesh from the mask using the mesh reconstruction algorithm
mesh_reconstruction_algorithm.construct_mesh_from_segmentation_mask(segmentation_mask)

# Save the last constructed mesh
mesh_reconstruction_algorithm.save_to_vtk_mesh("mesh_from_segmentation.vtk", binary_mode=True)
# Plot the last constructed mesh
plot_cells_polyscope(mesh_reconstruction_algorithm)

Geometry can be analyzed later, in foambryo for example.

Reconstruction variants

get_default_mesh_reconstruction_algorithm gives you the default reconstruction: the published algorithm (equivalent to dw3d 0.3.6). It is the more accurate one for downstream tension inference today, so it is what most users should start with.

A revised meshing pipeline is also available, opt-in, as get_link_checked_mesh_reconstruction_algorithm. It is deterministic, protects triple junctions explicitly, and produces cleaner topology and lower interface-area bias than the default — but as measured on foambryo's benchmarking dataset, meshes it produces currently give worse end-to-end tension-inference accuracy than the default, on every inference method tested (see BENCHMARKS.md). Reach for it when mesh geometry and topology matter more to you than today's downstream inference accuracy — for example, when the mesh itself, rather than inferred tensions, is the deliverable:

from dw3d import get_link_checked_mesh_reconstruction_algorithm

mesh_reconstruction_algorithm = get_link_checked_mesh_reconstruction_algorithm()
mesh_reconstruction_algorithm.construct_mesh_from_segmentation_mask(segmentation_mask)

Straightening the junction lines (on by default since 0.5.0)

A reconstructed mesh's trijunction lines are ragged at voxel scale: the extraction places junction vertices wherever the tessellation happens to bracket them. Since 0.5.0 every reconstruction moves them onto the trijunction curves the mask itself gives, as a post-process on the finished mesh:

from dw3d import get_default_mesh_reconstruction_algorithm

algorithm = get_default_mesh_reconstruction_algorithm()
points, triangles, labels = algorithm.construct_mesh_from_segmentation_mask(segmentation_mask)
print(algorithm.relocation_provenance)          # did it run, with which guard, did it warn
print(algorithm.relocation_report.as_dict())    # what it moved

To reproduce the 0.4 meshes, switch it off: algorithm.relocate_junctions = False before reconstructing, or MeshReconstructionAlgorithmFactory().set_junction_relocation(False). At a point-placement min_distance of 5 or more the reconstruction emits dw3d.CoarseSpacingRelocationWarning once: the effect on surface-tangent contact angles there lies within the check's own noise and larger spacings are unmeasured; facet-based angles improve.

It can also be applied to a mesh you already have:

from dw3d import relocate_junction_vertices
from dw3d.io import load_rec

points, triangles, labels = load_rec("mesh.rec")
points, report = relocate_junction_vertices(segmentation_mask, points, triangles, labels)

It moves vertices and nothing else. Triangles and material labels come back untouched, so a treated mesh can be compared vertex-for-vertex with its own untreated original.

What it buys, measured over 40 benchmark cases at four reconstruction spacings and four point samplers: line position error, local tangent error and discrete curvature all improve at every spacing on every sampler, and no existing mesh-validity number changes on any case. If you are using a seed-free sampler (get_deterministic_mesh_reconstruction_algorithm) it also improves contact angles by 2.3–3.5 degrees and downstream tension error by 20–40 %, and brings the junction lines to the default sampler's own untreated accuracy or better. On the default's seeded sampler the lines improve and the contact angles do not move significantly. See BENCHMARKS.md (measured before relocation became the default).

What it costs: about +0.75 s on the benchmark meshes, whose reconstruction takes about 5 s (+15 %); 0.1–1.5 s per timepoint on real embryo volumes, whose reconstruction takes about 0.6 s (median 0.34 s and 0.48 s on two time series). Within one real series it grows faster than linearly with mesh size (fitted exponent 2.68 over a 2.2-fold range — not a tissue-scale law). A faster neighbour search is planned for 0.5.1.

It cannot make the mesh pass through itself. Every accepted move is checked against the whole mesh, not only the triangles around the vertex it moves, so the number of self-intersecting triangle pairs can never rise. That check is available on its own as dw3d.count_self_intersections(points, triangles).

.rec / .arec metadata appendix

save_rec/load_rec (dw3d.io) read and write .rec/.arec multimaterial mesh files (points, triangles, and per-triangle material labels; text or binary). Optionally, a .rec/.arec file can carry a small metadata appendix: pass metadata={...} to save_rec, and read it back with load_rec_appendix(filename).

The appendix is a trailing block of ASCII # key = value lines, written after the geometry data — never before it, because every existing reader (this one included) reads a count and then exactly that many values, so a trailing block is invisible to them, while a leading one breaks parsing outright. Fields:

# rec-appendix 1
# written_by = dw3d <version>
# coordinate_frame = voxel_index
# axis_order = zyx
# spacing = 1.0 0.325 0.325
# spacing_unit = um
# source_shape = 194 200 199
# crop_offset = 0 0 0

• coordinate_frame is voxel_index, physical, or unknown — this is the field the appendix exists for, since spacing alone can't tell a reader whether coordinates are raw voxel indices awaiting a scale or physical units that already have it applied.
• axis_order, spacing/spacing_unit, source_shape and crop_offset record the rest of the sampling geometry, crop_offset even when zero (it is what will later let a reader distinguish a physical exterior boundary from a crop boundary).
• A file with no appendix must be treated as coordinate_frame == "unknown", never as isotropic spacing — load_rec_appendix returns None in that case, and every file saved before this feature existed has no appendix.

For more examples and documentation, see the notebooks:

• Mesh reconstruction and visualization,
• Mask compression and reconstruction.

There is also an advanced notebook if you want to tinker with the algorithm: Advanced use.

Biological examples

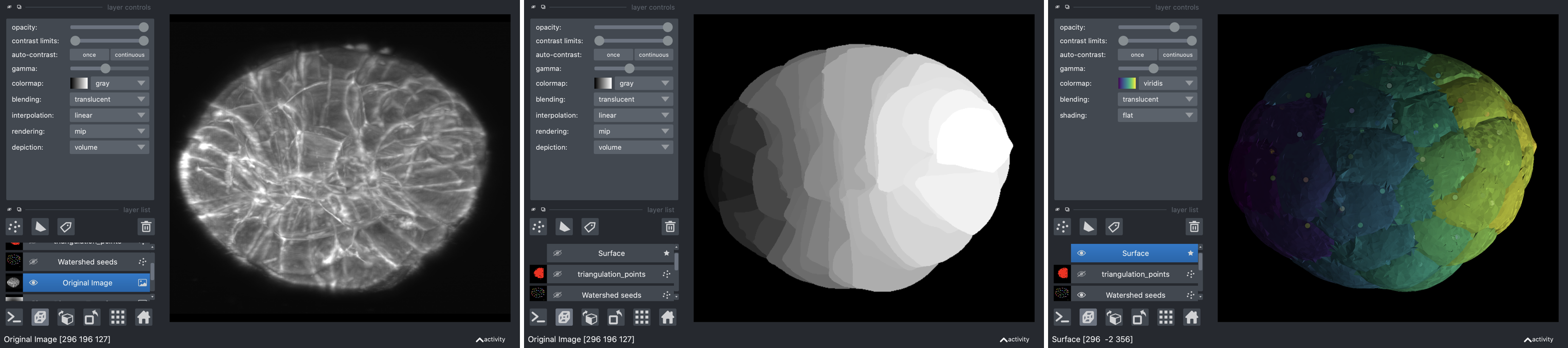

Geometrical reconstruction of cell interfaces in the P. mammillata embryo

See the notebook on mesh reconstruction and visualization.

Segmentation masks from Guignard et al.

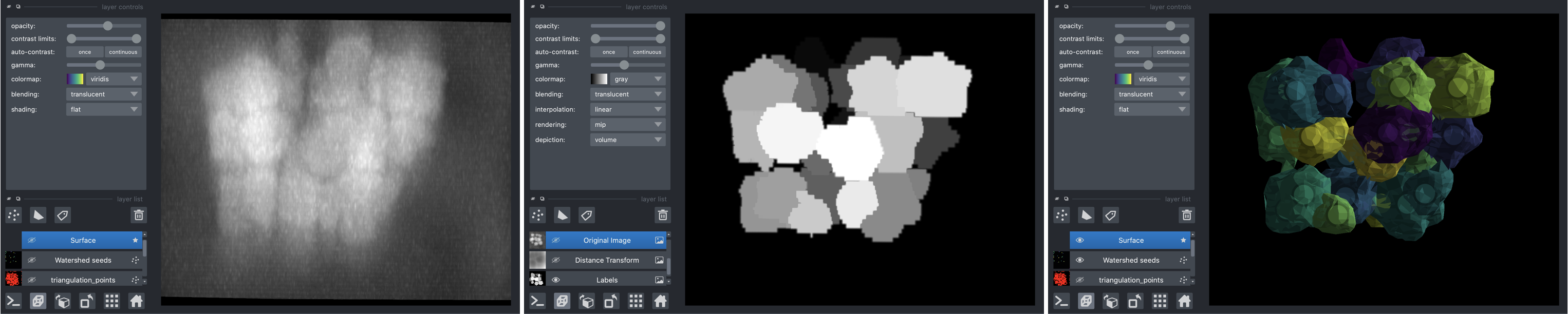

Geometrical reconstruction of cell nuclei

See the notebook on mask compression and reconstruction.

Segmentation masks from Stardist

Repository layout

The project's development record (working notes, exploratory scripts and their results) is kept in the development repository for provenance and is not part of this distribution: pip install does not ship it, and nothing under dw3d imports from it.

Credits, contact, citations

If you use this tool, please cite the associated article: Ichbiah S., Delbary F., McDougall A., Dumollard R., Turlier H. Embryo mechanics cartography: inference of 3D force atlases from fluorescence microscopy. Nature Methods 20(12), 1989–1999 (2023), doi:10.1038/s41592-023-02084-7. Do not hesitate to contact Matthieu Perez and Hervé Turlier for practical questions and applications. We hope that Delaunay-Watershed could help biologists and physicists to shed light on the mechanical aspects of early development.

@article{Ichbiah2023,
  author    = {Ichbiah, Sacha and Delbary, Fabrice and McDougall, Alex and Dumollard, R{\'e}mi and Turlier, Herv{\'e}},
  title     = {Embryo mechanics cartography: inference of {3D} force atlases from fluorescence microscopy},
  journal   = {Nature Methods},
  volume    = {20},
  number    = {12},
  pages     = {1989--1999},
  year      = {2023},
  month     = dec,
  publisher = {Springer Science and Business Media LLC},
  issn      = {1548-7105},
  doi       = {10.1038/s41592-023-02084-7},
  url       = {https://doi.org/10.1038/s41592-023-02084-7}
}

License

From version 0.5.0 this work is licensed under the GNU General Public License, version 3 of the License, or (at your option) any later version (SPDX GPL-3.0-or-later); the text of version 3 is in License. Earlier releases keep the licence they were published under (CC BY-NC-SA 4.0).
