dgxarley 0.0.52

Integration testing, streaming utilities, and repetition detection for distributed LLM inference on DGX Spark clusters

dgxarley

Tooling for the DGX Arley K3s inference cluster — integration tests, streaming utilities, and CLI entry points for SGLang, Ollama, and OpenWebUI services.

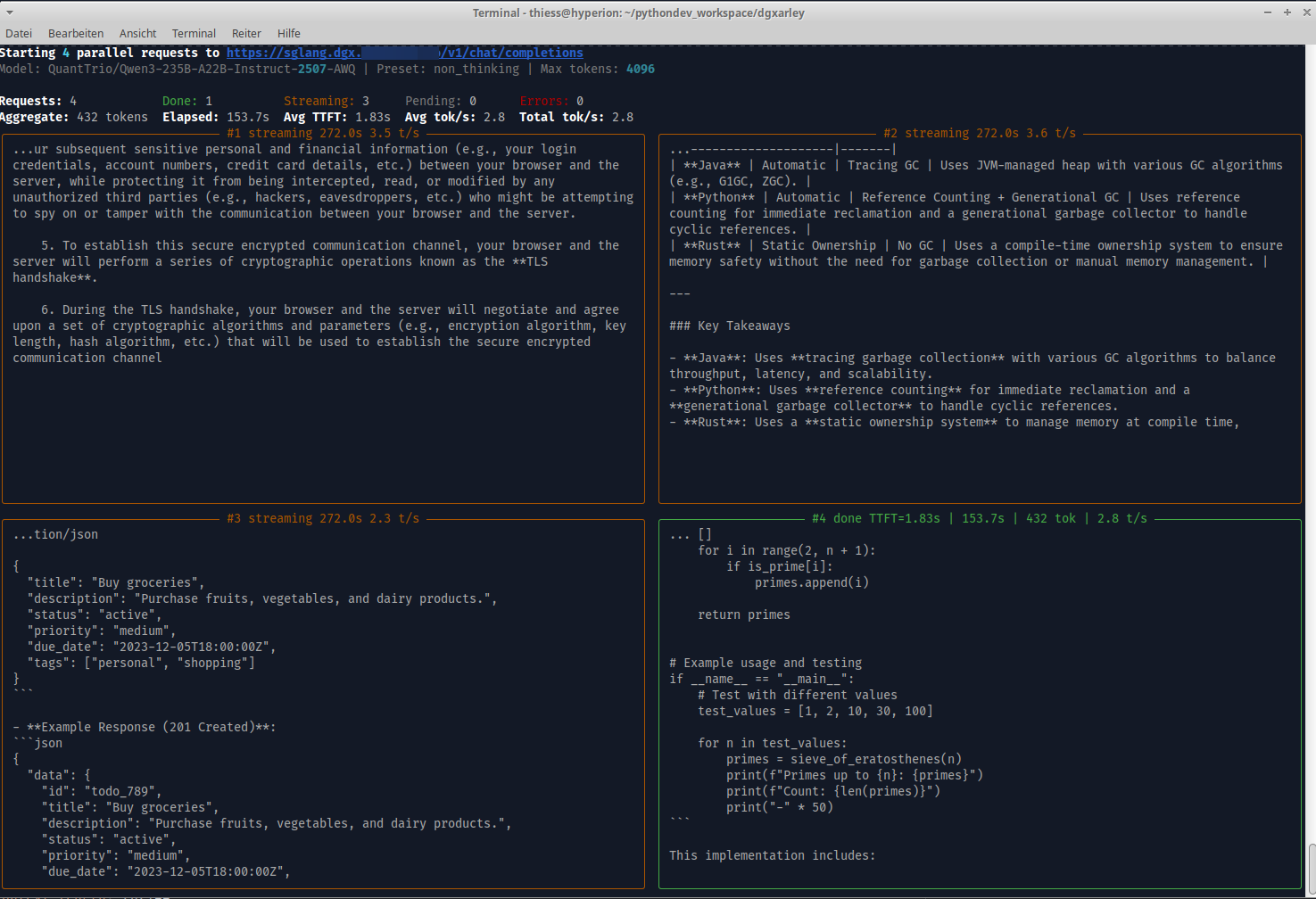

Heureka! — Qwen3-235B-A22B MoE (AWQ 4-bit) running distributed inference across both DGX Sparks:

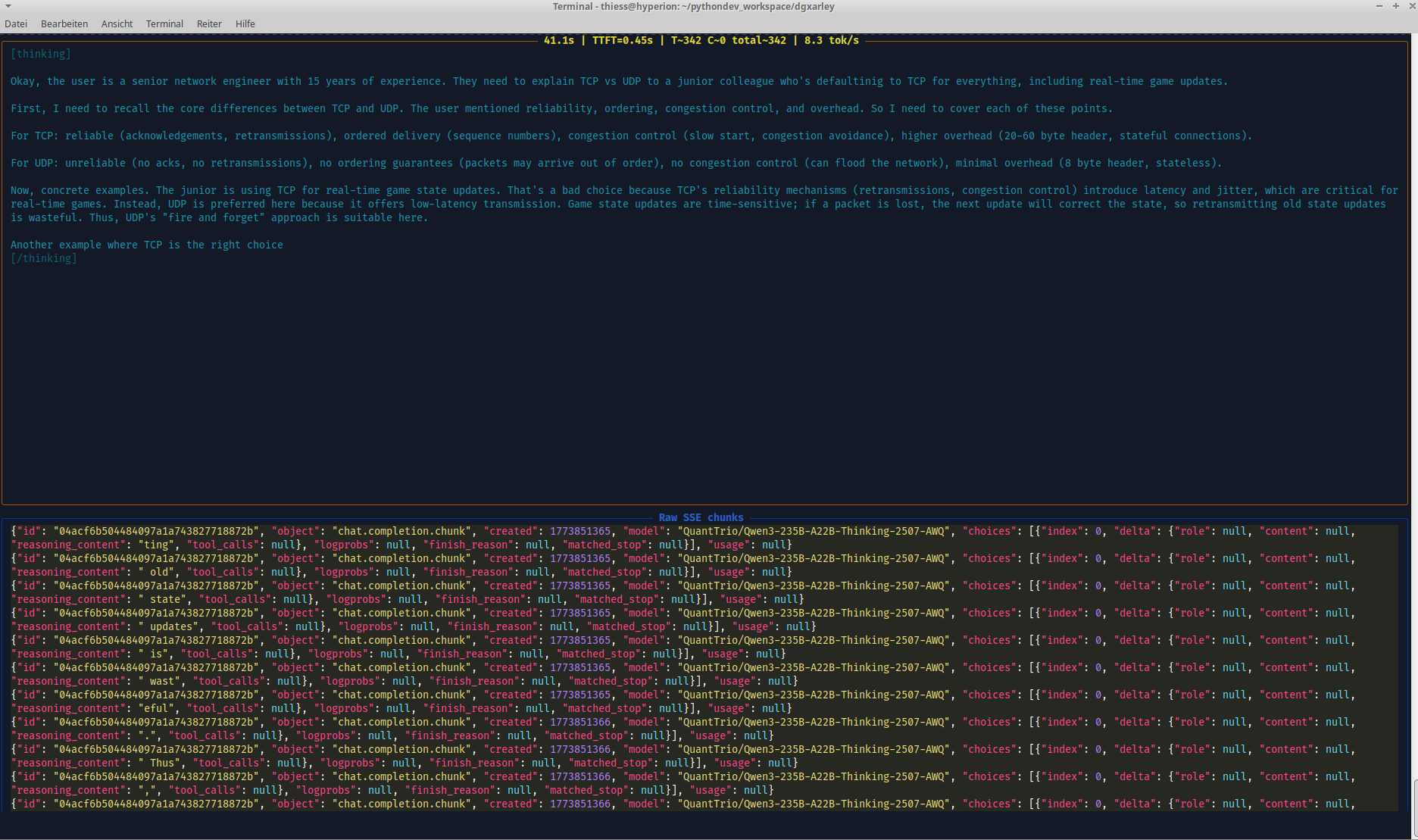

sglang-raw — Dual-panel SSE stream viewer

Dual-panel Rich TUI for inspecting SGLang's OpenAI-compatible streaming API in real time. The top half renders the AI response as it arrives, while the bottom half displays the raw JSON SSE stream chunks — showing fields like chat_completion_chunk, choices, delta, finish_reason, and model. Useful for debugging streaming behaviour, verifying token delivery, and understanding the wire format of the API.

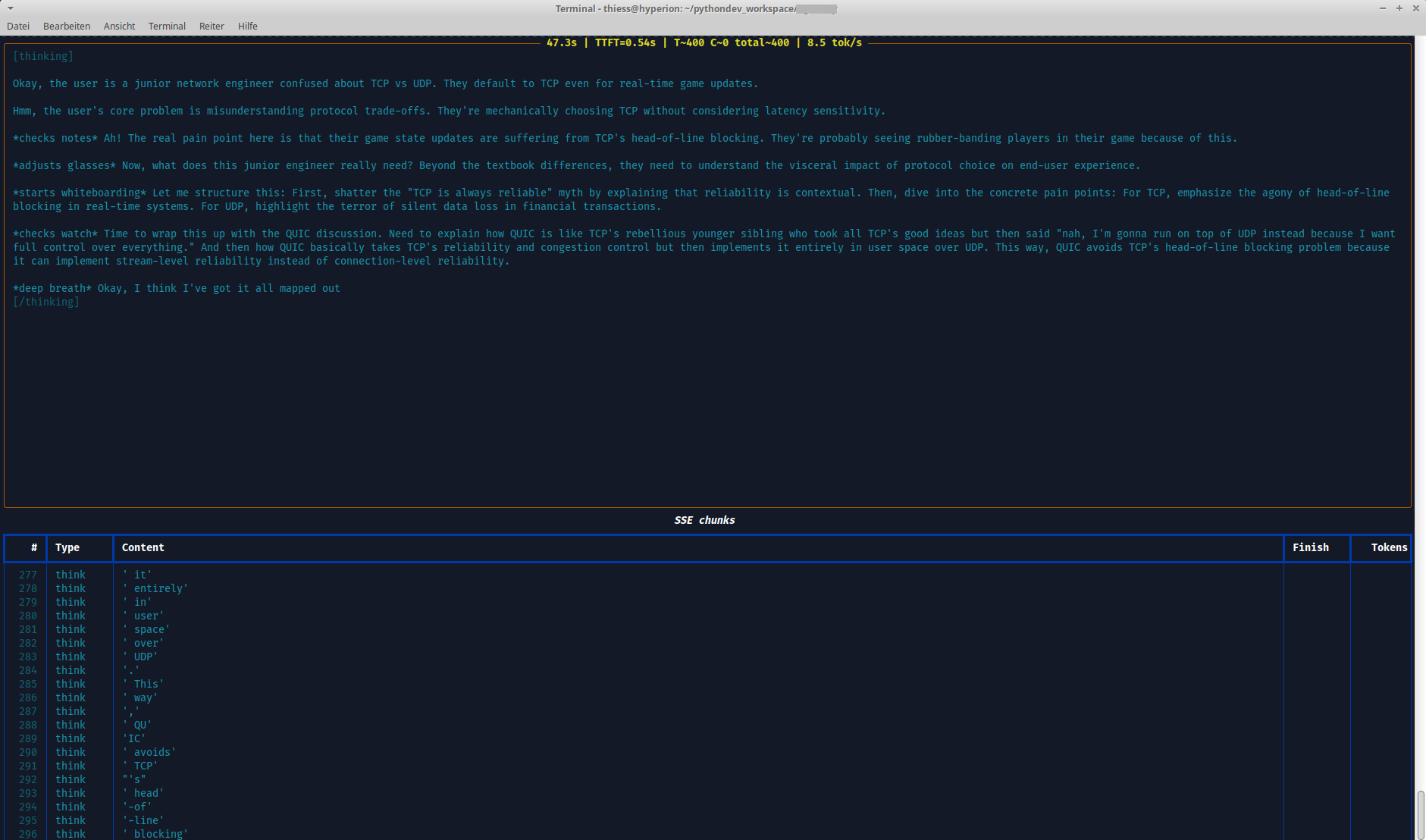

sglang-raw — Think/text token classification

Token-level stream inspection with per-chunk breakdown in a structured table. Columns show the token type (think vs text), content, finish reason, and cumulative token count — visualizing how reasoning tokens (from <think>...</think> blocks) are separated from the actual output tokens. This view helps when tuning thinking budgets, verifying reasoning_parser behaviour, or diagnosing unexpected token classification.

What's included

CLI tools

Command	Description
sglang-raw	Interactive SSE stream viewer with dual-panel Rich display (interpreted output + raw JSON chunks)
sglang-test	Direct SGLang client with sequential and parallel load testing (live Rich TUI)
sglang-bench	Benchmark launcher for SGLang with persistent dataset caching and concurrency-sweep mode
openwebui-test	OpenWebUI / LLM client with preset management and streaming
ollama-test	Ollama API health, model, embedding, and chat completions tests
comfyui-test	ComfyUI integration tests for the local image-generation playground
kceve-kvm	RS232 serial control for KCEVE KVM1001A KVM switches — 4-port and 10-port variants, --ports/KCEVE_KVM_PORTS (switch ports, query state, sniff)
kceve-kvm-web	Web UI for KCEVE KVM control (FastAPI, requires dgxarley[web])
kceve-kvm-web-plain	Lightweight web UI for KCEVE KVM control (stdlib http.server, no extra dependencies)
keel-drift	Finds Keel-tracked K8s workloads whose running image lags behind its tag (requires dgxarley[k3s])
k3s-keys-sync	Syncs the local ~/.kube/config with the kubeconfig of a remote K3s server

keel-drift — Keel drift check

On every poll, Keel compares the registry digest of right now against the digest it memorised during the previous poll. That memo lives in memory only and is seeded from the registry at startup, so what actually runs in the cluster never enters Keel's decision: if a tag is moved while Keel restarts, Keel sets its baseline to the new digest without ever touching the Deployment, and the change stays invisible until the next push.

keel-drift performs exactly the comparison Keel does not — the digest of the running pod against the digest the tag currently points at — across every Deployment, StatefulSet and DaemonSet carrying an active keel.sh/policy, containers and initContainers alike. Since initContainer tracking is opt-in in Keel (keel.sh/initContainers: "true"), a stale one that Keel would never touch is called out explicitly. It resolves multi-arch tags on both the index and the per-platform level, authenticates with the workload's imagePullSecrets (falling back to the local Docker login so Docker Hub does not count against the anonymous 100/h per-IP limit), and flags containers where imagePullPolicy != Always, since a restart cannot renew an unchanged tag there. It also separates index drift from image drift: a running digest that is an older index over the same platform manifests counts as current, so a re-pushed index shell is not misreported as a stale image.

pip install 'dgxarley[k3s]'

keel-drift                          # every tracked workload
keel-drift --context ht@dgxarley    # a specific kubeconfig context
keel-drift --namespace somestuff    # a single namespace
keel-drift --drift-only --quiet     # drift only, terse
keel-drift --fix-command            # print rollout-restart commands

The table goes to stdout and progress to stderr, so the output stays pipe-friendly. It checks the current kubeconfig context unless --context (or KUBE_CONTEXT) names another one; with an explicit context there is no in-cluster fallback, and the printed fix commands carry the same --context. The exit code is 1 as soon as at least one workload is stale (2 if the context could not be loaded), which makes it usable as a pipeline gate.

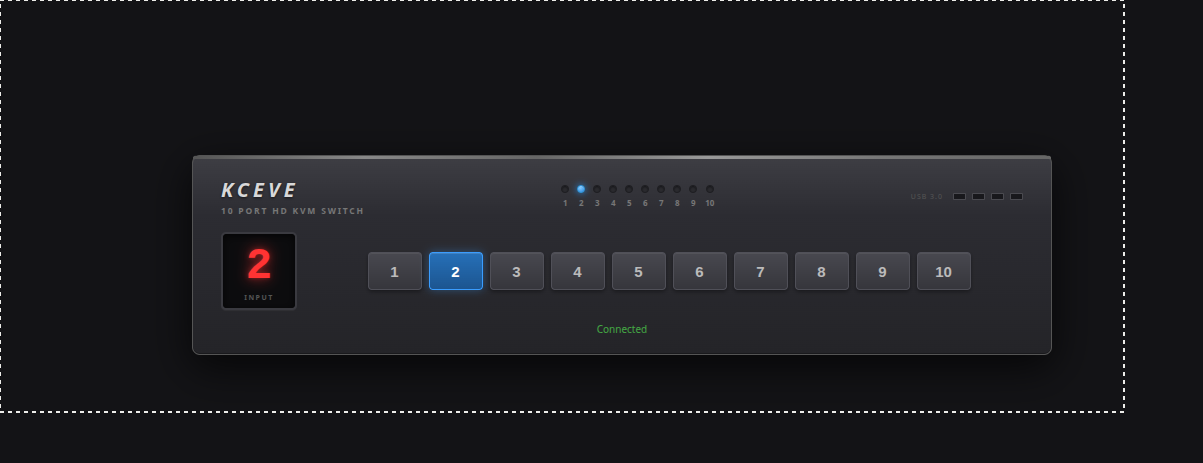

kceve-kvm-web — KCEVE KVM1001A Web UI

Browser-based control panel for the KCEVE KVM1001A KVM switch via RS232 serial. Shows the currently active input port on a virtual 7-segment display and allows switching between inputs with a single click. The port count defaults to 10 and is selectable for the 4-port variant via -n/--ports (or the KCEVE_KVM_PORTS env var). Commands are sent over a USB-to-RS232 adapter at 115200 baud using the X<channel>,1$ ASCII protocol.

Demo video

Remote test setup (serial over SSH tunnel)

If the KVM is connected to a remote host, you can tunnel the serial port via TCP:

# 1. On k3smaster (where the USB-RS232 adapter is connected): expose serial as TCP server
root@k3smaster ~ # socat tcp-listen:7000,reuseaddr,fork /dev/ttyACM0,b115200,raw,echo=0

# 2. On workstation: SSH tunnel to remote TCP port
user@workstation ~ $ ssh -N -L 7000:127.0.0.1:7000 root@k3smaster &

# 3. On workstation: create local PTY from TCP tunnel
user@workstation ~ $ socat pty,link=/tmp/kvm-serial,raw,echo=0 tcp:127.0.0.1:7000 &

# 4. On workstation: start web UI on the local PTY
user@workstation ~ $ kceve-kvm-web -d /tmp/kvm-serial -p 8080

Then open http://localhost:8080 in a browser.

Libraries

Module	Description
dgxarley.integration.repetition_detector	Offline n-gram, sentence, and loop repetition analysis for completed LLM outputs
dgxarley.integration.streaming_repetition_guard	Real-time repetition detection for token streams with configurable thresholds

Installation

pip install dgxarley

Some CLIs need optional dependencies:

Extra	Installs	Needed for
k3s	kubernetes, typer	keel-drift
web	fastapi, uvicorn[standard]	kceve-kvm-web
sglang-bench	sglang, transformers, pybase64, typer	sglang-bench

pip install 'dgxarley[k3s]'

Everything else — sglang-raw, sglang-test, openwebui-test, ollama-test, comfyui-test, kceve-kvm, kceve-kvm-web-plain, k3s-keys-sync and both libraries — runs on the base install.

Quick start

from dgxarley.integration.repetition_detector import detect_repetition

report = detect_repetition(llm_output)
print(report.summary())
# [LOW] score=0.12 — N-Gram 'this is a test' x2

from dgxarley.integration.streaming_repetition_guard import RepetitionGuard

guard = RepetitionGuard()
for chunk in llm_stream:
    token = chunk.choices[0].delta.content or ""
    result = guard.feed(token)
    if result.should_stop:
        print(f"STOP: {result.reason}")
        break

Requirements

• Python >= 3.14

Source & documentation

Full documentation, network architecture, and Ansible playbooks: GitHub

License

This project is licensed under the LGPL where applicable/possible — see LICENSE.md. Some files/parts may use other licenses: MIT | GPL | LGPL. Always check per‑file headers/comments.

Authors

• Repo owner (primary author)
• Additional attributions are noted inline in code comments

Acknowledgments

• Inspirations and snippets are referenced in code comments where appropriate.
