Diagram as Code.

Diagrams lets you draw the cloud system architecture in Python code. It was born for prototyping a new system architecture design without any design tools. You can also describe or visualize the existing system architecture as well. Diagrams currently supports main major providers including: AWS, Azure, GCP, Kubernetes, Alibaba Cloud, Oracle Cloud etc... It also supports On-Premise nodes, SaaS and major Programming frameworks and languages.

Diagram as Code also allows you to track the architecture diagram changes in any version control system.

NOTE: It does not control any actual cloud resources nor does it generate cloud formation or terraform code. It is just for drawing the cloud system architecture diagrams.

Providers

aws provider azure provider gcp provider ibm provider kubernetes provider alibaba cloud provider oracle cloud provider openstack provider firebase provider digital ocean provider elastic provider outscale provider on premise provider generic provider programming provider saas provider c4 provider

Getting Started

It requires Python 3.7 or higher, check your Python version first.

It uses Graphviz to render the diagram, so you need to install Graphviz to use diagrams. After installing graphviz (or already have it), install the diagrams.

macOS users can download the Graphviz via brew install graphviz if you're using Homebrew.

# using pip (pip3)
$ pip install diagrams

# using pipenv
$ pipenv install diagrams

# using poetry
$ poetry add diagrams

You can start with quick start. Check out guides for more details, and you can find all available nodes list in here.

Examples

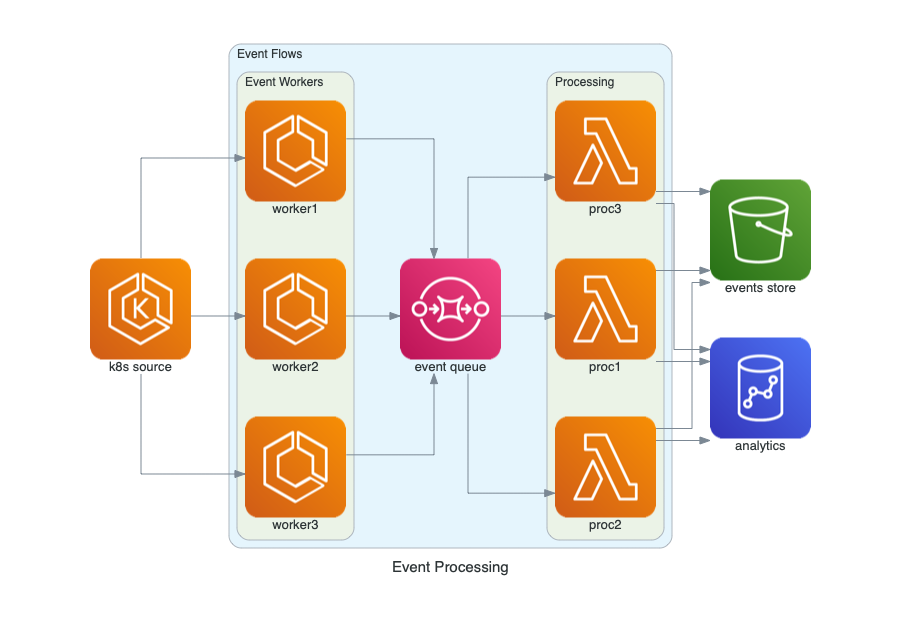

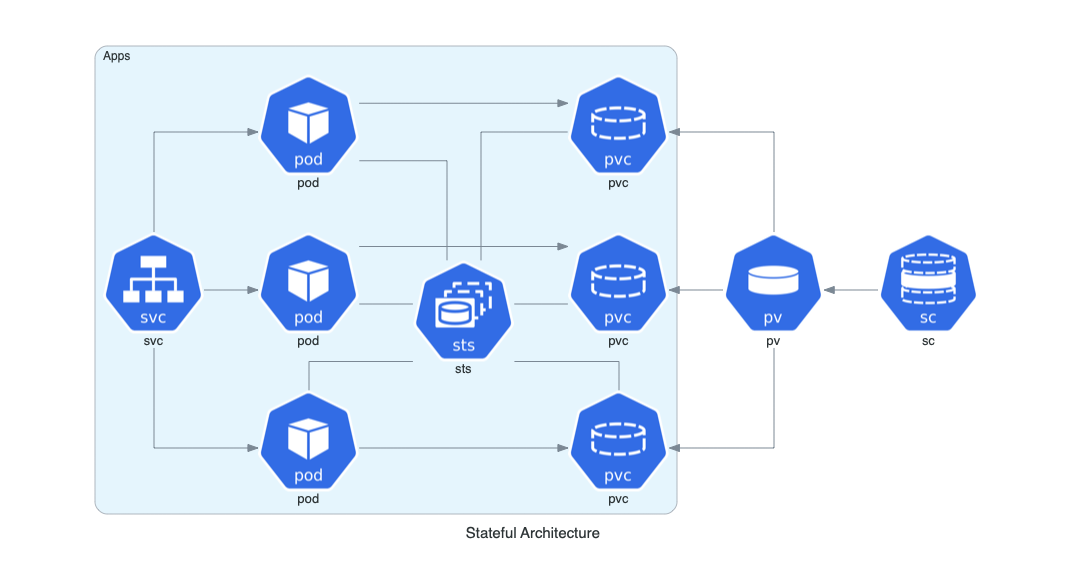

Event Processing Stateful Architecture Advanced Web Service

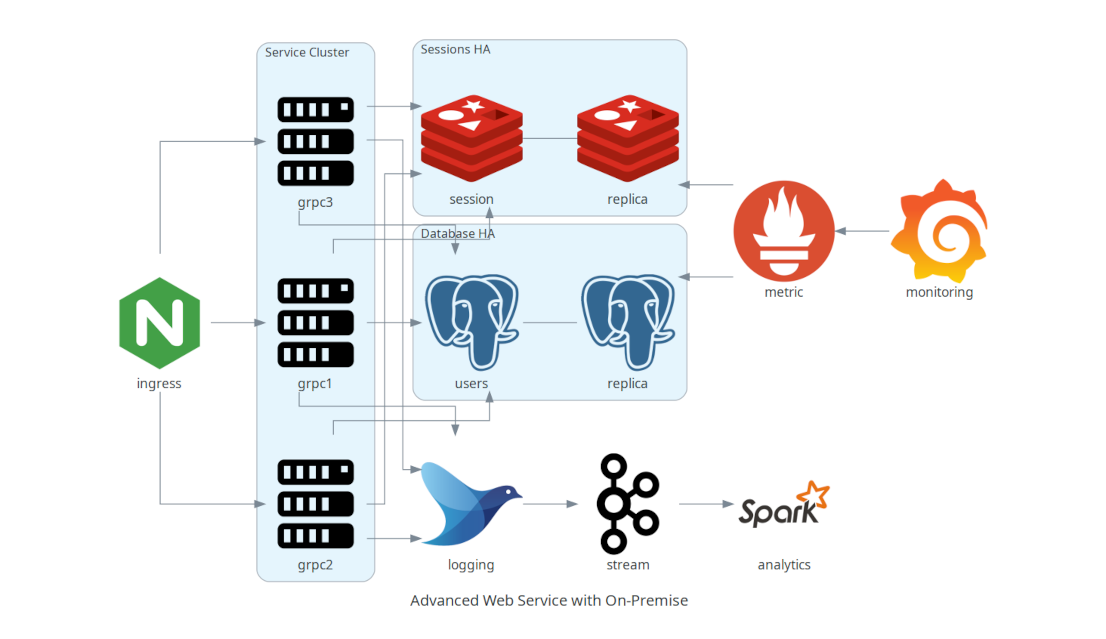

event processing stateful architecture advanced web service with on-premise

You can find all the examples on the examples page.

Contributing

To contribute to diagram, check out contribution guidelines.

Let me know if you are using diagrams! I'll add you in showcase page. (I'm working on it!) :)

Who uses it?

GitPitch is the perfect slide deck solution for Tech Conferences, Training, Developer Advocates, and Educators. Diagrams is now available as a dedicated Cloud Diagram Markdown Widget so you can use Diagrams directly on any slide for conferences, meetups, and training.

Cloudiscovery helps you to analyze resources in your cloud (AWS/GCP/Azure/Alibaba/IBM) account. It allows you to create a diagram of analyzed cloud resource map based on this Diagrams library, so you can draw your existing cloud infrastructure with Cloudiscovery.
