diffct

English · 简体中文

Differentiable CUDA projectors for CT: arbitrary trajectories, multi-GPU, multi-node, geometry gradients.

Intro video (MP4) · Technical report · DOI

Install · Quickstart · Features · Performance · Examples · Citation

Version 2.0 replaces the circular-orbit API of 1.x with per-view trajectories. Code written for 1.x needs changes; see the migration notes. For Apple Silicon, use the MLX port by Linda-Sophie Schneider.

Why diffct

To our knowledge, diffct is the only open-source GPU CT library that combines arbitrary per-view trajectories, autograd through the volume, first-order gradients through the acquisition geometry, and built-in multi-GPU and multi-node execution. We compared it with LEAP, TIGRE, ASTRA/tomosipo, DiffDRR and others in October 2026.

• Arbitrary trajectories. Each view has its own source, detector centre and detector axes. Circular, helical, saddle, sinusoidal, random and calibrated scans use the same code. Trajectory tensors with requires_grad=True receive geometry gradients for calibration.
• Curved detectors. ParameterizedSurface defines native arc, cylindrical or arbitrary pixels from global coordinates and explicit parameters, sampled in bounded view/pixel batches. Legacy detector_surface(u, v) callbacks remain available. Projection and matched backprojection support first-order surface gradients. See the surface API.
• Matched operators. project() and backproject() form an exact adjoint pair for the cell-constant Siddon model. Both support PyTorch autograd, with volume/sinogram gradients and Hessian-vector products.
• Large volumes. Automatic spatial, view and pixel blocks with bounded transfer buffers control working memory. project_into/backproject_into accept caller-owned tensor or disk stores; tensor autograd keeps complete data on its input device. See chunked execution.
• Multi-GPU and multi-node. Use devices=[0, 1, 2, 3] in one process, or torchrun and NCCL across ranks. Views, space and hybrid partitions control replication of volumes and projections. Speedup depends on workload and communication costs.
• Precision and training. Explicit native/PyTorch backends, FP32/FP64 modes, per-axis voxel spacing, leading batch/channel dimensions and data torch.func transforms. The portable path supports CPU and PyTorch CUDA/ROCm devices; see execution contracts and validation limits.
• Solver API. cgls, sirt and tv_reconstruction report residual history, tolerances and callbacks, with scan/data fingerprints and complete checkpoint state. cgls_into keeps state in bounded mapped blocks.
• Differentiable FBP and FDK. fbp, fdk and approximate helical_fdk compose the public filters, weights and analytical backprojectors. Their backward kernels transpose the actual interpolation stencil; custom filters and weights can be learned. See the analytical guide.

Capabilities, limits and isocenter rules: docs/REFERENCE.md.

Install

For the native path, install NVIDIA CUDA PyTorch first, then diffct with the matching CUDA major extra:

pip install "diffct[cu12]"    # PyTorch built for CUDA 12
pip install "diffct[cu13]"    # PyTorch built for CUDA 13

The extra installs the CUDA compiler libraries Numba needs. For CPU or PyTorch ROCm execution, install the appropriate PyTorch build and plain pip install diffct, then select backend="torch". Importing diffct and using this backend require no CUDA runtime; Numba CUDA initializes when native execution is used. Plain installation also works for native execution when a compatible CUDA Toolkit is already present.

From source, with the examples:

git clone https://github.com/sypsyp97/diffct.git
cd diffct && pip install -e ".[cu12]"
python examples/quickstart.py               # smoke test: prints adjoint mismatch ~1e-8 for each beam

Quickstart

Create the acquisition once. Then call project() and backproject().

import torch
from diffct import Projector, spiral_trajectory_3d

trajectory = spiral_trajectory_3d(360, sid=320.0, sdd=512.0, z_range=40.0, n_turns=1.0, device="cpu")
A = Projector(trajectory, volume_shape=(128, 128, 128), detector_shape=(384, 256), detector_spacing=0.8)

volume = torch.rand(A.volume_shape, device="cuda")
sinogram = A.project(volume)        # (360, 384, 256) line integrals
adjoint = A.backproject(sinogram)   # matched adjoint A^T

x = torch.zeros_like(volume, requires_grad=True)
loss = 0.5 * (A.project(x) - sinogram).square().sum()
loss.backward()                     # x.grad = A^T (A x - y)

Custom or calibrated trajectories. Pass calibrated tensors directly instead of a generator; no circular fit is needed. See REFERENCE.

Geometry gradients. Set requires_grad=True on trajectory tensors before you build Projector. See REFERENCE.

Several GPUs and nodes. See REFERENCE and DISTRIBUTED.md.

A = Projector(trajectory, (128, 128, 128), (384, 256), detector_spacing=0.8, devices=[0, 1, 2, 3])

Volumes larger than GPU memory. Keep the arrays on CPU. The same calls use CUDA tiles automatically; CUDA inputs retain the full-volume path when its estimated working set fits. Explicit limits are optional:

A = Projector(trajectory, (128, 128, 128), (384, 256), detector_spacing=0.8)
volume = torch.ones(A.volume_shape, device="cpu", requires_grad=True)
sinogram = A.project(volume)                 # CPU output, CUDA computation
sinogram.square().mean().backward()          # CPU volume.grad
# Optional: volume_chunk_shape=(32, 64, 64), view_chunk_size=16

Run python examples/chunked_reconstruction.py for CPU-backed CGLS and measured CUDA allocation. Chunking preserves the Siddon model, with float32 summation differences; smaller blocks can increase transfer and launch overhead. Full tensor arrays and iterative state still need enough host RAM. For disk-backed state and sharded checkpoints, run python examples/disk_reconstruction.py --output disk-run; for fixed rank-local volume slabs use --partition space under torchrun. Run python examples/benchmark_execution.py to compare schedules and copy payloads.

Performance

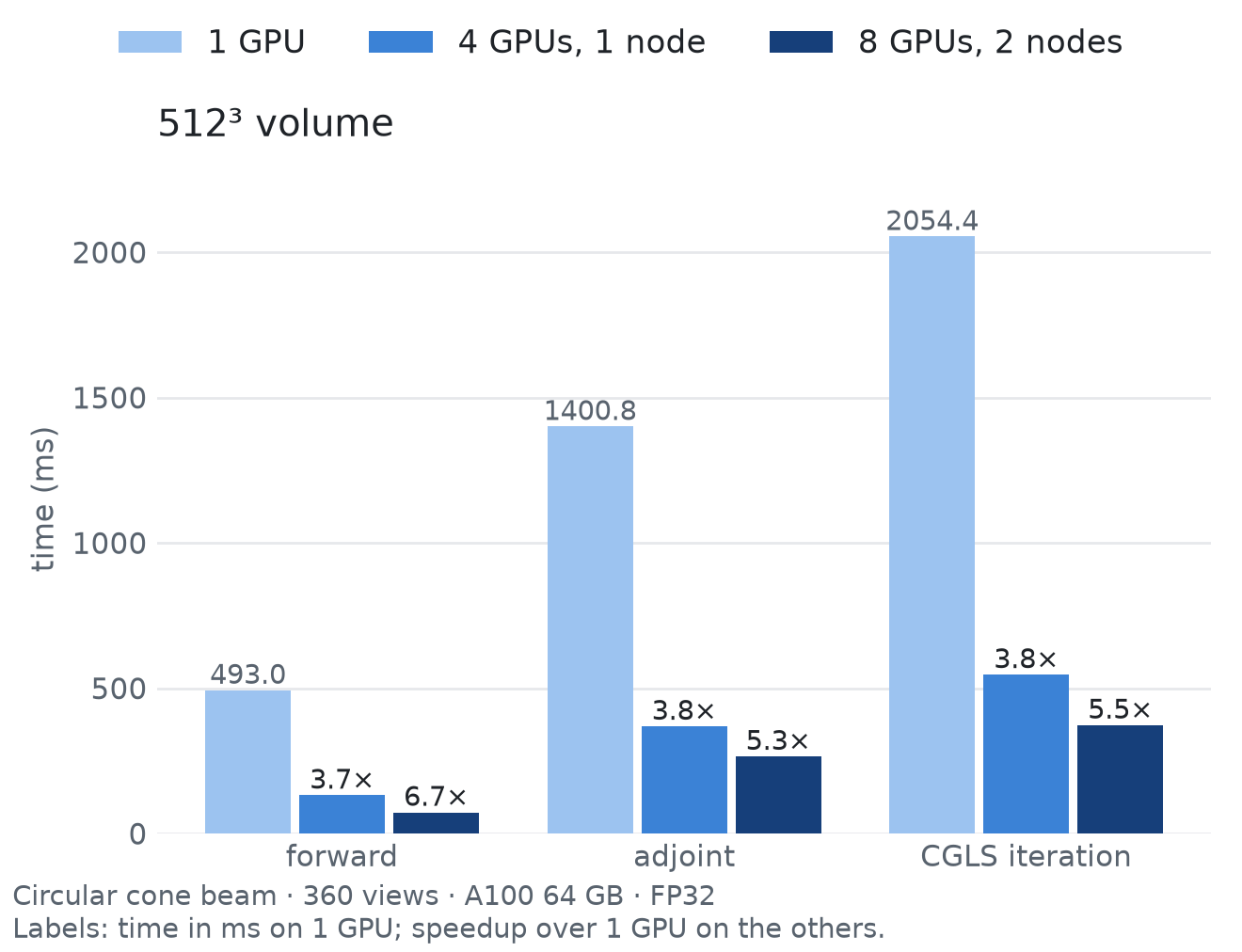

diffct 2.2.0, FP32, A100 64 GB GPUs; circular cone beam, 360 views, 1024×768 detector, pitch 1.25. Default memory settings, without an imposed allocator cap.

Projection times are medians of seven samples after three warmups. CGLS uses three ten-iteration solves after a two-iteration warmup; the median includes initialization and is divided by ten. Timings use synchronized wall time and the slowest rank. Raw samples and configuration: scaling.json.

Run the same workload:

python examples/benchmark_scaling.py --output one.json
torchrun --standalone --nproc-per-node=4 examples/benchmark_scaling.py --expected-nodes 1 --output four.json

Gallery

TV denotes TV-regularized iterative reconstruction; Adam is the optimizer. Figure labels distinguish the method from its optimizer.

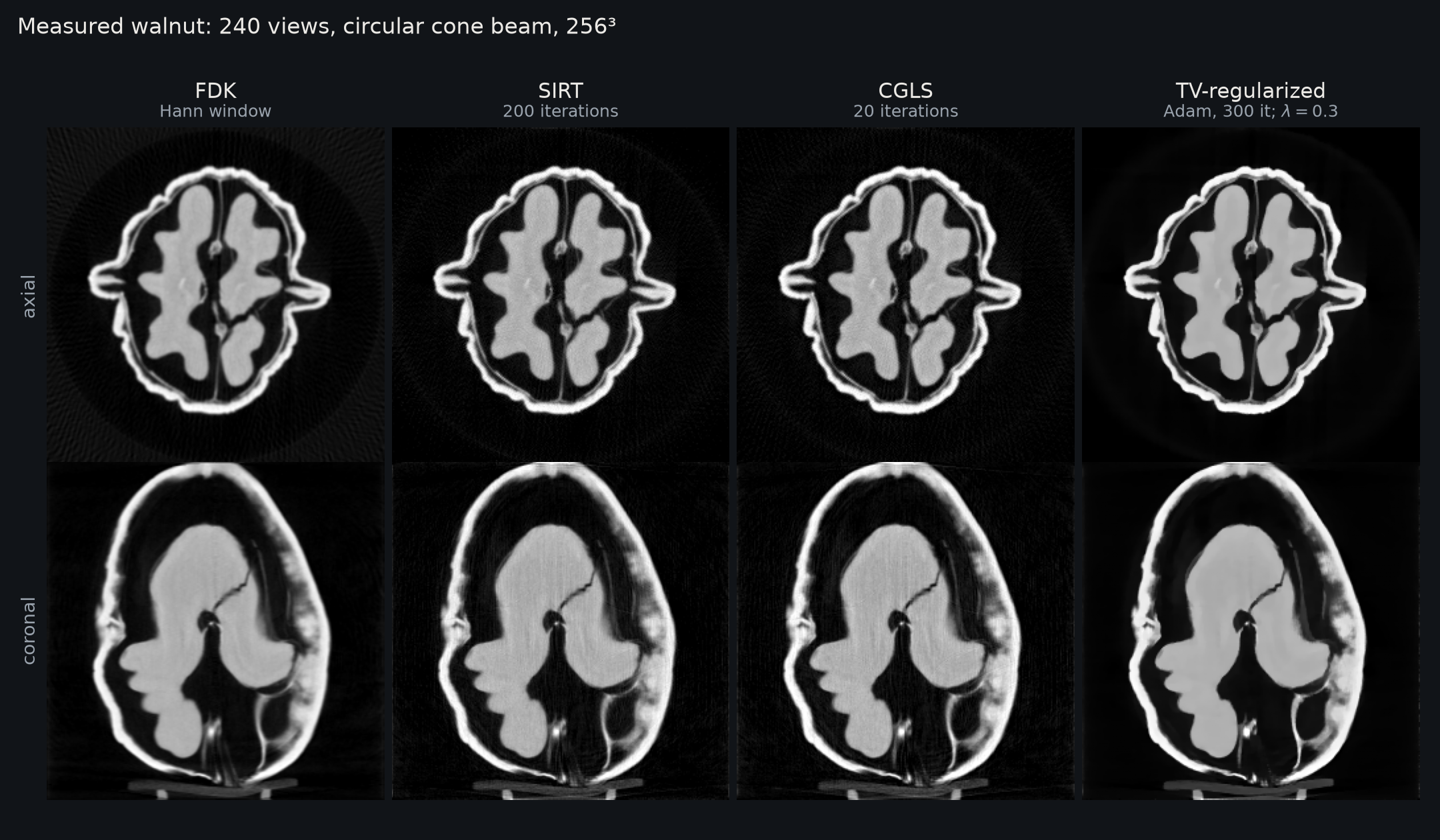

Measured walnut. 240 measured views, circular cone beam, 256³: FDK (Hann window), SIRT (200 iterations), CGLS (20), TV (300, weight 0.3); axial and coronal centre slices.

python examples/walnut_reconstruction.py --figure out.png

Simulated helical scan of the walnut. The FDK walnut volume as ground truth, 720 views, 1% noise, 256³. PSNR: FDK 26.67 dB, CGLS (30 iterations) 34.13 dB, SIRT (200) 34.52 dB, TV (200, weight 1.0) 37.77 dB.

python examples/walnut_reconstruction.py --algorithms --save-volume walnut256.npy
python examples/iterative_reconstruction.py --size 256 --views 720 --trajectory helical --noise 0.01 --phantom walnut256.npy --figure out.png

Walnut data: Meaney 2022, Zenodo 6986012, CC BY 4.0; see examples/data/NOTICE.

Examples

quickstart.py, curved_detector.py, chunked_reconstruction.py, disk_reconstruction.py, benchmark_execution.py, analytical_reconstruction.py, learnable_reconstruction.py, helical_fdk.py, iterative_reconstruction.py, walnut_reconstruction.py, geometry_calibration.py, benchmark_projector.py, benchmark_scaling.py, plot_trajectory.py, and the Slurm template slurm/multi_node.sbatch. Launch modes and distributed-loss rules are in examples/README.md.

Documentation

Run the test suite on a CUDA host with python -m pytest tests/ -q.

Citation

If you use this library in your research, please cite the software and the technical report:

@software{diffct2025,
  author    = {Yipeng Sun},
  title     = {diffct: Differentiable Computed Tomography Reconstruction with CUDA},
  year      = 2025,
  publisher = {Zenodo},
  doi       = {10.5281/zenodo.14999333},
  url       = {https://doi.org/10.5281/zenodo.14999333}
}

@article{202605.1446,
  doi       = {10.20944/preprints202605.1446.v1},
  url       = {https://doi.org/10.20944/preprints202605.1446.v1},
  year      = 2026,
  month     = {May},
  publisher = {Preprints},
  author    = {Yipeng Sun and Linda-Sophie Schneider and Chengze ye and Andreas Maier},
  title     = {diffct: Differentiable CT Operators from Circular Orbits to Arbitrary Trajectories},
  journal   = {Preprints}
}

License and acknowledgements

Apache 2.0, see LICENSE. The project draws on PYRO-NN and geometry_gradients_CT. Issues and pull requests are welcome. The walnut data are CC BY 4.0 (Meaney 2022); see NOTICE.
