DimFort

Static unit-consistency checker for Fortran. You annotate declarations with the dimension they should carry, and DimFort verifies that assignments, arithmetic, intrinsics, and procedure calls all line up. Annotations are written as a custom Doxygen command, so a single source of truth feeds both the checker and your generated documentation.

real :: velocity  !< @unit{m/s}
real :: mass      !< @unit{kg}
real :: force     !< @unit{kg*m/s^2}

force = mass * velocity            ! diagnosed: force unit is kg, expected kg*m/s^2

Status: beta. Usable, tested, and proven against real-world Fortran — but the @unit{} format, diagnostic codes, and LSP protocol are not frozen yet and may still shift between 0.x releases. End-to-end, these work today: the annotation scanner, attachment pass, the full H-series checker (H001–H004 + H010 + H020–H023 polymorphism family), the unit-algebra wrapper rules for LOG / EXP-tagged quantities (D1.2 – D1.6), parametric polymorphism over function signatures ('a, 'b, … with Hindley-Milner unification per call site), per-rule provenance traces, intrinsics, user-defined function and subroutine calls, derived-type field access, rational ** exponents, multi-file worksets, a workspace-aware LSP server with live-edit diagnostics, per-surface hover (call / subroutine / expression, each Short or Detailed with a formal-vs-actual pairing or full unit-algebra trace), inlay hints, go-to-definition, code actions, completion, and a CLI that accepts files or directories.

Adopting on an existing codebase

Many real-world Fortran projects already document units in inline comments — ! [m/s], ! horizontal wind speed [m/s], ! tracer ratio [m^2: Andreas 1989]. DimFort can read your project's own convention, so you don't rewrite every declaration just to opt in.

Add a few lines to dimfort.toml:

[parser.unit_comments]
unit = [
  { open = "@unit{", close = "}" },
  { open = "[",      close = "]" },
]

Now ! [m/s] is a first-class unit annotation, checked exactly like @unit{m/s}. The same table handles unit_assume, unit_affine, and their nonunit / nonunit_assume / nonunit_affine filter lists — each on its own key with its own opt-in. Full recipe in Bringing DimFort to an existing codebase.

Quick tour

Want a hands-on look first? demos/tour.f90 is a short, self-contained file that exercises the most common DimFort diagnostics on a textbook moist-thermodynamics routine.

dimfort check --scale demos/tour.f90

demos/README.md walks through the output line by line.

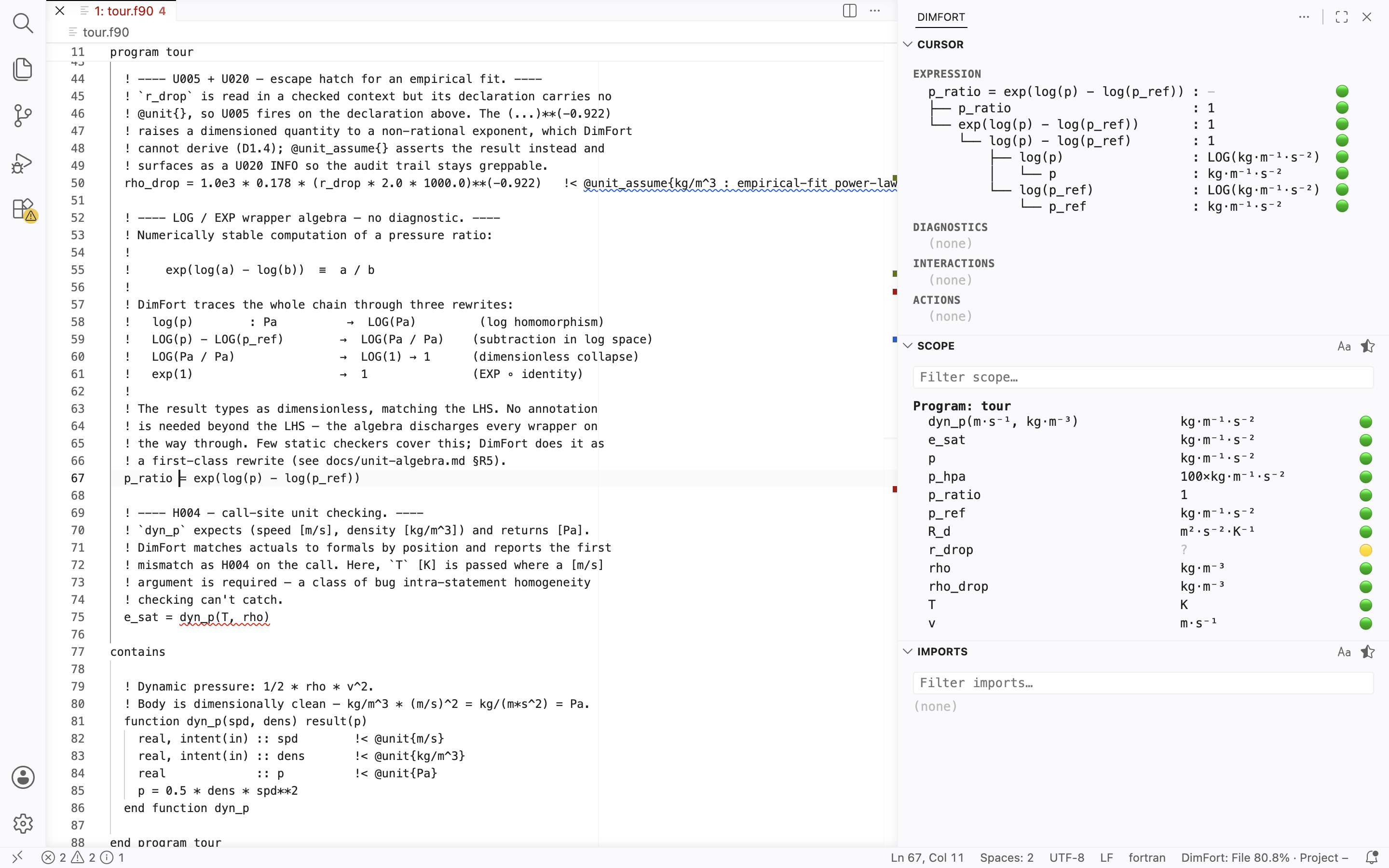

In an editor, the same analysis renders in an always-visible side panel that follows the cursor — every position shows the unit-algebra tree for the current expression, alongside the diagnostics on that line, the variables in scope, and the modules in scope:

The footer bar carries per-file and project-wide coverage tiers (verified / unverified / violation / unparsed), updated live as you edit. See Editor integrations below.

Install

DimFort is published on PyPI as dimfort. It's a CLI tool with an entry point — install it isolated with pipx:

pipx install 'dimfort[lsp]'      # includes the LSP server extra
dimfort --version

The [lsp] extra pulls in pygls; omit it if you only want the CLI and never the language server.

On macOS with Homebrew Python: PEP 668 makes plain pip install refuse to touch Homebrew's site-packages. Use pipx as shown above, or install into a virtual environment. If pipx install says "command not found", run brew install pipx && pipx ensurepath first.

From source (contributors)

The canonical workflow uses uv and the committed uv.lock:

git clone https://github.com/ArrialVictor/DimFort.git
cd DimFort
uv sync --extra dev --extra lsp

The plain-pip equivalent also works — see CONTRIBUTING.md for both paths.

Requirements

Python ≥ 3.11. The Fortran parser (tree-sitter-fortran) is a runtime dependency installed automatically — no external compiler or subprocess needed for parsing. For .F90 files using CPP #-directives DimFort shells out to the system cpp if [parser] cpp_defines or [parser] include_paths are set in dimfort.toml.

Usage

dimfort init -t climate              # generate dimfort.toml from a discipline template
dimfort check path/to/file.f90       # check a single file
dimfort check path/to/project/       # walk a directory recursively
dimfort check path/...  --summary    # also print a per-file H/U count table
dimfort interactions <var> path/...  # cross-site unit report for one variable
dimfort lsp                          # start the language server (stdio)

dimfort init writes a project dimfort.toml that opens with the SI core (inherited from the shipped defaults) and includes all five discipline templates — selected ones uncommented and ready to use, the rest commented out in the same file for in-file discovery. Pass -t climate,astronomy to activate multiple, --bare to skip templates entirely, or --dry-run to print the result without writing.

interactions is an on-demand query: for a single variable it lists every site that reads or writes it across the workset — grouped into Declaration / Write / Read / Undetermined, each with the unit that site implies — and emits X001 when two sites make conflicting unit claims (which the per-statement check can't see, since it fires even on unannotated variables).

Exit code is 0 if no errors, 1 if any error-severity diagnostic was produced, 2 for usage / file / config errors. Warnings alone do not fail the run.

Diagnostics are grouped by code prefix: H for homogeneity, U for annotation-pipeline problems, S for the opt-in scale family, X for cross-site findings from dimfort interactions, and P for parser-skipped regions. Full reference (every code, severity, and trigger) lives at docs/reference/diagnostic-codes.md. The unit-algebra rule taxonomy (D1.1–D1.7) that classifies why a homogeneity diagnostic fires is at docs/reference/unit-algebra.md.

Doxygen integration

Annotations are read from Doxygen comments (!> / !! preceding a declaration, or !< trailing it) and apply to every variable in a declaration list. To make Doxygen render them natively, add one line to your Doxyfile:

ALIASES += "unit{1}=\par Unit:^^\1"

Module-level constants follow the same notation:

!> @brief Gravitational acceleration.
!> @unit{m/s^2}
real, parameter :: g = 9.81

For quantities that live in log or exp space, wrap the inner unit with LOG(...) or EXP(...):

real :: lp     !< @unit{LOG(Pa)}
real :: tau    !< @unit{EXP(K)}

DimFort tracks the wrapper through arithmetic: LOG(psol) + LOG(pref) types as LOG(Pa²), LOG(p1) − LOG(p2) collapses to dimensionless via the pressure-ratio rule, and EXP(LOG(psol) − ...) cancels back to Pa. The full rule set is in docs/reference/unit-algebra.md.

Trace mode

Pass --trace to see the rule chain behind each diagnostic:

dimfort check --trace src/my_module.f90

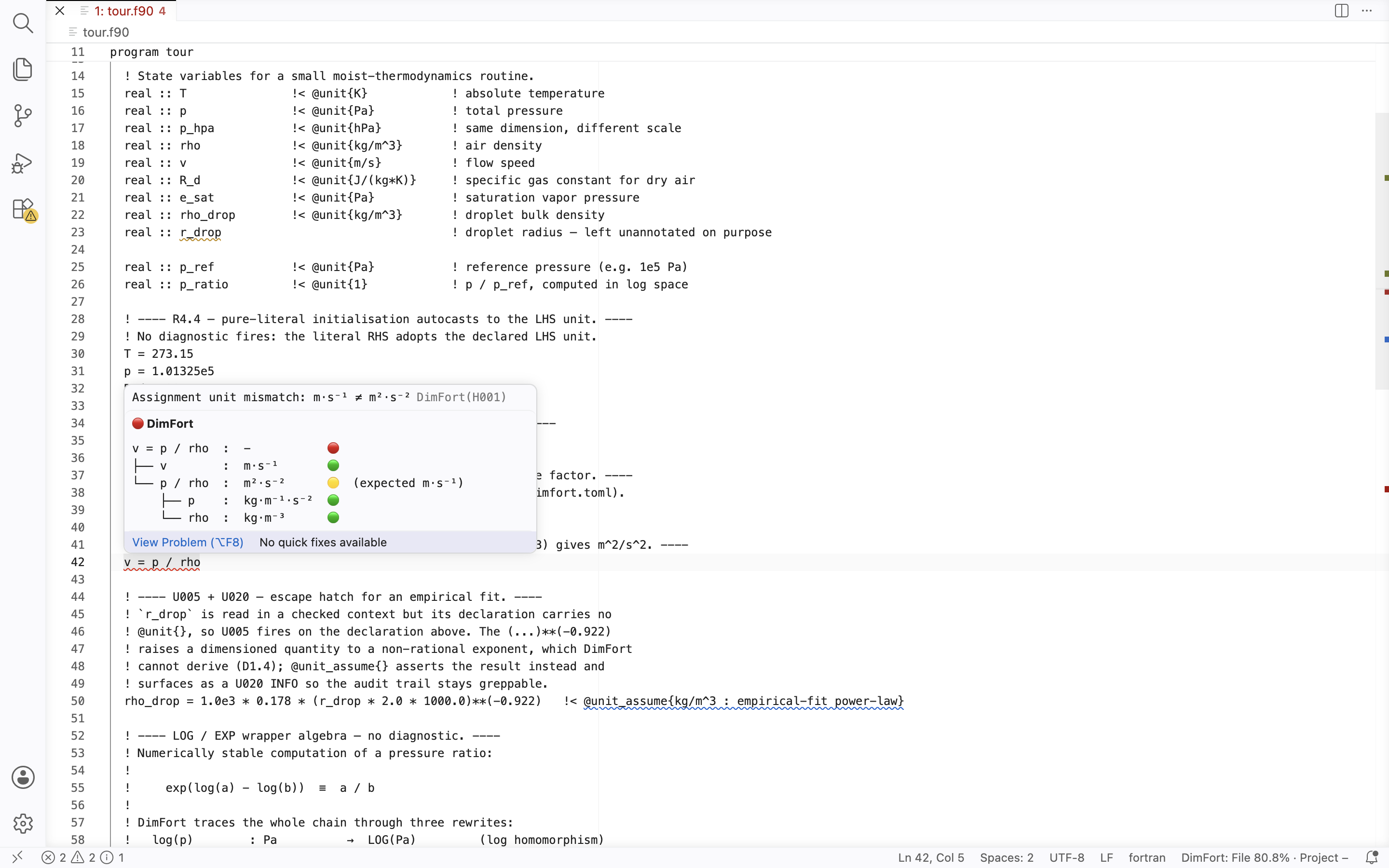

Each error / warning prints the firing rule IDs (R3.1, R5.6, …) under the message. The VSCode extension surfaces the same trace in hover, and lets you pick the depth per surface — call, subroutine, expression — via the DimFort: Hover settings (Short for a one-line summary, Detailed for the full unit-algebra tree with per-row 🟢/🟡/🔴 markers).

See docs/editor-integration/hover-ui.md for the layout spec.

See docs/reference/annotations.md for the full reference: unit-expression grammar, continuation-line forms, declaration lists, and the diagnostic codes the scanner can emit.

Documentation

• Annotations
• Usage details — and the bringing DimFort to an existing codebase guide (configurable comment delimiters, added 0.2.2).
• Language server
• Releases

Editor integrations

Thin LSP clients that wire dimfort lsp into common editors. Each lives in its own repository, releases on its own cadence, and shares the same feature surface — diagnostics, hover, inlay hints, go-to-definition, code actions, completion, plus the side panel (cursor-following unit-algebra tree + scope / imports tables) and the coverage layer introduced in 0.2.4–0.2.5: per-line gutter / tint showing what DimFort knows about each line, and a footer bar with file + workspace coverage statistics.

• VSCode — on the Visual Studio Marketplace (ext install arrialvictor.dimfort-vscode) and on Open VSX for VSCodium / Cursor / Theia / code-server.
• Neovim (≥ 0.11) — install via any plugin manager pointing at the repo.
• Emacs — install via straight.el / use-package or manual require. Works with both eglot (Emacs 29+) and lsp-mode.

License

See LICENSE.
