diskpack 0.10.3

A high-performance vectorized circle packer with spatial hashing.

diskpack

State-of-the-art circle packing for arbitrary polygons.

pip install diskpack

Quick Start

from diskpack import CirclePacker, PackingConfig
import numpy as np

# Define a polygon (list of vertices)
square = [(0, 0), (100, 0), (100, 100), (0, 100)]

# Pack circles
packer = CirclePacker([np.array(square)])
circles = packer.pack()

# Each circle is (x, y, radius)
for x, y, r in circles:
    print(f"Circle at ({x:.1f}, {y:.1f}) with radius {r:.1f}")

Choosing the Right Algorithm

diskpack offers multiple packing strategies optimized for different use cases:

Shape Type	Best Algorithm	Config
Simple convex (square, rectangle)	Random sampling	PackingConfig()
Complex/concave (star, L-shape, letters)	Hybrid	PackingConfig(use_hybrid_packing=True)
Fixed radius, need speed	Hex grid	PackingConfig(fixed_radius=5.0)
Fixed radius, need density	Hybrid	PackingConfig(fixed_radius=5.0, use_hybrid_packing=True)
Artistic/organic look	Random	PackingConfig(use_hex_grid=False)

Simple Convex Shapes

For squares, rectangles, and other simple convex polygons, the default random sampling achieves the best density:

config = PackingConfig(
    padding=0.5,
    min_radius=1.0,
)
packer = CirclePacker([np.array(square)], config)
circles = packer.pack()  # ~86% density

Complex/Concave Shapes

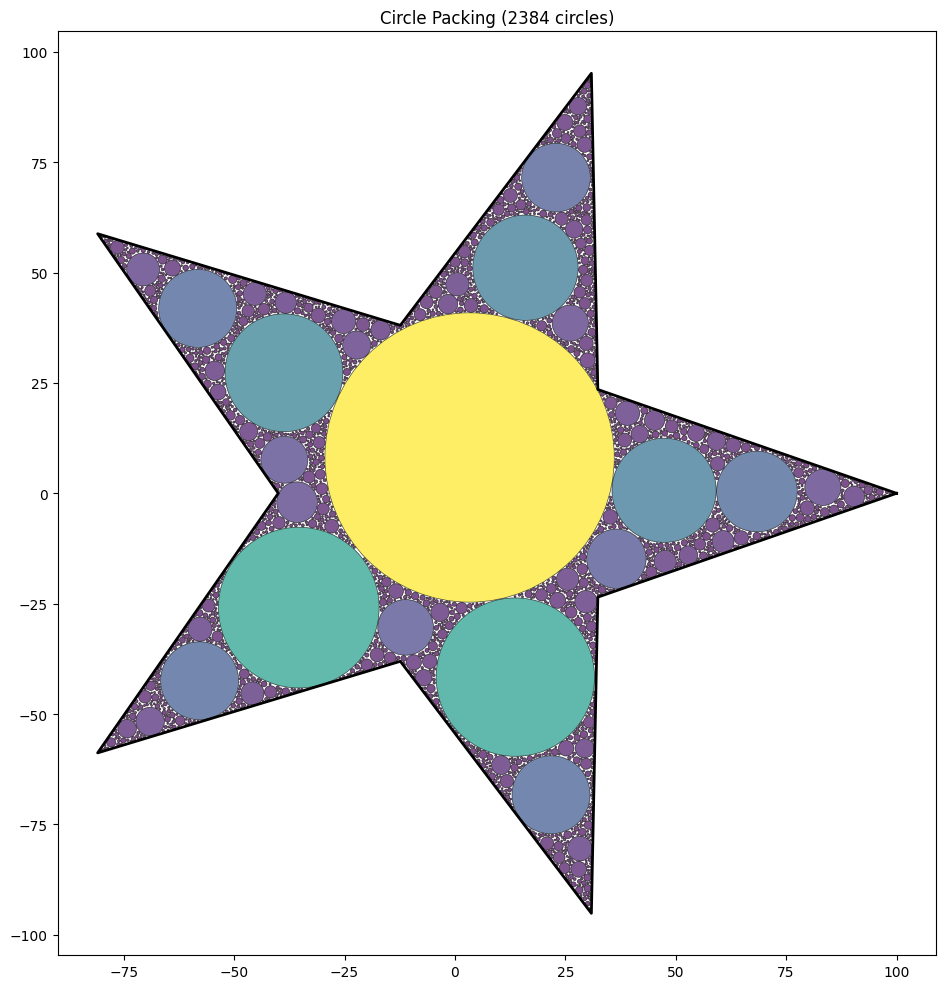

For stars, L-shapes, letters, and other complex polygons, hybrid mode fills corners better:

star = [
    (50, 0), (61, 35), (98, 35), (68, 57), (79, 91),
    (50, 70), (21, 91), (32, 57), (2, 35), (39, 35)
]

config = PackingConfig(
    use_hybrid_packing=True,
    verbose=True,  # See progress
)
packer = CirclePacker([np.array(star)], config)
circles = packer.pack()  # ~69% density (vs ~64% for random)

Fixed Radius Packing

When all circles must have the same radius:

# Fastest (hex grid pattern)
config = PackingConfig(fixed_radius=3.0)

# Densest (fills corners)
config = PackingConfig(fixed_radius=3.0, use_hybrid_packing=True)

# Organic look (random placement)
config = PackingConfig(fixed_radius=3.0, use_hex_grid=False)

Tuning Hybrid Mode

Hybrid mode works in three phases:

1. Phase 1 (Large): Place circles ≥ 50% of max possible radius
2. Phase 2 (Medium): Place circles ≥ 25% of max possible radius
3. Phase 3 (Small): Fill remaining gaps with random sampling

You can tune the thresholds:

# For complex shapes with tight corners (default)
config = PackingConfig(
    use_hybrid_packing=True,
    hybrid_large_threshold=0.5,   # Phase 1: >= 50% of max
    hybrid_medium_threshold=0.25, # Phase 2: >= 25% of max
)

# For simpler shapes (more circles in Phases 1-2)
config = PackingConfig(
    use_hybrid_packing=True,
    hybrid_large_threshold=0.3,   # Phase 1: >= 30% of max
    hybrid_medium_threshold=0.1,  # Phase 2: >= 10% of max
)

Performance Tuning

config = PackingConfig(
    # Stop after N consecutive failed attempts (higher = more circles, slower)
    max_failed_attempts=200,

    # Points sampled per iteration (higher = better placements, more memory)
    sample_batch_size=50,

    # Minimum gap between circles
    padding=1.5,

    # Smallest circle to place
    min_radius=1.0,
)

API Reference

CirclePacker

CirclePacker(polygons: List[np.ndarray], config: PackingConfig = None)

• polygons: List of polygon vertices. Each polygon is an Nx2 numpy array.
• config: Optional configuration. Uses defaults if not provided.

Methods:

• pack() -> List[Tuple[float, float, float]]: Pack circles and return as list
• generate() -> Iterator[Tuple[float, float, float]]: Generate circles lazily

PackingConfig

See the docstring for full parameter documentation:

from diskpack import PackingConfig
help(PackingConfig)

Benchmark Results

Tested on 100×100 unit shapes:

Shape	Algorithm	Time	Circles	Density
Square	Random	0.31s	49	86.4%
Square	Hybrid	0.15s	55	85.8%
L-Shape	Random	0.68s	50	76.9%
L-Shape	Hybrid	0.30s	36	79.3%
Star	Random	0.32s	39	64.4%
Star	Hybrid	0.25s	27	68.8%

Fixed radius (r=3.0) on Star shape:

Algorithm	Time	Circles	Density
Hex Grid	0.007s	40	40.0%
Hybrid	0.08s	51	51.0%

Comparison with Shapely

diskpack achieves higher density and faster packing compared to the Python Shapely library. Where Shapely creates Python objects for each point-in-polygon and distance check, diskpack uses vectorized NumPy operations with precomputed edge geometry and batched candidate evaluation — sampling many points per iteration and greedily placing the largest valid circle. A grid-based spatial index keeps collision detection O(1) as circle count grows. The batched Shapely method can approach similar density by also picking the best of many candidates, but at ~30x the runtime due to per-point object overhead.

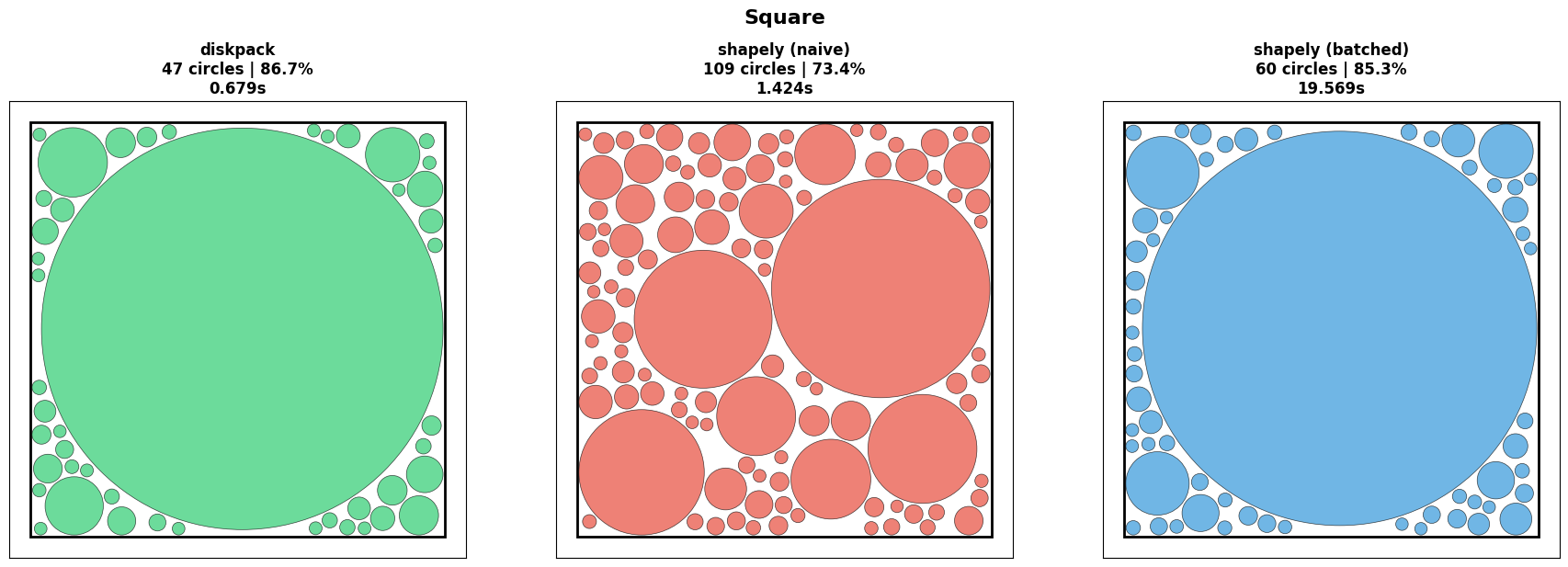

Method	Circles	Density	Time
diskpack	47	86.7%	0.679s
shapely (naive)	109	73.4%	1.424s
shapely (batched)	60	85.3%	19.569s

See demo/diskpack_comparisons.ipynb for the full benchmark notebook.

License

MIT
