display-image 0.1.3

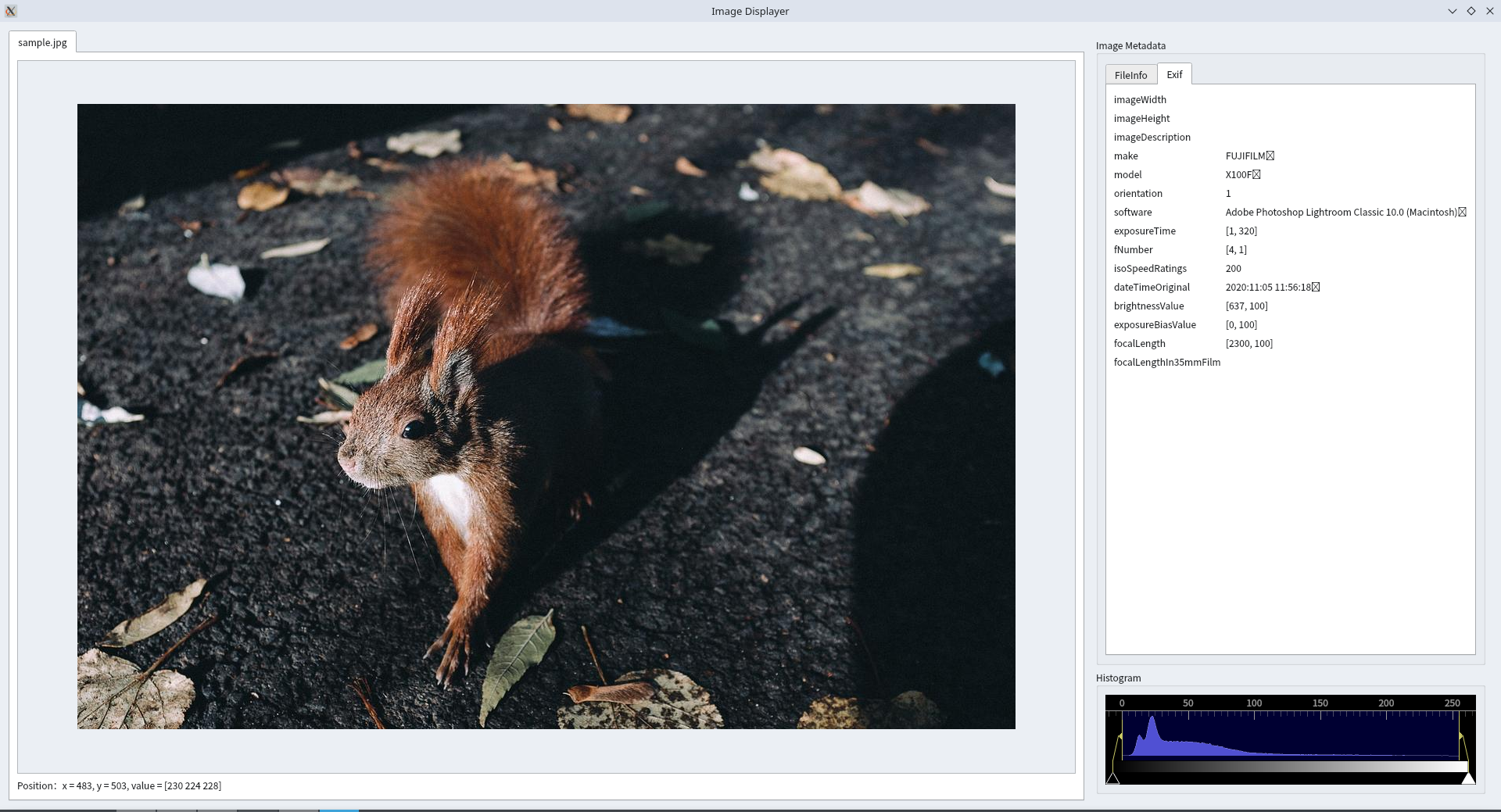

PyQt6 Gui App to display the wide range image formats (jpg, png, tif, dng, bmp, and RAWs), with image metadata and histogram.

Display Image

Display image is a Python project which provides a command display-image to visualize the image and metadata by QtPy6.

Installation

pip install display-image

Usage

display-image -i <path_to_image>

The following format extensions can be displayed by command display-image

Image format	Read	EXIF	Pixel precision	Pixel type	File extension	Sidecar needed
BMP	x		8 bits	Grayscale, RGB, RGBA	.bmp
CFA	x		16 bits	Bayer	.cfa
DNG	x	x	16 bits	Bayer	.dng
JPEG	x	x	8 bits	Grayscale, RGB	.jpg, .jpeg
MIPI RAW	x		10 bits, 12 bits	Bayer	.RAWMIPI, .RAWMIPI10, .RAWMIPI12	x
PLAIN RAW	x		*	*	.raw .plain16, *	x
PNG	x		8 bits	Grayscale, RGB, RGBA	.png
TIFF	x	x	8 bits, 16 bits	Bayer, RGB	.tif, .tiff

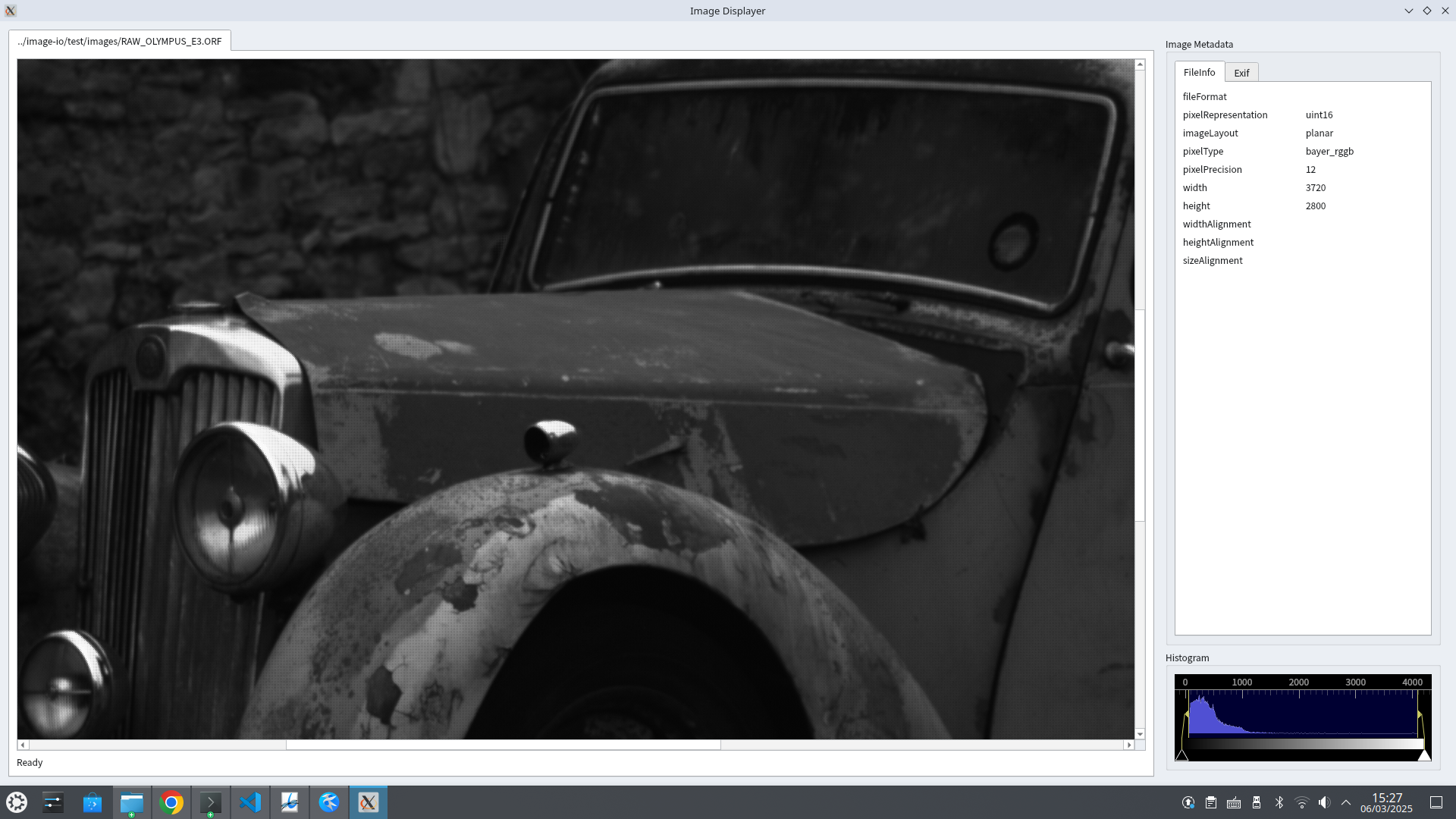

Read Camera manufacturer RAW image display

The RAW image formats of the following camera manufacturers are supported, user can display these camera raw files by dependency cxx-image-io versionv1.1.0.

Camera manufacturer	Image format
Canon	CR2
Nikon	NEF
Sony	ARW
Panasonic	RW2
Kodak	DCR
Samsung	SRW
Olympus	ORF
Leica	RAW
Pentax	PEF

Image display with sidecar JSON

Some file formats need to know in advance some informations about the image. For example, the PLAIN RAW format is just a simple dump of a buffer into a file, thus it needs to know how to interpret the data. In this case, user need to have an image sidecar JSON located next to the image file as the same name and path path_to_image.json

{
    "fileInfo": {
        "format": "plain",
        "height": 3072,
        "width": 4080
        "pixelPrecision": 16,
        "pixelType": "bayer_gbrg",
    }
}

After image reading, the information in JSON sidecar will be shown in tab Widegt of ImageMetadata

Other image reading with sidecar examples

Click to unfold other image format sidecar examples

Packed RAW MIPI 12 bits:

sidecar json

{
    "fileInfo": {
        "fileFormat": "raw12",
        "height": 3000,
        "width": 4000,
        "pixelPrecision": 12,
        "pixelType": "bayer_gbrg"
    }
}

Packed RAW MIPI 10 bits:

sidecar json

{
    "fileInfo": {
        "height": 3000,
        "width": 4000,
        "format": "raw10",
        "pixelPrecision": 10,
        "pixelType": "bayer_grbg"
    }
}

License

This project is licensed under the MIT License - see the LICENSE.md file for details.
