dj-control-room-base 1.1.0

Core framework for Django Control Room panels

dj-control-room-base

dj-control-room-base is a core library for Django Control Room panels. It provides the shared primitives that every panel needs: settings management, CSS injection, permission enforcement, admin sidebar integration, template context helpers, and MCP-style panel tools.

Official Django Control Room panels ship with this package as a dependency and build on these APIs rather than reimplementing them panel by panel.

Optionally, the package can also be mounted as a full panel in its own right: it ships a bundled design system reference UI and example patterns that are useful when building or theming new panels.

• Official site: djangocontrolroom.com
• Control Room app: dj-control-room
• Docs: yassi.github.io/dj-control-room-base

What this library provides

Centralized CSS and permissions

The main value of this library is that it centralizes the settings every panel would otherwise duplicate independently. A single PanelConfig object, instantiated once in a panel's conf.py, handles:

• CSS injection - whether to load the shared design-system bundle, and any additional stylesheets, resolved and injected into template context automatically
• Permission enforcement - staff checks, optional superuser-only restriction, Django group allow lists, and per-view scope overrides, all driven from the same merged settings dict
• Settings merging - panel-level defaults, hub overrides from dj-control-room, and project-level settings are merged in a defined precedence order so each layer can override only what it needs

Panel authors who use PanelConfig get all of this for free. See CSS and permissions below for the full reference.

Admin sidebar integration

PanelPlaceholderModel and BasePanelAdmin give any panel a Django admin sidebar entry that redirects to the panel's main view, with no writable actions, no migrations, and automatic respect for the same permission rules configured on PanelConfig.

Template context helpers

panel_config.get_context(request, title="...") returns a fully-prepared context dict that includes the standard Django admin context, CSS injection variables, and any extra kwargs you pass. No manual assembly required.

Entry-point discovery and PanelPlugin

Panels register themselves with Control Room via a pyproject.toml entry point under dj_control_room.panels. The entry point points to a subclass of PanelPlugin (from dj_control_room_base.core), which carries the panel's identity metadata (name, description, icon, URLs) and wires back to the panel's PanelConfig via get_config().

This library ships both the PanelPlugin base class and its own concrete implementation in panel.py as a reference.

The only runtime dependency is Django. dj-control-room is optional and only needed for the centralized hub dashboard.

Panel tools

PanelConfig accepts an optional tools list of PanelTool instances. Each tool carries a name, a scope (reusing the same permission system as views), a human-readable description, a JSON Schema for its inputs, and a handler callable. When installed panels expose tools, the dj-control-room hub aggregates them across all panels, filters by the current user's permissions at request time, and dispatches calls through a unified endpoint — suitable for AI agent integrations and an in-admin chat experience with no per-panel HTTP wiring required.

Screenshots

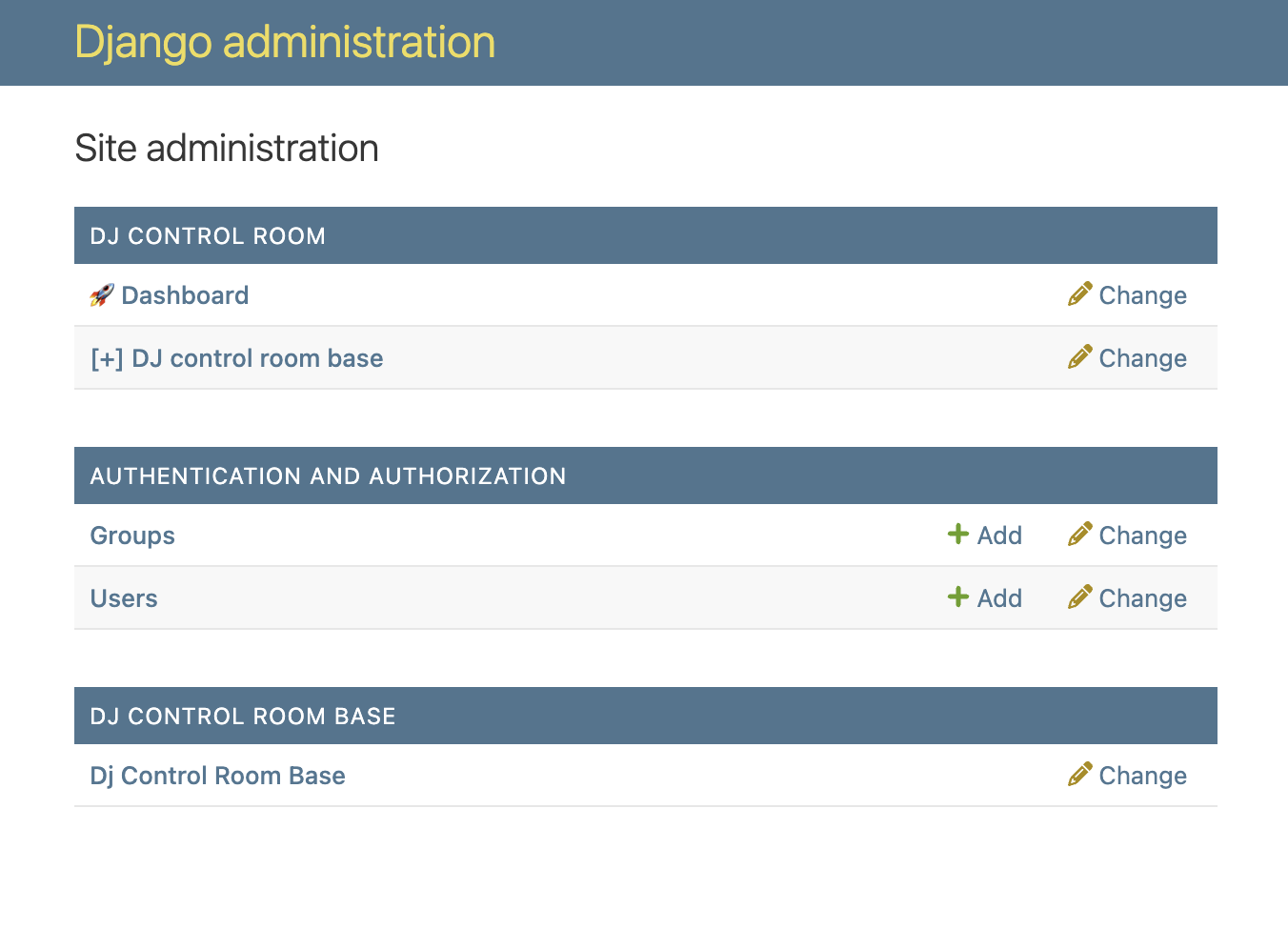

Django admin - the placeholder model registers an app entry that redirects to the panel, with no extra migrations required:

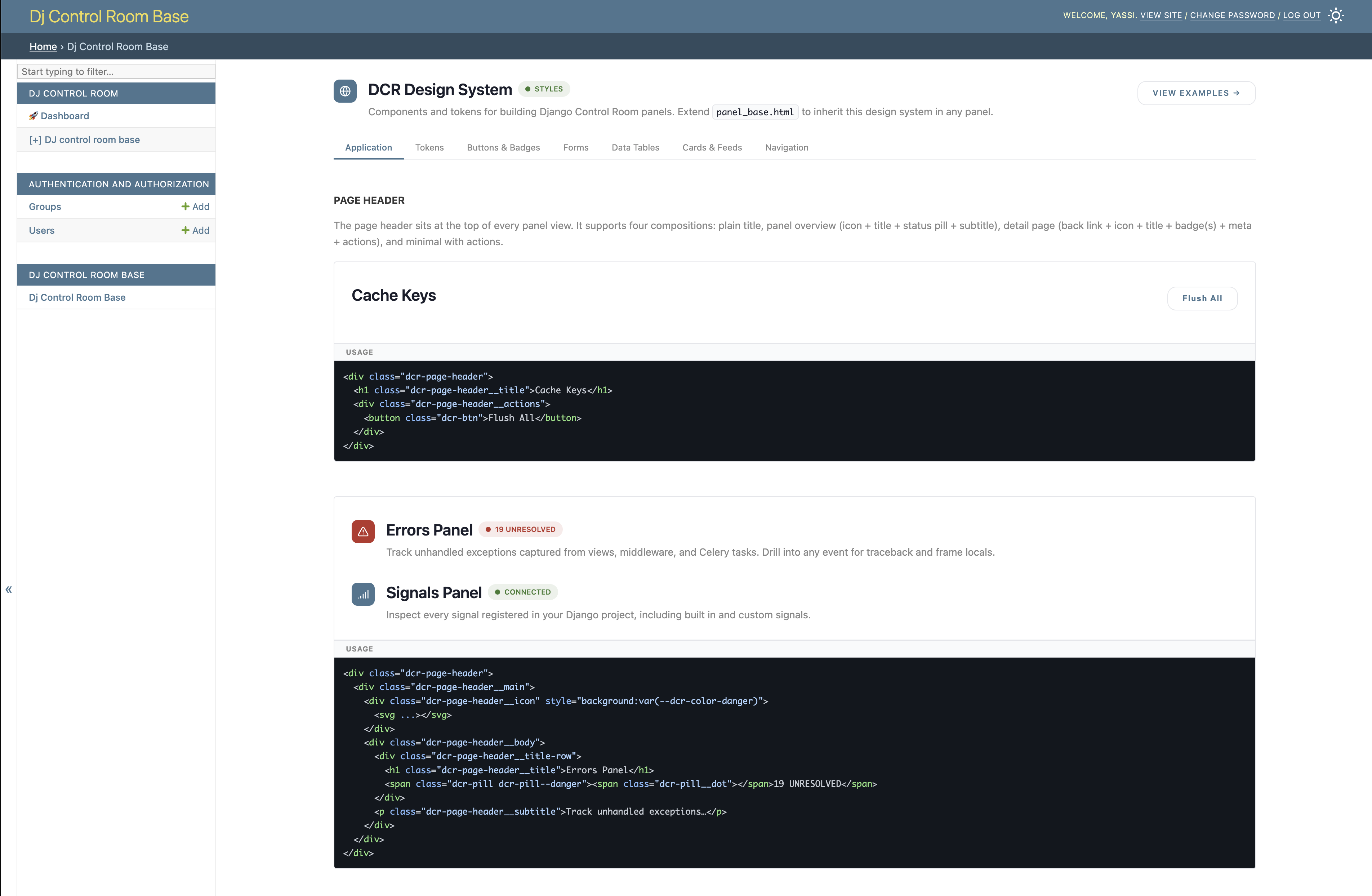

The panel UI - the bundled design system reference view, accessible at /admin/dj-control-room-base/:

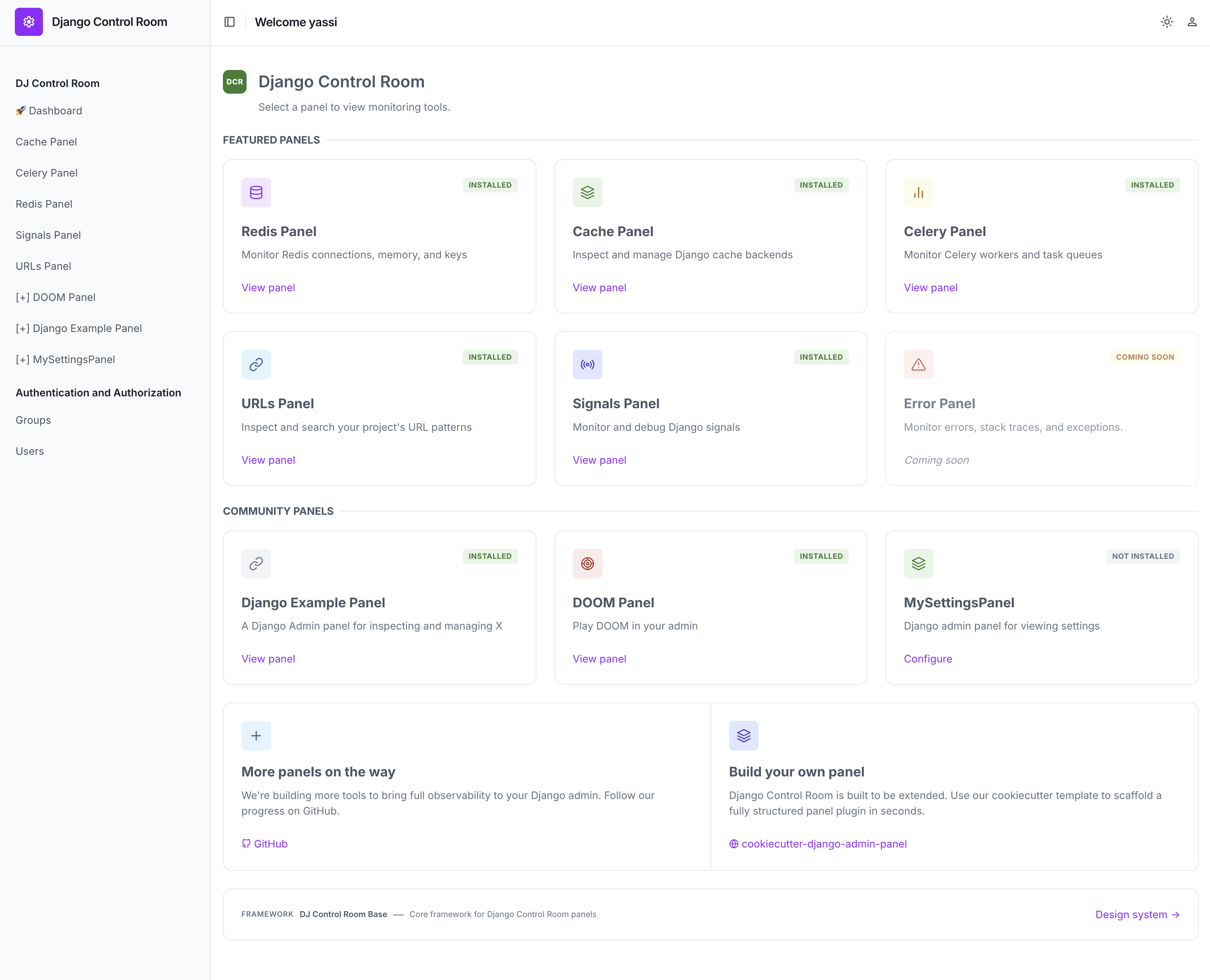

django-unfold support - panels adopt the host site's accent and neutral colors via the bundled theme adapter:

Requirements

• Python 3.9+
• Django 4.2+ (tested in CI across Django 4.2, 5.2, and 6.0)

Project layout

dj-control-room-base/
├── dj_control_room_base/
│   ├── core/              # PanelPlugin, PanelConfig, PanelTool, BasePanelAdmin, PanelPlaceholderModel
│   ├── templates/         # Panel templates
│   ├── static/            # Design system CSS and assets
│   ├── conf.py            # PanelConfig instance (with example tools)
│   ├── panel.py           # Control Room entry-point panel class
│   ├── tools.py           # Example tool handler functions
│   ├── views.py
│   ├── urls.py
│   ├── admin.py
│   └── models.py          # Placeholder model for admin sidebar
├── example_project/       # Runnable demo + pytest settings
├── tests/
├── mkdocs.yml             # Documentation site
└── requirements.txt       # Dev / demo deps (includes dj-control-room)

Quick start

pip install dj-control-room-base

# settings.py
INSTALLED_APPS = [
    ...
    "dj_control_room_base",
]

# urls.py
from django.contrib import admin
from django.urls import path, include

urlpatterns = [
    path("admin/dj-control-room-base/", include("dj_control_room_base.urls")),
    path("admin/", admin.site.urls),
]

python manage.py migrate
python manage.py runserver

Open /admin/ and sign in. A DJ CONTROL ROOM BASE entry appears in the sidebar and links to the panel at /admin/dj-control-room-base/.

See the full documentation for installation options, configuration reference, and a guide for building your own panel on this library.

Django Control Room dashboard

1. Add dj_control_room to INSTALLED_APPS (with dj_control_room_base).
2. Include path("admin/dj-control-room/", include("dj_control_room.urls")) as above.
3. Open /admin/dj-control-room/ to see registered panels (this package advertises itself via the dj_control_room.panels entry point).

The panel's identity (name, description, icon, docs/PyPI links) is declared in dj_control_room_base/panel.py as a PanelPlugin subclass. Build your own panel package the same way.

CSS and permissions

PanelConfig is the central object that every panel built on this library uses. Instantiate it once in conf.py with a settings key and panel-level defaults, then call its helpers from views, templates, and the admin class. The same config object drives CSS injection, permission checks, and the full template context.

Settings merge order

Settings are resolved fresh on every call so that runtime changes (e.g. from the Control Room hub) are always picked up. The merge order is, from lowest to highest priority:

1. Built-in defaults (PANEL_BUILTIN_DEFAULTS in core/panel_config.py) - CSS and permission keys that every panel gets automatically, even if the panel author never declares them.
2. Panel defaults - the defaults dict passed to PanelConfig(...) in the panel's own conf.py.
3. Hub overrides - injected at runtime by dj-control-room via apply_override_settings() when the hub is installed. Lets the hub enforce global CSS or permission policies across all panels from a single place.
4. Project settings - the dict at settings.DJ_<PANEL>_SETTINGS in the consuming Django project. These win over everything, so a project can always opt out of hub defaults.

The result is that panel authors declare a minimal defaults, project owners override only what they need, and the hub can push cross-panel policy without touching individual panel settings files.

CSS settings

Key	Type	Default	Effect
LOAD_DEFAULT_CSS	bool	True	Loads the shared design-system.css bundle from this package. Set to False if the hub or a parent template already loads it.
EXTRA_CSS	list[str]	[]	Additional stylesheets to inject. Relative paths are resolved through Django's staticfiles; absolute URLs (http://, https://, //) are used as-is.

In a view, call panel_config.get_context(request, title="My Panel") to get a context dict that already contains dj_cr_load_default_css and dj_cr_extra_css alongside the standard Django admin context. Templates use these to inject the right <link> tags without any per-view wiring.

Theme adapters

For admin skins that don't match the classic Django admin palette, the package ships optional token-override stylesheets under dj_control_room_base/css/themes/. They're opt-in per panel via EXTRA_CSS - nothing loads automatically:

DJ_MY_PANEL_SETTINGS = {
    "EXTRA_CSS": ["dj_control_room_base/css/themes/unfold.css"],
}

themes/unfold.css remaps DCR's accent/surface/border/muted tokens to django-unfold's own CSS variables (--color-primary-*, --color-base-*, --color-font-*), so panels match the host site's configured brand color. See the configuration docs for details.

Permission settings

Panels built on this library follow a two-level permission model: a panel-wide policy, and optional per-scope overrides for individual views.

Panel-wide keys (apply to all views unless a scope overrides them):

Key	Type	Default	Effect
ALLOWED_GROUPS	list[str]	[]	Django group names that may access the panel. Empty list means any staff user is allowed.
REQUIRE_SUPERUSER	bool	False	Restricts the panel to superusers only.

Per-view scopes (SCOPE_PERMISSIONS):

A scope is a string label that matches the argument passed to @panel_config.permission_required("my-scope") on a view. Each scope entry accepts the same ALLOWED_GROUPS and REQUIRE_SUPERUSER keys and overrides the panel-wide values for that view only.

"SCOPE_PERMISSIONS": {
    "reports": {"REQUIRE_SUPERUSER": True},     # only superusers
    "dashboard": {"ALLOWED_GROUPS": ["ops"]},   # ops group only
    "status": {},                               # inherits panel-wide policy
}

Resolution rules (applied in order):

1. The user must be authenticated and staff. Anonymous users are redirected to the Django admin login.
2. Superusers always pass (they bypass group checks, matching Django admin behaviour).
3. If REQUIRE_SUPERUSER is True for the resolved scope, non-superusers receive a 403.
4. If ALLOWED_GROUPS is non-empty, the user must belong to at least one of those groups (checked by name). An empty list skips the group check.

Using it in a panel

# myapp/conf.py
from dj_control_room_base.core import PanelConfig

panel_config = PanelConfig(
    settings_key="DJ_MY_PANEL_SETTINGS",
    defaults={
        "LOAD_DEFAULT_CSS": True,
        "EXTRA_CSS": [],
    },
)

# myapp/views.py
from .conf import panel_config

@panel_config.permission_required("dashboard")
def dashboard(request):
    context = panel_config.get_context(request, title="Dashboard")
    return render(request, "mypanel/dashboard.html", context)

That is the entirety of the wiring. Permission enforcement, login redirect, CSS injection, and the Django admin context are all handled by the two panel_config calls.

Building your own panel on this package

Import primitives from dj_control_room_base.core:

• PanelPlugin - Subclass in panel.py to declare your panel's identity (name, description, icon, URLs) and wire it to your PanelConfig via get_config(). Point the entry point at this subclass.
• PanelConfig - Instantiate in conf.py with your settings key, defaults, and optional tools list; use get_context, permission_required, and CSS helpers in views.
• PanelPlaceholderModel - Abstract managed=False base for a sidebar-only model.
• BasePanelAdmin - Redirect changelist to your namespace:index URL; set panel_config for aligned permissions.

From dj_control_room_base.core.panel_tool:

• PanelTool - Declare a tool with a name, scope, description, JSON Schema input definition, and handler callable.
• PanelToolContext - Passed to each handler at call time: carries user, inputs, and config.
• PanelToolResult - Returned by handlers: carries success, message, and a data dict.

Register with the hub via pyproject.toml:

[project.entry-points."dj_control_room.panels"]
my_panel = "my_panel.panel:MyPanel"

# my_panel/panel.py
from dj_control_room_base.core import PanelPlugin

class MyPanel(PanelPlugin):
    name = "My Panel"
    description = "Does something useful"
    icon = "cog"

    def get_config(self):
        from .conf import panel_config
        return panel_config

To expose tools to the hub, add them to PanelConfig in conf.py and define handlers in a separate tools.py (use local imports inside handlers for anything that touches models):

# my_panel/conf.py
from dj_control_room_base.core import PanelConfig
from dj_control_room_base.core.panel_tool import PanelTool
from my_panel.tools import handle_get_item

panel_config = PanelConfig(
    settings_key="DJ_MY_PANEL_SETTINGS",
    defaults={"LOAD_DEFAULT_CSS": True},
    tools=[
        PanelTool(
            name="get_item",
            scope="read",
            description="Fetch a single item by key.",
            input_schema={
                "type": "object",
                "properties": {
                    "key": {"type": "string", "description": "The item key."},
                },
                "required": ["key"],
            },
            handler=handle_get_item,
        ),
    ],
)

Development

Clone and install in editable mode with dev dependencies:

git clone https://github.com/yassi/dj-control-room-base.git
cd dj-control-room-base
python -m venv .venv
source .venv/bin/activate   # Windows: .venv\Scripts\activate
make install                # pip install -r requirements.txt && pip install -e .

Run tests locally (uses SQLite by default via example_project settings):

make test_local
# or: python -m pytest tests/ -v

Coverage:

make test_coverage

Docker Compose provides a dev container (app on port 8000) and optional Postgres. From the repo root:

make docker_up
make docker_shell    # working directory: /app/example_project

Inside the container you can run python manage.py runserver 0.0.0.0:8000 or pytest. For Postgres-backed runs, set DB_ENGINE=postgresql and point host/user/password at the postgres service.

Documentation:

make docs          # mkdocs build
make docs_serve    # local preview

License

MIT. See LICENSE.
