django-schematic 1.3.4

Interactive schema visualization for Django projects — React Flow + force-directed layout

django-schematic

Interactive schema visualization for Django projects.

See all your models, fields, and relationships as an interactive, force-directed graph — directly in your browser. Zero Node.js required at runtime.

Features

• Force-directed layout with physics settle animation (drag-to-pin support)
• Hierarchical layout via dagre
• Click to expand/collapse field lists per model
• App-based color coding
• Show/hide models and apps via sidebar
• Export/import view state as JSON
• Export diagram as PNG
• Clean JSON API endpoint (GET /schema/api/)
• Django 5.x + Python 3.12+ only

Visualize

Frontend Stack

Aspect	Technology
Framework	React 18
Language	TypeScript
Graph Visualization	React Flow (@xyflow/react 12)
Layout Engines	d3-force + dagre + ELK (3 options)
UI / Styling	TailwindCSS 4
State Management	Zustand 5
Bundler	Vite 6
Type Safety	Full TypeScript
Testing	Vitest + ESLint
CDN Dependencies	None (all bundled)
Package Manager	npm

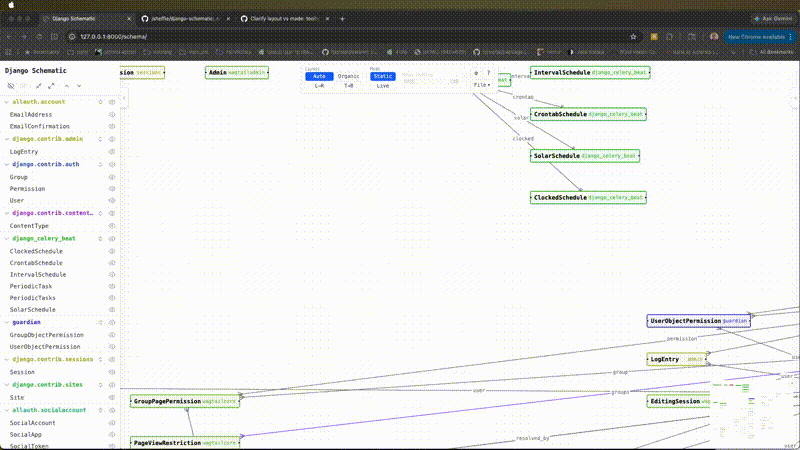

Exported PNG file with embedded config data

This is an example output PNG file, that can be re-imported into django-schematic

Quick Start

pip install django-schematic

Add to INSTALLED_APPS:

INSTALLED_APPS = [
    ...
    "schematic",
]

Add to urls.py:

from django.urls import include, path

urlpatterns = [
    ...
    path("schema/", include("schematic.urls")),
]

Visit http://localhost:8000/schema/ — your model graph will be there.

Security

The viewer is only accessible when DEBUG = True. In production (DEBUG = False) both the HTML view and the API return 404, making the URL appear non-existent.

To expose the viewer in production behind your own auth layer, set the visible option to a callable:

SCHEMATIC = {
    "visible": lambda request: request.user.is_staff,
}

Configuration

# settings.py (all optional — these are the defaults)
SCHEMATIC = {
    "visible": lambda request: settings.DEBUG,  # or any callable, or True/False
    "include_apps": [],           # empty = all apps
    "exclude_apps": ["admin", "contenttypes", "sessions", "auth"],
    "exclude_models": {},         # {"myapp": ["InternalModel"]}
    "include_abstract": False,
    "include_proxy": True,
}

API

The schema is also available as JSON:

GET /schema/api/
GET /schema/api/?apps=myapp,otherapp

Development

# Backend
pip install -e ".[dev]"
pytest

# Frontend
cd ui
npm install
npm run dev   # Vite dev server with HMR
npm run build # Outputs to schematic/static/schematic/

License

MIT
