django-schematic

If this is useful to you, a star helps others find it.

Interactive schema visualization for Django projects.

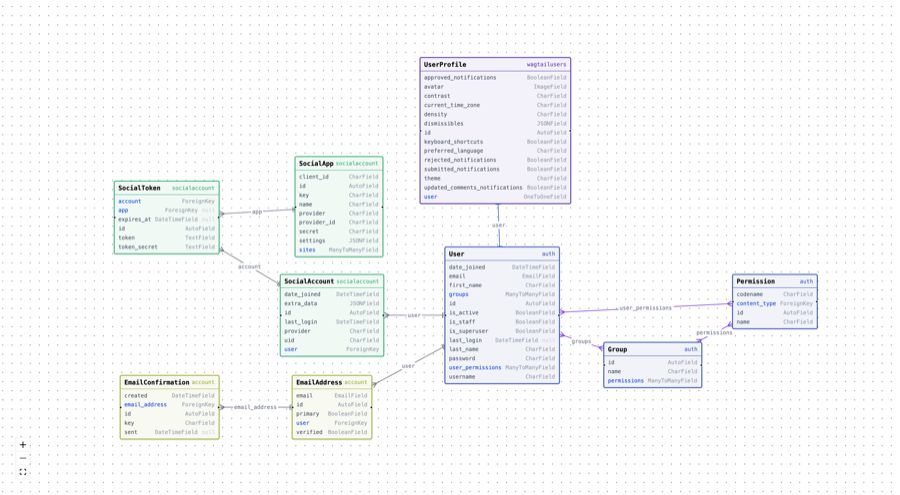

See all your models, fields, and relationships as an interactive, force-directed graph — directly in your browser. Zero Node.js required at runtime.

Features

• Export/Import view state as a PNG with location/canvas placement data.
• Export/Import view state as JSON
• Clean JSON API endpoint (GET /schema/api/)

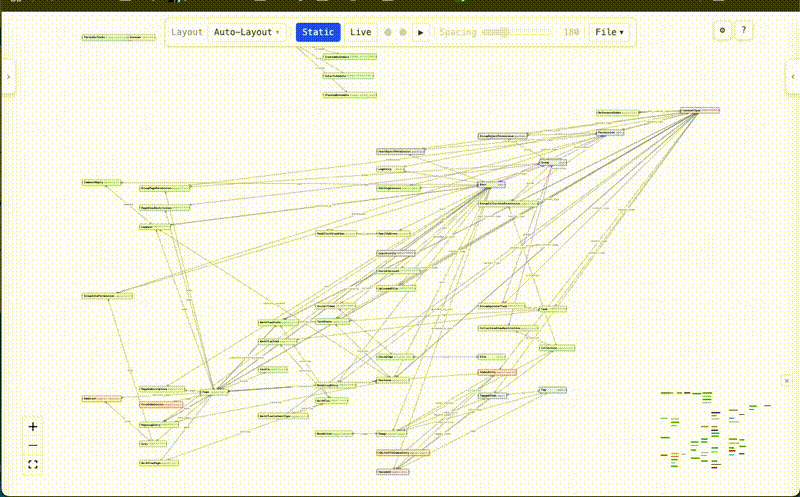

• Force-directed layout with physics settle animation (drag-to-pin support)
• Hierarchical layout via dagre
• Click to expand/collapse field lists per model
• App-based color coding
• Light and dark themes (Settings > Appearance > Theme; System follows your OS setting)
• Physical database names in the API and in exports: table, column and m2m through table names (see Database names)

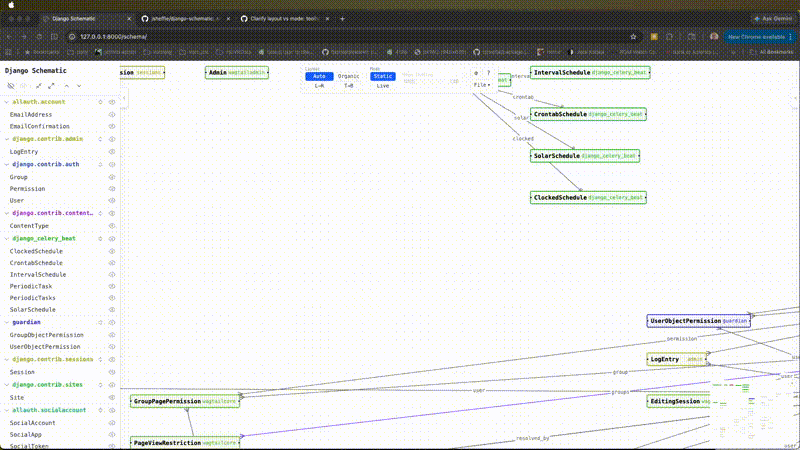

• Show/hide models and apps via sidebar
• Django 5.x + Python 3.12+ only

Live Demo

• Live Demo
• CI/CD Pipeline Demo (YouTube) — auto-regenerating schema PNGs when models change

Visualize

Frontend Stack

Exported PNG file with embedded config data

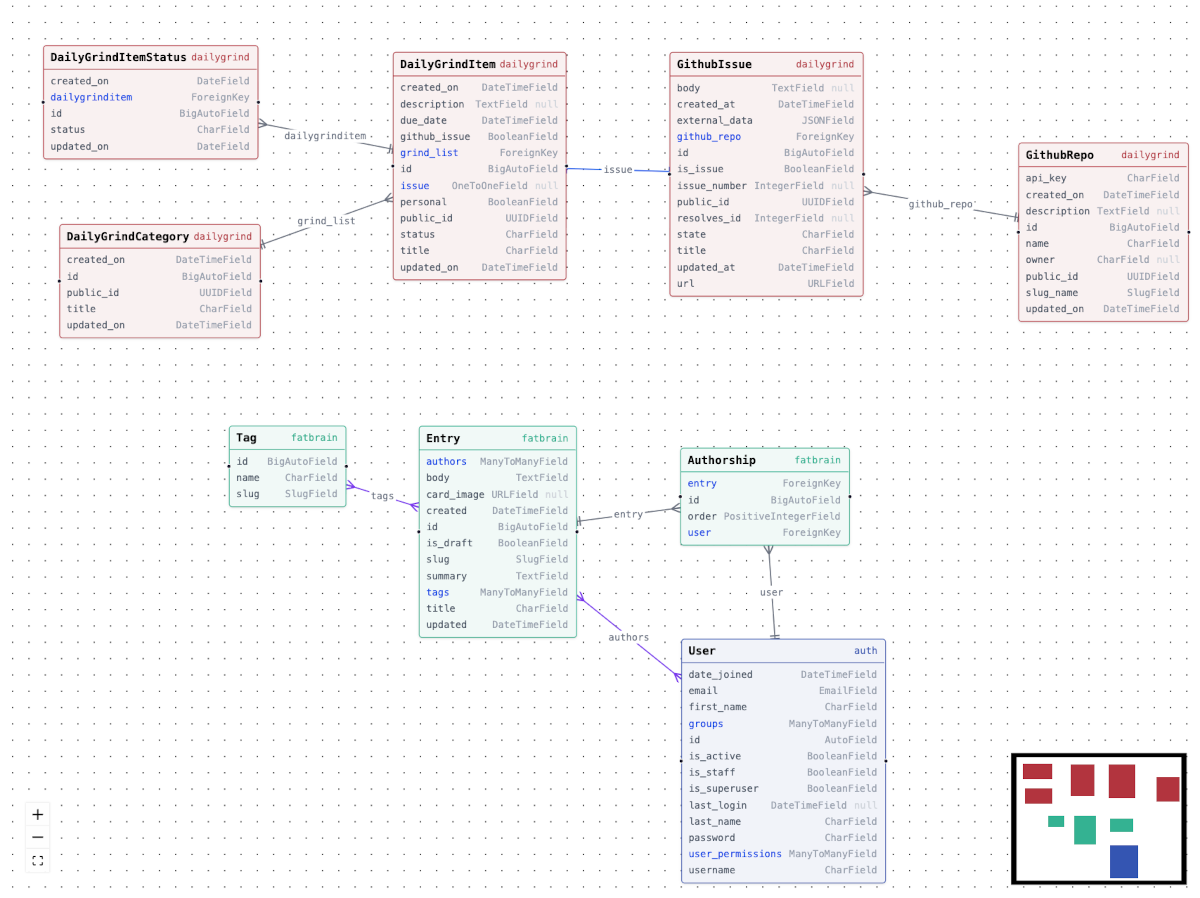

This is an example output PNG file, that can be re-imported into django-schematic

Quick Start

pip install django-schematic

Add to INSTALLED_APPS:

INSTALLED_APPS = [
    ...
    "schematic",
]

Add to urls.py:

from django.urls import include, path

urlpatterns = [
    ...
    path("schema/", include("schematic.urls")),
]

Visit http://localhost:8000/schema/ — your model graph will be there.

Security

The viewer is only accessible when DEBUG = True. In production (DEBUG = False) both the HTML view and the API return 404, making the URL appear non-existent.

To expose the viewer in production behind your own auth layer, set the visible option to a callable:

SCHEMATIC = {
    "visible": lambda request: request.user.is_staff,
}

Configuration

# settings.py (all optional — these are the defaults)
SCHEMATIC = {
    "visible": lambda request: settings.DEBUG,  # or any callable, or True/False
    "include_apps": [],           # empty = all apps
    "exclude_apps": ["admin", "contenttypes", "sessions", "auth"],
    "exclude_models": {},         # {"myapp": ["InternalModel"]}
    "include_abstract": False,
    "include_proxy": True,
    "suppress_through_m2m": False,
}

suppress_through_m2m

When a ManyToManyField uses an explicit through model, Django draws two layers of relationships: the FK edges from the through table to each side, and a direct logical M2M edge on the model that declares the field. With suppress_through_m2m = False (the default) both are shown.

Set suppress_through_m2m = True to hide the redundant logical M2M edge and keep only the FK edges through the junction table — useful when the through model carries extra fields and you want the graph to reflect the true database structure.

Explicit through models are also tagged through in the graph and shown with a through badge in the node header, making them easy to identify regardless of this setting.

API

The schema is also available as JSON:

GET /schema/api/
GET /schema/api/?apps=myapp,otherapp

Database names

Tools that watch the database rather than the ORM (for example a logical replication consumer) see table and column names, not model and field names. Both the API and every export carry the physical names, read from _meta with no database connection:

• each node has db_table (Meta.db_table; null for abstract models),
• each field has column (db_column, or company_id for a company ForeignKey; null for a ManyToManyField),
• each m2m edge has through_db_table, the table holding its links (auto-created or an explicit through model).

A PNG or JSON export (config version 8 and later) holds the same names under dbNames, keyed by model id, so they can be resolved from the file alone:

"dbNames": {
  "orders.Order": {
    "table": "acme_legacy_orders",
    "columns": { "id": "id", "quantity": "qty_ordered", "company": "company_id" },
    "through": { "tags": "acme_orders_order_tags" }
  }
}

The config is the schematic tEXt chunk of an exported PNG. Exports older than version 8 have no dbNames; fall back to Django's default naming for those.

CI/CD Pipeline (optional)

update_diagrams is a management command that re-renders your PNG schema diagrams automatically when models change. See README.setting-up-CI.md for setup instructions.

Development

# Backend
pip install -e ".[dev]"
pytest

# Frontend
cd ui
npm install
npm run dev   # Vite dev server with HMR
npm run build # Outputs to schematic/static/schematic/

License

MIT
