DOE Analyzer

Desktop application for analysing design-of-experiments results stored in CSV: one row per run, an ID column, the DOE parameters and the result functions, with the names in the first line.

Install and run

Runs on Linux and Windows with Python 3.9 or newer. From PyPI:

pip install doe_analyzer                   # or 'doe_analyzer[umap]' for UMAP embeddings (numba)
doe_analyzer                               # or: doe_analyzer file.csv | project.doeproj | --demo branin
doe_analyzer --gl software                 # WebGL in software, where the GPU driver draws blank plots

On Windows doe_analyzer-gui starts it without a console window. A desktop Linux has the system libraries Qt needs; a minimal one (a container, a server image) needs those the CI installs (.gitlab-ci.yml).

From a clone of the repository:

python3 -m venv .venv
.venv/bin/pip install -e '.[dev,umap]'     # umap is optional (UMAP embeddings)
./doe_analyzer.sh                          # or: .venv/bin/doe_analyzer [file.csv | project.doeproj]

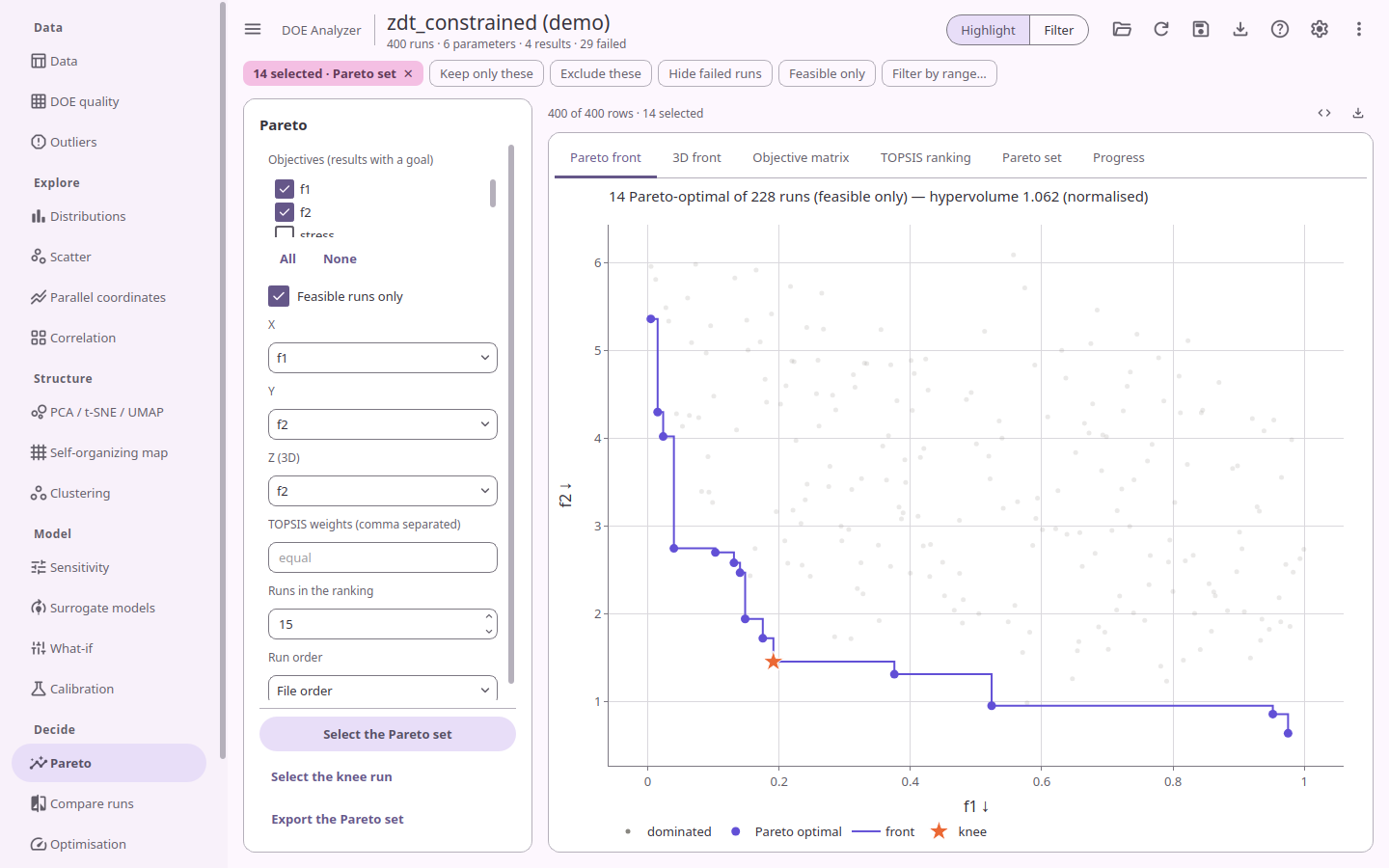

./doe_analyzer.sh --demo zdt_constrained   # synthetic datasets: branin, ishigami, zdt_constrained,
                                           # mixed_categorical, large_20k
./doe_analyzer.sh --diagnose               # print the WebGL renderer in use

On Windows: py -3 -m venv .venv, .venv\Scripts\pip install -e .[dev], then .venv\Scripts\doe_analyzer-gui (no console window).

In the browser

From a clone of the repository, python scripts/build_web.py writes doe_analyzer.html: the application as one file of about 70 MB that opens in a current Chrome, Edge or Firefox with no server and no network. It is the same application, not a report of one: open a CSV or a project, set the columns, and use every page (the Python analysis code runs in the page, in WebAssembly). Nothing leaves the browser.

• Files are opened with the folder button or dropped on the page; what the application writes (projects, plots as PNG, SVG or a zip, rows, reports) is downloaded. A project is the .doeproj file next to its CSV: give the page both files to restore it.
• Reload (F5) reads the CSV again in Chrome and Edge; other browsers cannot read a file twice and ask for it.
• Files the CSV names per run (images, curves) are given to the page with More → Add run files….
• The first start takes about ten seconds (the page unpacks Python and its libraries); the pages show at once. Long computations (surrogates, optimisation) take about as long as in the desktop application, and Cancel stops one by starting the engine again. Unlike the desktop application, pages compute one at a time (a page opened while another computes waits for it, and says so), an option changed while a page computes takes effect when that computation ends, Export all plots and the report have Stop, which stops after the current plot, and Export all plots writes PNG or SVG (a PDF is made one plot at a time).
• Not in the browser: UMAP (PCA, t-SNE and MDS are; a project saved with UMAP opens with PCA), the PDF report (the HTML report is), the log folder, recent files, Save project as… and the WebGL setting.
• The build downloads the pinned runtime once into build/web-cache. See DEVELOPMENT.md.

Using it

1. Open a CSV (Ctrl+O, or drop it on the window; the dialog's File name field takes a pasted full path). The import preview shows the detected encoding, delimiter and decimal separator (Swedish Excel 1,5;2,3 works); override them if needed. No runs yet? New design… writes a design to run: Latin hypercube or Sobol, full or two-level fractional factorial (highest resolution), Plackett–Burman, Taguchi orthogonal arrays, central composite, Box–Behnken, D-optimal, or for a mixture a simplex lattice, simplex centroid or extreme vertices (with process variables); with a dataset open it also adds space-filling, D-optimal, centre, replicate or axial runs to its design. Reload (F5) reads the CSV again after new runs were added, keeping every setting.
2. Data page → Columns. Tick the ID column and the result functions; every other column is a DOE parameter (or tick Fidelity on the column that tells cheap runs from expensive ones). Per column:
   • type (continuous / discrete / categorical),
   • scale — Linear, Log10 or Symlog (signed values spread over decades; C is the half-width of the linear zone). The scale is suggested from the data and is used everywhere: plot axes, binning, correlation, models, sampling;
   • for results: goal (minimise / maximise / target), a constraint (≤ / ≥ limit or a range) and an importance (1–5) for the overall desirability;
   • for parameters: design-space bounds. Constraints limits combinations of parameters (x1 + x2 <= 10): New design, Next runs, Optimisation and What-if keep to them. A mixture is one with = (cement + water + sand = 100; found on opening when the shares add up). Derived column adds a result computed from others (P_out / P_in).
3. Explore with the pages in the drawer. Lasso or box-select points in a scatter, brush parallel-coordinate axes, select table rows, click a category path: the selection is shared by every page. Highlight fades the rest; Filter shows only the selection on the other pages. Chips under the title clear it, turn it into a filter (keep only / exclude), hide failed runs or show feasible runs only.
4. Export (download icon / Ctrl+E): PNG with embedded DPI, SVG and PDF (vector), with size presets, font size and theme (publication white, current UI, dark). Export all plots writes every page; rows can be exported as CSV with full precision. Export plot as Python script (code icon) writes the calls of doe_analyzer.api that draw the plot without the app (see Scripting below).
5. Save the project (Ctrl+S): name.doeproj next to the CSV keeps roles, scales, goals and targets, constraints, importances, bounds, derived columns, curve matches, constraints between parameters (a mixture's too), filters, page settings and the neural network's shape, and is restored automatically when the CSV is opened again.

Numbers are read and written exactly (round-trip), stored as doubles, and shown with N significant digits (Settings → Numbers); a nonzero value never shows as 0.

Pages

Every page, plot, method and option is explained in docs/HELP.md; the same text is in the app (help button or F1 for the open page, Help in the navigation drawer for all of it).

Model-based pages fit in each result's scale space (log10 of a Log10 result) and report accuracy in both spaces. Long computations run in the background with a progress bar and can be cancelled; GP fits use at most 1 500 runs, t-SNE 3 000 and MDS 1 500 by default (always stated on the plot).

Reports (download icon): an interactive HTML report (plotly inlined, opens offline) or a PDF report, with the column table, statistics and the chosen pages.

Scripting

doe_analyzer.api is the same analysis without the window: each step a function, each returning a new dataset. Export plot as Python script writes these calls for the plot on screen; they are kept working across versions.

import doe_analyzer.api as da

ds = da.read_csv("study.csv")
ds = da.set_column(ds, "y", role="result", goal="min")
runs = da.runs(ds, [da.hide_failed()])
snap = da.snapshot(ds, runs)
opts = da.options(ds, "scatter", x="x1", y="y")
result = da.compute(snap, "scatter", opts)
fig = da.figure(snap, "scatter", "scatter", opts, result, da.publication_theme(font_pt=9))
da.export(fig, "scatter.png", width=160, height=100, unit="mm", dpi=300)     # offscreen: no display needed

Tests

.venv/bin/pytest                    # everything, headless (offscreen + software WebGL)
.venv/bin/pytest -m "not webengine" # without QtWebEngine
.venv/bin/python scripts/bench.py   # responsiveness on 20 000 rows
.venv/bin/python scripts/export_all.py --demo all --out /tmp/plots
.venv/bin/python scripts/build_help.py   # regenerate docs/HELP.md after editing doe_analyzer/data/help/*.md

License

MIT, see LICENSE. The icons are Google's Material Symbols, under Apache-2.0: doe_analyzer/data/icons/LICENSE.
