Dynamic DES

Real-time SimPy control plane for event-driven digital twins.

Dynamic DES bridges the gap between static discrete-event simulations and the live world. It allows you to update simulation parameters (arrivals, service times, capacities) and stream telemetry via Kafka, Redis, or PostgreSQL without stopping the simulation. Beyond live streaming, it transforms static models into synchronized forecasting engines, enabling rapid historical data generation and future state prediction. Export compressed, chunked datasets (Parquet, JSONL) directly to local storage, AWS S3, Google Cloud Storage, Azure Blob, or SeaweedFS using PyArrow VFS, complete with strict schema drift prevention. Or commit the same run into an Apache Iceberg table, so what comes out is queryable rather than a folder someone still has to register.

Key Features

• ⚡ Real-Time Control: Synchronize SimPy with the system clock using DynamicRealtimeEnvironment.
• 🔗 Dynamic Registry: Dynamic, path-based updates (e.g., Line_A.arrival.rate) that trigger instant logic changes.
• 🚀 High Throughput: Optimized to handle high throughput using orjson and local batching.
• 🛡️ Enterprise Ready: Native **kwargs passthrough for SASL, mTLS, OAuth, and AWS IAM Kafka clusters.
• 📦 Pluggable Serialization: Stream lightweight JSON by default, or map specific ML topics to lazy-loaded Avro/Schema Registry serializers (Confluent & AWS Glue).
• 🗄️ Data Lake Ingestion: Native PyArrow VFS integration for fast chunked writing (Parquet/JSONL) directly to object storage, with built-in schema inference and drift enforcement.
• 🧊 Lakehouse Ingestion: Append straight into an Apache Iceberg table through any catalog, with one commit per flush so the snapshot count stays under your control.
• 🦆 Pydantic Duck-Typing: Seamlessly publish strictly-typed Pydantic V2 models straight from your simulation logic.
• 🌍 Domain Agnostic: Perfect for factory floors, crypto trading bots, or RPG game state management.

Installation

Install the core library:

pip install dynamic-des

To include specific backends and enterprise features:

# For Kafka support
pip install "dynamic-des[kafka]"

# For Confluent Schema Registry (Avro)
pip install "dynamic-des[kafka,confluent]"

# For AWS Glue Schema Registry (Avro)
pip install "dynamic-des[kafka,glue]"

# For Redis support
pip install "dynamic-des[redis]"

# For PostgreSQL support
pip install "dynamic-des[postgres]"

# For Data Lake Storage (Parquet & PyArrow VFS)
pip install "dynamic-des[parquet]"

# For Lakehouse Storage (Apache Iceberg)
pip install "dynamic-des[iceberg]"

# For all backends (Kafka, Redis, Postgres, Avro, Parquet, Iceberg)
pip install "dynamic-des[all]"

Quick Start: Running an Example

Dynamic DES ships runnable examples in the examples/ folder of this repository. Download the ones you want, then run them.

curl -O https://raw.githubusercontent.com/jaehyeon-kim/dynamic-des/main/examples/declarative/local_example.py
curl -O https://raw.githubusercontent.com/jaehyeon-kim/dynamic-des/main/examples/declarative/kafka_example.py
curl -O https://raw.githubusercontent.com/jaehyeon-kim/dynamic-des/main/examples/kafka_dashboard.py
curl -O https://raw.githubusercontent.com/jaehyeon-kim/dynamic-des/main/examples/declarative/backfill_live_example.py

With uv

# 1. Install odctl, which runs the containers
uv tool install "odctl>=0.5.1"

# 2. Local, dependency-free simulation
uv run --no-project --with dynamic-des local_example.py

# 3. Start the Kafka broker and schema registry (requires Docker)
odctl up kafka-lite

# 4. Run the real-time digital twin (Ctrl + C to stop)
uv run --no-project --with "dynamic-des[kafka]" kafka_example.py

# 5. In a second terminal, watch and steer the run from the dashboard. It serves
#    http://localhost:8080 rather than opening a browser. Ctrl + C to stop.
uv run --no-project --with "dynamic-des[kafka]" --with nicegui kafka_dashboard.py

# 6. Backfill ten minutes of history to Parquet, generated instantly rather than
#    waited for, then tail live to Kafka for sixty seconds
uv run --no-project --with "dynamic-des[kafka,parquet]" backfill_live_example.py

# 7. Clean up the infrastructure when finished
odctl down kafka-lite --volumes

With pip

# 1. Install the package with both extras, odctl for the containers and
#    nicegui for the dashboard
pip install "dynamic-des[kafka,parquet]" "odctl>=0.5.1" nicegui

# 2. Local, dependency-free simulation
python local_example.py

# 3. Start the Kafka broker and schema registry (requires Docker)
odctl up kafka-lite

# 4. Run the real-time digital twin (Ctrl + C to stop)
python kafka_example.py

# 5. In a second terminal, watch and steer the run from the dashboard. It serves
#    http://localhost:8080 rather than opening a browser. Ctrl + C to stop.
python kafka_dashboard.py

# 6. Backfill ten minutes of history to Parquet, generated instantly rather than
#    waited for, then tail live to Kafka for sixty seconds
python backfill_live_example.py

# 7. Clean up the infrastructure when finished
odctl down kafka-lite --volumes

Examples that need a broker, a database or an object store get their container from odctl. Start the profile an example needs before you run it, and stop it with odctl down <profile> --volumes when you are finished. Kafka and Redis are the two whose odctl profile names differ, because odctl ships a one-broker Kafka as kafka-lite and uses Valkey rather than Redis.

Paths in that table are relative to the examples/ folder. declarative/local_example.py needs no container, and declarative/parquet_example.py needs one only when USE_S3=true.

Guide: Backfill then live.

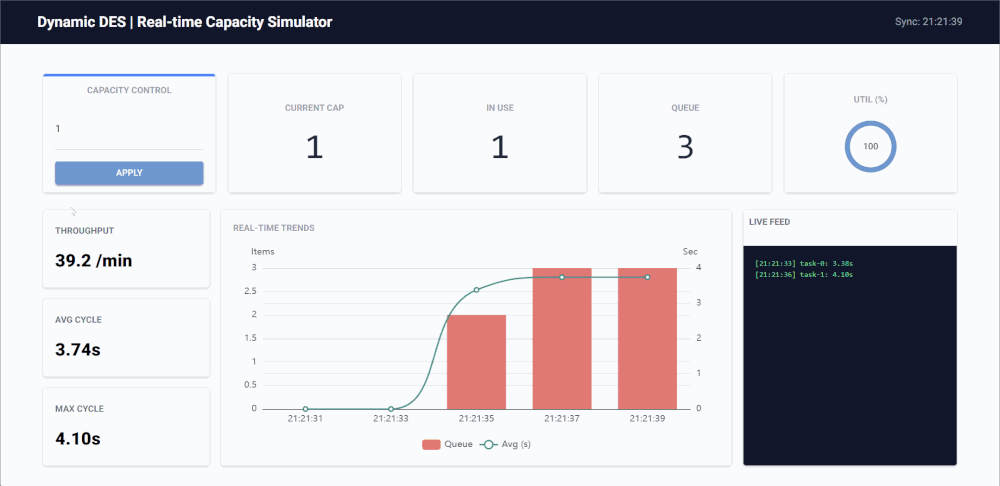

The control dashboard lets you update simulation parameters live and watch the telemetry react without restarting the run:

Building Your Own Simulation (Local Example)

The following snippet demonstrates a simple example using the declarative Standard API (SimulationContext). It initializes a production line, schedules dynamic capacity updates, and streams telemetry to the console.

import logging
from dynamic_des import SimulationContext, ConsoleEgress, LocalIngress

logging.basicConfig(
    level=logging.INFO, format="%(levelname)s [%(asctime)s] %(message)s"
)

# 1. Initialize SimulationContext (Builder Pattern)
# Schedule capacity to jump to 3 at t=10s, then drop to 2 at t=20s
app = (
    SimulationContext(sim_id="Line_A", factor=1.0, random_seed=42)
    .add_resource("lathe", current_cap=1, max_cap=5)
    .add_arrival("standard", dist="exponential", rate=1.0)
    .add_service("milling", dist="normal", mean=3.0, std=0.5)
    .add_ingress(LocalIngress(
        schedule=[
            (10.0, "Line_A.resources.lathe.current_cap", 3),
            (20.0, "Line_A.resources.lathe.current_cap", 2),
        ]
    ))
    .add_egress(ConsoleEgress())
)

# 2. Define Simulation Processes using Decorators
@app.arrival_loop("standard")
def arrival_process(context: SimulationContext):
    task_id = 0
    while True:
        yield context.wait_for_arrival("standard")
        context.spawn(work_task(task_id))
        task_id += 1

@app.task(service_id="milling", resource_id="lathe")
def work_task(task_id: int):
    # Returns custom metadata payload to be included in the finished event
    return {"part_id": task_id}

@app.telemetry_loop(interval=2.0)
def telemetry_monitor(context: SimulationContext):
    # Retrieve active resource handles to query state
    res = context.get_resource("lathe")
    context.env.publish_telemetry("Line_A.lathe.capacity", res.capacity)
    context.env.publish_telemetry("Line_A.lathe.in_use", res.in_use)
    context.env.publish_telemetry("Line_A.lathe.queue_length", len(res.queue.items))

# 3. Run the Simulation
print("Simulation started. Watch capacity change at t=10s and t=20s...")
app.run(until=25.0)

What this does

1. Declarative Builder: SimulationContext chains the setup, defining parameters, connectors, and configuration in one clean block.
2. Live Ingress: The LocalIngress schedules registry mutations independently from the simulation logic.
3. Automatic Task Lifecycle: The @app.task decorator automatically handles queued/started/finished telemetry emissions, resource locking, and random duration sampling.
4. Telemetry Egress: The @app.telemetry_loop captures continuous stats and streams them to the designated egress (ConsoleEgress).

Data Egress JSON Schemas

To ensure strict data contracts with external consumers (like Kafka, Redis, or PostgreSQL), dynamic-des uses Pydantic to validate all outbound payloads. Users can expect two distinct JSON structures depending on the stream type:

Telemetry Stream

Used for scalar metrics like resource utilization, queue lengths, or simulation lag.

{
  "stream_type": "telemetry",
  "path_id": "Line_A.resources.lathe.utilization",
  "value": 85.5,
  "sim_ts": 120.5,
  "timestamp": "2023-10-25T14:30:00.000Z"
}

Event Stream

Used for discrete task lifecycle events (e.g., a part arriving, entering a queue, or finishing processing).

{
  "stream_type": "event",
  "key": "task-001",
  "value": {
    "status": "finished",
    "duration": 45.2,
    "path_id": "Line_A.service.lathe"
  },
  "sim_ts": 125.0,
  "timestamp": "2023-10-25T14:30:04.500Z"
}

More Examples

For more examples, including implementations using Kafka providers, please explore the examples folder, which has its own README naming what to install and which odctl profile each one needs.

Core Concepts

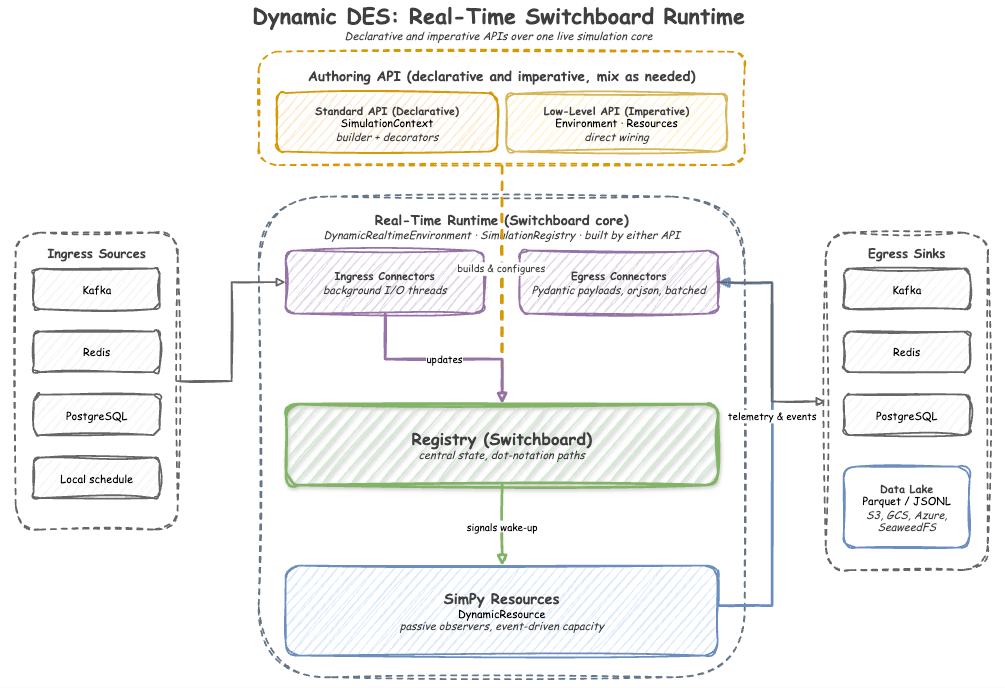

Dynamic DES is built on the Switchboard Pattern, decoupling data sourcing from simulation logic.

Switchboard Pattern

Instead of resources polling Kafka directly, the architecture is split into three layers:

1. Connectors (Ingress/Egress): Background threads handle heavy I/O (Kafka, Redis).
2. Registry (Switchboard): A centralized state manager that flattens data into dot-notation paths.
3. Resources (SimPy Objects): Passive observers that "wake up" only when the Registry signals a change.

Event-Driven Capacity

Standard SimPy resources have static capacities. DynamicResource wraps a Container and a PriorityStore. When the Registry updates:

• Growing: Extra tokens are added to the pool immediately.
• Shrinking: The resource requests tokens back. If they are busy, it waits until they are released, ensuring no work-in-progress is lost.

High-Throughput Events

To handle high throughput, the EgressMixIn uses:

• Batching: Pushing lists of events to the I/O thread to reduce lock contention.
• orjson: Rust-powered serialization for maximum speed.

Documentation

For full documentation, architecture details, and API reference, visit: https://jaehyeon.me/dynamic-des/.

Related reading

Blog posts that use this library:

• Building a Real-Time Industrial Digital Twin with Apache Flink and Online Machine Learning: a Flink and Kotlin pipeline that detects concept drift in a hot strip mill and corrects for roller wear.
• Why Digital Twins Are Rewiring Industry 4.0: the architectural layers that separate traditional simulations, operational twins and event-driven hybrid pipelines.
• Building an Event-Driven Hybrid Digital Twin with dynamic-des: the Switchboard pattern, mutable resources and dynamic topic routing behind this library.
• One Simulation, Two Pipelines: Batch Training and Live Inference with Dynamic DES v0.8.1: one SimPy codebase that writes batch Parquet for training and streams live Kafka events for inference.
• Dynamic DES v0.11.1: A Declarative API with Postgres and Redis Connectors: what the declarative SimulationContext API changed, and the Postgres and Redis connectors it added.
• Building an Agentic Analytics System over an Iceberg Lakehouse: a local analytics stack that uses this library to generate the lakehouse data an agent queries.
