dynflowparser 1.5.2

Get sosreport dynflow files and generates user friendly html pages for

dynflowparser

⚠️ DEPRECATED: This project has been deprecated in favor of DynflowBrowser. Please use DynflowBrowser for new projects and consider migrating existing workflows.

Reads the dynflow files from a sosreport and generates user friendly html pages for Tasks, Plans, Actions and Steps. Companion command dynflowparser-export-tasks helps to overcome sosreport file size limitations. (Read Limitations below)

• Only unsuccessful Tasks are parsed by default. (Use '-a' to parse all).
• Failed Actions & Steps are automatically expanded on the Plan page for easy error location.
• Indented Actions & Steps json fields.
• Useful data on header: Hostname, Timezone, Satellite version, RAM, CPU, Tuning.
• Dynflow UTC dates are automatically converted to honor sosreport timezone according to "/sos_commands/systemd/timedatectl".
• Automatically opens output on default browser.
• Lynx friendly.

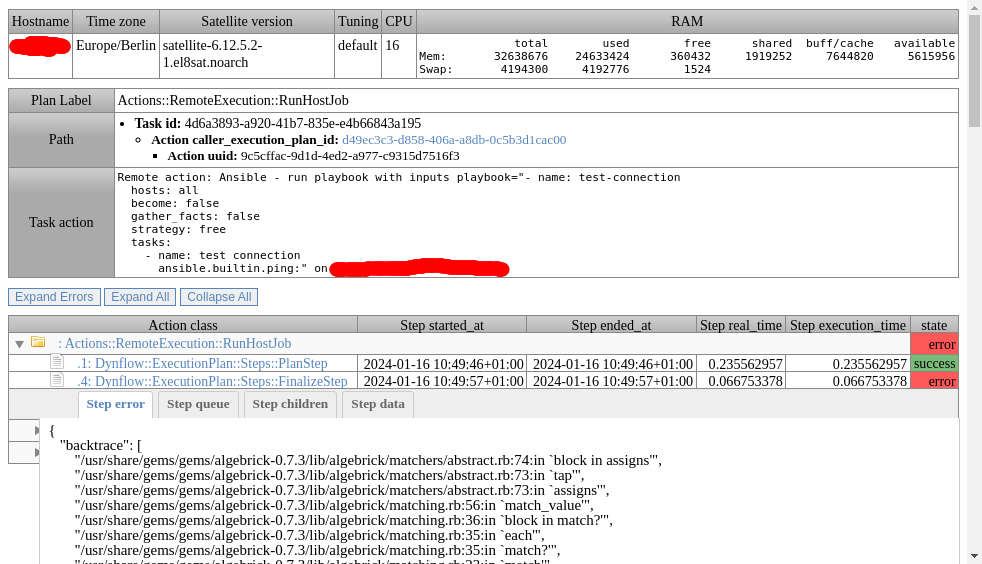

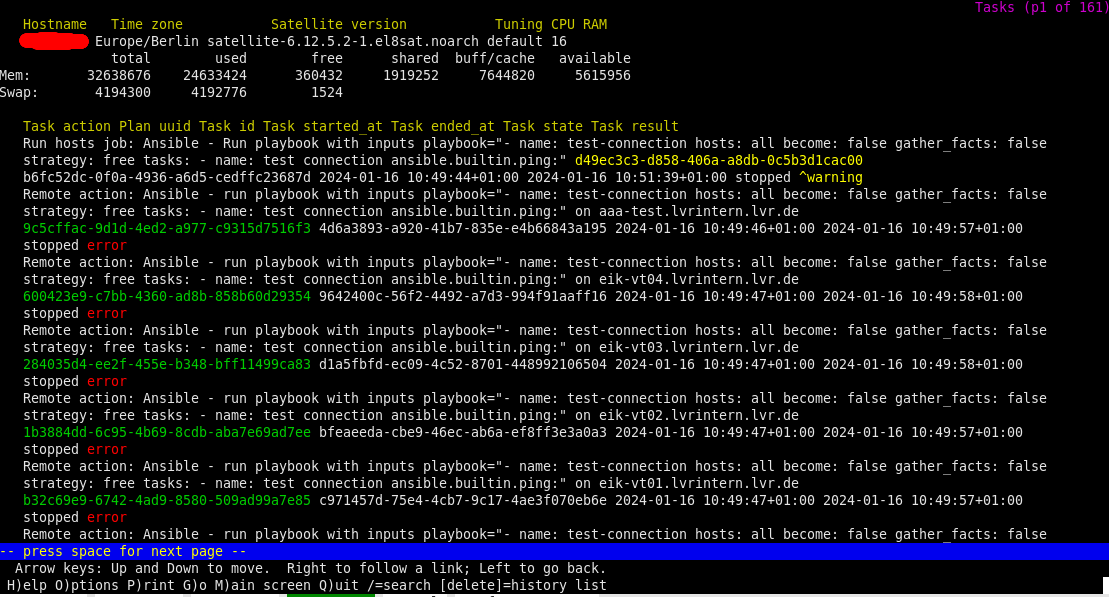

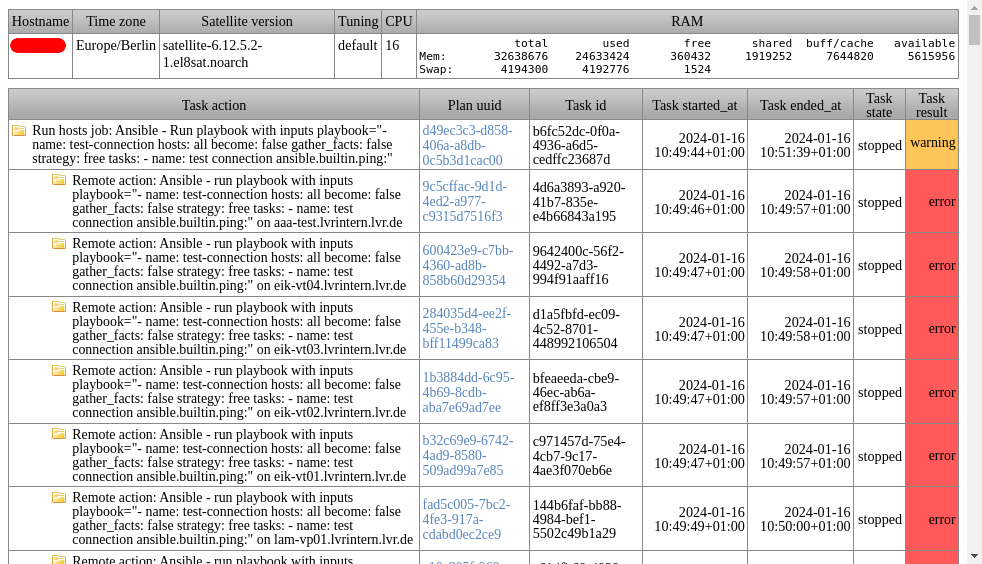

Tasks list	Task details	Lynx

Dependencies

Required python libraries:

• Jinja2
• pytz

Installation

There are multiple ways to to install dynflowparser.

• Using pip.

  pip install dynflowparser


• Using the prebuild packages at Latest Release

Usage

usage: dynflowparser [-h] [-a] [-d {D,I,W,E}] [-f DATE_FROM] [-t DATE_TO] [-l LAST_N_DAYS] [-n] [-q] [sosreport_path] [output_path]

Get sosreport dynflow files and generates user friendly html pages for tasks, plans, actions and steps

positional arguments:
  sosreport_path        Path to sos report folder. Default is current path.
  output_path           Output path. Default is './dynflowparser/'.

optional arguments:
  -h, --help            show this help message and exit
  -a, --all             Parse all. By default only unsuccess plans are parsed.
  -d {D,I,W,E}, --debug {D,I,W,E}
                        Debug level. Default 'W'
  -f DATE_FROM, --from DATE_FROM
                        Parse only Plans that were running from this datetime.
  -t DATE_TO, --to DATE_TO
                        Parse only Plans that were running up to this datetime.
  -l LAST_N_DAYS, --last LAST_N_DAYS
                        Parse only last N days. Overrides `--from` and `--to`.
  -n, --nosql           Reuse existent sqlite file. (Useful for development).
  -q, --quiet           Quiet. Don't show progress bar.

dynflowparser-export-tasks Usage

This command must be executed on the Foreman server.

usage: dynflowparser-export-tasks [-h] [-d DAYS] [-f FILTER] [-r {cancelled,error,pending,success,warning}] [-s {paused,planning,pending,running,scheduled,stopped}]

Create a Foreman task-export compressed file.

options:
  -h, --help            show this help message and exit
  -d DAYS, --days DAYS  Number of days to export. By default last 14 days.
  -f FILTER, --filter FILTER
                        Filter query. E.g: label LIKE '%Manifest%'.
  -r {cancelled,error,pending,success,warning}, --result {cancelled,error,pending,success,warning}
                        Filter by Task Result.
  -s {paused,planning,pending,running,scheduled,stopped}, --state {paused,planning,pending,running,scheduled,stopped}
                        Filter by Task State.

Limitations

• sosreport by default requests last 14 days.
• sosreport truncates output files at 100M, hence some records could be missing.
• Only Dynflow schema version 24 is supported. (v20 is not CSV compliant)
