elecmap 0.1.1

Detect and visualize intracranial electrode locations from CT and MR scans.

🧠 ElecMap: Intracranial Electrode Localization Toolkit

Automated detection and visualization of intracranial electrodes from CT/MR scans for neurosurgical planning and research.

---

📁 Table of Contents

• Introduction
• Key Features
• Installation
• Usage
  • Electrode Detection
  • Electrode Visualization
• Sample Output
• Project Structure
• JSON Output Format
• Use Cases
• Dependencies
• License
• Contact
• Citation

---

📘 Introduction

ElecMap is a Python package designed for the automated detection of intracranial electrodes from CT and MR brain scans. It accurately identifies and localizes electrode centroids within medical imaging data. The package includes a visualization tool to help users review and display the detected electrode locations.

It leverages powerful libraries such as:

• SimpleITK for image processing
• nipype for interfacing with FSL's BET
• matplotlib for report generation

---

🌟 Key Features

• ✅ Precise Electrode Mapping: Localizes electrode centroids in 3D space
• 🔄 Multi-Modal Integration: Combines CT and MR data for improved anatomical accuracy
• 📄 Clinical-Grade Reports: Generates standardized HTML reports for documentation
• 🚫 Smart Filtering: Automatic outlier rejection and duplicate detection
• ⚙️ Fallback Mode: Works with CT-only if FSL or MR scan is unavailable

---

📦 Installation

1. Install directly from PyPI (recommended):

pip install elecmap

2. Clone the repository from GitHub:

git clone https://github.com/saberm2837/ElecMap.git
cd ElecMap

🔔 Note: FSL must be installed and accessible in your system PATH to use MR-based skull stripping features. If unavailable, ElecMap will still perform CT-only detection with a warning.

---

🛠️ Usage

1. Electrode Detection

from elecmap import detect_electrodes
import os

# Input files
ct_file = '/path/to/sample_ct.nii'
mr_file = '/path/to/sample_mr.nii'  # Optional if FSL is unavailable

# Set FSL environment variables if needed
if 'FSLDIR' not in os.environ:
    os.environ['FSLDIR'] = '/opt/fsl'
    os.environ['FSLOUTPUTTYPE'] = 'NIFTI_GZ'

# Run detection
detect_electrodes(ct_file, mr_file)

This function performs:

• STEP 1: Load CT and MR images
• STEP 2: Skull-strip MR using FSL BET (optional)
• STEP 3: Apply MR brain mask to CT (optional)
• STEP 4: Detect candidate electrodes from CT intensities
• STEP 5: Eliminate outliers
• STEP 6: Save coordinates to
  processed_scans/electrodes_sample_ct.json

✅ Tip: If no MR image or FSL is available, simply pass None as the second argument or omit it.

---

2. Electrode Visualization

from elecmap import display_electrode_locations

# Input files
ct_file = '/path/to/sample_ct.nii'
json_file = 'processed_scans/electrodes_sample_ct.json'

# Generate HTML report
display_electrode_locations(ct_file, json_file)

This function:

• Overlays detected electrodes on axial, sagittal, and coronal slices
• Saves an interactive HTML report to: reports/report_sample_ct.html

---

✅ Sample Output

Console output (detection):

[12:52:13] STEP 1: Loading images ...
CT array shape: (481, 650, 529)
voxel intensity range: -4734.0 to 31743.0
Z-axis bounds: 38 to 443
Y-axis bounds: 52 to 598
X-axis bounds: 42 to 487

[12:52:15] STEP 2: Performing skull stripping on MR using FSL BET ...
Skull-stripped MR image saved at: /data/processed_scans/sample_mr_bet.nii.gz
Brain mask saved at: /data/processed_scans/sample_mr_bet_mask.nii.gz

[12:52:31] STEP 3: Loading the generated MR brain mask and applying it to the CT scan ...
MR brain mask loaded successfully.

[12:52:31] Dilating the brain mask by 30 voxels ...
Successfully Skull stripped the CT scan.

[12:52:52] STEP 4: Compute the centroid of electrodes ...
Detected total number of potential electrodes: 142

[12:52:53] STEP 5: Eliminate outliers from the list of potential electrodes ...
Processing electrodes:  52%|█████▏    | 74/142 [00:00<00:00, 733.90it/s]
Electrode outside margin 1: physical = (29.92, -35.9, -83.28), voxel = (339, 414, 31)
Electrode outside margin 2: physical = (-27.22, -37.28, -88.78), voxel = (196, 417, 18)
Processing electrodes: 100%|██████████| 142/142 [00:00<00:00, 375.20it/s]
Electrode outside margin 3: physical = (-27.55, -38.4, -87.82), voxel = (195, 420, 20)
Electrode outside margin 4: physical = (-27.75, -38.8, -87.42), voxel = (195, 421, 21)
Electrode outside margin 5: physical = (-25.96, -38.0, -88.62), voxel = (199, 419, 18)
Electrode outside margin 6: physical = (-26.36, -38.4, -88.22), voxel = (198, 420, 19)
Electrode outside margin 7: physical = (26.76, -35.6, -83.43), voxel = (331, 413, 31)
Final electrode count after eliminating 7 potential outliers: 135

[12:52:53] STEP 6: Saving electrode coordinates to the disk ...
Electrode coordinates successfully saved to: processed_scans/electrodes_sample_ct.json

Console output (visualization):

Generating report: 100%|██████████| 135/135 [00:26<00:00,  5.01it/s]
HTML report saved to: reports/report_sample_ct.html

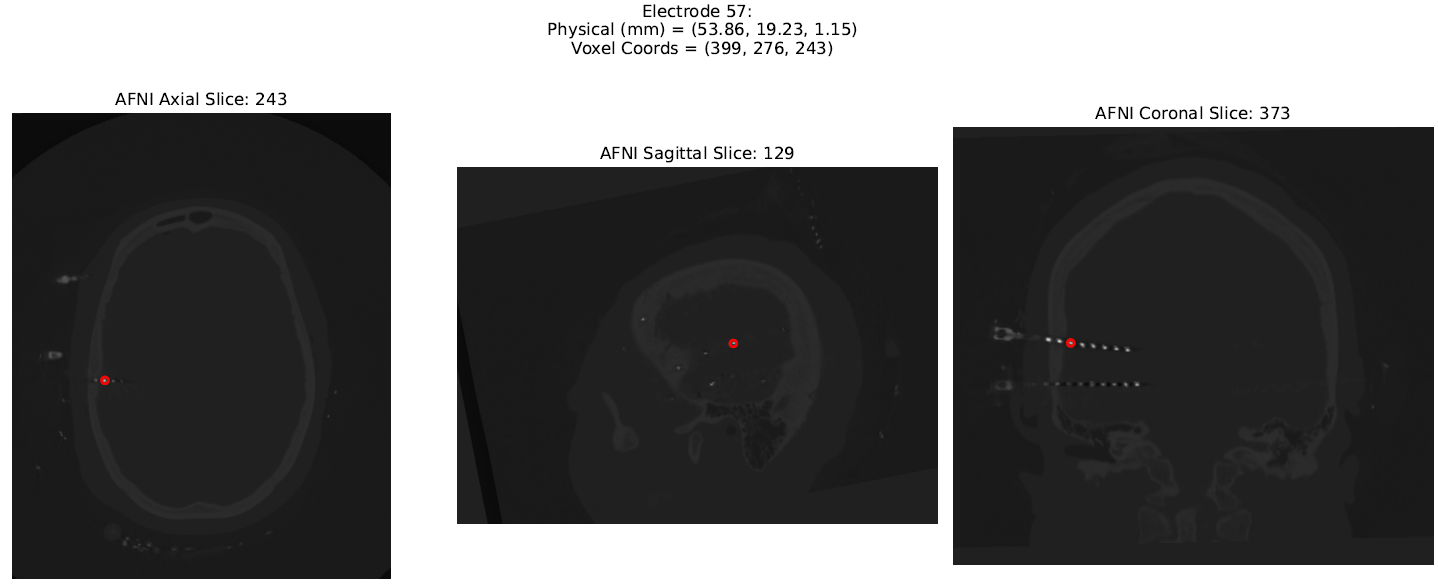

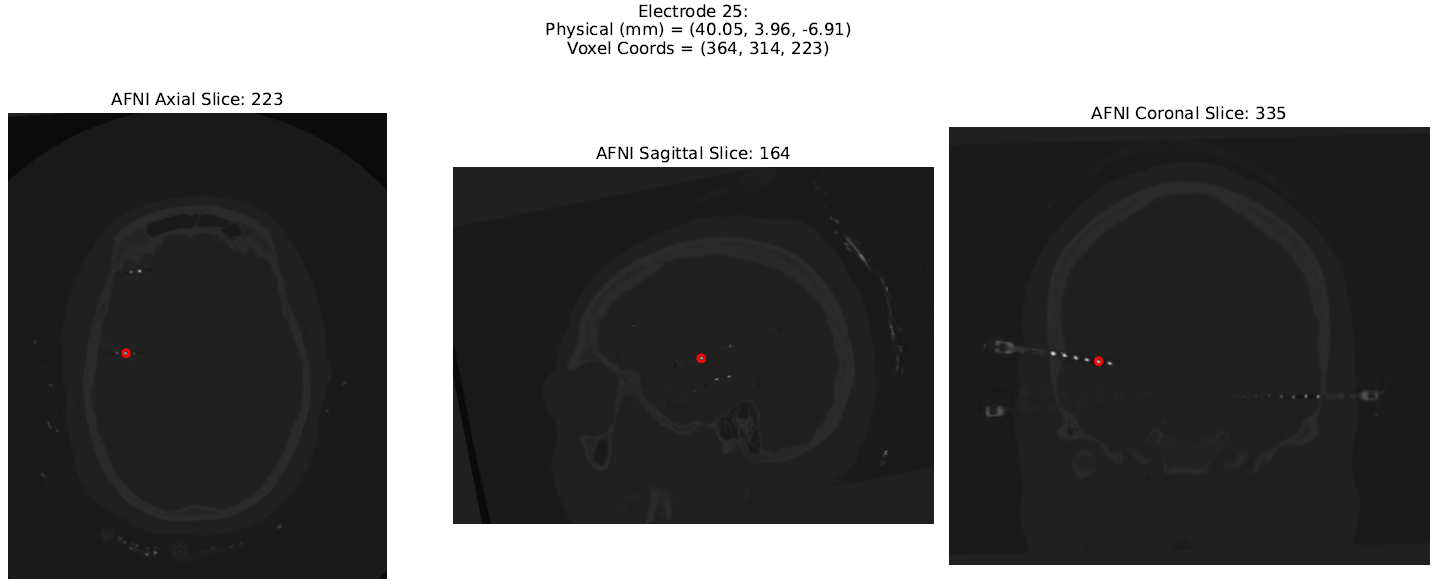

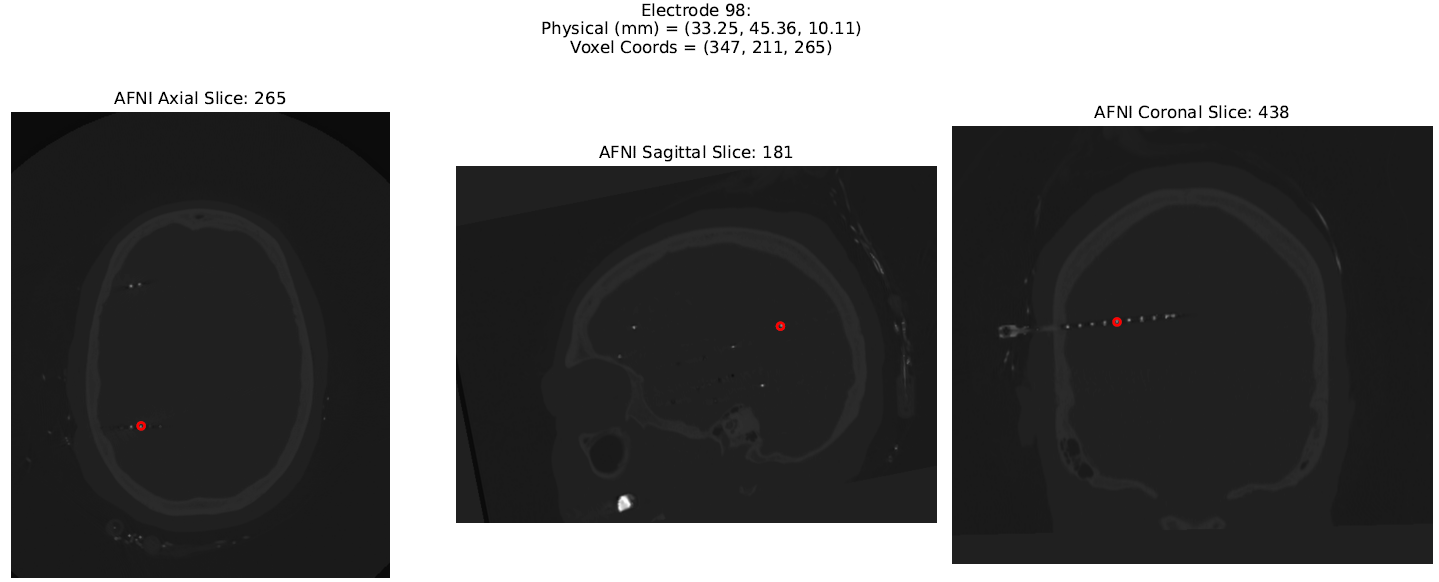

Report preview (example images):

---

📂 Project Structure

ElecMap/
├── src/
|   └── elecmap/
│       ├── __init__.py
│       ├── electrode_detection.py
│       └── electrode_visualization.py
├── examples/
│   └── run_elecmap_demo.py
├── processed_scans/
│   └── (auto-generated outputs)
├── reports/
│   └── (auto-generated reports)
├── pyproject.toml
├── requirements.txt
├── LICENSE
└── README.md

---

📋 JSON Output Format

The output JSON contains a list of detected electrode centroids:

[
  {
    "physical_mm": [51.74, -40.14, -2.88],
    "voxel_coords": [394, 324, 250]
  },
  ...
]

• physical_mm: electrode location in real-world space (millimeters)
• voxel_coords: electrode position in image voxel space (indices)

---

🔬 Use Cases

• Epilepsy and tumor surgery planning
• Post-operative SEEG or ECoG contact localization
• Research in brain-computer interfaces (BCIs)
• Electrode tracking across imaging sessions
• Quality control of electrode placement

---

🧪 Dependencies

• Python 3.8+

• Python libraries:

  • SimpleITK
  • matplotlib
  • numpy
  • termcolor
  • tqdm
  • nipype (for FSL integration)

• System dependency:

  • FSL

Install all Python dependencies with:

pip install -r requirements.txt

⚠️ Without FSL, only CT-based detection is performed. A warning will be printed.

---

🧾 License

This project is licensed under the MIT License.

---

🤝 Contributing

Feedback and contributions are welcome!
Please open an issue to report bugs, request features, or contribute code.

---

📫 Contact

Created by: Mohammad Saber
📧 Email: [e-mail]
🌐 GitHub: https://github.com/saberm2837/ElecMap

---

📚 Citation

If you use ElecMap in your research, please cite:

@software{ElecMap2025,
  author = {Mohammad Saber},
  title = {ElecMap: Intracranial Electrode Localization Toolkit},
  year = {2025},
  url = {https://github.com/saberm2837/ElecMap}
}
