eodag-labextension

Searching and browsing remote sensed imagery directly from JupyterLab.

v3.7.0 screencast

This extension is using the eodag library to efficiently search from various image providers. It can transform search results to code cells into the active Python notebook to further process/visualize the dataset.

The extension is composed of a Python package named eodag-labextension, and add a tab into the left panel of Jupyter Lab. The package consist of a Python Jupyter notebook REST service consumed by the client and served at /eodag/ or /user/<username>/eodag/ for JupyterHub (a home page is available at that URL).

• Requirements
• Compatibility
• Install
  • System configuration
• QuickStart
  • Search
  • Settings
    • EODAG user settings through environment variables
  • Results overview
  • Apply to the Jupyter notebook
  • User manual
• Contribute
• Troubleshooting
• License

Requirements

• pip >= 21.0

Compatibility

• newest eodag-labextension versions are compatibles with JupyterLab v4
• v4.0.0 is the latest version compatible with JupyterLab v3
• v3.1.3 is the latest version compatible with JupyterLab v2
• v2.1.3 is the latest version compatible with JupyterLab v1

Install

pip install eodag-labextension

You can also uninstall it quite simply.

pip uninstall eodag-labextension

System configuration

EODAG Labextension can be configured using the following environment variables:

• EODAG_LABEXTENSION__DEBUG (bool, default: False): whether to print EODAG logging at DEBUG level or not.
• EODAG_LABEXTENSION__MAP__TILE_URL (str, default: https://a.tile.openstreetmap.org/{z}/{x}/{y}.png): Map tile URL.
• EODAG_LABEXTENSION__MAP__TILE_ATTRIBUTION (str, default: "© OpenStreetMap contributors"): Map tile attribution.
• EODAG_LABEXTENSION__MAP__ZOOM_OFFSET (int, default: 0): Map zoom offset.

QuickStart

You can use eodag-labextension inside a Jupyter notebook. Start Jupyter lab with jupyter lab, and in Jupyter lab open a notebook.

Search

Click on this icon in the left of JupyterLab interface to open EODAG-Labextension tab.

With displayed search form, you can enter search extent and following search criteria:

• Provider: the provider on which to perform the search. If no provider is selected, search will loop on providers by priority, and return the first non empty results.

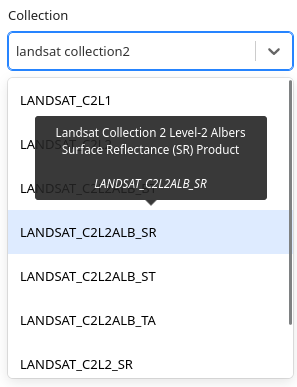

• Collection: the searched collection. List filtering is performed using collections description keywords. For each entry of the drop-down list, a tooltip is displayed at hovering time with corresponding title.

• Date range: minimal and maximal dates of the search temporal window.

• Parameters: Select a collection to unlock parameters. Click on "More parameters", select desired parameters and set their associated value that should be sent as search criteria.

• Custom parameters: used to enter key-value pairs criteria for the request that are not available as queryable through "Parameters".

As search geometry you can draw multiple extents, or use none. Each extent can be a rectangle or a free polygon.

Collection is mandatory. Other criteria are optional.

Once search criteria are filled out, click on:

• Generate Code to automatically generate and insert the corresponding eodag search code bellow the active cell.
• Preview Results to perform a search in background, display results, and generate search code in a second step.

Settings

Click on this icon to reload EODAG configuration and take into account your updated credentials or providers settings.

Click on this icon to open EODAG-Labextension settings menu.

You will be enable to:

• Configure Labextension through its settings:

  • choose whether newly inserted code should replace existing search code or not;
  • enable search count, which would significantly slow down search requests for some providers, and might be unavailable for some others;
  • configure the default map settings.

• Edit EODAG user configuration file, to set provider credentials, download directories, or other settings. Default file path is ~/.config/eodag/eodag.yaml. EODAG environment automatically reloads on file save.

• Open Labextension Documentation, Github repository, or CS GROUP page.

• View EODAG packages versions.

EODAG user settings through environment variables

EODAG environment variable configuration can be set by storing variables in a .env file in the jupyterlab working directory:

echo "EODAG_CFG_FILE=/path/to/custom.yml" >> .env

Hit the reload button to update current EODAG environment with updated .env file.

Results overview

The results overview popup is compopsed of 3 parts:

• a map showing products extent,
• a table listing products,
• a pane containing metadata for currently selected product.

The results table allows you to access product metadata by clicking on the desired product line. The magnifying glass button allows you to zoom in on the product's in the map view. By scrolling down in the list of results, the search is automatically restarted to retrieve the following results.

In the metadata view, clicking on the Quicklook displays it in native resolution. Clicking it again reduces its size again.

Apply to the Jupyter notebook

If the search result is correct, clicking on the "Generate code" button will insert the Python eodag code in a new cell after the selected cell of the currently open notebook. The popup is automatically closed. From there, it is possible to work in the notebook on the search results by executing the eodag search.

Here is an example of generated code:

from eodag import EODataAccessGateway, setup_logging

setup_logging(1) # 0: nothing, 1: only progress bars, 2: INFO, 3: DEBUG

dag = EODataAccessGateway()
geometry = "POLYGON ((0.550136 43.005451, 0.550136 44.151469, 2.572104 44.151469, 2.572104 43.005451, 0.550136 43.005451))"
search_results = dag.search(
  provider="cop_dataspace",
  collection="S2_MSI_L1C",
  geom=geometry,
  start="2025-04-01",
  end="2025-04-05",
  cloudCover=51,
)

User manual

Please refer to the user manual notebook for results usage examples.

Contribute

Have you observed a bug while running eodag-labextension? Do you have a suggestion for a new feature?

Don't hesitate and open an issue or submit a pull request, contributions are most welcome!

For guidance on setting up a development environment and how to make a contribution to eodag-labextension, see the contributing guidelines.

Troubleshooting

If you are seeing the frontend extension, but it is not working, check that the server extension is enabled:

jupyter server extension list

If the server extension is installed and enabled, but you are not seeing the frontend extension, check the frontend extension is installed:

jupyter labextension list

To submit an issue, please go to github issues.

License

This software is licensed under Apache License v2.0. See LICENSE file for details.

Copyright 2022 CS GROUP - France All rights reserved
