es-viewer 1.2.0

A lightweight, cross-platform desktop GUI for Elasticsearch

PyQt Elasticsearch Viewer

Elasticsearch ES可视化客户端工具

下载地址

A simple, lightweight, cross-platform desktop GUI for browsing and managing Elasticsearch clusters.

This tool is a self-contained desktop application built with Python and PyQt6. It provides a user-friendly interface for performing common Elasticsearch operations like searching, creating, reading, updating, and deleting documents. It is designed to be minimal and portable, relying only on the requests library for communication with Elasticsearch, with no dependency on the official elasticsearch-py client.

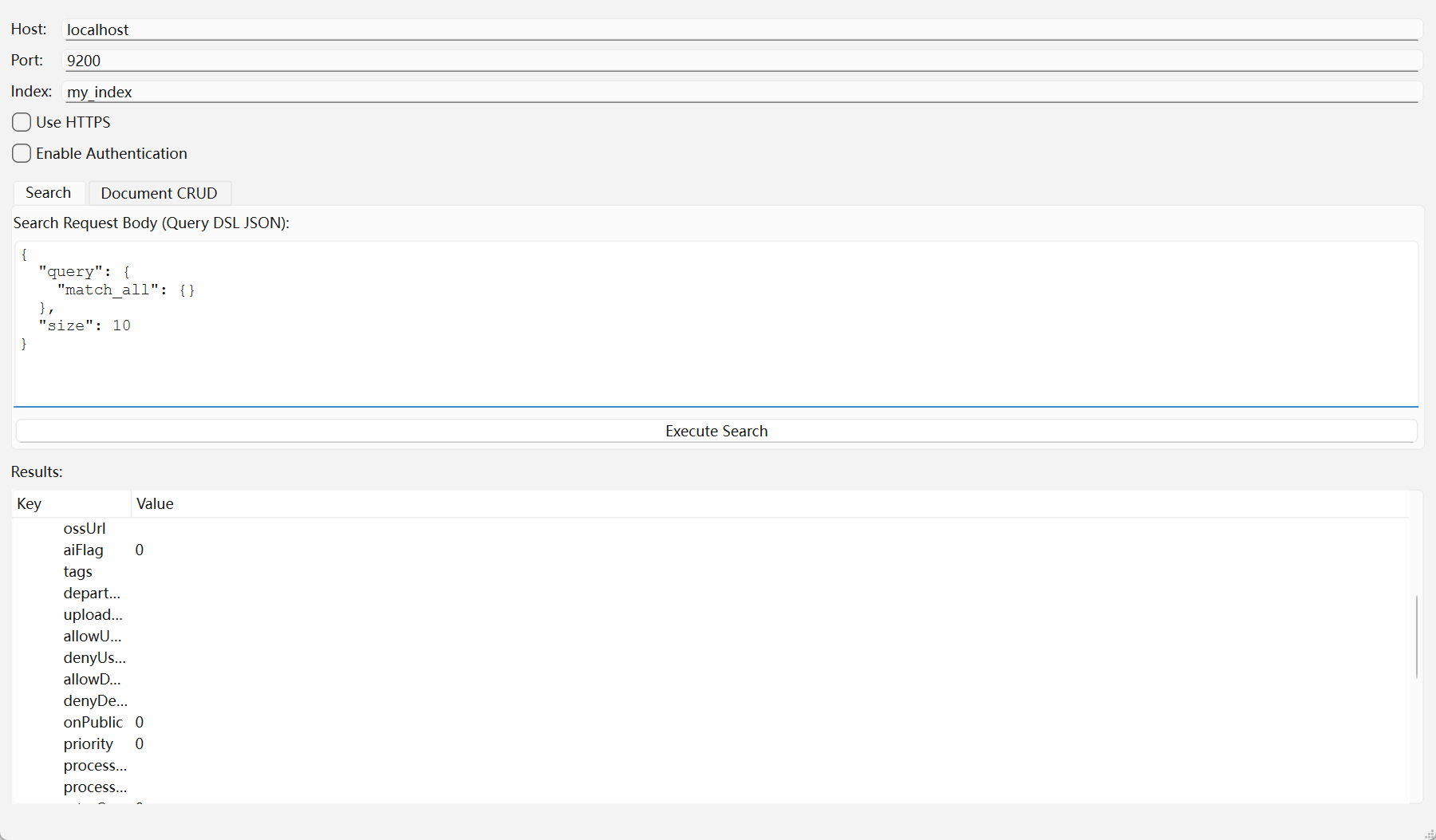

(Note: Screenshot shows an earlier version; the final version includes more features like CRUD tabs and HTTPS options.)

---

✨ Features

• Flexible Connectivity: Connect to any Elasticsearch cluster via HTTP or HTTPS.
• Security Options:
  • Support for username/password (Basic) authentication.
  • Option to disable SSL certificate verification for connecting to clusters with self-signed certificates.
• Powerful Search: A dedicated tab for writing and executing complex JSON-based Query DSL searches.
• Full CRUD Functionality: A "Document CRUD" tab for easy single-document operations:
  • Get: Retrieve a document by its ID.
  • Index/Create: Create or update a document. Supports both user-defined and auto-generated IDs.
  • Update: Partially update a document using the _update API.
  • Delete: Remove a document by its ID.
• Interactive Results Display: View results in a clear, expandable tree view that handles nested JSON structures gracefully.
• User-Friendly:
  • Copy-Paste: Easily copy keys, values, or full key-value pairs from the results tree with Ctrl+C or a right-click menu.
  • Session Persistence: Automatically saves your last successful connection and query configuration, loading it on the next launch.
• Lightweight & Cross-Platform:
  • Minimal dependencies: PyQt6 and requests.
  • Runs on Windows, macOS, and Linux.

---

🛠️ Installation

To get started, you need Python 3 and pip installed on your system.

1. Clone the repository:

   git clone https://github.com/isee15/es-viewer
   cd es-viewer


   Alternatively, just download the main Python script (es_tool_final_corrected_copy.py or your preferred name).

2. Create a requirements.txt file: Create a file named requirements.txt in the same directory with the following content:

   PyQt6
   requests


3. Install dependencies: Open your terminal or command prompt in the project directory and run:

   pip install -r requirements.txt


---

🚀 Usage

1. Run the application:

   python es_gui.py


2. Connection Panel:

   • Fill in the Host, Port, and target Index.
   • Check Use HTTPS if your cluster uses SSL/TLS.
   • If using HTTPS with a self-signed certificate, you may need to uncheck Verify SSL Certificate.
   • Check Enable Authentication and fill in your credentials if your cluster requires them.

3. Search Tab:

   • Write your full Elasticsearch Query DSL in the JSON editor.
   • Click Execute Search to run the query.
   • Results will be displayed in the tree view at the bottom.

4. Document CRUD Tab:

   • Document ID: This field is required for Get, Update, and Delete operations. It is optional for Index/Create (if left blank, Elasticsearch will generate an ID).
   • Document Body:
     • For Index/Create, enter the full JSON content of the document.
     • For Update, enter an update payload (e.g., {"doc": {"field_to_update": "new_value"}}).
   • Click the corresponding button (Get, Index/Create, Update, Delete) to perform the action.
   • The result of the operation will be displayed in the tree view below.

---

⚙️ Configuration

The application automatically saves your settings to a configuration file upon a successful search operation.

• File Location: The file is named .es_viewer_config.json and is stored in your user home directory (e.g., C:\Users\YourUser on Windows or /home/youruser on Linux).
• Function: It stores the last used connection details, authentication state, and search query so you don't have to re-enter them every time you open the app.
• Security Note: The password is saved in plain text in this file. This is a security risk for production environments. Please use with caution.

---

📜 License

This project is licensed under the MIT License. See the LICENSE file for details.
