evidential

Evidence.dev-style interactive tables for Marimo, packaged as an anywidget and powered by DuckDB when you need it.

evidential is a display widget. SQL or pandas shapes the data, Python says how to present it, and the browser renders it: sort, search, paginate, freeze columns, group with subtotals, download CSV and open a fullscreen view.

Status: alpha (0.1.0), not yet published on PyPI. Install from a checkout below. The API may change.

Install

git clone https://github.com/edouardp/evidential
cd evidential
uv sync
uv run marimo edit notebooks

The renderer bundle is committed, so users need no JavaScript toolchain. Extras are evidential[duckdb], evidential[marimo] and evidential[studio] (see pyproject.toml).

1. Your first table

from evidential import EvidentialTable

tips = [
    {"city": "Boston", "trips": 1284, "revenue": 48120.50, "tip_rate": 0.183},
    {"city": "New York", "trips": 3502, "revenue": 142880.25, "tip_rate": 0.171},
    {"city": "Chicago", "trips": 2118, "revenue": 76540.00, "tip_rate": 0.164},
    {"city": "San Francisco", "trips": 1907, "revenue": 98320.75, "tip_rate": 0.196},
    {"city": "Seattle", "trips": 1463, "revenue": 61140.10, "tip_rate": 0.188},
]

EvidentialTable(tips, title="Tipping by city")

Types are inferred from the data. Integers default to whole numbers (num0), floats choose an auto-scaling format, dates render as dates, and lists become sparkline input.

In Marimo, output the table directly. Wrap it with mo.ui.anywidget(...) only when another cell needs to read widget state:

import marimo as mo

table = mo.ui.anywidget(EvidentialTable(tips, title="Tipping by city"))
table

2. Point it at your data

EvidentialTable accepts a list of dicts, a pandas DataFrame, a PyArrow table, or a DuckDB relation:

EvidentialTable(frame)
EvidentialTable(arrow_table)
EvidentialTable(con.table("orders"))
EvidentialTable(con.sql("SELECT * FROM orders LIMIT 500"))

DuckDB is optional, but it makes the examples below concise:

from evidential import duck

con = duck.connect()  # DuckDB with httpfs loaded

A DuckDB table or view relation carries COMMENT ON COLUMN text into the header tooltip. A raw con.sql(...) result does not know its source; pass the comments explicitly:

from evidential import EvidentialTable, duck

comments = {name: {"info": text} for name, text in duck.column_comments(con, "orders").items()}
EvidentialTable(con.sql("SELECT * FROM orders LIMIT 500"), column_config=comments)

Arrow field metadata (comment, description or info) works the same way, including through Parquet and Feather. You can also set a description directly:

col.currency("revenue").info("Net revenue in USD")

For Amazon S3 Tables, use duck.connect_s3_tables or see notebooks/02_s3_tables.py.

3. Describe columns

Column descriptions are built one column at a time with col.*. Every factory returns an immutable Column; every chain method returns a new one.

from evidential import EvidentialTable, col, settings

EvidentialTable(
    tips,
    columns=[
        col.text("city", title="City"),
        col.integer("trips", title="Trips"),
        col.currency("revenue", title="Revenue"),
        col.percent("tip_rate", decimals=1, title="Tip rate"),
    ],
    settings=settings(
        title="Tipping by city",
        caption="Illustrative sample orders.",
        width="620px",
    ),
)

Kinds

The factory chooses the kind; the chain refines it.

Kind	Factories
Text	col.text, col.chip, col.icons, col.flag, col.boolean
Numbers	col.number, col.integer, col.currency, col.percent
Time	col.date, col.time, col.datetime
Marks	col.bar, col.point, col.points, col.range, col.stacked_bar, col.strip, col.boxplot, col.distribution
Values as marks	col.color, col.delta, col.sparkline, col.symbols, col.rating, col.repeat
Cells	col.link / col.url, col.image, col.logo, col.markdown, col.html
Composition	col.group, col.subcolumns, col.merge, col.array, col.auto

col.number auto-scales. col.currency takes code= (usd, eur, gbp, …) and decimals=. col.percent treats values as proportions unless whole=True. Dates and times accept relative=.

columns=[
    col.text("city"),
    col.currency("revenue", code="eur", decimals=0),
    col.percent("tip_rate", decimals=1),
    col.date("week", fmt="mmm-yy"),
    col.time("opened_at", fmt="hms"),
    col.datetime("updated_at", relative="hour"),
    col.flag("country"),
    col.boolean("active", true_symbol="✓", false_symbol="✗"),
]

Refine a column

col.currency("revenue", decimals=0).neg(bracket=True).bold()
col.percent("growth", decimals=1).delta(down_is_good=False).italic()
col.number("score").color(scale="Blues", min=0, max=100)

Need	Chain methods
Formatting	.fmt(code) / .format(code), .total_fmt(), .subtotal_fmt(), .align(), .align_decimals(), .figure_style()
Text	.title(), .info(), .footnote(), .bold(), .italic(), .font(), .font_color(), .wrap(), .rotate_title()
Values	.neg(), .red_negatives(), .null_text(), .blank(), .blank_below(), .blank_above(), .highlight(), .cell_style()
Placement	.group(), .subcolumn(), .hide(), .repeat_values(), .sort_by(), .relative(), .fmt_column()
Rich cells	.markdown(), .html(), .link(), .image(), .logo(), .template()
Visualisations	.color(), .chip(), .delta(), .sparkline(), .symbols(), .bar(), .point(), .range(), .scale(), .label(), .domain()

.fmt() is the escape hatch for an exact SSF code. Common presets:

col.number("share").fmt("pct1")
col.number("distance").fmt("num1k")
col.currency("revenue").fmt("usd0")
col.date("month").fmt("mmm-yy")
col.number("bytes").fmt("bytes")
col.number("elapsed").fmt("duration")
col.number("rank").fmt("roman")
col.number("value").fmt("sci")       # 1.23 × 10⁵

col.auto("revenue") keeps the inferred type, format and metadata, then applies your refinements. A Column is a Mapping, so to_config() returns the plain dict and the dict form remains valid anywhere a column is accepted:

columns=[col.text("city"), col.auto("revenue").font_color("#334155")]
column_config={"revenue": col.currency("revenue", decimals=0)}

4. Set the table's presentation

Use settings(...) for a reusable bundle. Explicit keyword arguments win over the bundle.

REPORT = settings(
    title="Monthly revenue",
    subtitle="By city and channel",
    caption="Source: orders.parquet",
    page_size=15,
    search=True,
    download=True,
    row_shading=True,
    row_lines=True,
    freeze_columns=1,
    width="900px",
    max_height="70vh",
)

EvidentialTable(tips, columns=[...], settings=REPORT, title="This month")

Goal	Options
Frame and type	title, subtitle, caption, info, info_link, width, max_height, border, compact, font_size, theme, header_color, header_font_color, background_color
Columns	freeze_columns, wrap, wrap_titles, format_titles, stretch, order_columns_by_group, column_stats, align_decimals, figure_style, rotate_titles
Interaction	search, sortable, page_size, download, row_numbers, default_sort, select
Rows	row_shading, row_lines, group_gap, stub, stub_head, null_text
Groups and totals	show_total_row, total_label, total_position, subtotal_position, collapsible, collapsed, groups_open, group_type

The API reference lists every option and value.

5. Add visualisations

A visualisation presents the underlying value; sorting, search, statistics and CSV export still use the raw value.

columns=[
    col.text("region", title="Region"),
    col.bar("revenue", format="usd0", label=True, title="Revenue"),
    col.bar("growth", center=True, format="pct1", label=True, title="Growth"),
    col.number("share").color(scale="Blues").title("Share"),
    col.chip("status", min_width=80),
    col.percent("change", decimals=1).delta(down_is_good=False, neutral_range="0.02"),
    col.sparkline("trend", type="area", title="Trend"),
    col.rating("stars", max=5),
]

Graphic gallery

Every graphic type, with the Python that builds it. The images come from notebooks/50_graphics_gallery.py, captured by make api-screenshots.

Bar

columns=[
    col.text("region"),
    col.bar("sales", format="usd0", label=label.auto_position("outside end"), title="Sales"),
]

Centered bar

columns=[
    col.text("team"),
    col.bar("change", center=True, format="pct1", label=True, title="Change")
       .scale(domain=(-0.2, 0.2), axis=True, axis_position="bottom"),
]

Overlaid bars with a target

columns=[
    col.text("party"),
    (
        col.bar("previous", format="num0", color="#d1d5db", size=0.85)
        .bar("current", format="num0", color="@colour", size=0.45,
             label=label.position("inside end"), title="Current vs previous")
        .point("target", color="#0f766e", size=7)
        .scale(domain=(0, 45))
    ),
]

Back-to-back bars

columns=[
    col.bar("spend", format="usd1", direction="left", color="@color",
            label=label.auto_position("outside end"), pad=3).align("left"),
    col.text("country", title=""),
    col.bar("rate", format="num2", color="@color",
            label=label.auto_position("outside end"), pad=3).align("right"),
    col.auto("color").hide(),
]

Color scale

columns=[
    col.text("region"),
    col.number("score", fmt="num0").color(scale="Blues", min=0, max=100).title("Score"),
]

Chip

columns=[
    col.text("service"),
    col.chip("status", min_width=84, title="Status"),
    col.number("latency", fmt="num0").chip(scale="red", min=0, max=500).title("Latency (ms)"),
]

Delta

columns=[
    col.text("metric"),
    col.percent("change", decimals=1, title="Change")
       .delta(down_is_good=False, neutral_range="-0.02:0.02"),
    col.percent("change", decimals=1, title="As a chip")
       .delta(down_is_good=False, neutral_range="-0.02:0.02", chip=True),
]

Sparklines

columns=[
    col.text("series"),
    col.sparkline("line", type="line", title="Line"),
    col.sparkline("area", type="area", fit_to_data=True, title="Area"),
    col.sparkline("bar", type="bar", title="Bar"),
    col.sparkline("points", type="points", markers=True, title="Points"),
    col.sparkline("change", type="change", title="Change"),
]

Symbols and rating

columns=[
    col.text("country"),
    col.symbols("gold", symbol="■", color="#d97706", title="Glyph"),
    col.symbols("gold", shape="square", color="#d97706", title="Squares"),
    col.rating("score", title="Rating"),
]

Boolean, icons and flags

columns=[
    col.text("feature"),
    col.boolean("active", true_symbol="✓", false_symbol="✗", title="Active"),
    col.icons("signal", map={"up": "▲", "flat": "●", "down": "▼"}, title="Signal"),
    col.flag("country", title="Country"),
]

Dumbbell: range plus points

columns=[
    col.text("country"),
    (
        col.range("before", "after", color="#222222", color_negative="#cc1111",
                  size=2, direction_marker=True)
        .point("before", color="#6699ee", outline="#2f5fa8", size=12)
        .point("after", color="#ff6666", outline="#cc1111", size=12)
        .title("Before → after").align("center")
        .scale(domain=(0, 100), axis=True, axis_position="bottom")
    ),
]

Points from an array

columns=[
    col.text("metric"),
    col.points("samples", color="#2563eb", outline=False, title="Samples")
       .scale(domain=(0, 60), axis=True, axis_position="bottom"),
]

Box plot

columns=[
    col.text("group"),
    col.boxplot("lo", "q1", "med", "q3", "hi", outliers="outs",
                whisker="iqr", title="Spread")
       .scale(domain=(0, 32), axis=True, axis_position="bottom"),
]

Distribution band

columns=[
    col.text("name"),
    (
        col.distribution("curve", x="x", y="pdf", color="@ink")
        .point("median", color="#111111", outline=False)
        .title("Density").align("center")
        .scale(domain=(0, 100), axis=True, axis_position="bottom")
    ),
]

Stacked bar

columns=[
    col.text("region"),
    col.stacked_bar("new", "renewal", "expansion",
                    colors=["#2563eb", "#60a5fa", "#bfdbfe"],
                    labels=True, format="num0", size=0.6,
                    title="New · Renewal · Expansion"),
]

Diverging Likert stack

columns=[
    col.text("question"),
    col.stacked_bar("sd", "d", "n", "a", "sa",
                    colors=["#b91c1c", "#fca5a5", "#e5e7eb", "#86efac", "#16a34a"],
                    labels="percent", label_align="begin",
                    diverge_at="n", neutral="split", normalize="percent",
                    size=1, title="Response"),
]

Strip

columns=[
    col.text("team"),
    col.strip("form", colors={"W": "#16a34a", "D": "#9ca3af", "L": "#dc2626"},
              labels=True).title("Form"),
]

Axis, reference line and band

columns=[
    col.text("team"),
    col.bar("score", format="num0", label=label.auto_position("outside end"),
            title="Score")
       .scale(domain=(0, 100), axis=True, axis_position="bottom", gridlines=True)
       .reference_band(60, 80, color="#fef3c7")
       .reference_line(70, color="#dc2626"),
]

Labels and shared domains

from evidential import col, domain, label

annotation = label.fmt("usd0").bold().auto_position("inside end")

payments = domain.numeric("payments").include_zero().palette("Blues")

columns=[
    col.bar("card", label=annotation).domain(payments),
    col.number("cash").color().domain("payments"),
]

A label can show the mark's value, another field (label="@candidate"), or fixed text. A named domain pools values across columns so bars, heatmaps and sparklines share one scale and palette. See notebooks/47_shared_domains.py.

6. Build header structures

columns=[
    col.text("country"),
    col.subcolumns("Latest", [
        col.number("gdp", fmt="num1", align="right").neg(),
        col.auto("quarter").align("left").font_color("#94a3b8"),
    ]),
    col.group("Forecast", [
        col.number("next_year", fmt="num1", title="Next year"),
        col.number("long_run", fmt="num1", title="Long run"),
    ]),
]

col.subcolumns(label, [...]) gives its members one shared leaf header. col.group(label, [...]) adds a spanner over a run of columns. Both nest. A column named "GDP Measure.GDP nominal" groups under GDP Measure automatically; column_groups={...} is the equivalent mapping form.

The stub setting marks row-label columns, and stub_head labels the stub:

settings(stub="country", stub_head="Country")

7. Derive values and add display rules

Merged columns build one cell from several source columns:

from evidential import col, cols_merge_n_pct, cols_merge_range, cols_merge_uncert

columns=[
    col.text("site"),
    col.merge("range", cols_merge_range("low", "high", fmt="num0", title="Range")),
    col.merge("measurement", cols_merge_uncert("value", "uncert", fmt="num1")),
    col.merge("share", cols_merge_n_pct("n", "pct", title="Share")),
]

Display rules transform values at render time. Rules run in order; the last match wins.

from evidential import cells_body, tab_format, tab_style, text_transform

EvidentialTable(
    tips,
    columns=[col.text("city"), col.currency("revenue"), col.percent("tip_rate")],
    rules=[
        text_transform(cells_body("city"), str.upper),
        tab_style(cells_body("revenue"), color="#b45309"),
        tab_format(cells_body("revenue"), "usd0"),
    ],
)

Substitutions are also rules: sub_missing, sub_zero, sub_small_vals, sub_large_vals and sub_values. Location selectors accept column names and either 0-based row indices or a Python predicate.

Presentation parts

A table also has a frame, notes and optional dividers:

• section_row("Label") / spacer_row() create display-only rows in rows.
• col.text("product").footnote("note") marks cells; footnotes=[...] adds static notes, and footnote_marks="numbers"|"letters"|"symbols" chooses the mark scheme.
• caption=... adds source notes; stub / stub_head define row labels.
• column_stats=True adds min/max/avg/null under each header.
• null_text, .blank_below, .blank_above and .blank(...) control missing values.

8. Group, pivot and compare

The aggregate helpers accept the same col.* builders, run their aggregation in DuckDB, and return a normal EvidentialTable.

from evidential import col, grouped_table, settings

grouped_table(
    con,
    "SELECT category, payment, sales FROM orders",
    dimensions=["category", "payment"],
    measures=["sum(sales) AS sales", "count(*) AS orders"],
    dimension_config={"category": col.text("category")},
    measure_config={
        "sales": col.bar("sales", format="usd0", label=True),
        "orders": col.integer("orders"),
    },
    settings=settings(title="Sales by category and payment", page_size=12),
)

Aggregations for subtotals/totals

aggregations={"sales": "mean"} recomputes subtotals from detail values with a built-in name or a Python callable. Use weight_columns={"sales": "weight"} for weighted means.

Pivot, compare and query

from evidential import comparison_table, pivot_table, query_table

# One column per pivot value, grouped under shared headers.
pivot_table(
    con,
    "SELECT category, year, sales FROM orders",
    dimensions=["category"],
    pivots=["year"],
    measures=["sum(sales) AS sales"],
    measure_config={"sales": col.currency("sales", decimals=0)},
)

# Adds <measure>_prior, <measure>_delta and <measure>_pct columns.
comparison_table(
    con,
    "SELECT region, order_date, sales FROM orders",
    dimensions=["region"],
    measures=["sum(sales) AS sales"],
    date_column="order_date",
    compare_vs="prior year",
)

# Ad-hoc SQL with Evidence-style where / order / limit / date_range.
query_table(
    con,
    "SELECT * FROM orders",
    where="sales > 0",
    order="sales DESC",
    limit=100,
    date_range="last 30 days",
    date_column="order_date",
)

For rows already in Python, grouped_records(rows, group_by=..., measures=...) does the same grouping without a database.

Display-only headings and summaries

rows adds headings and summaries without making them source records.

from evidential import EvidentialTable, col, rows

layout = (
    rows.group_by("region")
    .section(values={"category": rows.count(suffix=" products"), "sales": "sum"})
    .summary("Region total", values={"sales": "sum"})
    .grand_summary("All regions", values={"sales": "sum"})
)

EvidentialTable(
    products,
    row_layout=layout,
    columns=[col.text("product"), col.text("category"), col.bar("sales", format="usd2")],
    page_size=3,
    section_indent=1,
)

Search recalculates named aggregations; a callable keeps its source scope until the next set_data. table.rows contains details only, while table.display_rows is an inspection snapshot that includes synthetic rows. rows.of(products).group_by("region").summary(...).build() returns a view that can be passed directly to EvidentialTable.

9. Live tables and row selection

LiveEvidentialTable re-runs a parameterised query without recreating the widget, so sort, search and page state survive.

from evidential import LiveEvidentialTable, col

# 1. controls
min_fare = mo.ui.slider(0, 80, value=10, label="Minimum fare")
min_fare

# 2. persistent widget: no control references in this cell
live = LiveEvidentialTable(
    con,
    "SELECT * FROM trips WHERE fare_amount >= {min_fare}",
    auto_run=False,
    columns=[col.number("fare_amount", fmt="usd2"), col.number("trip_distance", fmt="num1")],
)
live

# 3. reactive cell: re-runs whenever the slider changes
_ = live.set_controls(min_fare=min_fare)

Values are bound as SQL parameters, never spliced into the SQL text. Outside a reactive host, bind_controls=True makes the widget re-run itself. query_values(con, sql) returns one column as a list for populating selectors.

The cell that creates the widget must not reference a control. Referencing one registers a Marimo dependency and recreates the widget on every change.

Set select="country_code" to make rows clickable. The clicked value crosses to Python through the widget's selected trait:

countries = mo.ui.anywidget(
    EvidentialTable(
        rows,
        columns=[col.text("country"), col.integer("population")],
        select="country_code",
        empty_message="Click a country",
    )
)
countries

# another cell
selected = countries.widget.selected
detail.widget.set_data(con.sql(detail_sql, params={"code": selected or ""}))

set_data keeps the widget and its layout in place; update_options and set_column change presentation without rebuilding it.

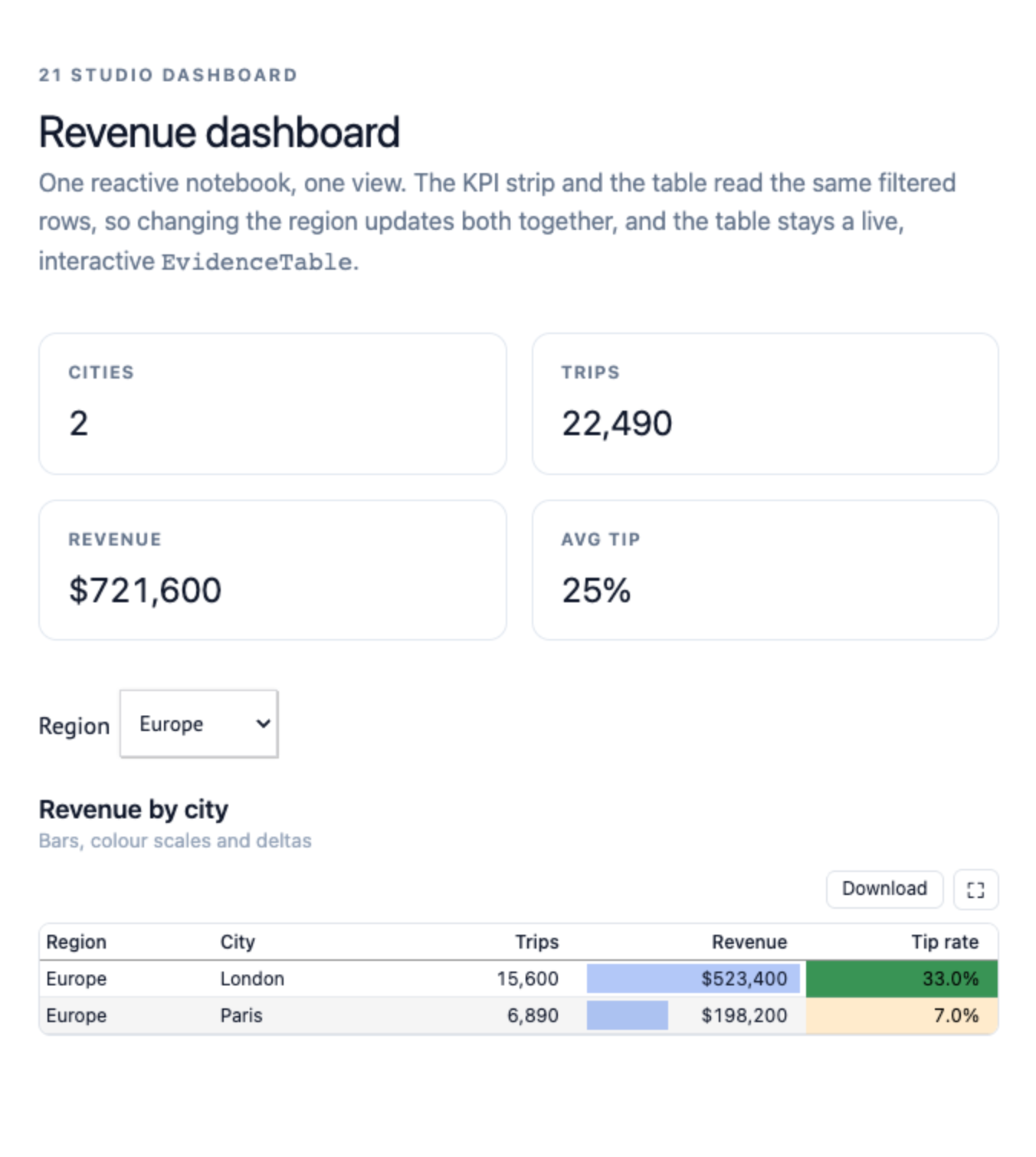

10. Marimo Studio views

A marimo Studio view projects named cells from a notebook, so one table can back a dashboard, report or slide deck.

@app.cell
def revenue_table(EvidentialTable, col, filtered):
    EvidentialTable(filtered, columns=[col.bar("revenue", format="usd0", label=True)])

<marimo-cell name="revenue_table"></marimo-cell>
<strong mo-value="kpis.revenue"></strong>

uv run --with "marimo-studio[deno]" marimo-studio view create dashboard --target analysis.py
make studio-serve
make studio-validate

The interactive table needs Studio's Server runtime. See docs/marimo-studio.md and notebooks/21_studio_dashboard.py.

11. Amazon S3 Tables

from evidential import duck

con = duck.connect_s3_tables(table_bucket_arn="arn:aws:s3tables:...:bucket/...")
con.sql("SELECT * FROM s3tables.taxi.yellow_trips LIMIT 100")

This attaches an Iceberg REST catalog using ambient AWS credentials. See notebooks/02_s3_tables.py.

Compatibility

The fluent API is the preferred surface, but the older spellings still work:

• column_config={"revenue": {"fmt": "usd0"}} is merged onto inferred columns.
• Raw viz="bar" dictionaries are accepted.
• column_groups={...} remains the mapping form of col.group(...).
• fmt= and format= are equivalent; the same applies to the other alias pairs listed in the API reference.

The scalar col.number(...).bar() shortcut was removed. Use the mark factory:

col.bar("sales", format="usd0", label=True)

Reference

• API reference — the full factory, chain, mark, settings and module reference, with screenshots.
• Design & DX — why the table works the way it does.
• Technical architecture — wire format, render pipeline and diagrams.
• marimo Studio views — projections and troubleshooting.
• ADRs — the decisions behind the API.
• notebooks/ — runnable examples of every feature.

The public surface is re-exported from evidential:

Import	Purpose
EvidentialTable, LiveEvidentialTable	tables and live queries
col, label, domain, rows	column, annotation, scale and row-layout builders
settings, TableOptions, ColumnOptions	typed table and column configuration
grouped_table, grouped_records, pivot_table, comparison_table, query_table	aggregate and query helpers
cells_body, tab_style, tab_format, text_transform, sub_*, cols_merge_*	display rules and merged values
duck, query_values, date_range_sql	DuckDB and query utilities

Development

make install            # Python and JavaScript dependencies
make install-hooks      # pre-commit hooks
make lint               # ruff · bandit · pip-audit · pyrefly · shellcheck · checkmake · rumdl
make format             # auto-fix formatting and lint issues
make test               # Python tests (with coverage) and JavaScript tests
make test-browser       # Playwright functional tests
make check-notebooks    # marimo check on every notebook
make check-artifact     # build a wheel/sdist and verify their contents
make validate           # lint + notebook checks + tests + bundle check + build
make api-screenshots    # capture docs images from the screenshot notebooks
make frontend-build     # rebuild static/table.js and static/table.css

The gates are mirrored in .pre-commit-config.yaml (on commit) and scripts/lint.sh (local validation). tests/release/ checks the repository workflow itself, including that the wheel contains the committed renderer assets.

Relationship to Evidence

This is a focused reimplementation for the Python/Marimo ecosystem. Formatting presets, colour-scale maths and table presentation are ported from Evidence's formatValue, table-viz, table-styles and color-scale-utils modules. Evidence is MIT licensed; the same license applies here.

License

MIT.
