ewccli 0.10.0

Table of Contents

1. Introduction
2. Prerequisites
   • Openstack Inputs
3. Installing
• Installing with PIP from PyPI
• Installing with conda from conda-forge
• Installing from source
• Installing in a container
4. Getting started
5. Login to prepare the environment
6. List Items in the catalog
7. Deploy Items from the catalog
8. Test Items unreleased or from private sources
• Preparing a test
• Running a test
9. Deploy a custom Item
• Openstack
• Ansible
• Terraform
• Kubernetes
10. SW Bill of Materials
• Dependencies
• Build/Edit/Test Dependencies
11. Changelog
12. Contributing
13. Development
14. Code Styling
• Resolving Style Issues
15. Code Unittesting
16. Coverage Reporting
17. Documenting
18. Copyright and License
19. Authors

Introduction

The ewccli is the European Weather Cloud (EWC) Command Line Interface (CLI). This tool is developed to support EWC users on the use of the EWC services.

Prerequisites

• You will need a python environment to run the library implementation of this code. Python version 3.10 or higher.
• git installed on your operating system. (usually is available to most OS nowadays)

Openstack inputs

You can use the following link to obtain:

• Applications Credentials (ID and secret)

Installing

We recommend installing ewccli inside a virtual environment to avoid dependency conflicts with system packages.

Installing with PIP from PyPI

The EWC CLI Python package is available through PyPI:

pip install ewccli

Installing with conda from conda-forge

Available since version 0.9.1

The EWC CLI Python package is available through conda-forge:

conda install conda-forge::ewccli

Installing from source

1. Clone this repository and move into it

git clone THIS_REPO && cd ewccli

2. Create a virtual environment with python version >= 3.10

python3 -m venv ewcclienv

3. Activate the virtual environment

source ./ewcclienv/bin/activate

4. Upgrade pip

pip install --upgrade pip

5. Install the package

pip install -e .

Installing in a container

If Docker is your preferred containerization tool, you can replace podman with docker in the commands below.

You may also run in an completely isolated environment using containerization. After cloning the repository and cd into it.

1. Clone this repository and move into it

git clone THIS_REPO && cd ewccli

2. Create a wheel package (./dist/ewccli-<version>-py3-none-any.whl)

pip install -q build

python3 -m build

3. Build an image including the package previously created

podman build --no-cache -t ewccli -f ./Containerfile .

4. Start a container with an interactive shell

podman run -it --rm  --workdir /home/ewccli --entrypoint /bin/bash ewccli

Getting started

Then run ewc to verify everything works:

If you get a WARNING like WARNING: The script ewc is installed in '~/.local/bin' which is not on PATH. Add the following to your profile configuration file:

echo 'export PATH="$HOME/.local/bin:$PATH"' >> ~/.profile

Login to prepare the environment

ewc login

IMPORTANT:

• EWC CLI uses the following order of importance:
  • env variables
  • cli config
  • any other config (e.g. Openstack cloud.yaml or Kubernetes kubeconfig file)

All your profiles are saved under ~/.ewccli/profiles

You can manually add profiles in the same file and the ewccli can use them already.

Info required for a profile:

[my-profile]
federee = EUMETSAT or ECMWF
region = CCI1 or CCI2 or ECIS-R1 or ECIS-R2
tenant_name = eumetsat-ewc-communityhub
application_credential_id =
application_credential_secret =
ssh_public_key_path =
ssh_private_key_path =

List Items in the catalog

The following command shows the current available Items. Official Items are listed here.

ewc hub list

Deploy Items from the catalog

ewc hub deploy ITEM

where ITEM is taken from ewc hub list command under Item column.

Test Items unreleased or from private sources

If you would like to test the deployment of:

• an Item with private source code (local or remote)

  OR

• a new Item, not yet published in the EWC Community Hub

  OR

• a new version of an Item, not yet updated in the EWC Community Hub

you can take advantage of the --path-to-catalog to point the EWCCLI to the correct source location, and deploy the Item to your target tenant of choice.

Preparing a test

Create a local catalogue file, named ./custom_catalog.yaml, with the complete metadata for your Item.

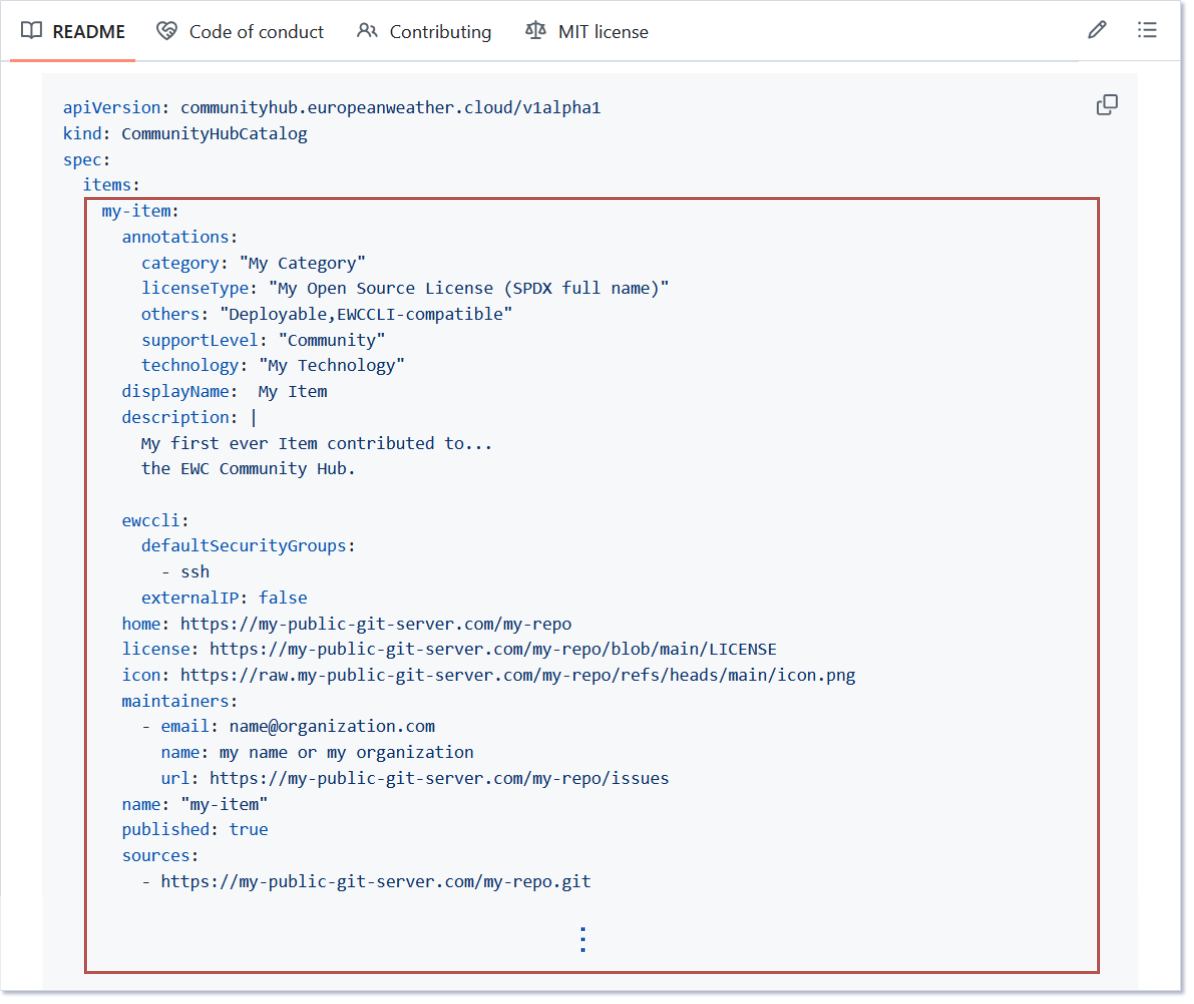

For reference see the example excerpt of Item metadata, with optional EWCCLI compatibility, enclosed in red below. You can find more concrete examples by browsing over metadata of Items already indexed in the catalog. Additionally, all details about required or optional attributes can be found on the schema documentation.

Attributes of particular interest during Item development and testing include:

• ewccli.externalIP is a flag used to assign a public floating IP address to the target VM
• sources, which can be:
  • Public GIT repository URI
  • Absolute path to a local directory with the Item. The path needs to point to an existing non-empty directory
• values.inputSpec is the list of inputs you want the user to be able to provide. Any input without default values is treated as required; users can set them when prompted during deployment, or by passing the --item-inputs arg as part of the deploy command.
• values.osImageName, which can be:
  • The full name of one of the OpenStack image listed on the EWC Knowledge Base
  • The short name of the the OpenStack image; the EWCCLI will auto-resolve to the latest available minor version for the specified operative system
• values.osSecurityGroups is a list of OpenStack Security Groups assigned to the target VM such that network traffic can reach it on certain ports.
• values.pathToMainFile is the relative path to your directory or repository
• values.pathToRequirementsFile is the relative path to your directory or repository

Running a test

Once metadata is correct and complete, execute list, show or deploy commands as needed:

ewc hub --path-to-catalog ./custom_catalog.yaml list|show|deploy

ewc hub --path-to-catalog ./custom_catalog.yaml show

ewc hub --path-to-catalog ./custom_catalog.yaml deploy

Backends

This section described the backends used and which commands are backed by those backends.

Openstack

Used by infra and hub subcommands.

Ansible

Used by hub subcommand.

Terraform

Used by hub subcommand. (COMING SOON)

Kubernetes

Used by dns, s3, k8s subcommmands. (COMING SOON)

SW Bill of Materials (SBoM)

Dependencies

The following dependencies are not included in the package but they are required and will be downloaded at build or compilation time:

Dependency	Version	License	Home URL
requests	2.32.5	Apache Software License (Apache-2.0)	https://requests.readthedocs.io/en/latest
click	8.1.8	BSD-3-Clause	https://github.com/pallets/click
rich	14.1.0	MIT License	https://github.com/Textualize/rich
rich-click	1.8.9	MIT License	https://pypi.org/project/rich-click
prompt_toolkit	3.0.51	BSD-3-Clause License	https://python-prompt-toolkit.readthedocs.io/en/stable
pyyaml	6.0.2	MIT License	https://pyyaml.org
cryptography	45.0.6	Apache-2.0 OR BSD-3-Clause	https://github.com/pyca/cryptography
openstacksdk	>=4.6.0,<5	Apache Software License (Apache-2.0)	https://docs.openstack.org/openstacksdk/latest/
ansible	10.5.0	GNU General Public License v3 or later (GPLv3+) (GPL-3.0-or-later)	https://www.redhat.com/en/ansible-collaborative
ansible-runner	2.4.1	Apache Software License (Apache Software License, Version 2.0)	https://ansible.readthedocs.io/projects/runner/en/latest
kubernetes	33.1.0	Apache Software License (Apache License Version 2.0)	https://github.com/kubernetes-client/python
pydantic	2.12.5	MIT License	https://github.com/pydantic/pydantic

Build/Edit/Test Dependencies

The following dependencies are only required for building/editing/testing the software:

Dependency	Version	License	Home URL
pytest	8.4.1	MIT License (MIT)	https://docs.pytest.org/en/latest
pytest-html	4.1.1	MIT License (MIT)	https://github.com/pytest-dev/pytest-html
pytest-mock	3.14.1	MIT License (MIT)	https://github.com/pytest-dev/pytest-mock
coverage	7.10.5	Apache Software License (Apache License Version 2.0)	https://github.com/nedbat/coveragepy
pre-commit	4.3.0	MIT License (MIT)	https://github.com/pre-commit/pre-commit
sphinx	8.1.3	BSD-2-Clause License	https://www.sphinx-doc.org/en/master
sphinx-click	6.0.0	MIT License (MIT)	https://github.com/click-contrib/sphinx-click
sphinx-rtd-theme	3.0.2	MIT License (MIT)	https://sphinx-rtd-theme.readthedocs.io/en/stable
pydeps	3.0.1	BSD-2-Clause License	https://github.com/thebjorn/pydeps

Changelog

All notable changes (i.e. fixes, features and breaking changes) are documented in the CHANGELOG.md.

Contributing

Thanks for taking the time to join our community and start contributing!

Please make sure to:

• Familiarize yourself with our Code of Conduct before contributing.

• See CONTRIBUTING.md for instructions on how to request or submit changes.

Development

1. Fork this repository and move into it

git clone https://github.com/ewcloud/ewccli.git && cd ewccli

2. Activate the virtual environment

source ./ewcclienv/bin/activate

3. Install the package for testing

pip install -e .[test]

5. Modify the local code and test changes.

6. Push code to your fork and open a pull request.

Code Styling

Execute all linting tests by running:

pre-commit run --all-files

This will provide you with hints about:

• Basic format of the files (i.e. spacing, line breaking, etc.) using black
• PEP standars infringement flagged by flake8
• Static typing and type hinting recommendations given by mypy

Resolving Style Issues

To enforce basic formating issues , run:

black ./

Currently, there is no automated way of addressing errors raised by flake8 and mypy. To resolve those, check the logs from the pre-commit execution, understand the type of error and adjust the code accordingly.

Code Unittesting

Execute all tests in all test files by running:

pytest

Execute all tests in a test file

pytest ewccli/tests/ewccli_commands_hub_deploy_server_test.py

Execute a specific test in a file

pytest ewccli/tests/ewccli_commands_hub_deploy_server_test.py::test_no_matching_images

Execute a specific test in a file with verbose

pytest -vv ewccli/tests/ewccli_commands_hub_deploy_server_test.py::test_no_matching_images

Coverage Reporting

Generate unittest coverage reports in standard formats by executing:

coverage run --module pytest --no-header --verbose -ra --junitxml=coverage.xml --html=coverage.html

Documenting

Generate documentation from source code docstrings:

sphinx-build -b html docs/source/ Documentation/

Releasing to Package Registries

Checkout RELEASING.md for details.

Copyright and License

Copyright © EUMETSAT, ECMWF 2026

The provided code and instructions are licensed under GPLv3+. They are intended to automate the setup of an environment that includes third-party software components. The usage and distribution terms of the resulting environment are subject to the individual licenses of those third-party libraries.

Users are responsible for reviewing and complying with the licenses of all third-party components included in the environment.

Contact EUMETSAT for details on the usage and distribution terms.

Authors

• Francesco Murdaca - Initial work and maintainer - EUMETSAT
