Fast Attention Residuals

Fast Attention Residuals (Fast-AttnRes) makes Attention Residuals a small, ordinary PyTorch operation: pass an ordered set of full-width residual sources and one learned query, get one full-width residual back. The same attnres(values, query) call handles standard AttnRes in Full and per-read Block schedules with either packed tensors or ordered source lists.

Start with the standard quickstart, then choose a Full or Block schedule, and try sliced LR-AttnRes when you want a smaller routing query.

Why use Fast-AttnRes

• One PyTorch call: attnres(values, query) returns a full-width residual and participates in ordinary first-order autograd.
• One schedule primitive: Full and per-read Block call the same public operator; the caller controls source order, block sums, and learned queries.
• BF16-ready training path: the optimized target is BF16 storage/autocast in compiled CUDA training graphs, with FP32 equation math.

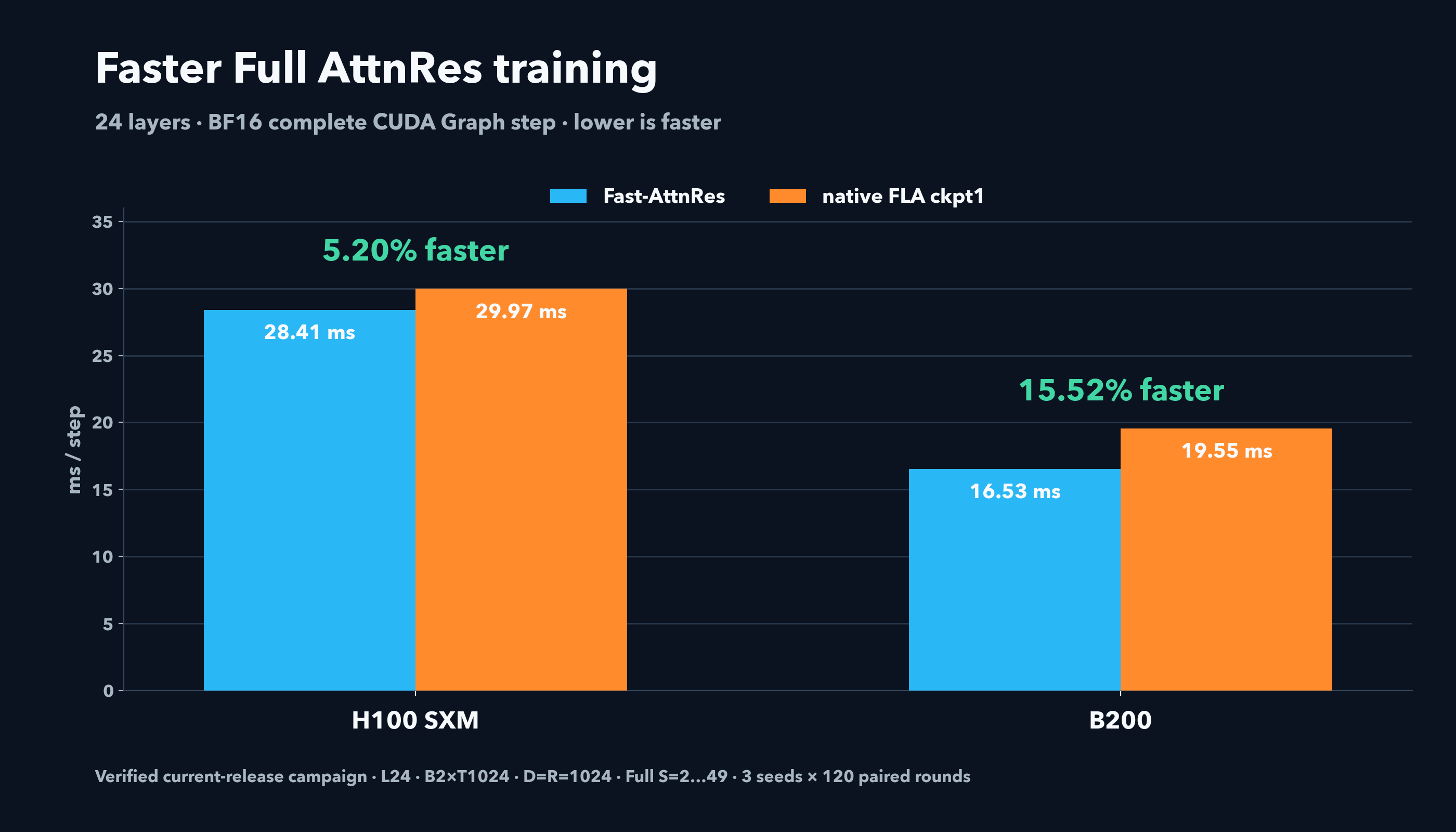

Large-model Full AttnRes: the advantage expands with scale

The current release was verified through Modal on a 24-layer model, batch 2 x sequence 1024, and a Full ordered source-list schedule with 48 AttnRes reads growing from S=2 to S=49. Across three separately analyzed seeds, Fast-AttnRes measured 5.20% lower complete-step latency on H100 SXM and 15.52% lower on B200 than pinned native FLA Triton checkpoint 1. Each seed used 10 warmups and 120 paired CUDA Graph rounds.

Each captured step contains optimizer zeroing, model forward, cross-entropy, backward, gradient accumulation, and fused capturable AdamW. Input copies, hashing, compilation, qualification, warmup, graph capture, and report serialization are outside the timed CUDA events.

The measured advantage is materially wider on this larger Full workload than on the smaller eight-layer coverage screen below. That is the observed scaling result for these two named configurations; their samples are never pooled because model depth, token count, source schedule, and campaign size differ.

See the per-seed ratios, confidence intervals, and complete configuration and the exact current raw reports. The earlier campaign remains archived against its own historical source identity and is not used by this headline.

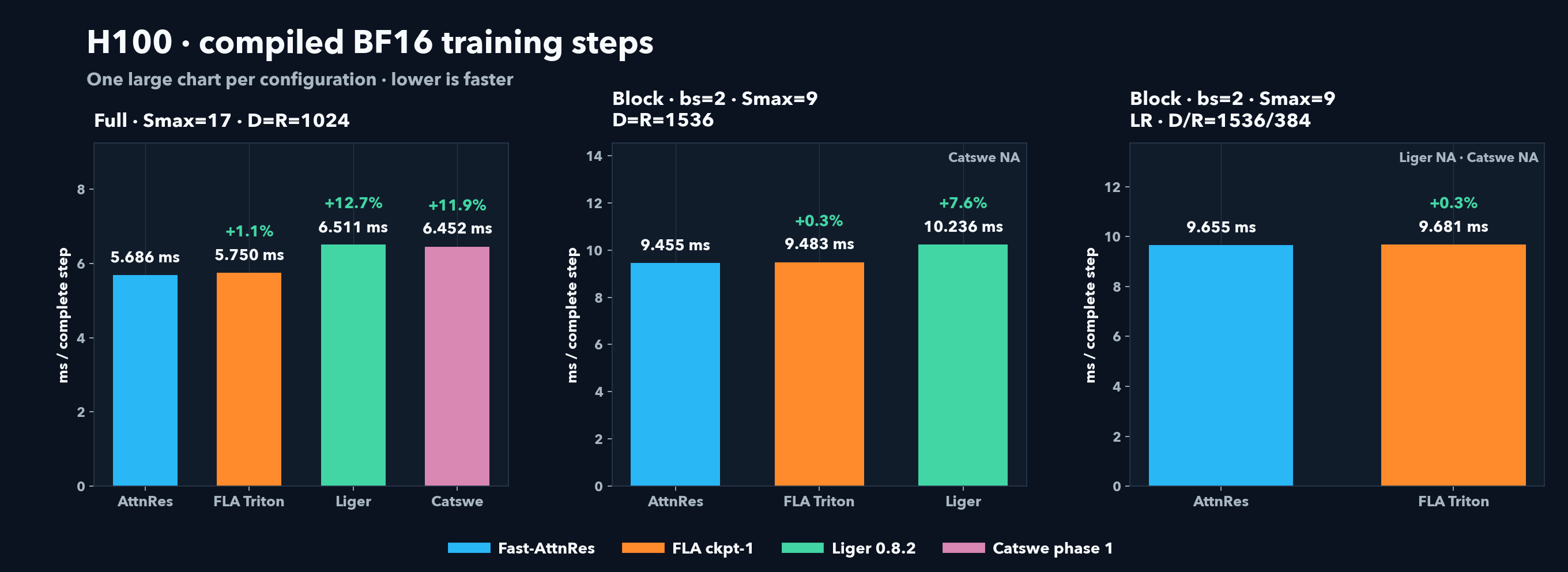

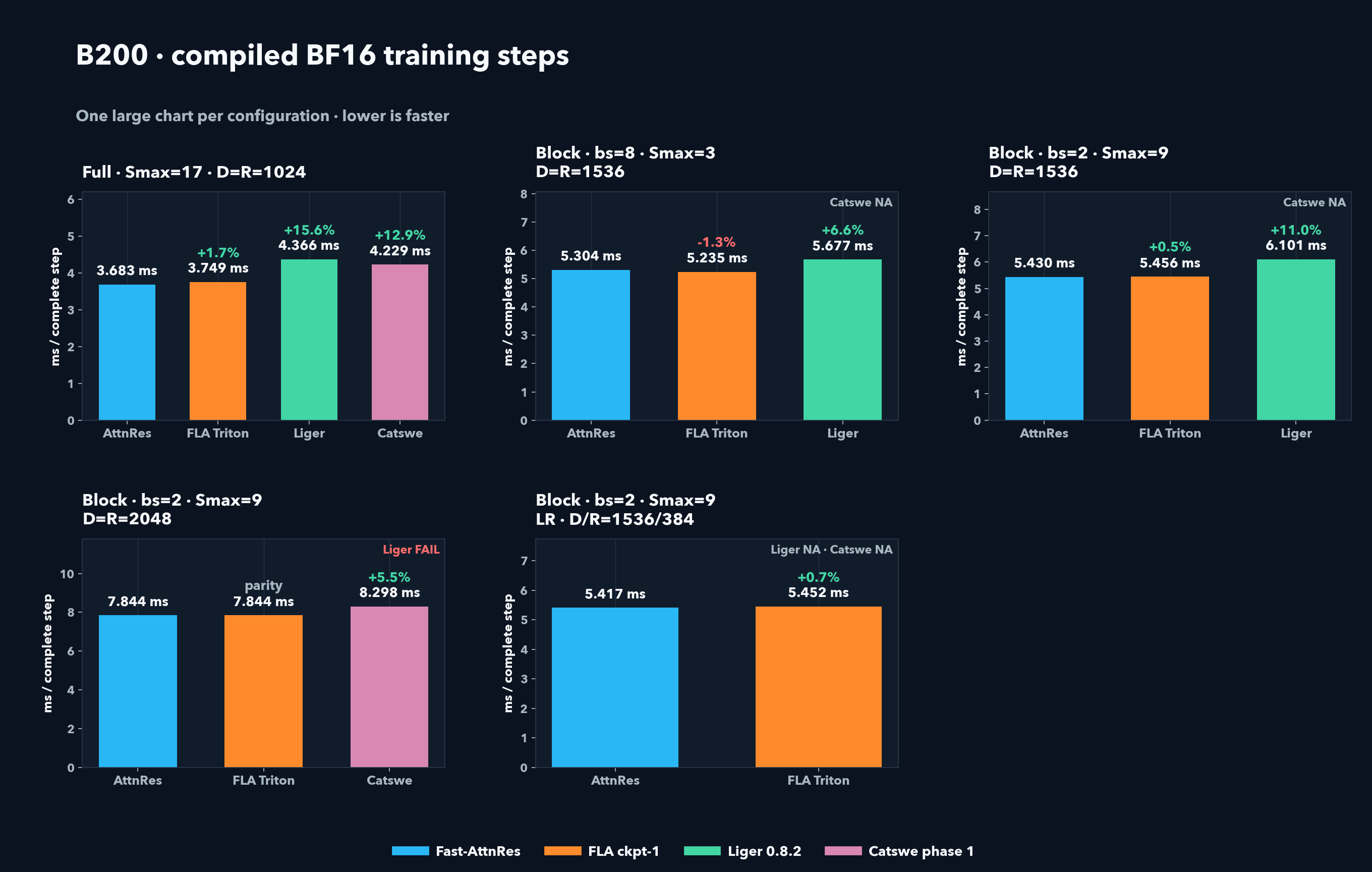

Compiled BF16 complete-training-step screen

This screen times the work people actually train with: a captured, compiled BF16 step containing optimizer zeroing, model forward, cross-entropy, backward, gradient accumulation, and fused AdamW. Input copies, compilation, qualification, warmup, graph capture, hashing, and report serialization are outside the CUDA-event interval.

Each numeric comparator arm below is a completed, independently audited row from one predeclared seed, with 5 warmups, 40 paired rounds, and a 20,000-resample simultaneous paired bootstrap. The ratio is Fast-AttnRes / comparator; lower is faster. The 95% intervals are simultaneous within each cell's comparator family. GPUs, shapes, and seeds are not pooled. This is an adoption screen, not a universal fastest claim.

Standard AttnRes (R=D, same equation)

Values are mean complete-step latency in milliseconds; the percentage in each comparator column is the Fast-AttnRes advantage.

Sliced LR-AttnRes (R=D/4, architectural comparison)

All displayed models use 8 layers, BF16 autocast, and N=1024 flattened token rows per source (batch 2 x sequence 512) on PyTorch 2.13.0+cu130 and Triton 3.7.1. S is the number of residual sources visible to each AttnRes read. Full exposes the growing 2..17 history; Block source count is controlled by the event block size, so event block size 2 produces two reads at each count 2..9.

Only arms that pass native discovery, independent output/value-gradient/query- gradient qualification, fullgraph compilation, changed-input CUDA Graph checks, and all paired samples receive a ratio. Unsupported, failed, and missing arms stay visible without a number. See the exact long-form table, machine-readable CSV, and evidence manifest for the unrounded paired ratios and simultaneous 95% intervals.

Product target and dtype roles

I treat BF16 training as the optimized product target. CUDA implementation and qualification work prioritize BF16 storage/autocast in complete training graphs, under the named hardware, runtime, and shape gates. The existing performance evidence is a BF16 training measurement, and the bounded adoption matrix is the current qualification surface for that target.

FP32 remains supported for the explicit equation/reference path, correctness oracles, and debugging. FP32 support is not an FP32 performance target: I do not infer FP32 timing, ranking, or speedup from API support or from passing an FP32 oracle check.

Install

The distribution is named fast-attnres and the Python import is the concise attnres. For the CPU/reference path, install the stable release from PyPI:

python -m pip install "fast-attnres==1.0.0"

For the qualified Linux x86-64 CUDA profile, install PyTorch's CUDA 13.0 wheel first, then the package's exact CUDA dependency set:

python -m pip install --index-url https://download.pytorch.org/whl/cu130 \
  torch==2.13.0
python -m pip install "fast-attnres[cuda]==1.0.0"

The CPU/reference path only needs PyTorch and does not import Triton. Contributors can instead install a checkout with development and test dependencies:

git clone https://github.com/jon123boss/fast-attnres.git
cd fast-attnres
python -m pip install -e ".[cuda,dev,test]"

This installs the repository-qualified CUDA profile: PyTorch 2.13.0+cu130 with the Triton 3.7.1 dependency used by that release. The compiled-step screen above was measured on this exact pair.

The wheel contains ordinary Python and Triton source. There is no compiled CUDA extension in the distribution: Triton JIT-compiles the selected kernel for the local GPU at runtime. Confirm an installation without importing Triton or requiring a GPU:

fast-attnres-info
# or: python -m attnres.info

Why Triton 3.7.1 rather than the standalone 3.8.0 release? At the v1.0.0 release cutoff (2026-08-31), PyTorch 2.13.0 was the newest stable PyTorch release and its Linux wheel declared triton==3.7.1. Triton 3.8.0 is newer in isolation, but installing it beside stable PyTorch 2.13.0 creates a dependency conflict. Fast-AttnRes therefore uses that cutoff's newest mutually compatible stable PyTorch/Triton pair instead of advertising an unqualified combination.

Quickstart: standard AttnRes

Standard AttnRes uses a full-width query (R == D). The source axis is reduced with a softmax, and the output retains the full value width:

import torch

from attnres import attnres

device = "cuda" if torch.cuda.is_available() else "cpu"
dtype = torch.bfloat16 if device == "cuda" else torch.float32
D = 1024

sources = tuple(
    torch.randn(2, D, device=device, dtype=dtype, requires_grad=True)
    for _ in range(8)
)
query = torch.nn.Parameter(torch.randn(D, device=device, dtype=torch.float32))

output = attnres(sources, query)  # [2, D]
loss = output.float().square().mean()
loss.backward()

Verify the installed package directly, without relying on repository-only examples:

fast-attnres-info
python -c "import torch; from attnres import attnres; print(attnres(torch.randn(3,2,8), torch.randn(4)).shape)"

API

values can also be one packed tensor with shape [S, ..., D]. The public signature is:

attnres(values, query, *, eps=2**-23, scale=1.0)

For source s, the operator takes the final R value coordinates as its implicit key and computes, in FP32,

t_s      = v_s[..., D-R:D]
k_s      = t_s / sqrt(mean(t_s ** 2) + eps)
p_s      = softmax(scale * dot(k_s, query), over sources)
output   = sum_s p_s * v_s

There is no output normalization or source-count prior. BF16 and FP32 values and queries are supported; the result is returned in the values' storage dtype. BF16 is the optimized training storage target. FP32 storage remains available for equation checks and debugging, not as a separate performance target.

Full and Block schedules

Full AttnRes gives each read all preceding residual sources. In the sequential Block schedule, the caller sums each completed block and passes that block output, plus the current partial block output when one exists, as ordinary sources to the same public operator:

completed = (embedding, first_block, second_block)
partial = current_partial
read_sources = completed if partial is None else completed + (partial,)
block_output = attnres(read_sources, query)

Full and per-read Block therefore share one attnres primitive. The caller owns block boundaries, partial sums, and learned queries. Block values are sums, not averages. There is no separate Block kernel, prepared-state API, or cached Block API in the public release surface.

Multi-read BF16 diagnostics

A multi-read Full or Block model can compose an intermediate source before a later read. When that intermediate is stored in BF16, the runtime's sequence of partial sums can round at different points or associate additions in a different order from a flattened equation reference. These paths are mathematically equivalent over real numbers, but BF16 storage can expose a small strict elementwise difference.

I treat such a difference as a composition-order diagnostic, not a relaxed correctness criterion. A strict elementwise mismatch remains a test failure: the protocol does not change tolerances, delete the case, or convert the row into a passing qualification result.

examples/block_schedules.py runs the Full reduction and the same per-read schedule on small CPU or CUDA inputs:

python examples/block_schedules.py

Sliced LR-AttnRes

Once standard AttnRes is working, choose a shorter query (R < D) to use sliced LR-AttnRes, the extension developed in the Low-Rank Attention Residuals paper. The big idea is to keep the residual stream at full width while learning the source-selection query in a smaller routing space. Its implicit key is the final R coordinates of each full-width value, so routing shrinks while the output remains full width:

rank = 64
query = torch.nn.Parameter(torch.randn(rank, device=device, dtype=torch.float32))
output = attnres(sources, query)  # still [2, D]

The examples/lr_attnres.py script uses the LearnedQuery helper and checks the full-width output:

python examples/lr_attnres.py

R == D is standard AttnRes; R < D is sliced LR-AttnRes. The small attnres.modules.LearnedQuery(rank) module is available when a trainable static query parameter is convenient. Explicit projected-key and carrier APIs are outside this release.

Support and API boundaries

These dimensions and dtypes describe the equation and API domain. CUDA qualification is narrower: only the bounded adoption matrix has passed under PyTorch 2.13/Triton 3.7.1, so the entire S <= 129, D <= 8192 API envelope must not be treated as CUDA-qualified.

The examples/packed_and_list.py script compares packed tensors with ordered lists and tuples for both standard and sliced calls:

python examples/packed_and_list.py

CUDA source-list calls keep individual producer tensors when their layout is usable. A non-affine producer or incoming gradient may receive its own contiguous copy, so source lists do not promise universal zero-copy behavior. Second-order behavior is not part of the public contract.

The package exports attnres for the runtime route, reference_attnres for the explicit equation reference, LearnedQuery, and __version__.

For a compact equation and detailed layout/gradient rules, see the equation and API contract. For support, please open a GitHub issue with your OS, GPU, PyTorch/Triton/CUDA versions, source container, shapes, dtypes, and a minimal reproducer.

PyTorch integration

The public operator is an ordinary PyTorch call, so it can be wrapped by torch.compile or checkpointing:

import torch

from attnres import attnres
from torch.utils.checkpoint import checkpoint

sources = tuple(
    torch.randn(2, 1024, device="cuda", dtype=torch.bfloat16, requires_grad=True)
    for _ in range(4)
)
query = torch.nn.Parameter(torch.randn(1024, device="cuda", dtype=torch.float32))

def residual(values, query):
    return attnres(values, query)

compiled_residual = torch.compile(residual)
compiled_output = compiled_residual(sources, query)
checkpointed = checkpoint(residual, sources, query, use_reentrant=False)

The examples/backward.py script checks first-order value and query gradients. The examples/torch_compile.py script compares eager and compiled outputs; it uses the lightweight eager compile backend by default and accepts --backend inductor for an optimized backend smoke test:

python examples/backward.py
python examples/torch_compile.py
python examples/torch_compile.py --backend inductor

Competitor eligibility and interpretation

The measured rows above are complete training-step comparisons at the stated shape. The same public AttnRes schedule, model state, inputs, optimizer, warmup, and paired order are used for every eligible arm. Adapter staging is not hidden outside the captured step.

The public API envelope is broader than this measured screen. FP32 remains an equation/reference and debugging path, but no FP32 performance claim is made. See the matched competitor protocol for capability gates, adapter costs, provenance, licenses, and explicit not_applicable handling.

Verify locally

Run the CPU and static checks from the repository root:

PYTHONDONTWRITEBYTECODE=1 python -m pytest -m "not cuda" -q

On a configured CUDA device, run the GPU-marked checks separately:

PYTHONDONTWRITEBYTECODE=1 python -m pytest -m cuda -q

The headline 24-layer campaign is independently auditable on CPU from the checked-in raw reports and exact measured-source archive:

python -m benchmarks.audit_current_24l \
  --evidence-dir results/current_24l --repo .

To regenerate the hero after installing .[plot]:

python -m benchmarks.plot_compiled_step_hero \
  --projection results/current_24l/hero_projection.json \
  --output-dir docs/assets

The small training harness exercises standard/sliced and Full/Block routes:

PYTHONDONTWRITEBYTECODE=1 PYTHONPATH=src:. \
  python examples/train.py --backend reference --device cpu \
  --mode full --variant standard --steps 2

Use --backend kernel --device cuda on a configured CUDA environment. The example trains on random next-token data and is a smoke test, not a benchmark.

Citation and license

Please cite Attention Residuals for the base method and Low-Rank Attention Residuals for the low-rank extension. For the implementation itself:

@misc{su2026attnreskernels,
  author  = {Jonathan Su},
  title   = {Fast Attention Residuals},
  year    = {2026},
  url     = {https://github.com/jon123boss/fast-attnres}
}

The package is released under the MIT License. The FLA-derived source-list kernel attribution and license notice are recorded in NOTICE.
