FastTurbo

Watch two-dimensional turbulence evolve on your GPU.

FastTurbo combines an interactive desktop application with a Python API for simulating decaying, incompressible 2D flow. Explore swirling vorticity, inspect energy and enstrophy, and export fields for analysis. Native Metal / VkFFT on macOS and CUDA / VkFFT on Windows handle the simulation and rendering.

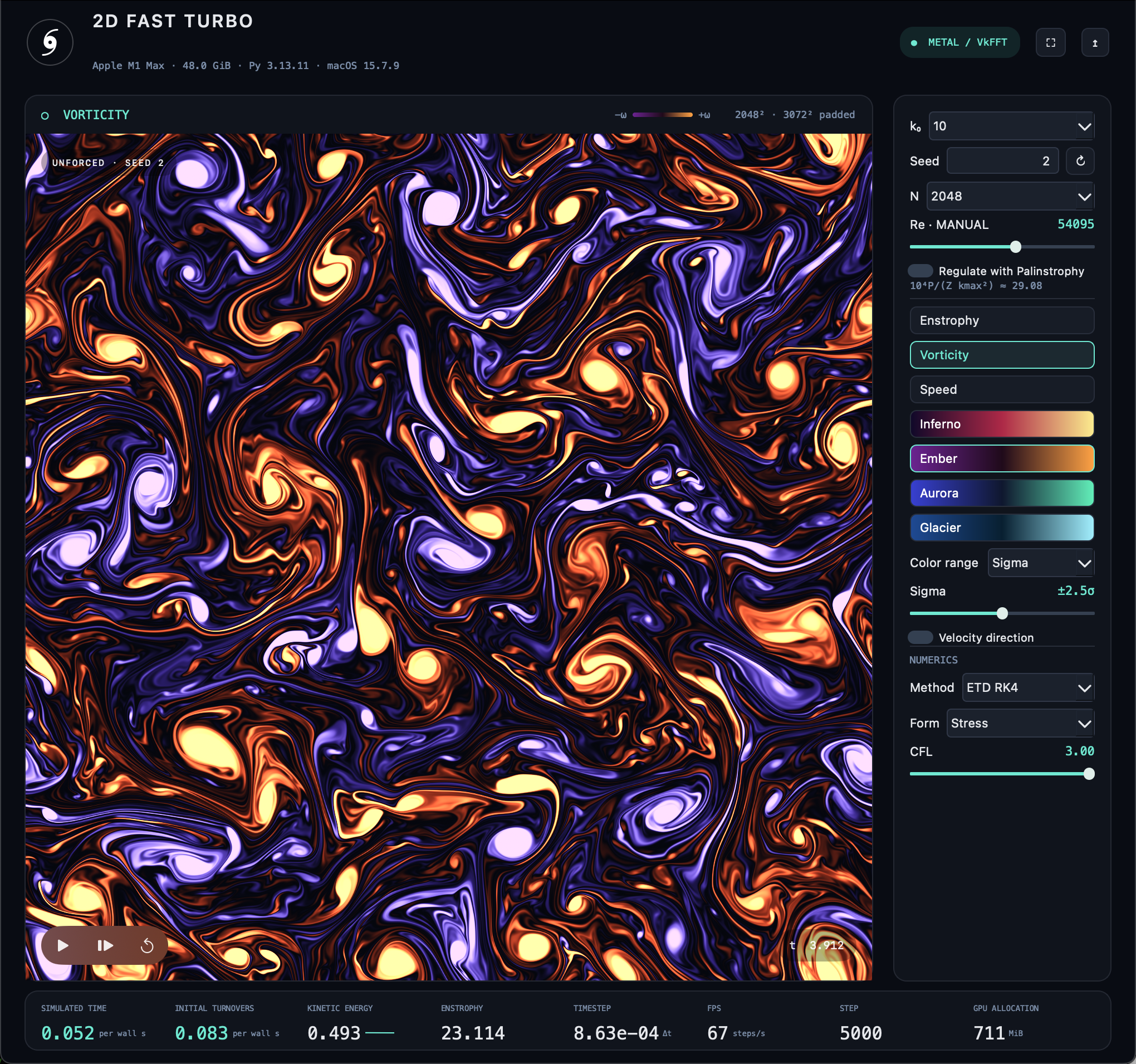

An actual run on Apple M1 Max after 5,000 iterations: a 2048 × 2048 grid, 3072 × 3072 padded workspace, k₀=10, seed 2, Palinstrophy regulation off, and the Ember palette.

Install and launch

Run with uv (recommended)

With uv installed, launch FastTurbo in an isolated environment:

uv tool run --python 3.13 --no-build --from fastturbo 2dfastturbo

Or use the equivalent uvx shortcut:

uvx --python 3.13 --no-build --from fastturbo 2dfastturbo

uv manages the environment, downloads Python 3.13 if needed, and installs FastTurbo and PySide6 automatically. --no-build requires prebuilt wheels. Add application options after 2dfastturbo, such as --help or --benchmark --steps 200.

Install with pip

Use Python 3.13 or later in a virtual environment on a supported platform:

python -m pip install --only-binary=:all: fastturbo
2dfastturbo

You can also launch with python -m fastturbo.

Prebuilt wheels include the native engine. No Xcode, CUDA Toolkit, C++ compiler, or source checkout is needed to install and run a wheel. uv or pip installs the PySide6 desktop dependency automatically. The binary-only option ensures installation uses available wheels.

The Windows wheel bundles the CUDA runtime and NVRTC; install the NVIDIA driver separately. Linux, Intel Macs, Windows ARM64 and CPU-only execution are not supported by these wheels. If pip reports no matching distribution, check your Python version, operating system and architecture.

Explore the flow

• Live visualization: switch between vorticity, enstrophy and speed; choose Ember, Inferno, Aurora or Glacier colors and adjust the display range.
• Interactive controls: pause, single-step, reset the flow or change the seed. Adjust resolution, Reynolds number, timestep control and integration method from the window.
• Native GPU computation: FFTs, simulation buffers, timesteps and field rendering stay in the native backend while Python provides the controls.
• Reproducible experiments: use a fixed seed, advance exact step counts, inspect diagnostics and export numerical fields or PNG images.

The GUI starts with a 2048 × 2048 grid, ETD RK4 integration, stress form, CFL 3, k₀=10, seed 2 and palinstrophy regulation off. Enable Regulate with Palinstrophy to adjust the Reynolds number automatically. Changing N or k₀ recalculates the initial Re from the calibration formula in either mode. Press Space to pause or resume, Right Arrow to single-step and R to reset. Press Ctrl+Q on Windows or Cmd+Q on macOS to quit the application. On Windows, the title-bar X and Alt+F4 also quit and stop the simulation. File → Close Window hides it to the notification area while computing continues. On macOS, closing the window keeps the simulation running for Dock reopen.

Use from Python

from fastturbo import Configuration, Engine, get_backend_info

print(get_backend_info())

with Engine(Configuration(resolution=1024, reynolds=50_000, seed=2)) as engine:
    engine.advance(steps=32)
    diagnostics = engine.inspect()
    print(diagnostics)

    engine.export(png="flow.png", display="vorticity", palette="ember")
    engine.export(spectrum="spectrum.c64", fields="fields.f32")

Engine is a synchronous batch API. create_engine is an alias for Engine. Call inspect() after advancing to refresh energy, enstrophy and palinstrophy. Use engine.set_parameters(reynolds=40_000, cfl=2) to change parameters while preserving the field and clock, or engine.reset() to restart with the same seed.

Spectrum exports contain normalized, little-endian complex64 Fourier-series coefficients in [ky, kx] order, with shape N × N. Field exports contain little-endian float32 vorticity and the two velocity components, in [omega, u, v] order, with shape 3 × N × N.

Initialize the native library on the main thread before creating engines from worker threads. GUI calls must stay on the main thread. For headless experiments, set Reynolds number explicitly when changing resolution or initial wavenumber; the GUI's automatic regulation is separate from the batch API.

Run a benchmark

Run 200 timesteps without opening the desktop window and save JSON diagnostics:

2dfastturbo --benchmark --resolution 1024 --reynolds 50000 --steps 200 --output results/benchmark.json

Save the final field as an image:

2dfastturbo --benchmark --steps 5000 --export flow.png

Use 2dfastturbo --help for all options, including integration methods, display settings, field exports and visible GUI benchmarks.

License and included resources

FastTurbo's own code, documentation and screenshot are MIT licensed, Copyright © 2026 Torbjörn Sjögren. Bundled VkFFT and nlohmann/json retain their MIT notices; Apple metal-cpp uses Apache-2.0. The Windows CUDA components retain the NVIDIA CUDA Toolkit agreement. License texts and component notices are included in each distribution under fastturbo-<version>.dist-info/licenses/. PySide6 and Qt are installed separately under their own licenses.

The screenshot above is hosted in the public FastTurbo media repository, so it is visible without access to the private application repository. A copy is also included in the installed package at fastturbo/assets/macos-5000-iterations.png.
