faultree 0.2.1

Fault Tree Analysis using BDDs

Faultree

A Python tool for Fault Tree Analysis (FTA) using Ordered Binary Decision Diagrams (OBDD).

Overview

• Converts a Fault Tree (FTA) JSON into an Ordered BDD using the dd package.
• Supports logic gates: AND, OR, XOR, K-of-N.
• Outputs algebraic and symbolic expressions.
• Computes Top Event and Intermediate Event probabilities from Basic Event probabilities.
• Supports internal event cloning via ref (reference nodes).

Tree Format

• Fields:
  • id (string): Unique identifier for the event.
  • name (string): Descriptive name.
  • event_type: top, intermediate, basic, or undeveloped.
  • gate: AND, OR, XOR, K_OF_N, or null/BASIC for leaves.
  • children (list): Child nodes.
  • k (int): Required for K_OF_N gates.
  • prob (float): Probability for basic/undeveloped events.
  • ref (string): ID of another node to clone/reference.

Supported Formats

Faultree supports two JSON formats:

1. Recursive Tree (Standard): Nodes nested within children.
2. Flat List (New): Nodes defined in ft_nodes and be_nodes lists, with branches referencing child IDs. This format is automatically detected.

Usage

1. Install Dependencies:

   python3 -m venv .venv
   . .venv/bin/activate
   pip install -r requirements.txt


2. Run Analysis:

   python faultree_cli.py examples/sample_tree.json


3. Override Probabilities (optional):

   python faultree_cli.py examples/sample_tree.json --probs '{"BE1": 0.05}'


4. Reliability Analysis (Success Mode): Calculate reliability (Success Probability) from a Fault Tree model. This mode interprets the input tree as a Fault Tree (Failure Logic) but computes the Dual (Success) Tree and expects reliability values as input.

   python faultree_cli.py examples/sample_tree_success.json --reliability


5. Run API Server:

   python faultree_cli.py --serve


   Example Request:

   curl -X POST http://localhost:8000/analyze \
     -H "Content-Type: application/json" \
     -d '{
       "tree": {
         "id": "TOP",
         "gate": "OR",
         "children": [
           {"id": "A", "prob": 0.1},
           {"id": "B", "prob": 0.2}
         ]
       }
     }'


Features

• Logic Gates: AND, OR, XOR (Exactly One), K-of-N (At least K).
• Probability Calculation: Uses Weighted Model Counting (WMC) on the BDD.
• Symbolic Output: Prints algebraic expressions (e.g., (A + B * C)).
• Ref/Clones: Supports reusing events within the same tree using {"ref": "ID"}.
• API: Built-in FastAPI server for integrating with other tools.

Backlog

• Transfer Symbols: Support splitting trees across multiple files/trees (e.g., transfer_in pointing to a separate file).
• Minimal Cut Sets: Extract and report minimal cut sets.
• Variable Ordering: Implement heuristics (sifting, metaheuristics) for BDD optimization.
• Advanced Distributions: Support dist/parameters (Exponential, Weibull) for time-dependent analysis.
• Data Sampling: Estimate probabilities from sample data.

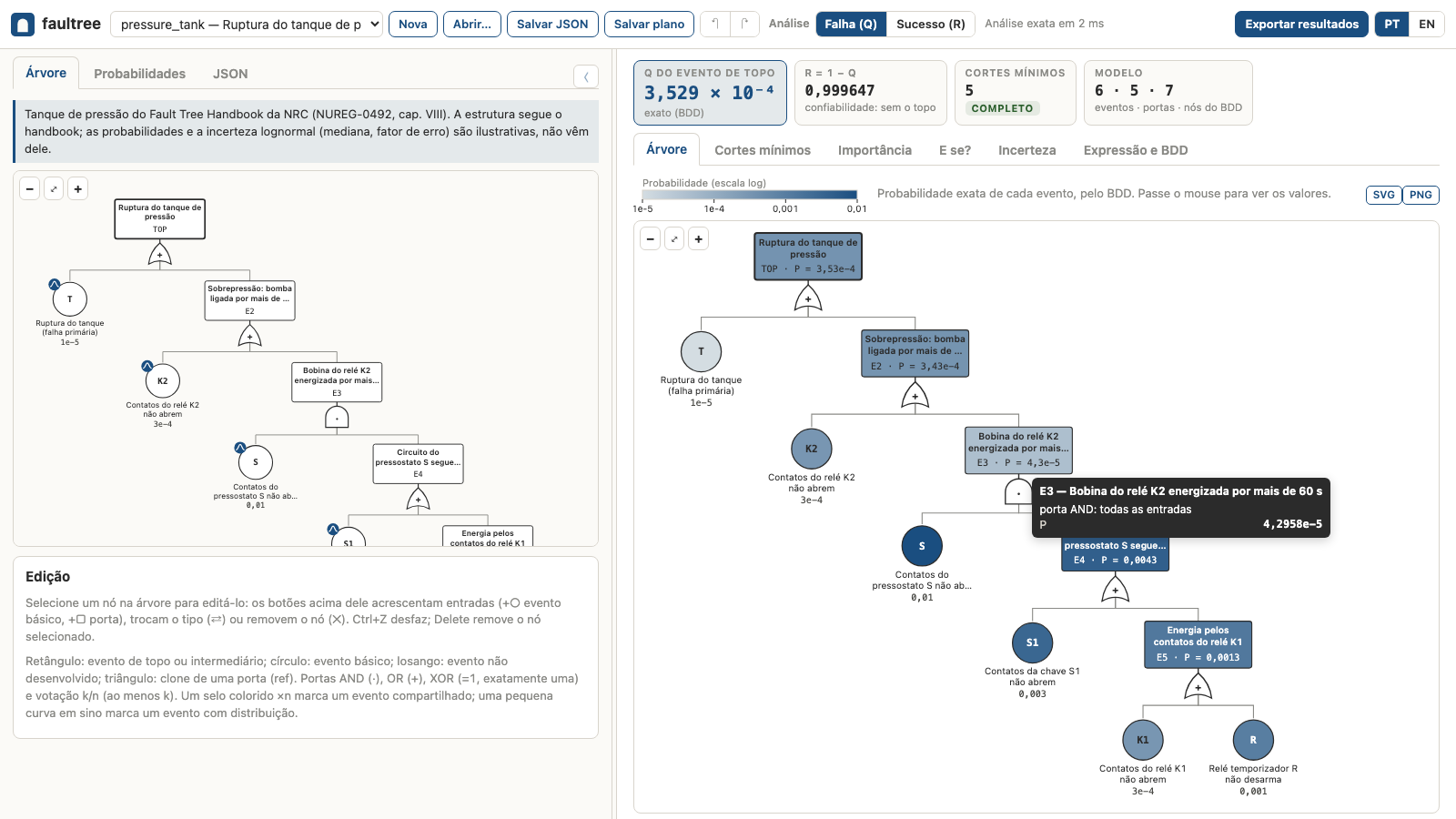

• Frontend: Web UI for visualization and analysis.

Notes

• Assumes independent basic events.
• Variable ordering is currently based on traversal order unless specified.
